2018 Shenyang Zhongjie GMC 2580 RL CNC Gantry Boring & Milling Machine with Siemens 828D

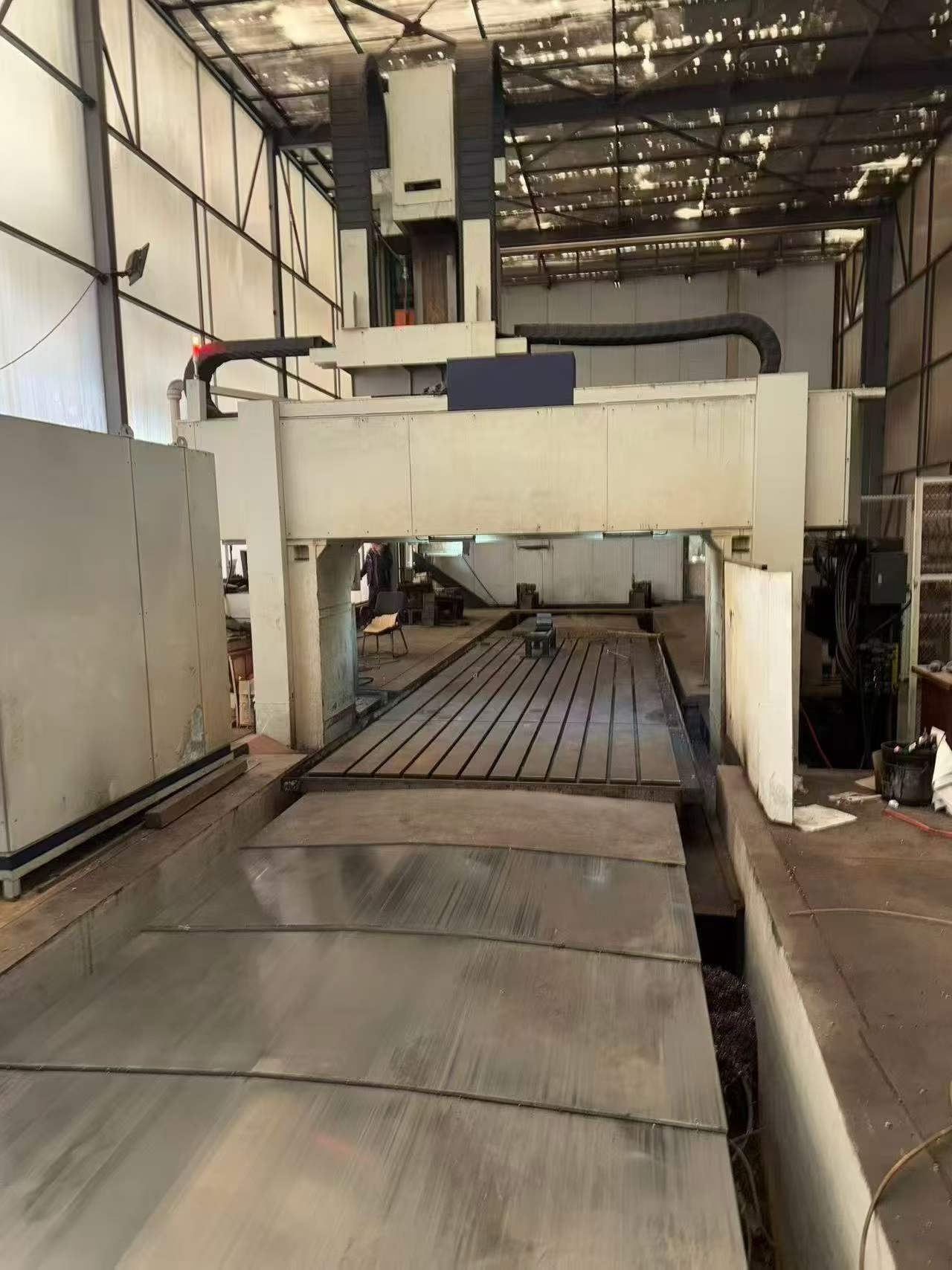

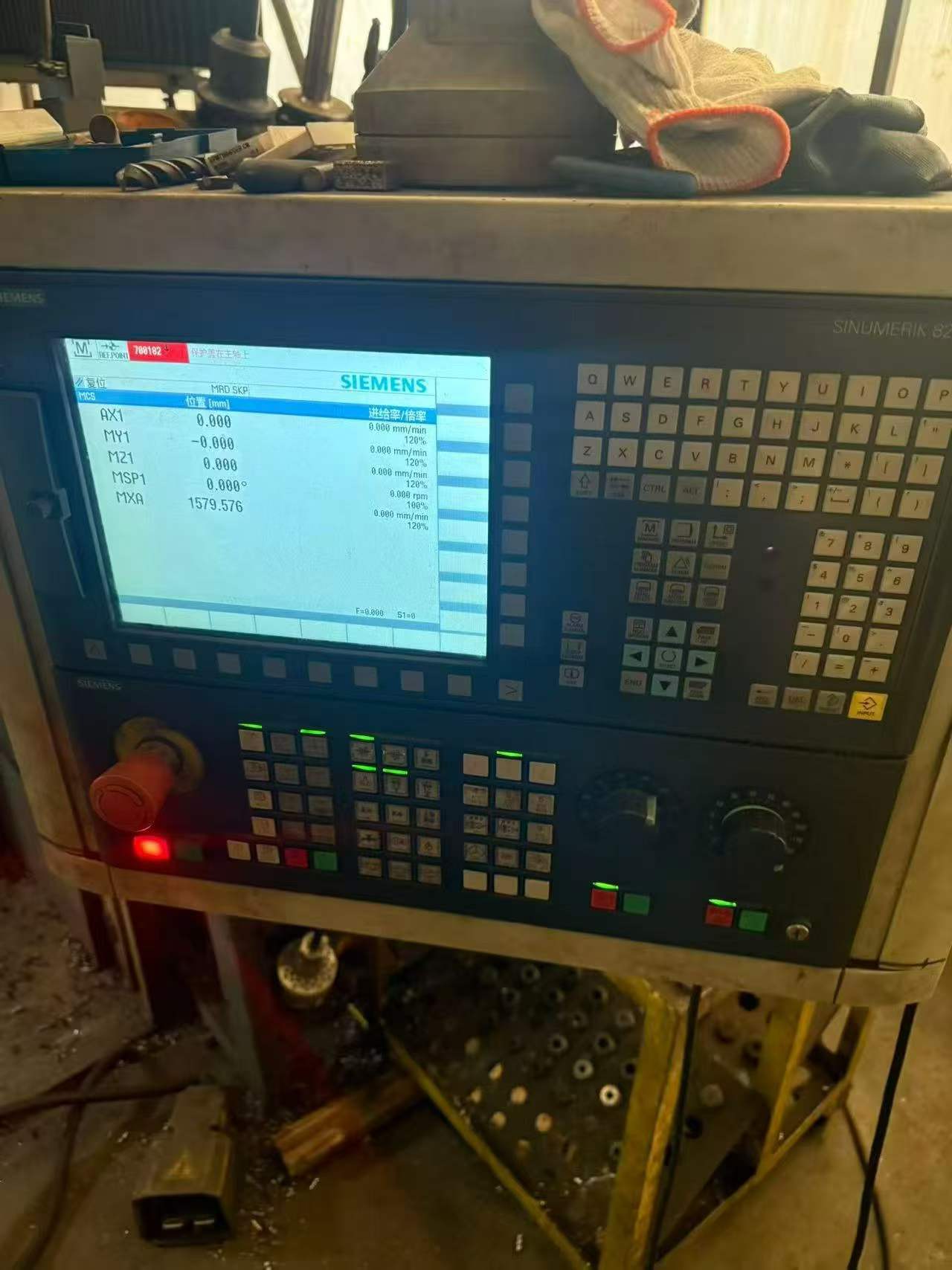

Offered for sale is a used 2018 Shenyang Zhongjie GMC 2580 RL CNC gantry boring and milling machine. Equipped with Siemens 828D control, BT50 spindle at 4500 rpm, gear head, square ram 400 x 400 mm. Worktable size 2500 x 8000 mm, max width 3300 mm, max height 1600 mm, Z-axis travel 1250 mm, 32-tool vertical/horizontal tool magazine, 3-axis linear scales. Machine is available for inspection and can be shipped from China.
- Machine Code
- OE260621
- Year
- 2018
- Location
- China
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Spindle taper | BT50 |
|---|---|
| Spindle speed | 4500 rpm |
| Spindle drive | Gear-driven |
| Ram size | 400x400 mm |
| Worktable size | 2500x8000 mm |
| Max through width | 3300 mm |
| Max height | 1600 mm |
| Z-axis travel | 1250 mm |
| Tool magazine capacity | 32 tools (vertical/horizontal) |
| Linear scales | 3 axes |
| Machine Model | GMC 2580 RL |
| Year | 2018 |
| Controller | Siemens 828 |
