AvailableCNC Lathe

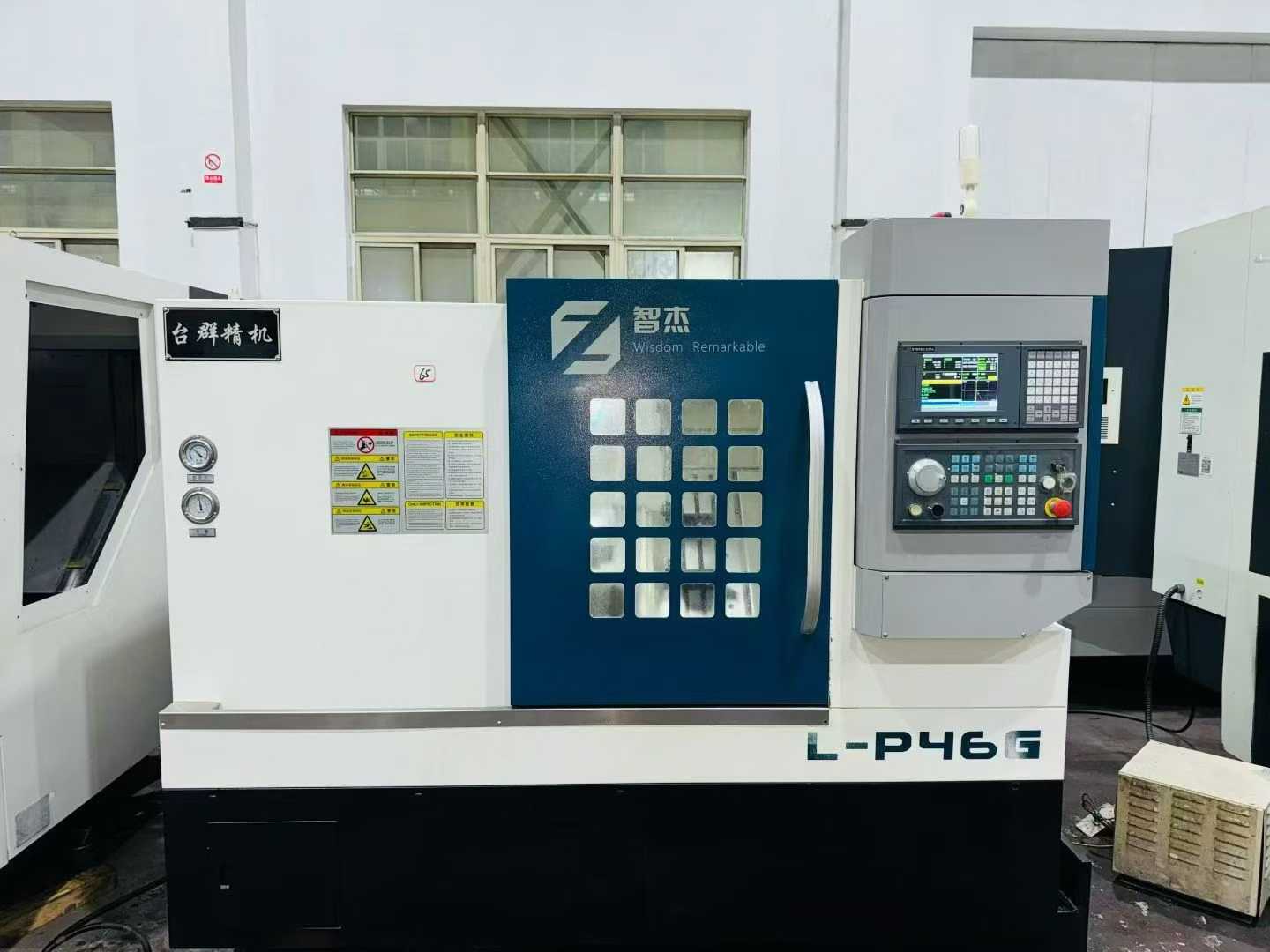

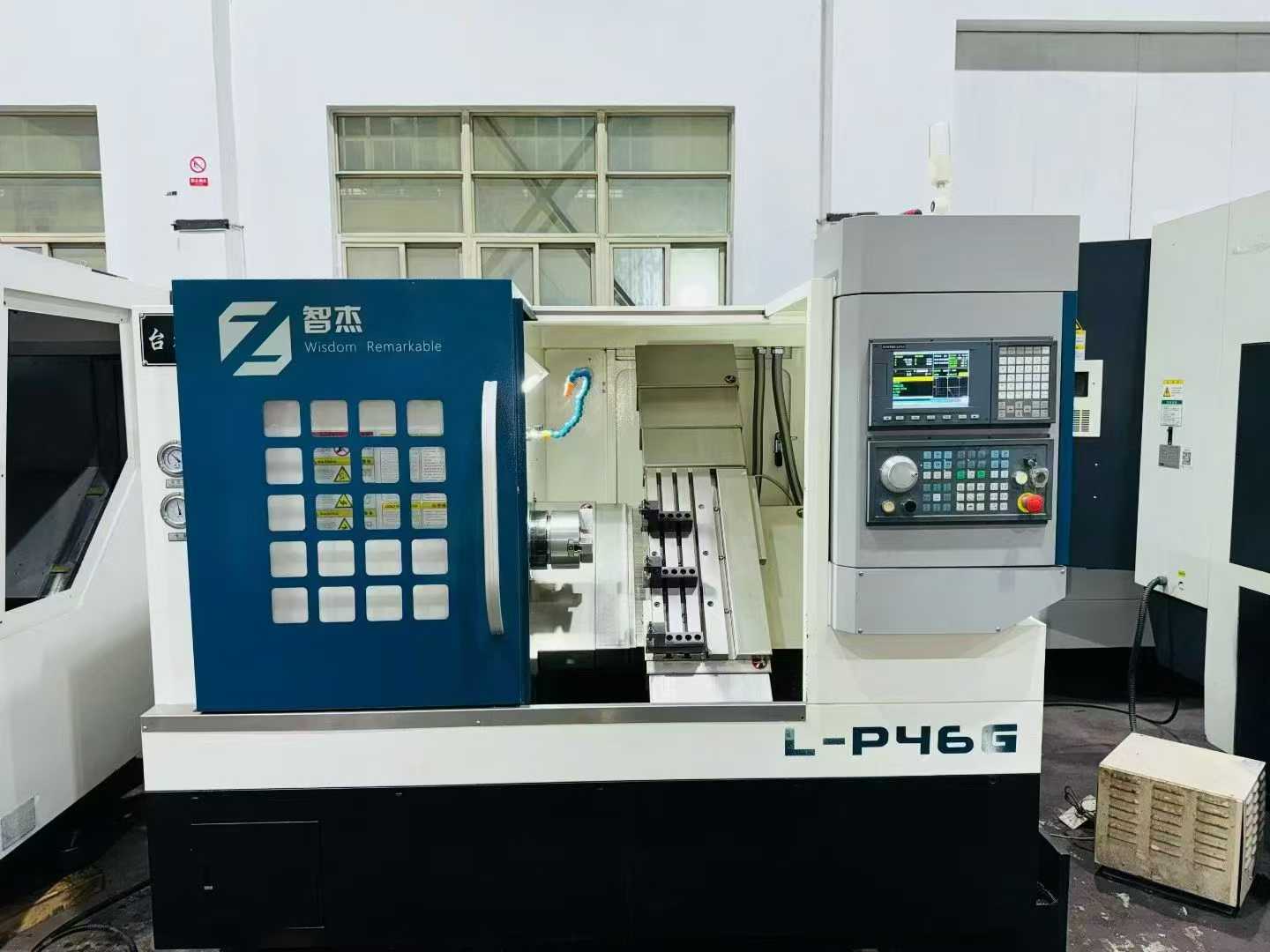

2023 T-WIN L-P 46 G Gang-Type CNC Lathe, 99% New

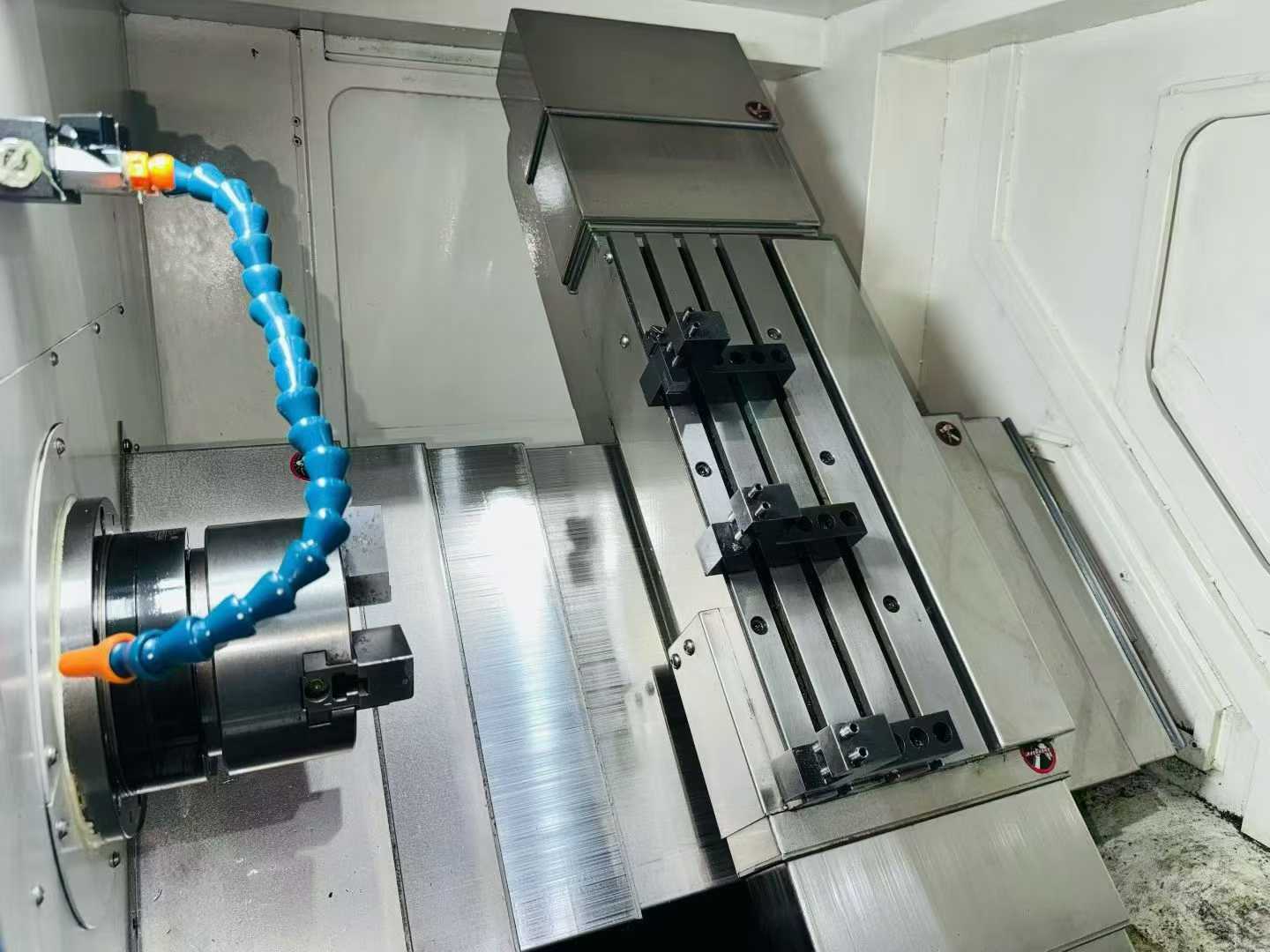

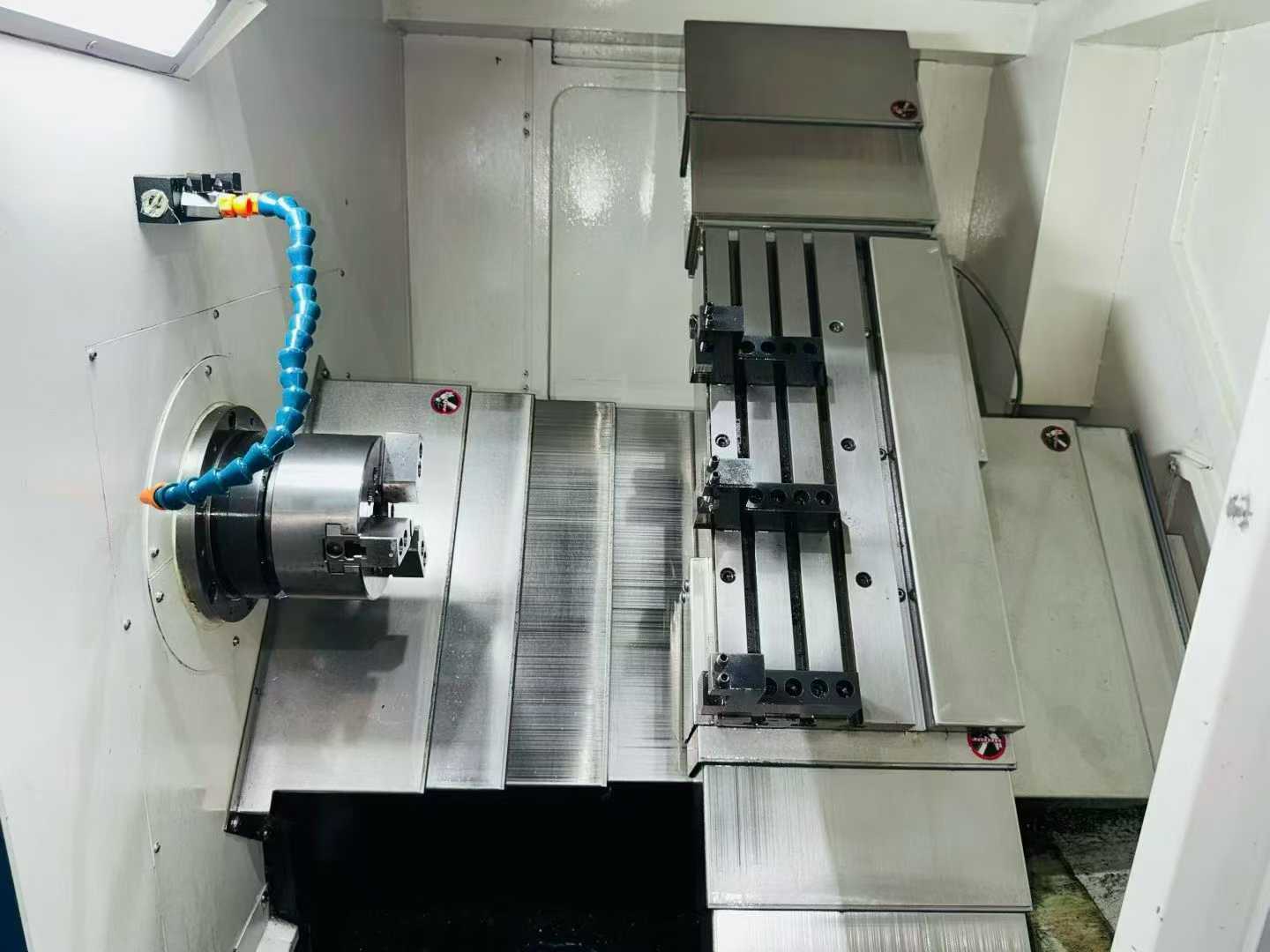

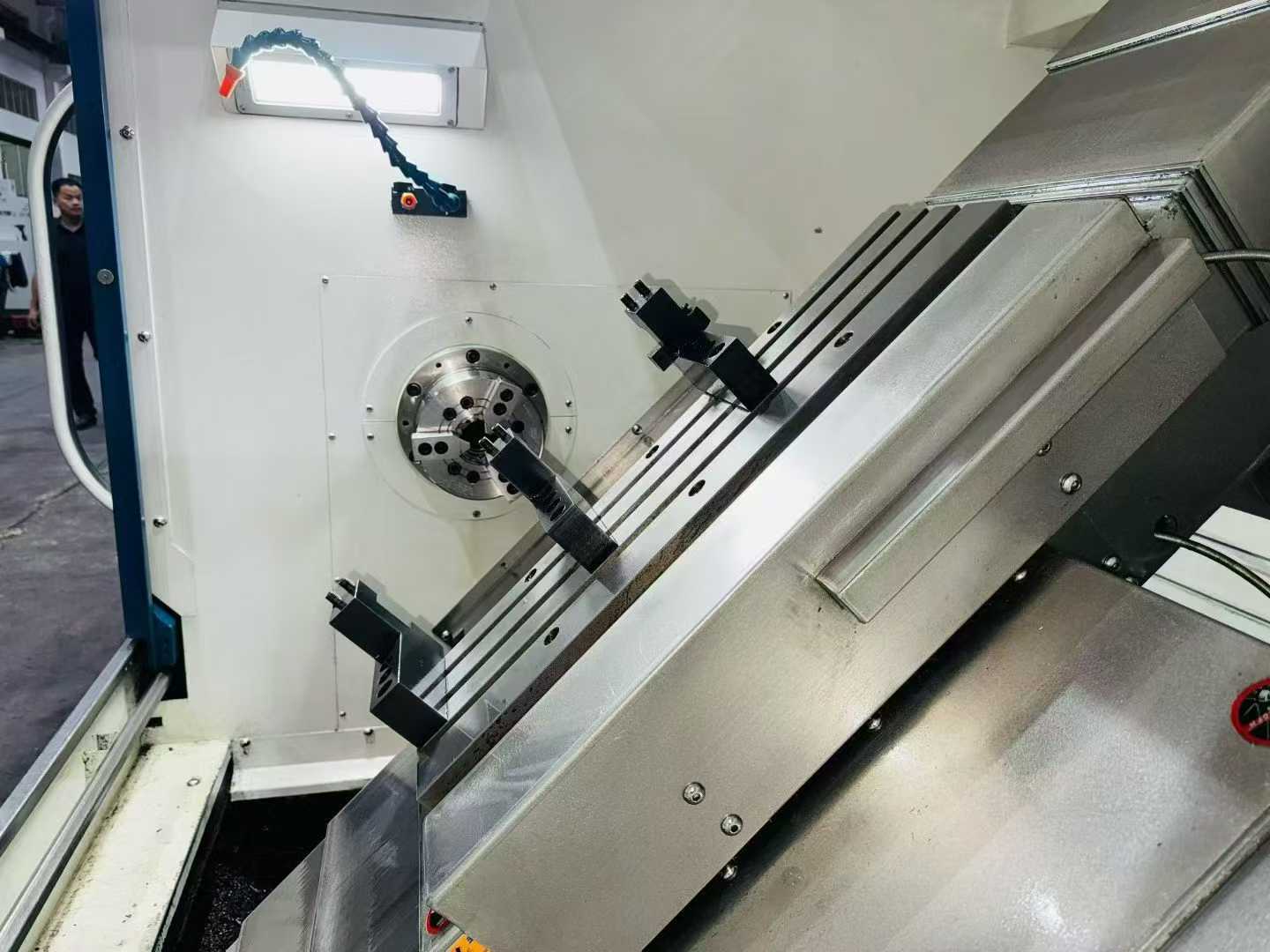

High-speed linear guideway gang-type CNC lathe by T-WIN. Manufactured in 2023, installed and essentially unused. Equipped with a 6000 rpm Taiwan Yucheng A 2-5 high-speed spindle unit, 5.5/7.5 kW servo spindle motor, SYNTEC 22TA absolute bus control system, and large X 900 / Z 380 mm travels. Original new machine purchase price was RMB 140,000 per unit; now offered at a near-new used price. Available from China.

Machine Code: CL260843
Year: 2023
Location: China
Usage Hours: On request

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Gang-type CNC lathe
Brand	T-WIN
Model	L-P 46 G
Year	2023

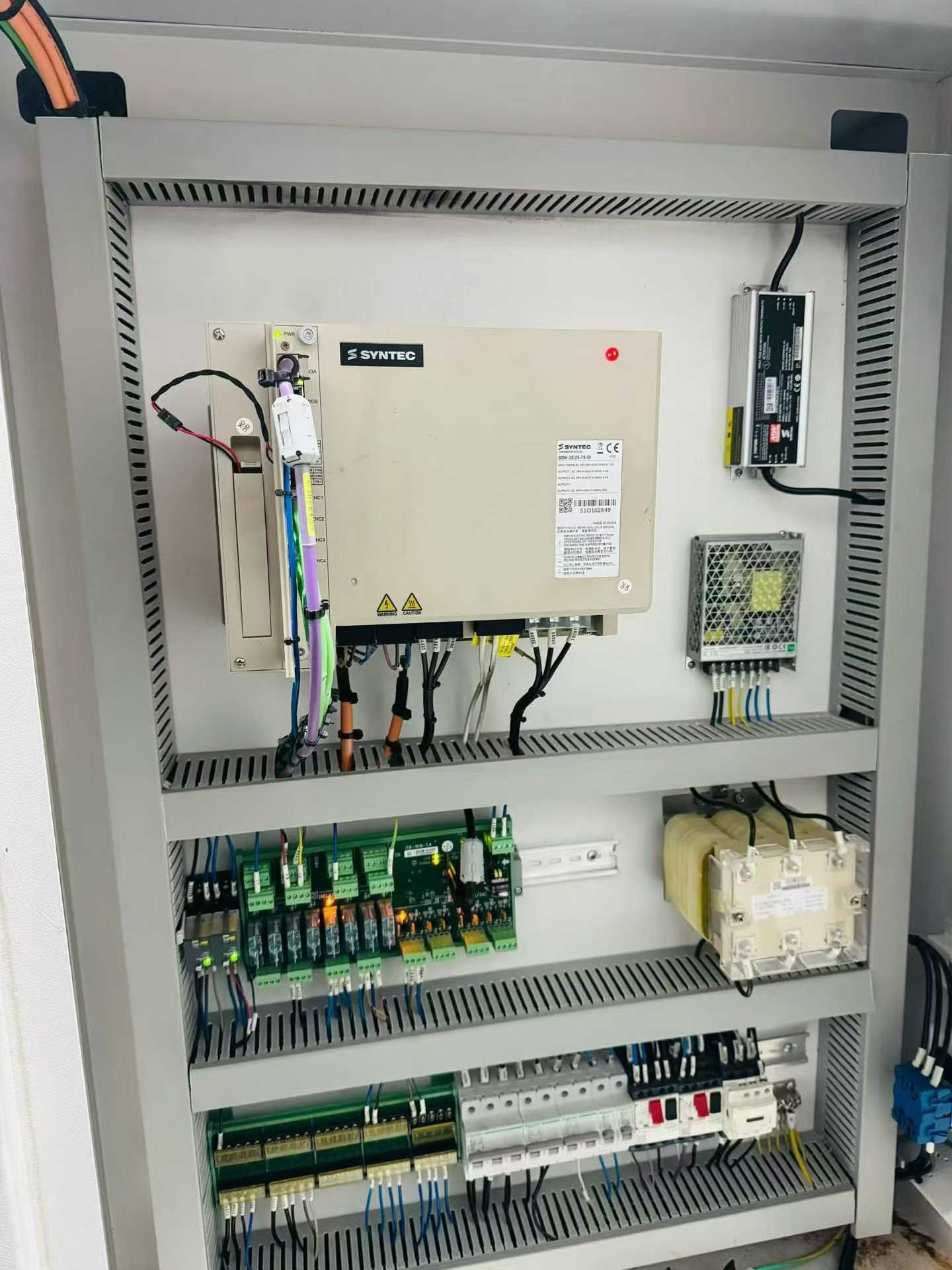

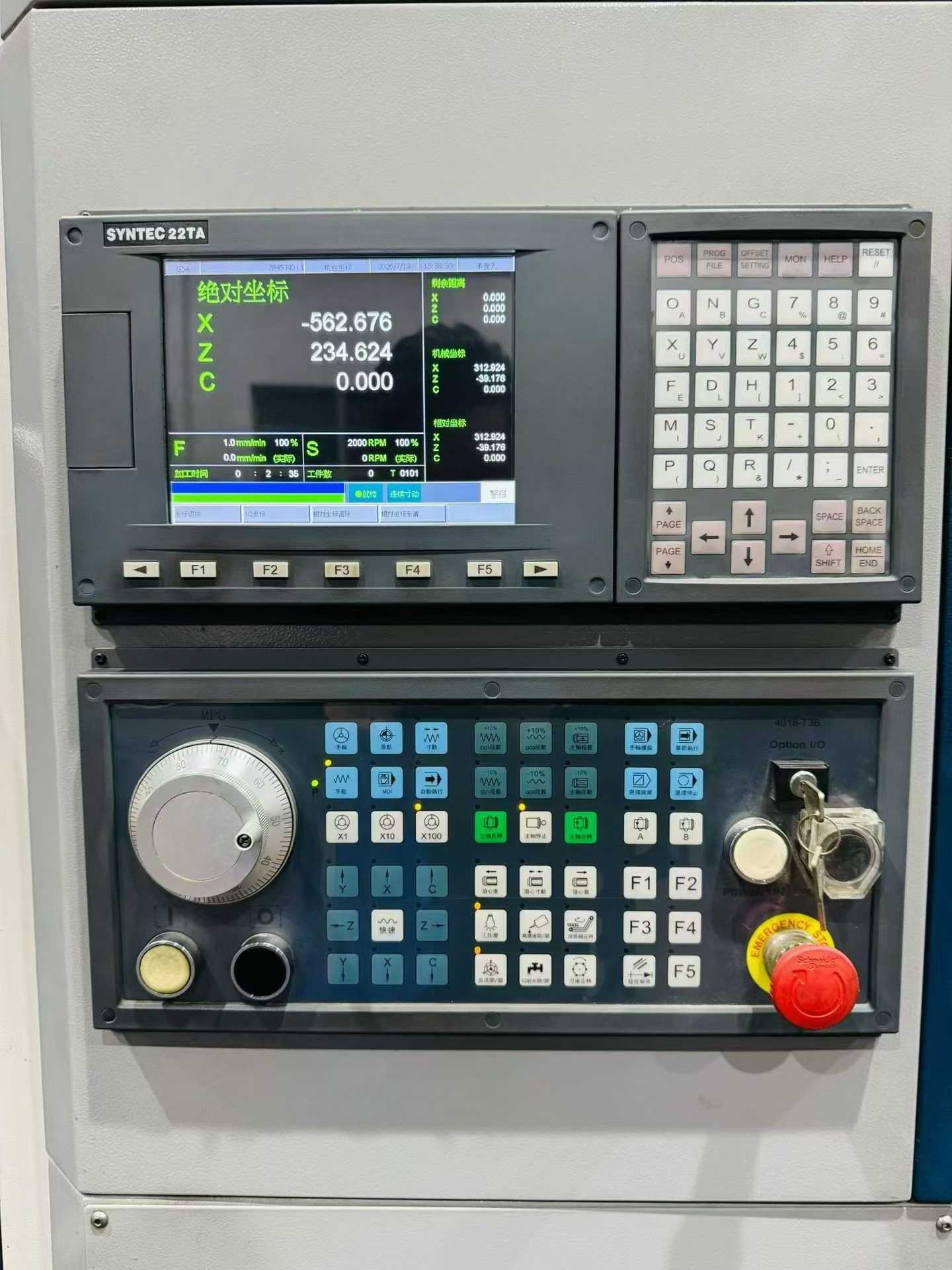

Control system	SYNTEC 22TA absolute bus system
Spindle speed	6000 rpm
Spindle nose	A 2-5
Spindle motor power	5.5/7.5 kW
X travel	900 mm
Z travel	380 mm
Condition	99% new / installed and basically unused
