Used Takumi H 32 S High-Speed Gantry Machining Center with FANUC 18 i-MB
Takumi · H32S
2000 · FANUC · China

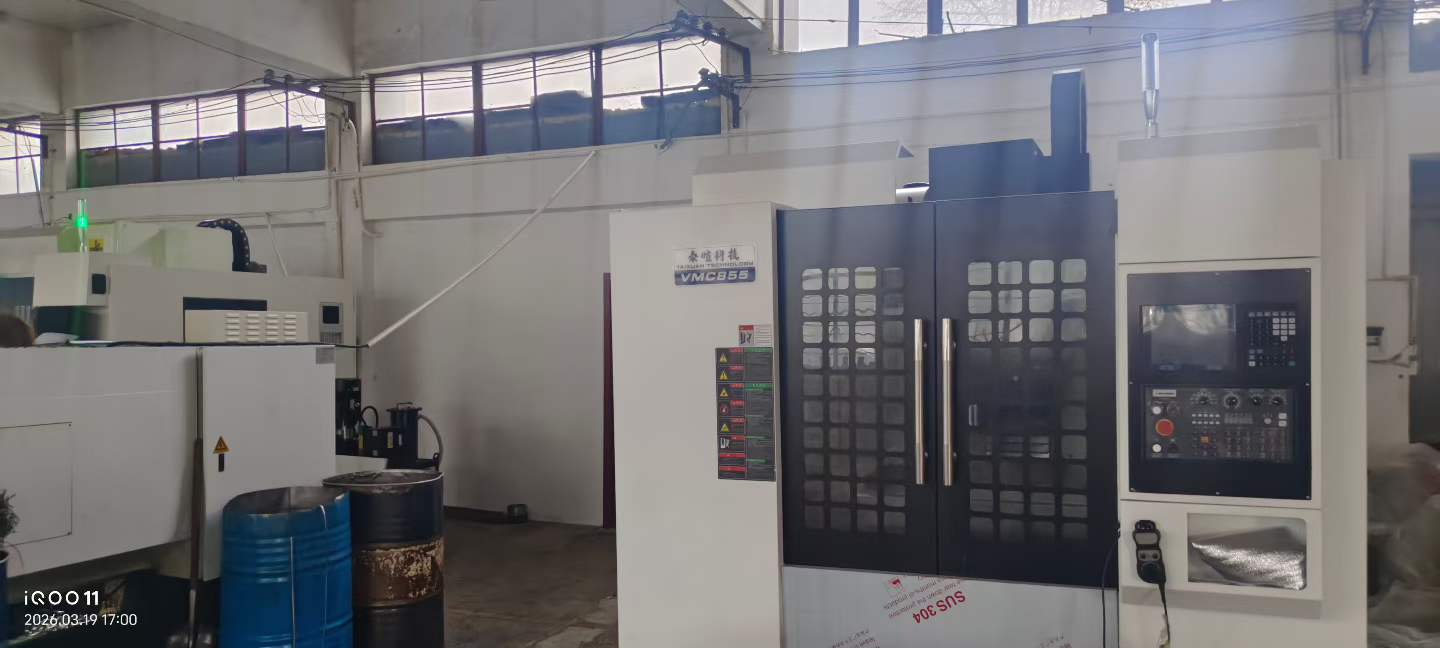

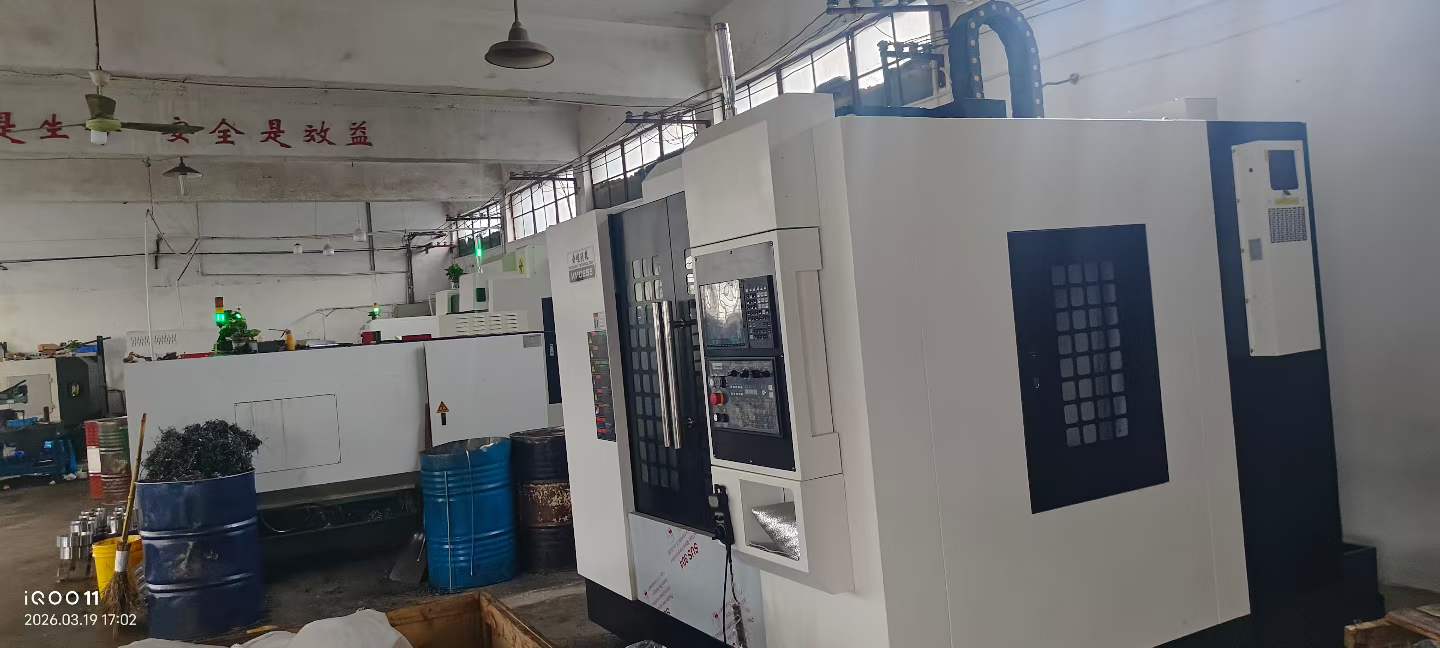

One heavy-duty 855 vertical machining center with Mitsubishi M 80 control. This machine was purchased new and has not been put into use. It has 45 mm roller linear guideways on all three axes, a 1000 x 550 mm worktable, and a belt-driven 10,000 rpm spindle with oil cooling and 30 kgf/cm² through-spindle coolant. Pickup is at the factory in Jinshan, Shanghai.

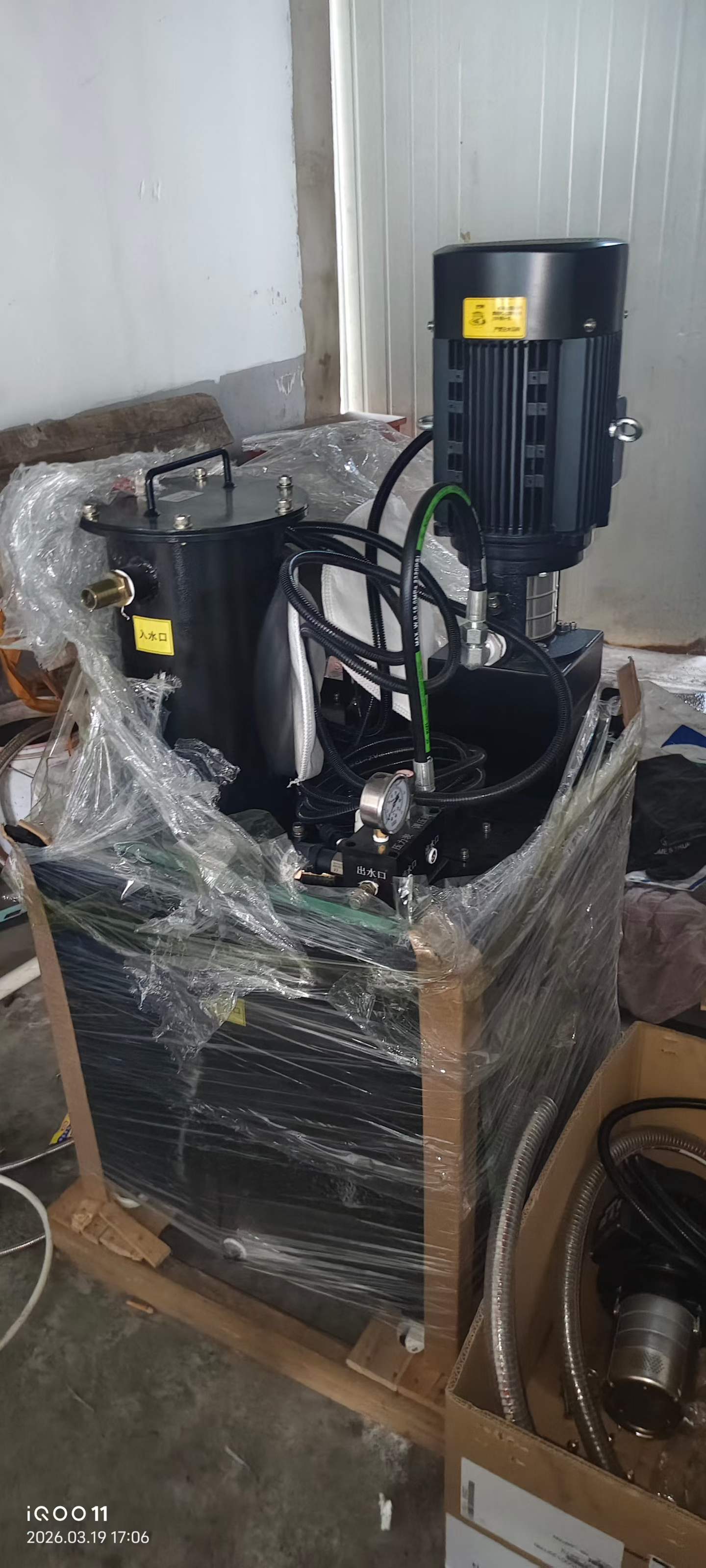

Through-spindle coolant, spindle oil cooler

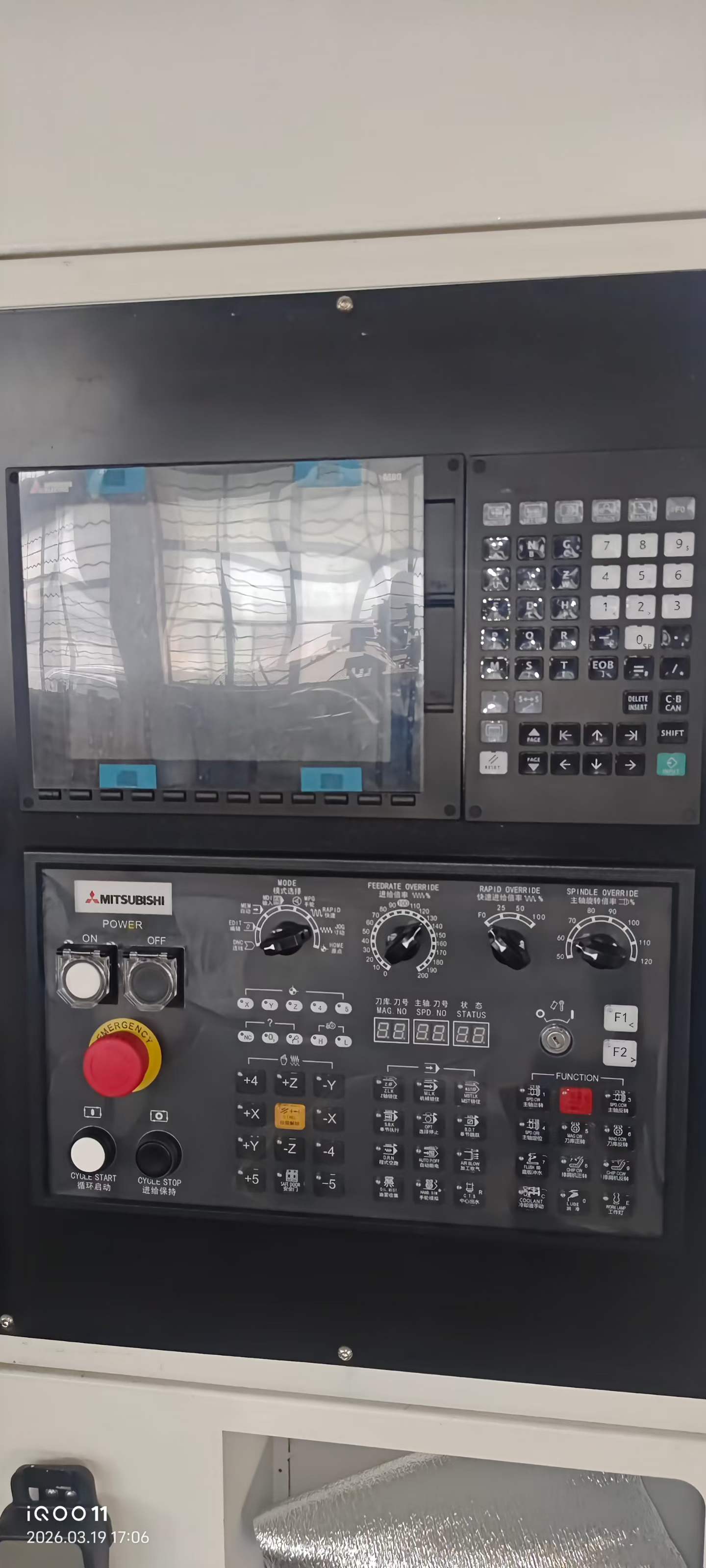

| Control system | Mitsubishi M 80 |
|---|---|
| Table size | 1000 x 550 mm |
| Guideways (X/Y/Z) | Roller linear guideways, width 45 mm |
| Spindle speed | 10,000 rpm |
| Spindle drive | Belt-driven |

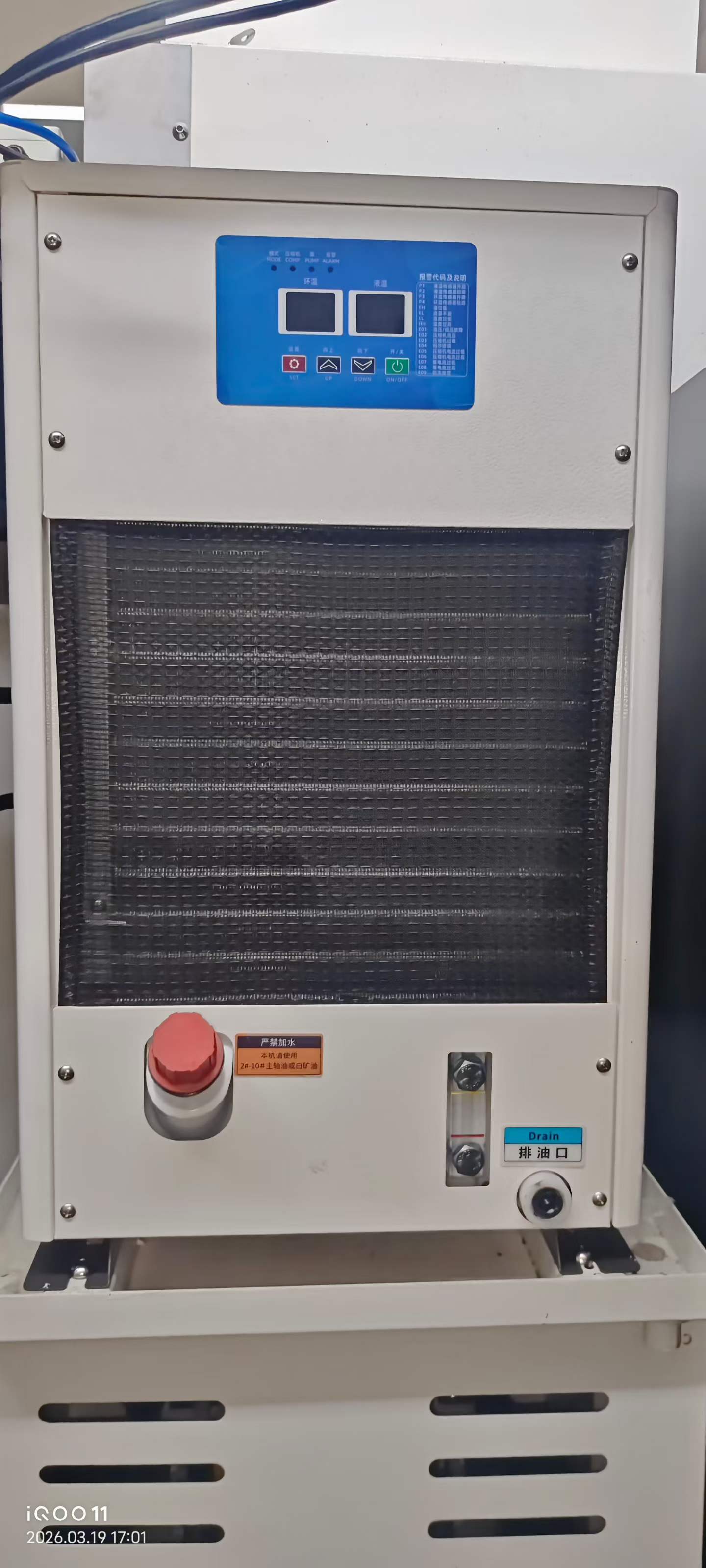

| Spindle cooling | Oil cooler |
| Through-spindle coolant | 30 kgf/cm² |
