99% New Taiqun Zhijie L-35 CNC Lathe with SYNTEC 22 TA

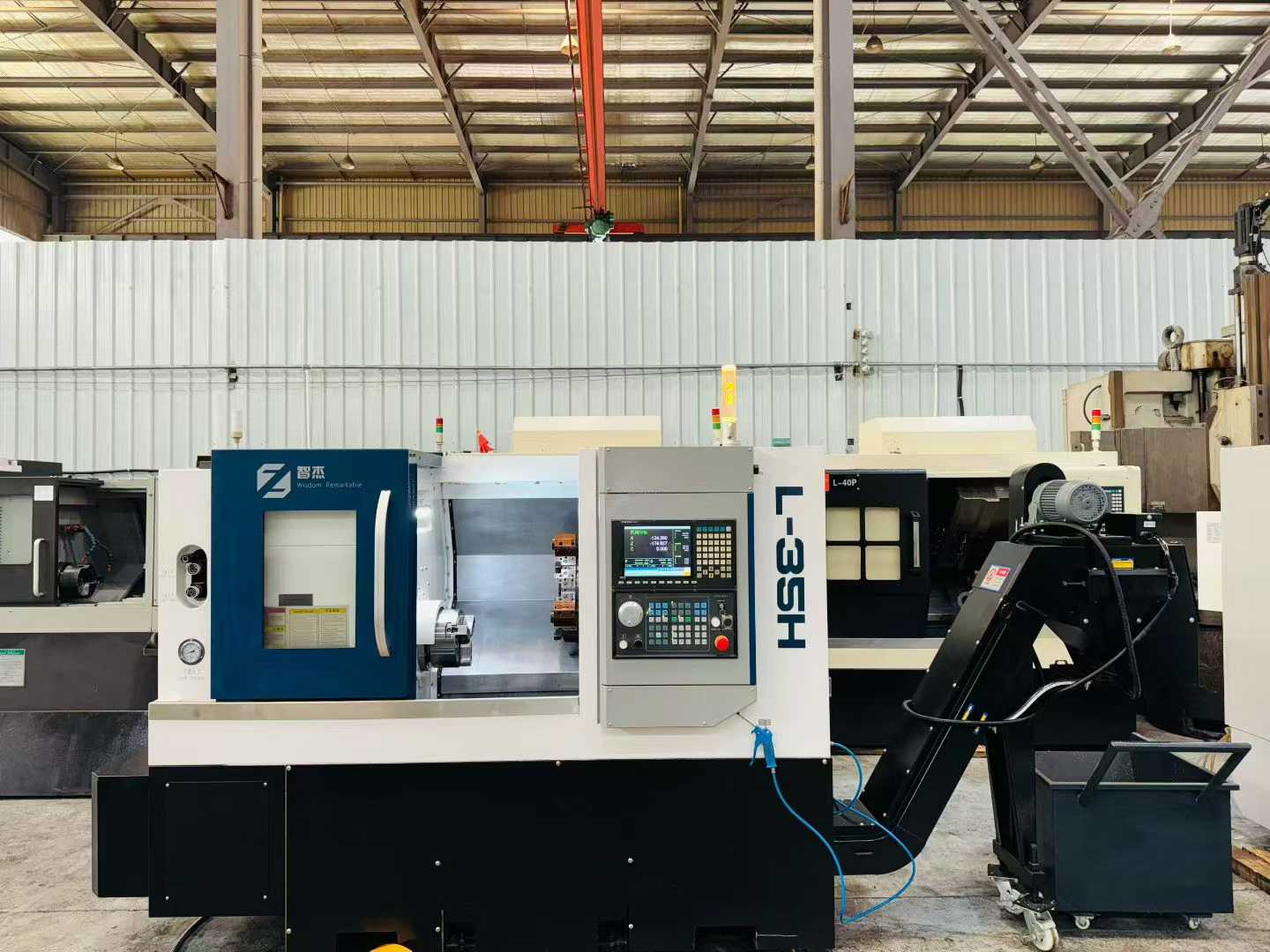

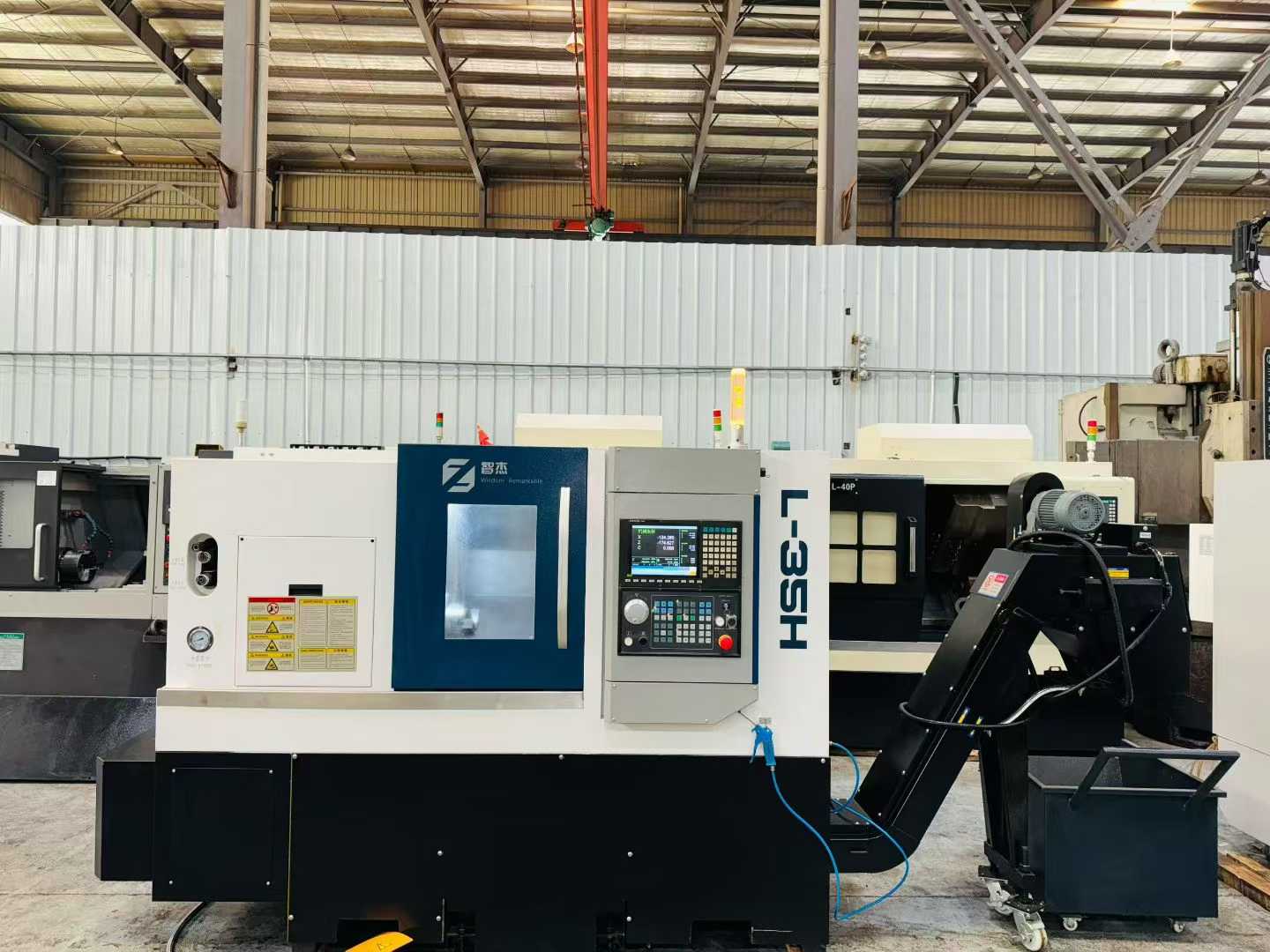

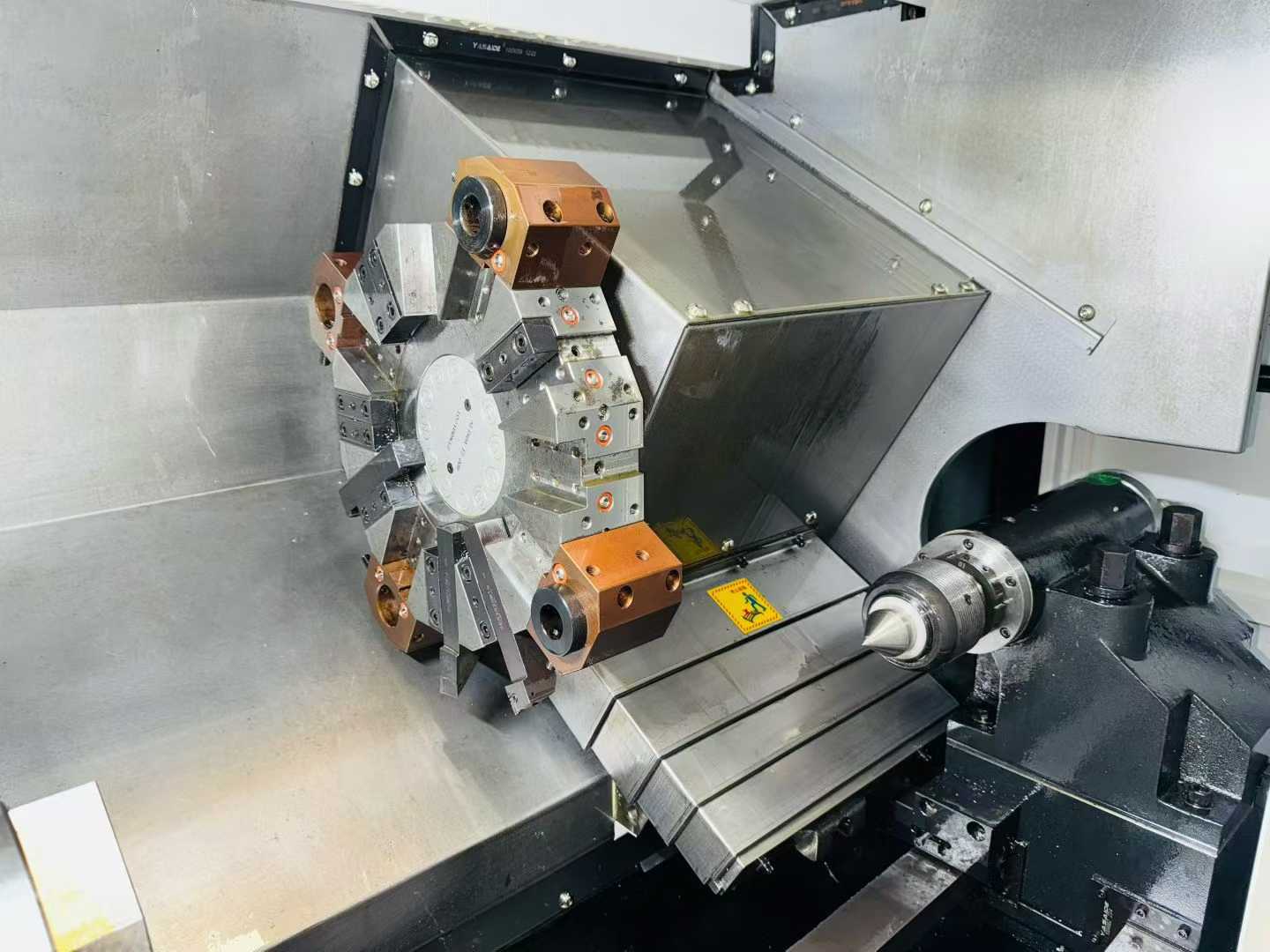

Just arrived: a 99% new Taiqun Zhijie L-35 CNC lathe. This machine was purchased and installed by the original factory in 2023 and has never been used. It is equipped with a large-diameter 12-station servo turret, 8-inch through-hole hydraulic chuck, A 2-6 high-speed spindle unit, 7.5/11 kW servo spindle motor, SYNTEC 22 TA absolute bus system, MT 4 hydraulic tailstock, and chain-type side chip conveyor. Machining accuracy is 0.01 mm. The original new-machine purchase price was ¥220,000; now available at a near-new used price.
- Machine Code
- CL260830
- Year
- 2023
- Location
- China
- Usage Hours
- On request
Accessories
12-station servo turret; 8-inch through-hole hydraulic chuck; MT 4 hydraulic tailstock; chain-type side chip conveyor.
Main Specifications
| Max swing over bed | 500 mm |
|---|---|
| Max turning diameter | 350 mm |
| Max machining length | 500 mm |

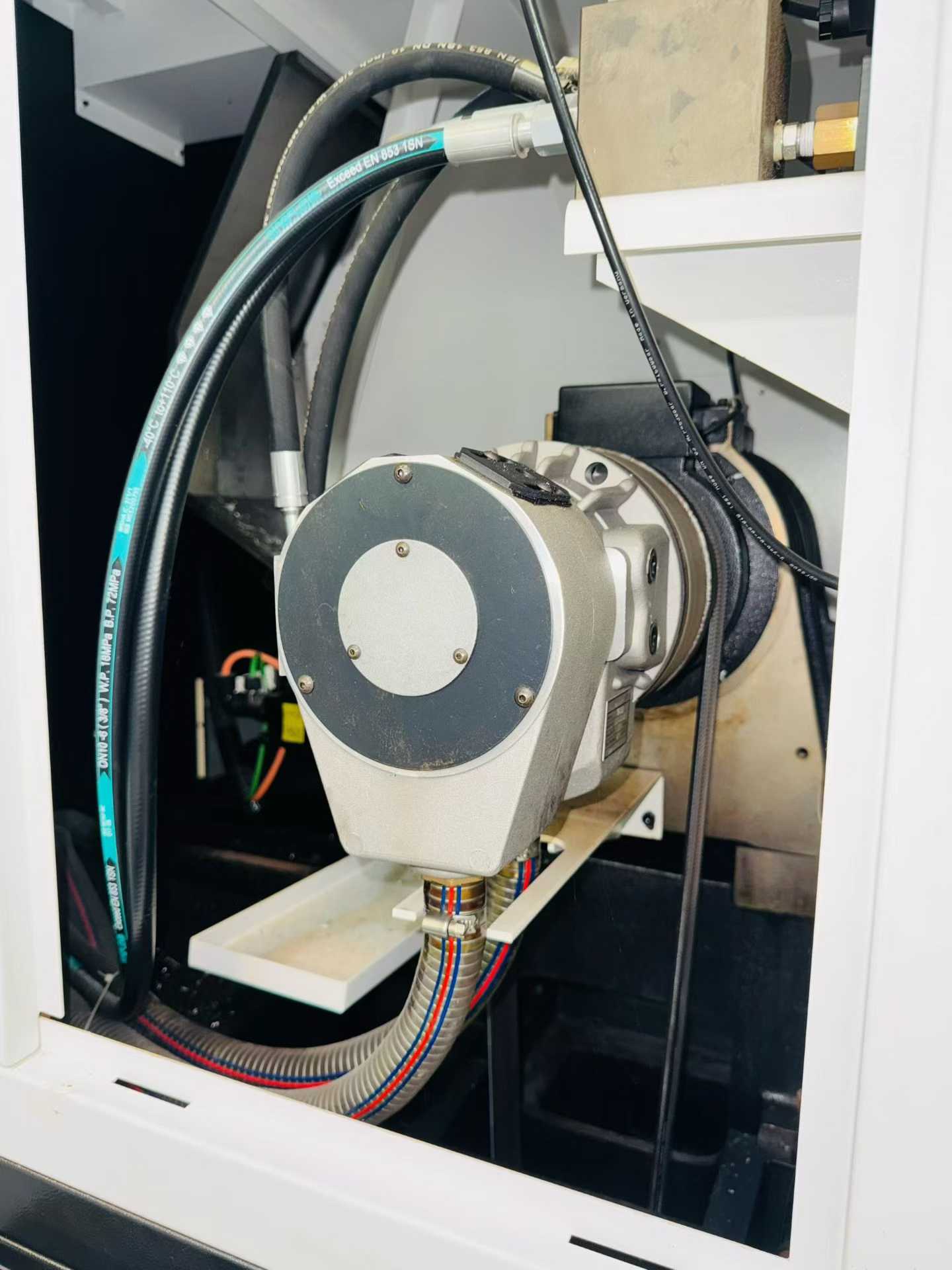

| Spindle nose | A 2-6 |
| Spindle motor power | 7.5/11 kW |
| Number of turret stations | 12 |

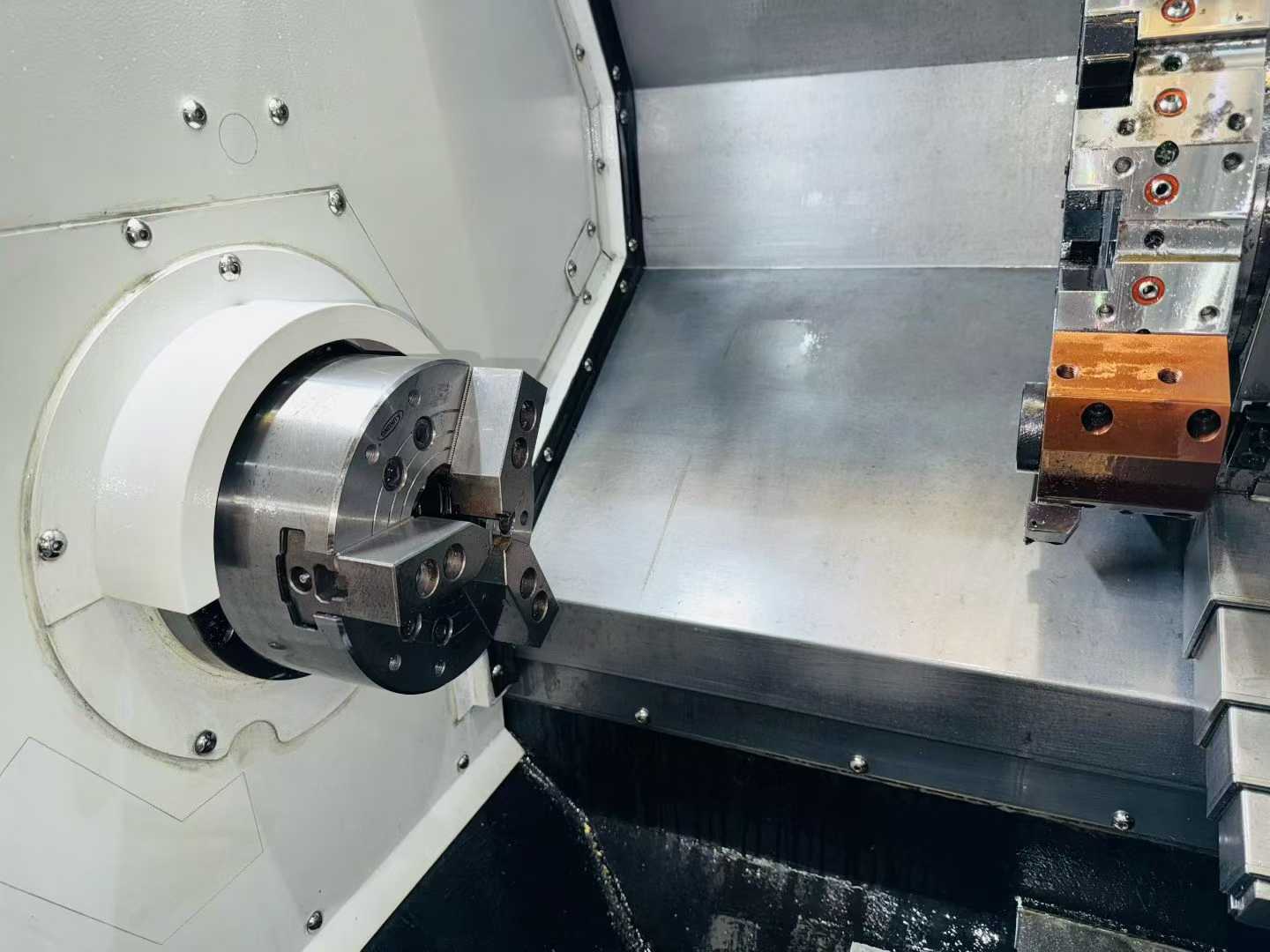

| Chuck type | 8-inch through-hole hydraulic chuck |
| Tailstock taper | MT 4 |
| Machining accuracy | 0.01 mm |

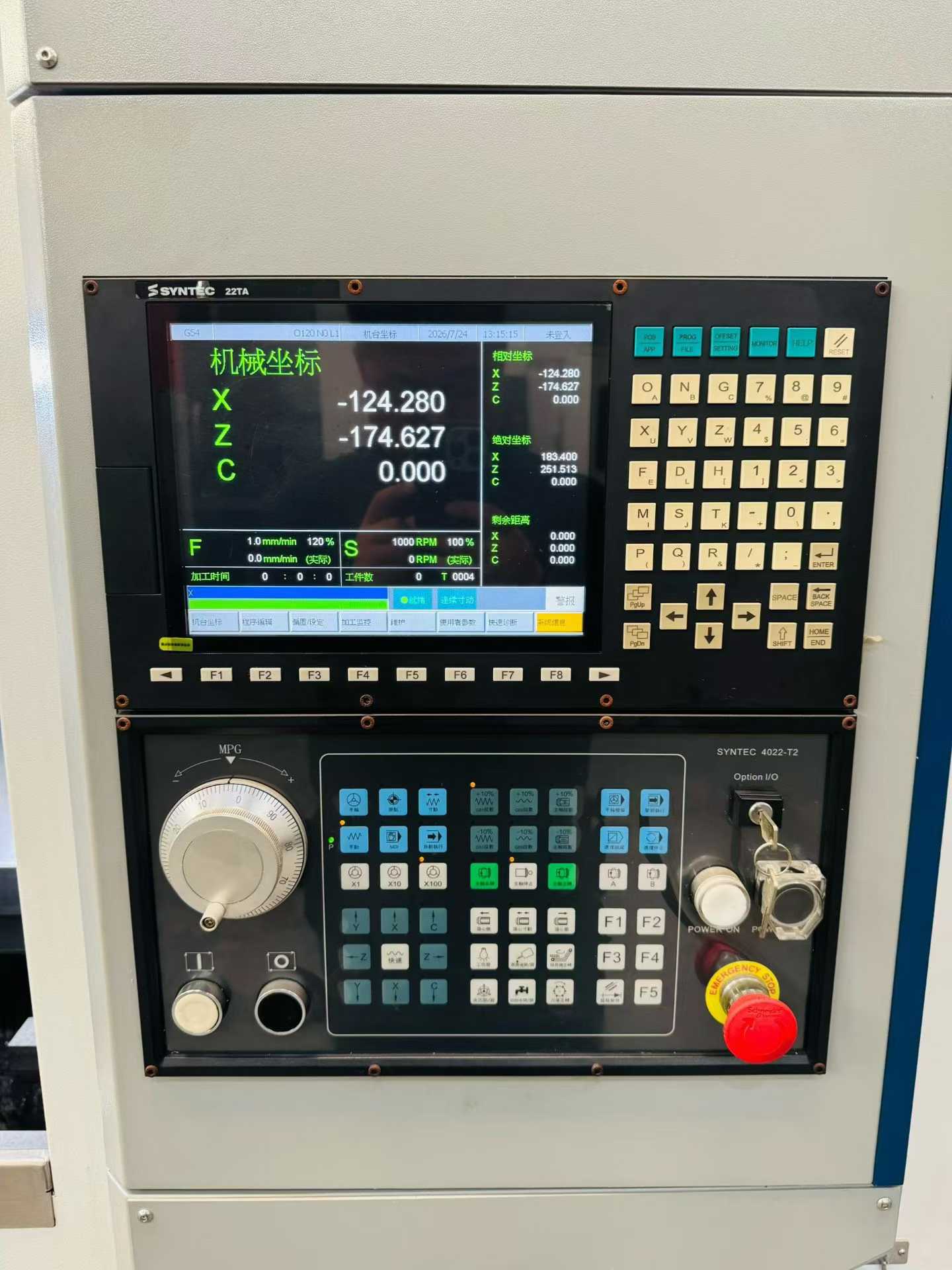

| Control system | SYNTEC 22 TA absolute bus system |
| Year | 2023 |
| Machine Type | CNC Lathe |
| Chip Conveyor | Chain-type side chip conveyor |
| New Machine Purchase Price | 22 w |
| Condition | 99% new |
| Brand | Taiqun Zhijie |
| Model | L-35 |

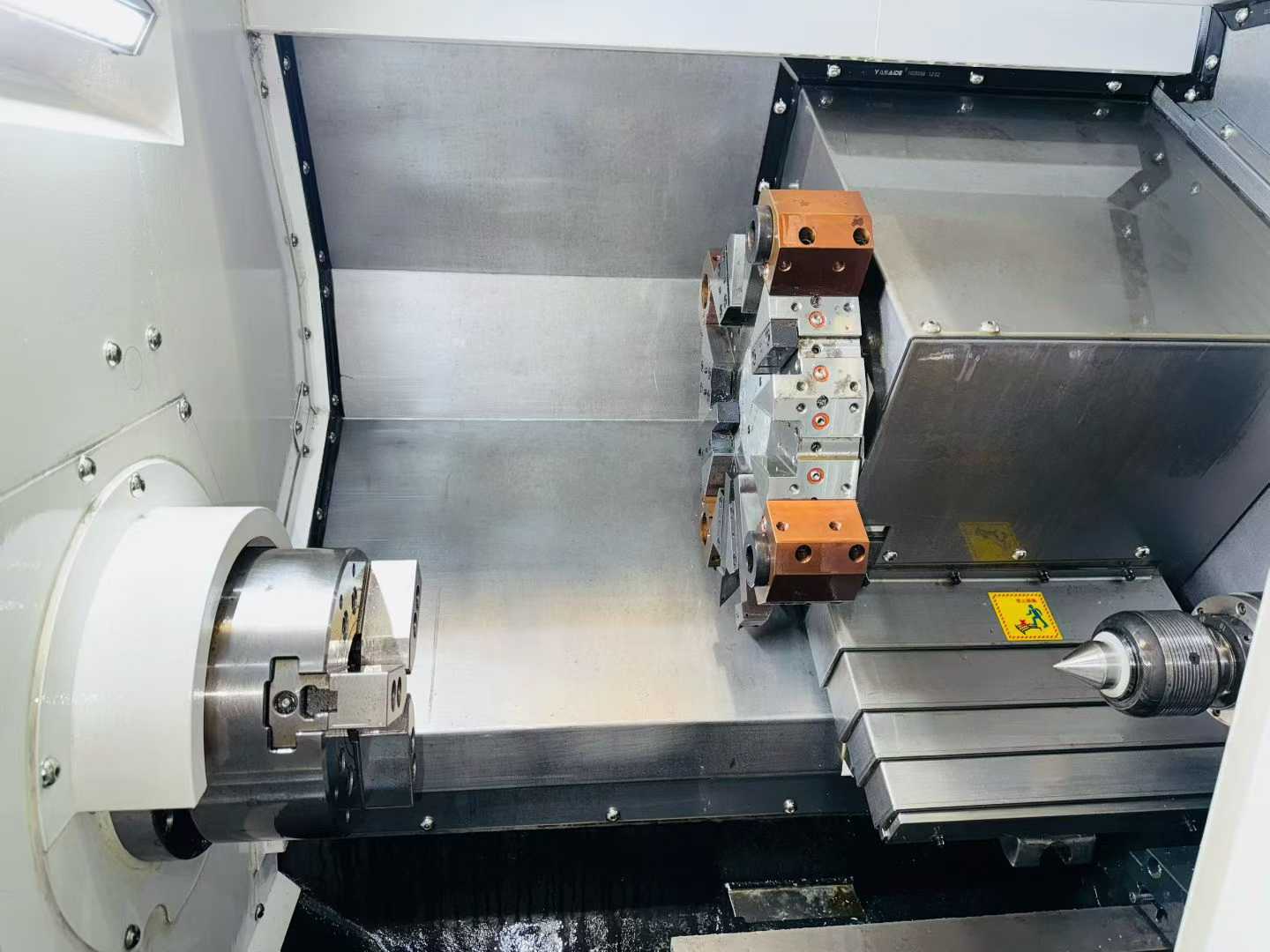

| Tool Turret | 12-station servo turret, large diameter |
| Spindle Type | High-speed spindle unit |
| Spindle Motor Type | Servo |
| Tailstock Type | Hydraulic tailstock |
| Usage Condition | Unused (purchased and installed in 2023) |
