AvailableCNC Lathe
Used Baoji BOZHI CK 40 S Slant-Bed Turret-Type CNC Lathe with FANUC 0i Mate-TD

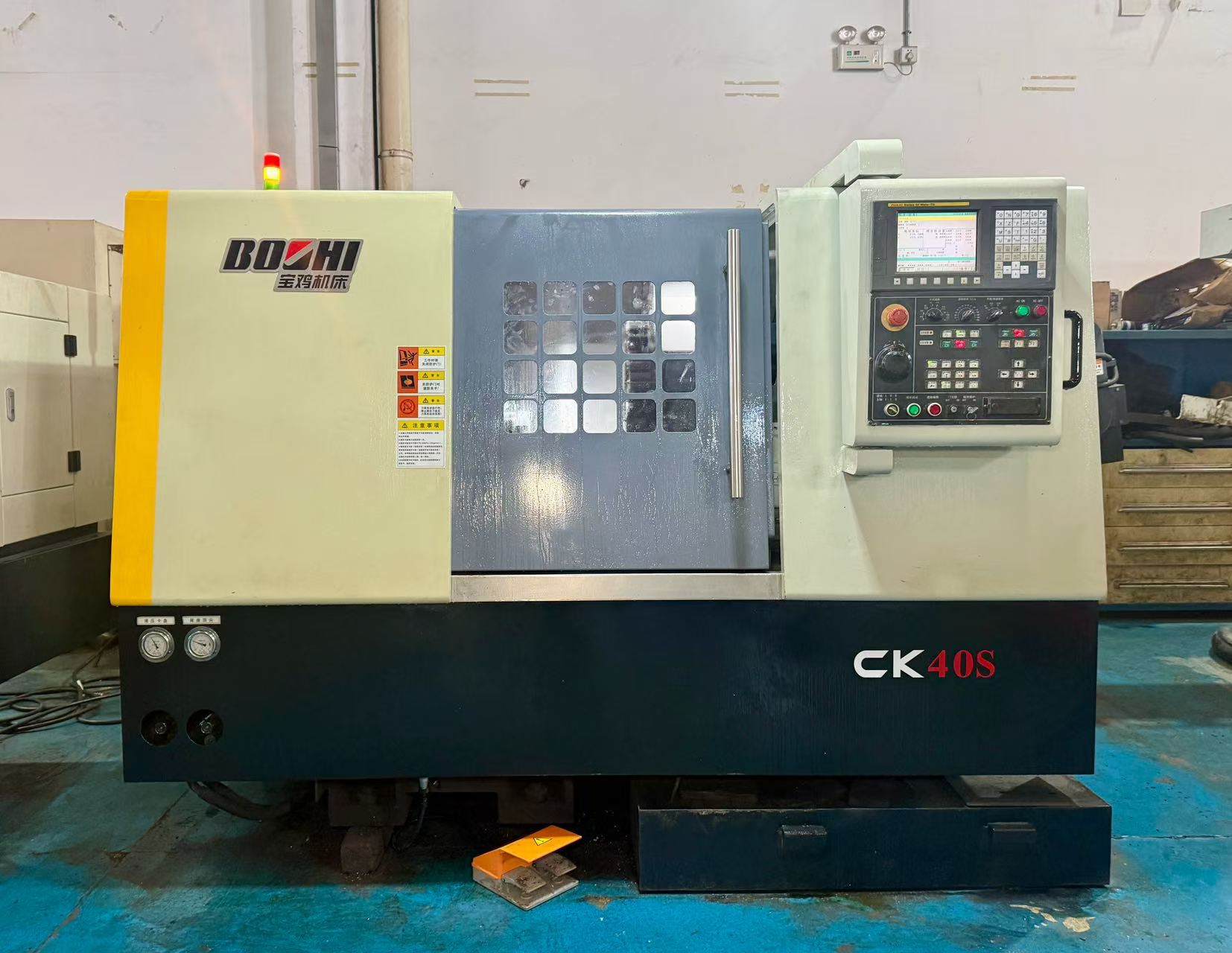

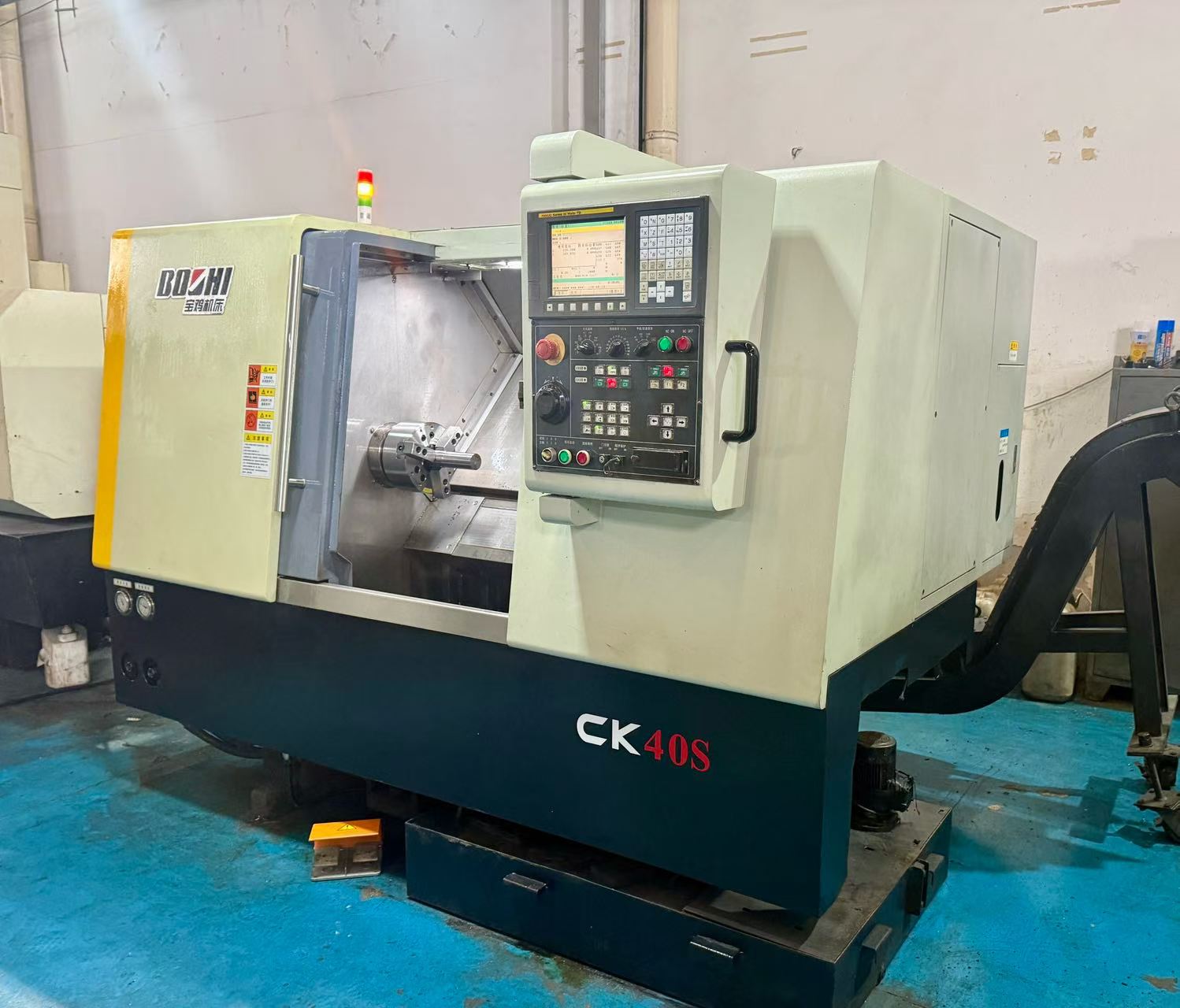

Used Baoji (BOZHI) CK 40 S slant-bed turret-type CNC lathe, manufactured in September 2018 and equipped with the FANUC Series 0i Mate-TD CNC control system. The machine is built on a slant bed with hardened steel-insert box guideways and carries a 7.5 kW servo spindle. Workholding is provided by a new LELIKA 8-inch hollow hydraulic chuck, and an 8-station tool turret handles turning tools. A hydraulic tailstock supports shaft-type work, and a chip conveyor removes chips from the cutting area. Maximum swing over bed is 400 mm and maximum turning length is 400 mm. The machine is supplied in a complete, top-tier configuration, and test cutting accuracy has been measured within 0.01 mm.
- Machine Code
- CL2609107
- Year
- 2018
- Location
- China
- Usage Hours
- On request
Accessories
FANUC 0i Mate-TD CNC control system; new LELIKA 8-inch hollow hydraulic chuck; 8-station tool turret; hydraulic tailstock; chip conveyor
Main Specifications
| Machine type | Slant-bed turret-type CNC lathe |
|---|---|
| Maximum swing over bed | 400 mm |
| Maximum turning length | 400 mm |
| Spindle motor power | 7.5 kW |
| Spindle type | Servo spindle |
| Guideway type | Box guideways with hardened steel inserts |

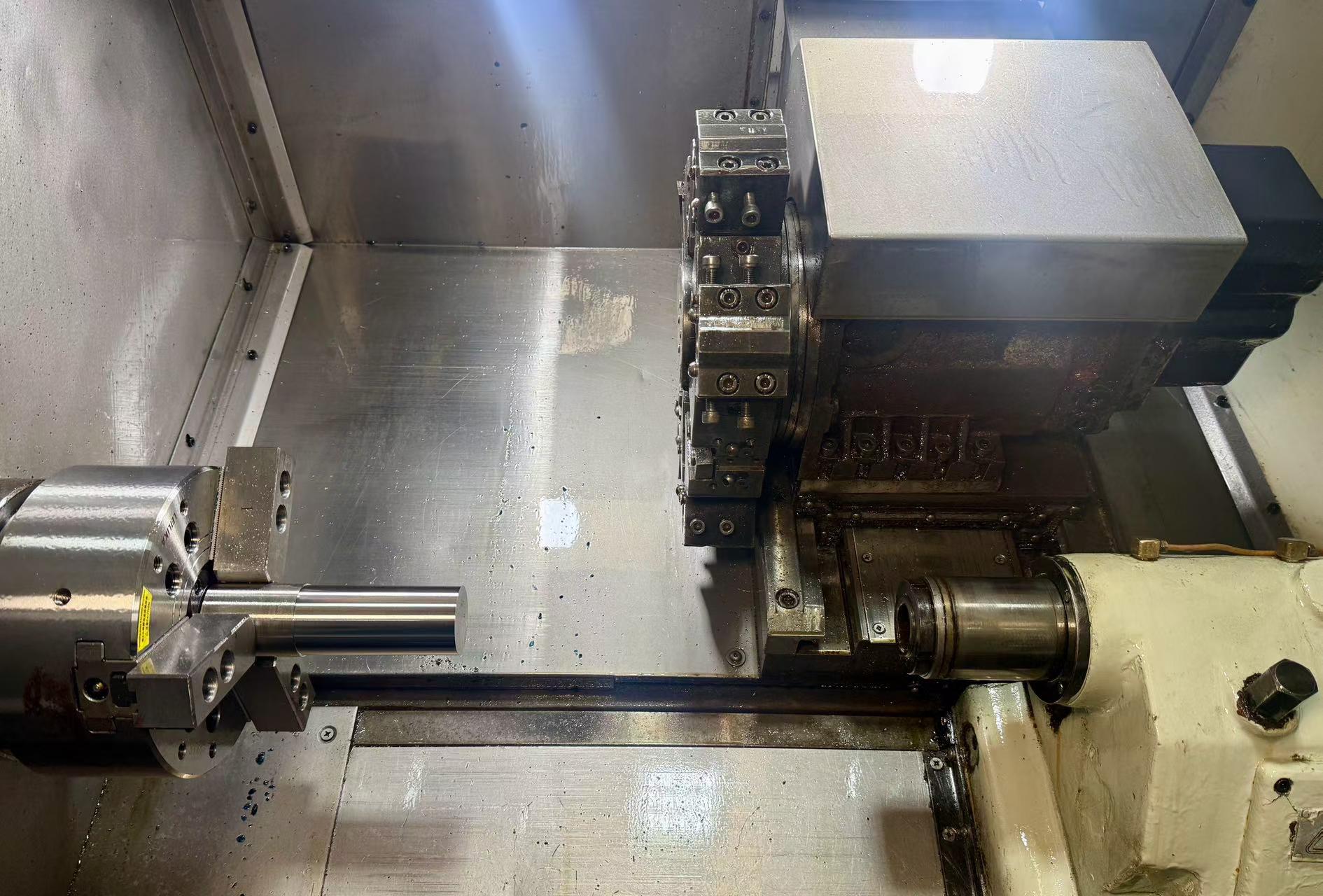

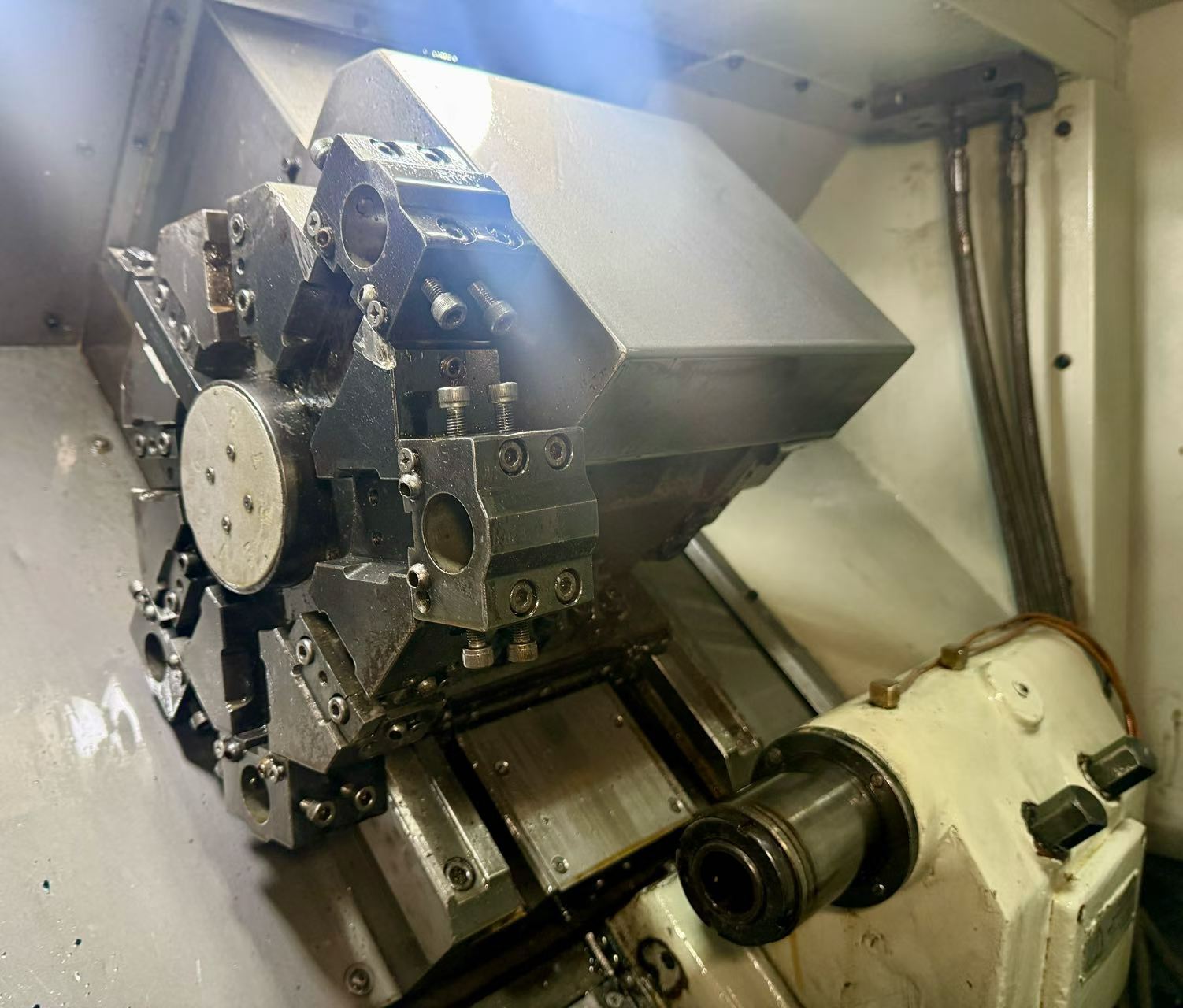

| Number of turret stations | 8 |

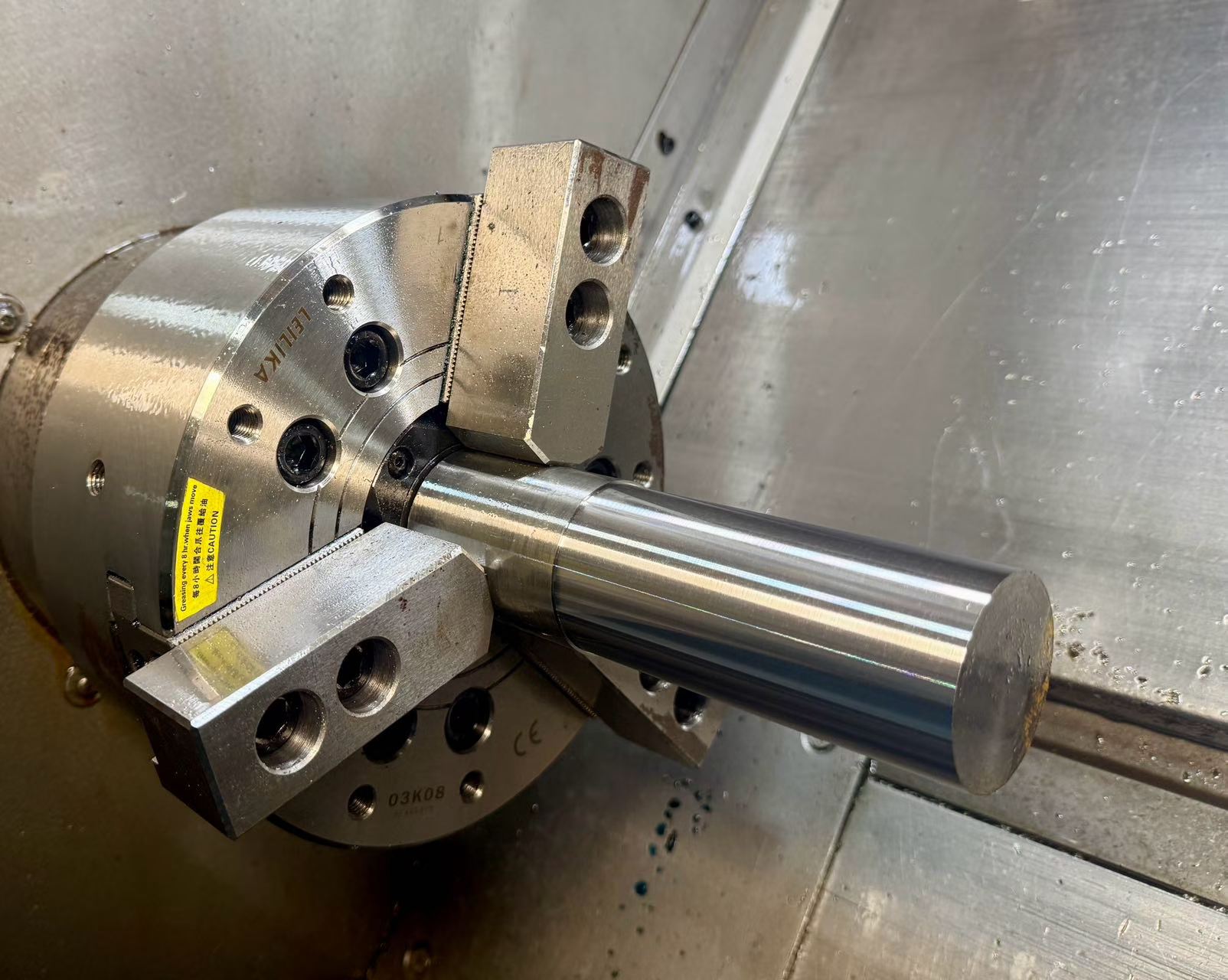

| Chuck | 8-inch hollow hydraulic chuck (LELIKA) |
| Tailstock | Hydraulic tailstock |

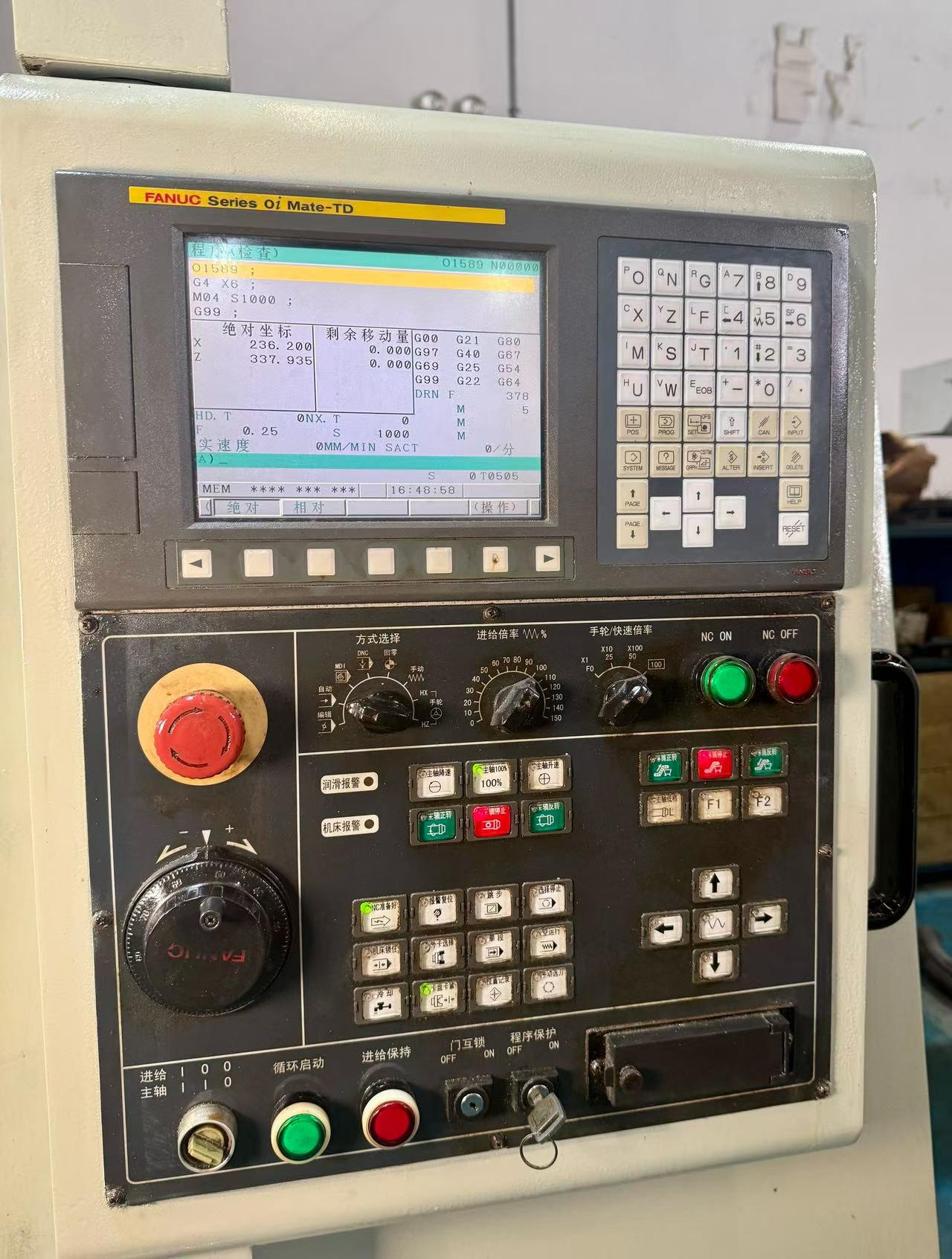

| Control system | FANUC 0i Mate-TD |
| Year of manufacture | 2018 |
| Machine Model | Baoji CK 40 S |
| Controller | FANUC TD system |
| Guideway Configuration | Box guideway with steel inserts |
| Swing Diameter | 400 mm |
| Machining Length | 400 mm |
| Chip Conveyor | Included |
| Brand | Baoji (BOZHI) |
