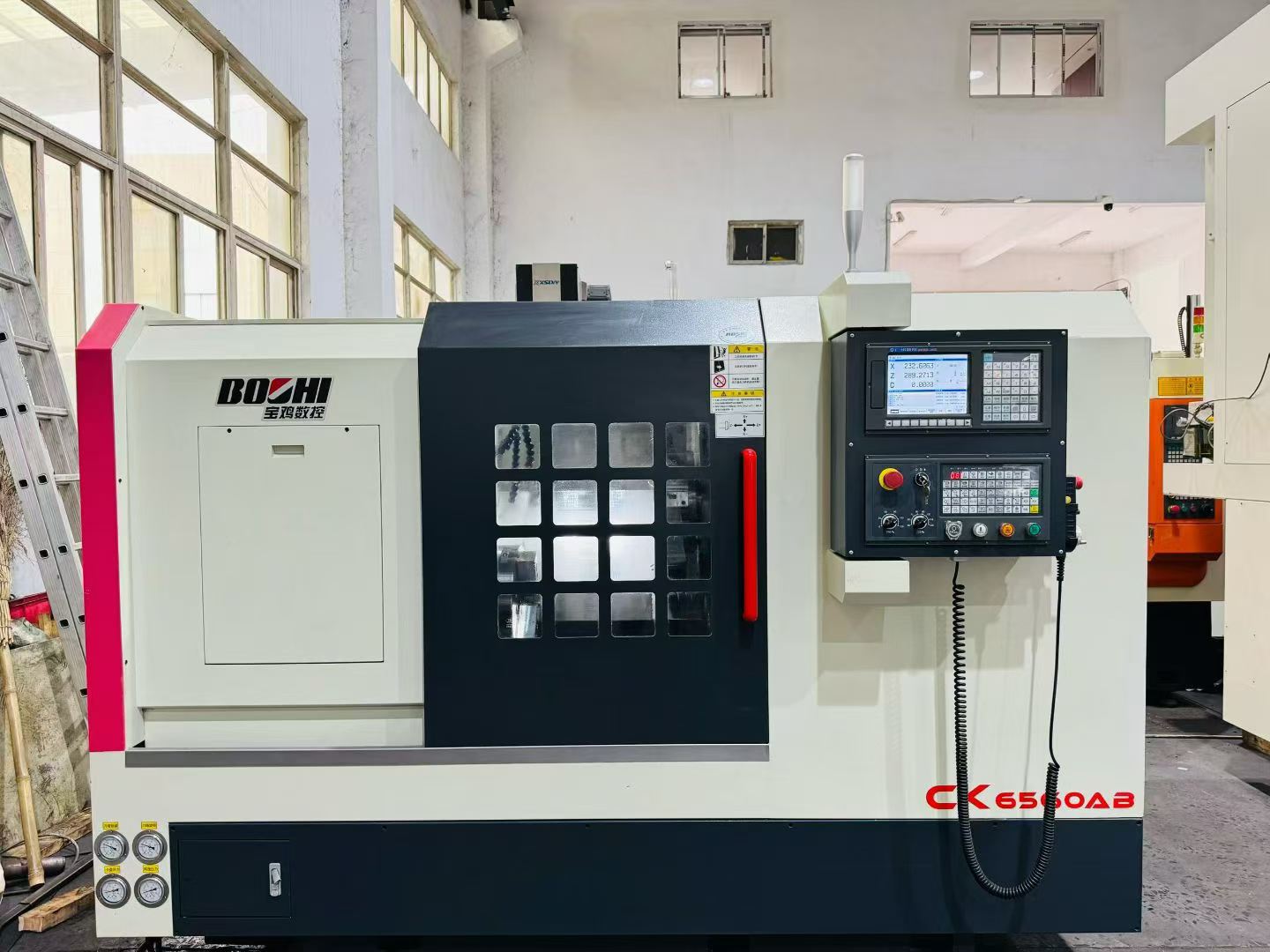

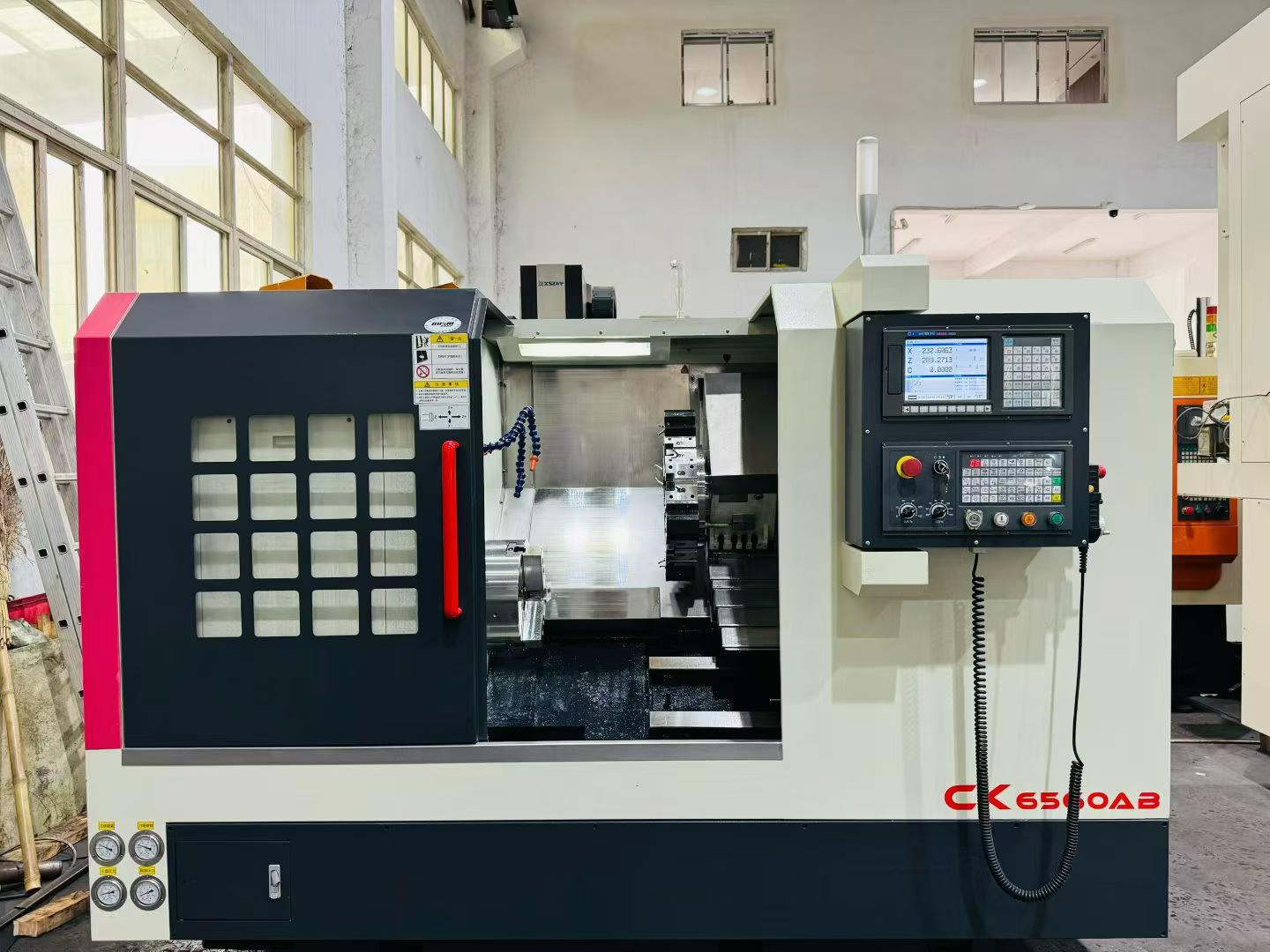

Used Baoji CK 6560 AB Slant-Bed Turret-Type CNC Lathe with GSK 988 Control

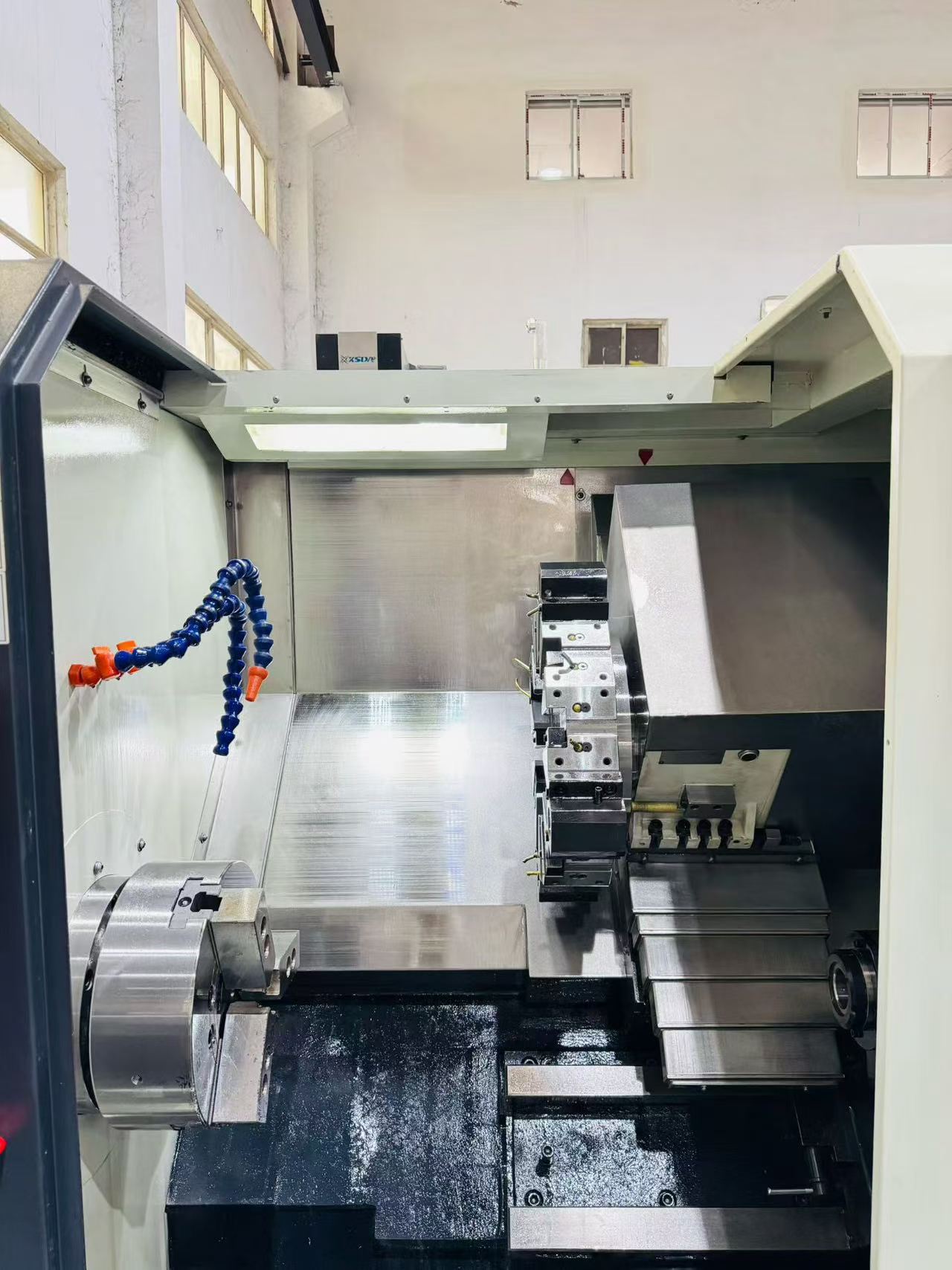

This is a BOZHI Baoji CNC slant-bed turret-type CNC lathe, model CK 6560 AB, built in 2023 and installed with very little use, presenting as a near-new machine. It handles work up to ∅600 mm swing diameter with a machining length of 500 mm. The machine is equipped with the GSK 988 bus absolute CNC system and a 15/18.5 kW servo spindle motor driving an A 2-8 spindle nose. Workholding is a 12-inch hollow hydraulic chuck, and turning is carried out with a 12-station large-diameter hydraulic turret. The two axes run on 45 heavy-duty roller linear guideways for rigidity and stable positioning, and the machine is completed with an MT 5 hydraulic tailstock for shaft-type work.

Machine Code: CL260981
Year: 2023
Location: China
Usage Hours: On request

Accessories

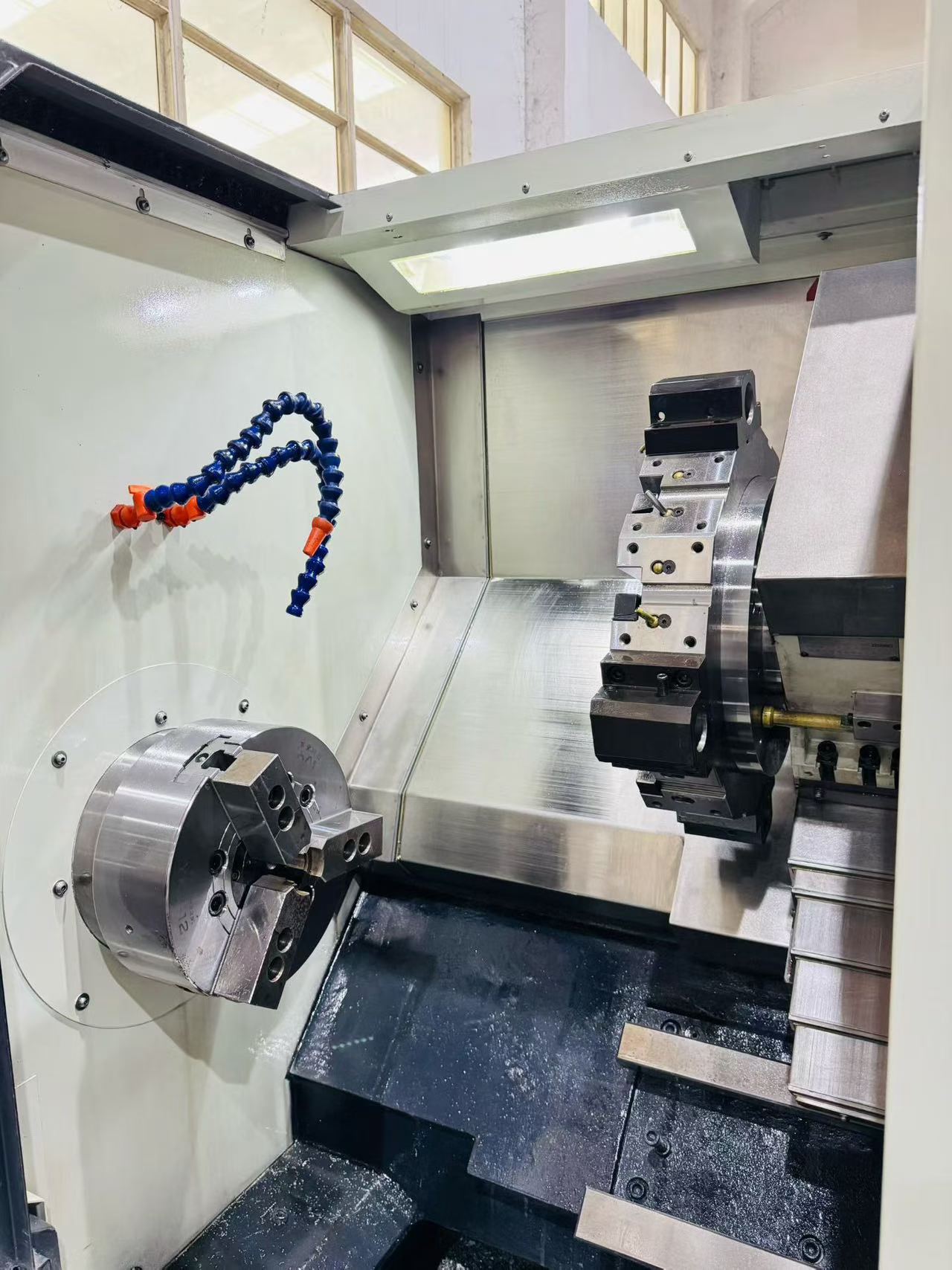

12-inch hollow hydraulic chuck; 12-station large-diameter hydraulic turret; MT 5 hydraulic tailstock.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Slant-bed turret-type CNC lathe
Swing diameter	∅600 mm
Maximum machining length	500 mm

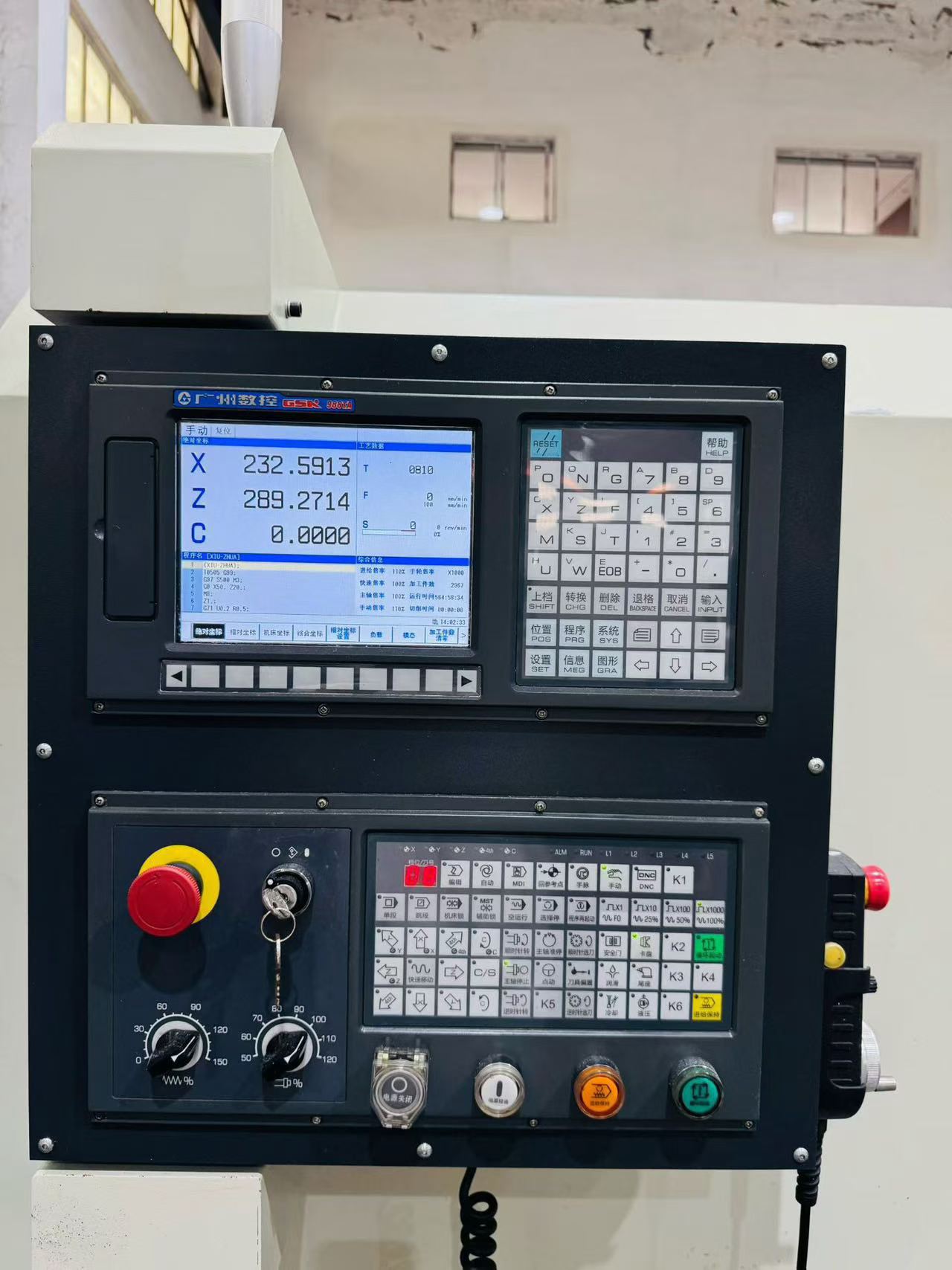

Control system	GSK 988 bus absolute
Spindle motor power	15/18.5 kW servo
Spindle nose	A 2-8

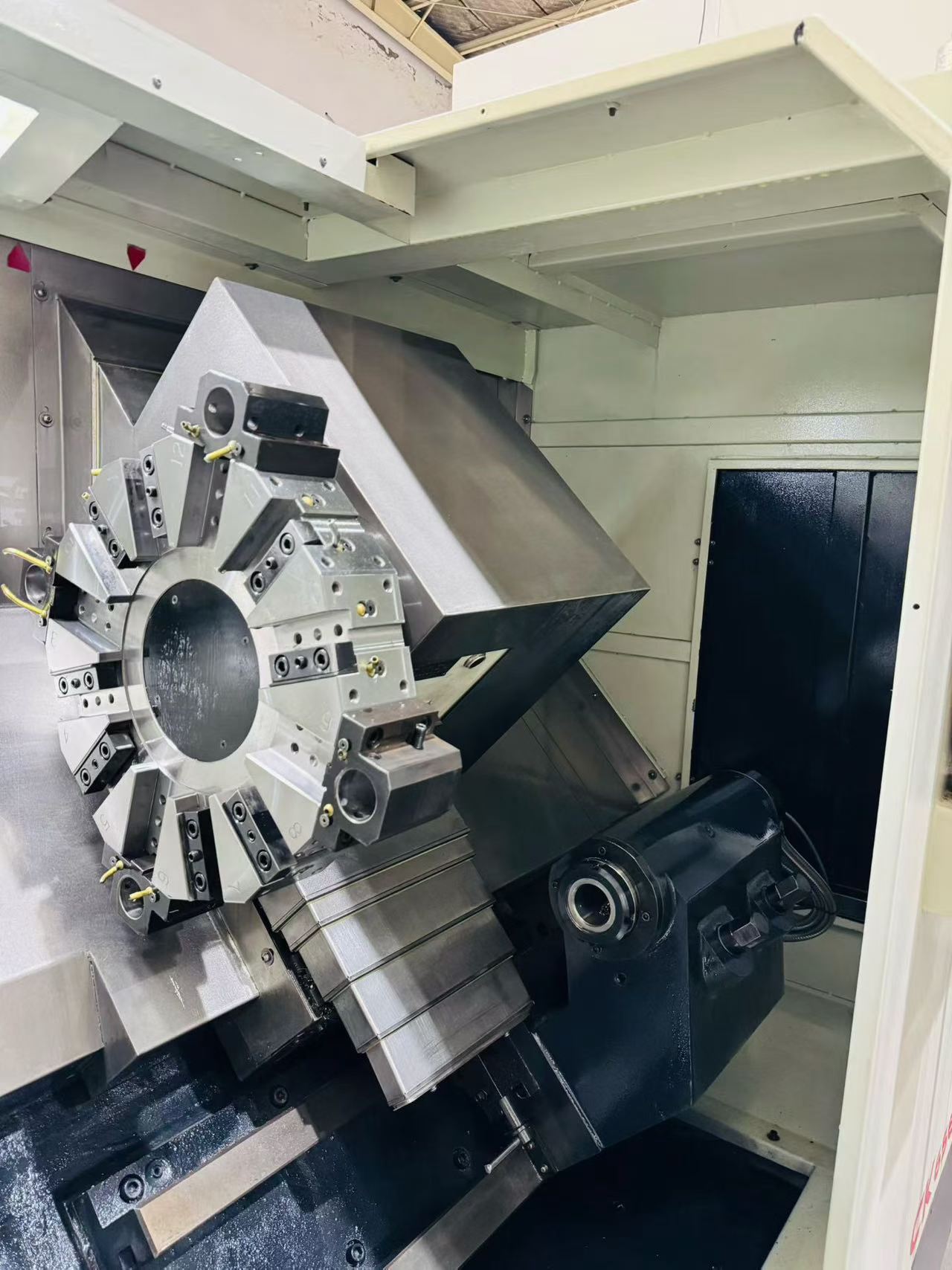

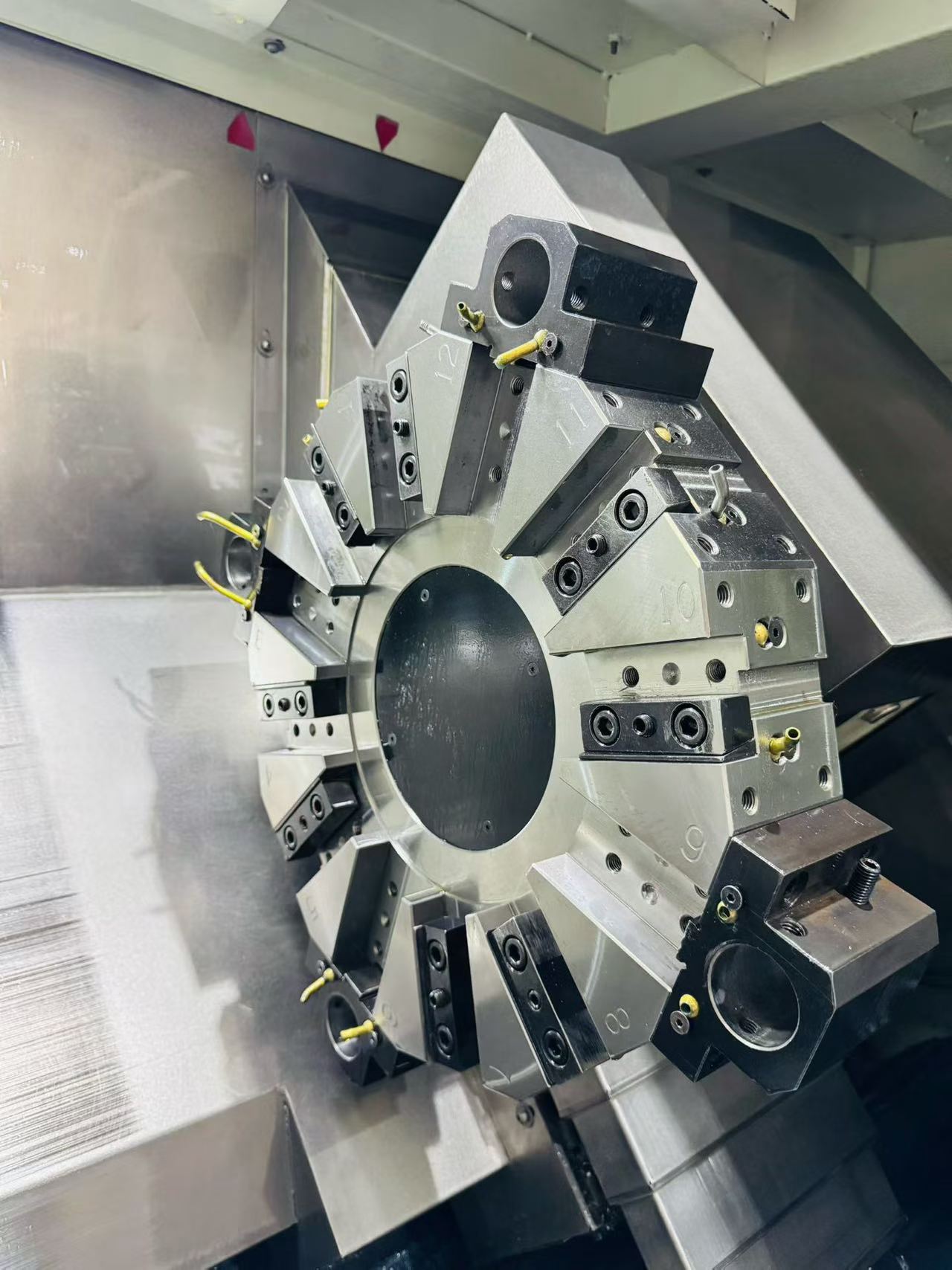

Turret	12-station large-diameter hydraulic turret
Chuck	12-inch hollow hydraulic chuck
Guideways	Two-axis 45 heavy-duty roller linear guideways
Tailstock	MT 5 hydraulic tailstock
Year	2023
Guideway Configuration	Two-axis 45 heavy-duty roller linear guideways
Brand	Baoji
Model	CK 6560 AB
Condition	95% new
Controller	GSK 988 bus absolute
Usage	Very little used
Year of manufacture	2023
