Used Yunnan Beitian VTC-630 CNC Vertical Lathe

This Yunnan Beitian VTC-630 is a CNC vertical lathe built for turning large, heavy and short workpieces in a vertical configuration. Two identical units are available. Both machines have seen minimal use since installation. The machine is equipped with the GSK 980 TDi CNC control system, a Taiwan Chengxin 8-station tool turret, Taiwan Hiwin ball screws and Japan NSK bearings. Maximum swing diameter is 700 mm, cutting height 480 mm and chuck diameter 500 mm. The spindle motor is rated 22 kW and the machine operates on a 380 V supply. Serial number 2104012.

Machine Code: CL2609111
Year: 2021
Location: China
Usage Hours: On request

Accessories

GSK 980 TDi CNC control system; Taiwan Chengxin 8-station tool turret; Taiwan Hiwin ball screws; Japan NSK bearings.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	CNC Vertical Lathe
Model	VTC-630

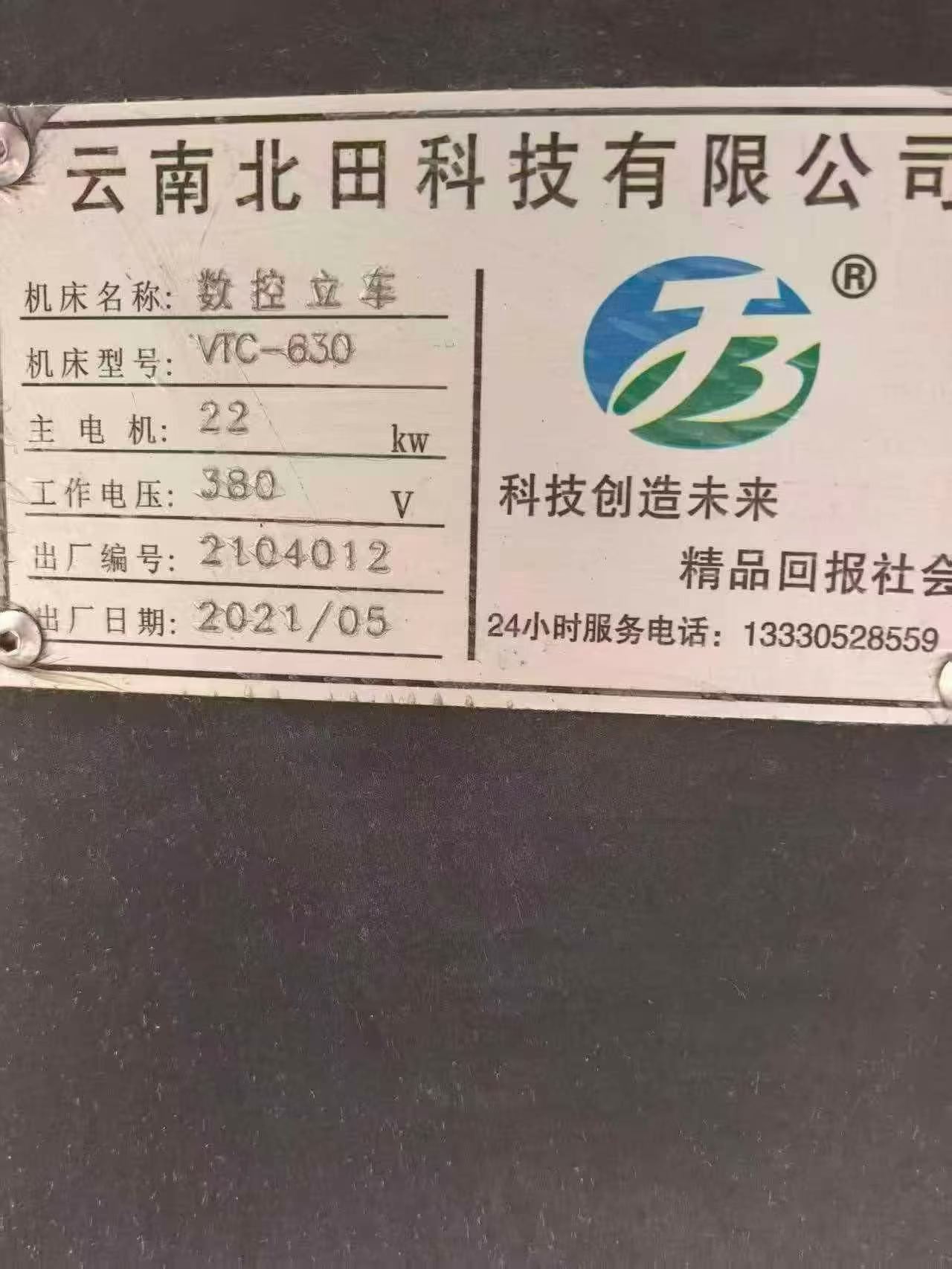

Serial number	2104012
Maximum swing diameter	700 mm
Cutting height	480 mm

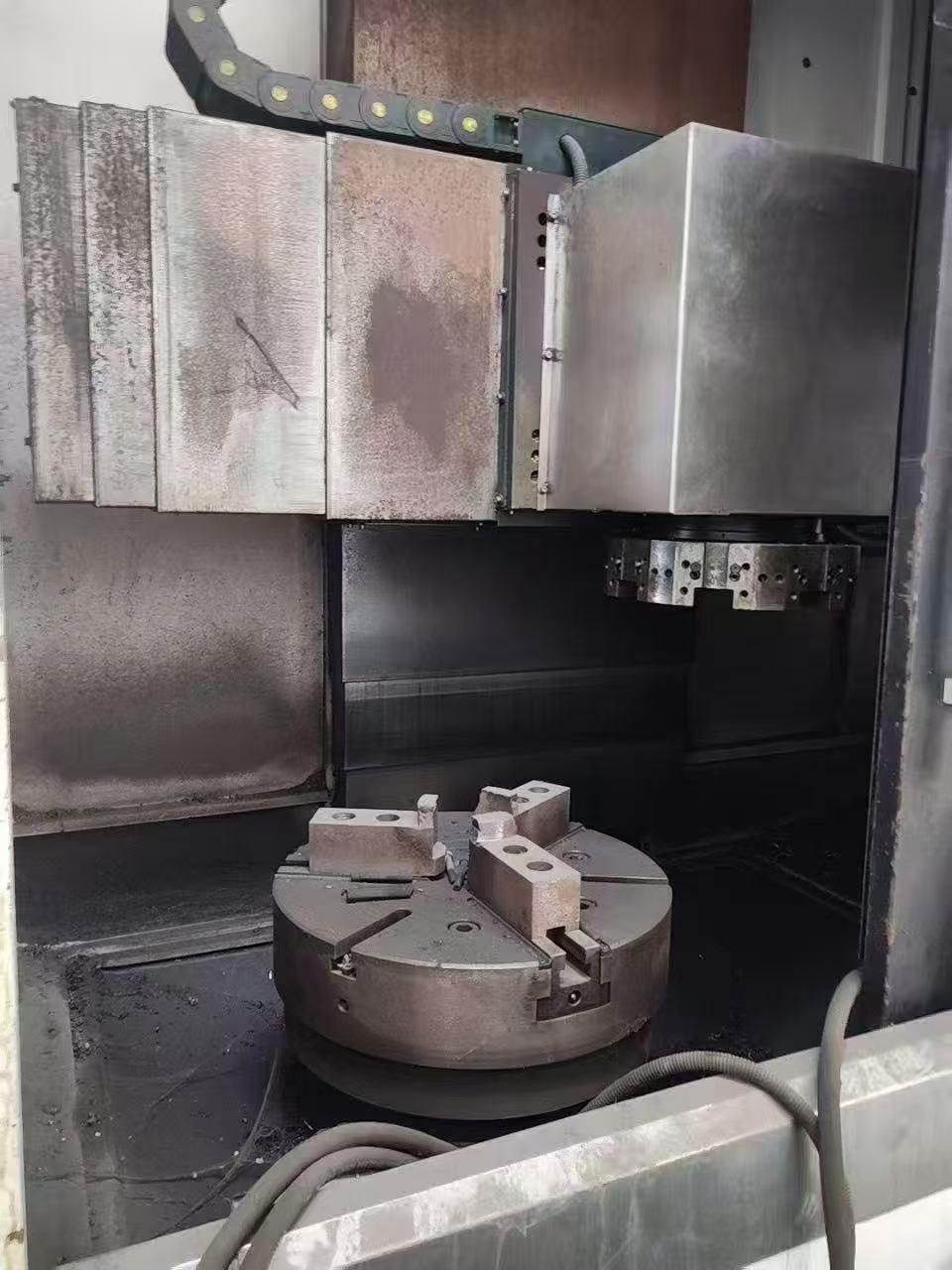

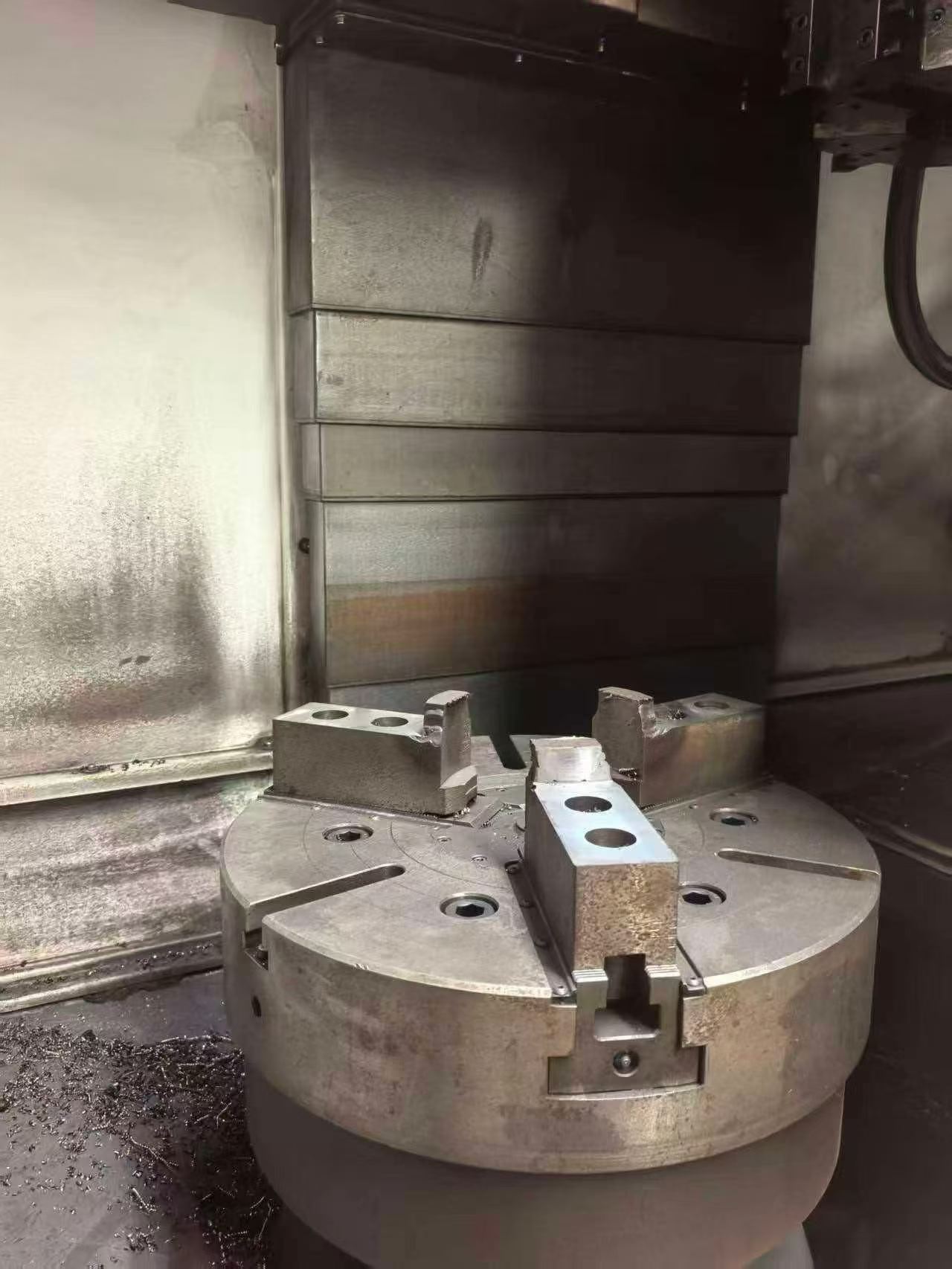

Chuck diameter	500 mm
Spindle motor power	22 kW
Supply voltage	380 V

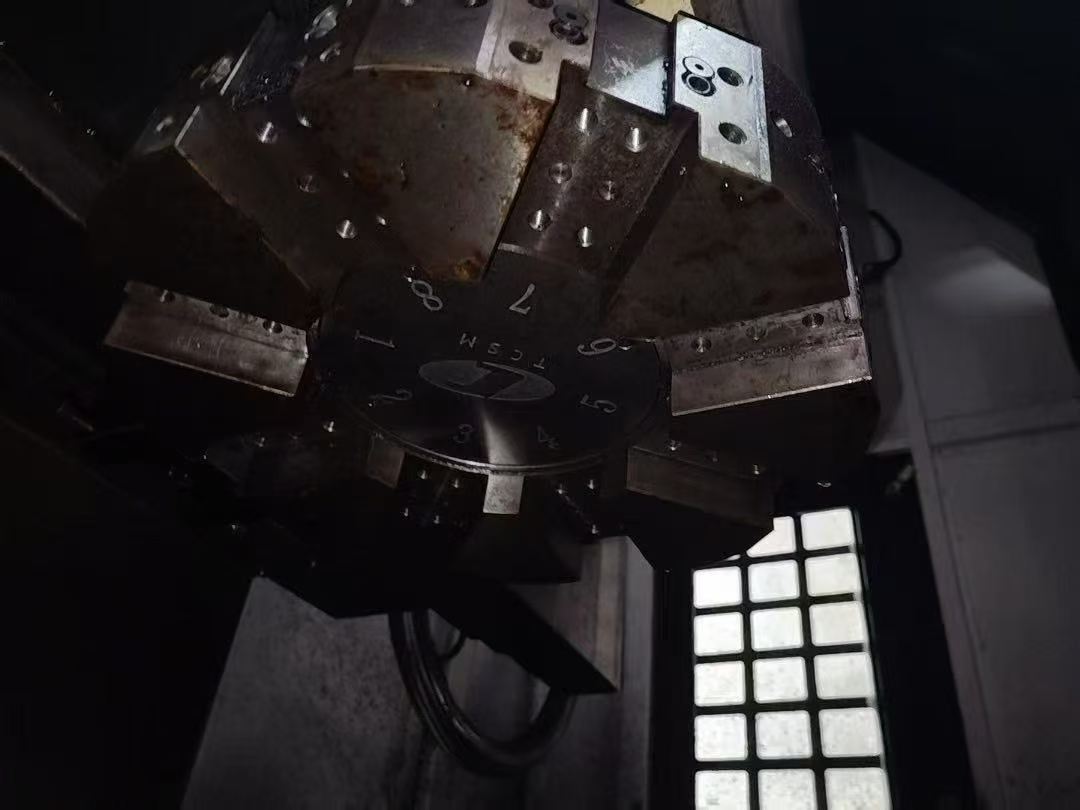

Tool turret	8-station

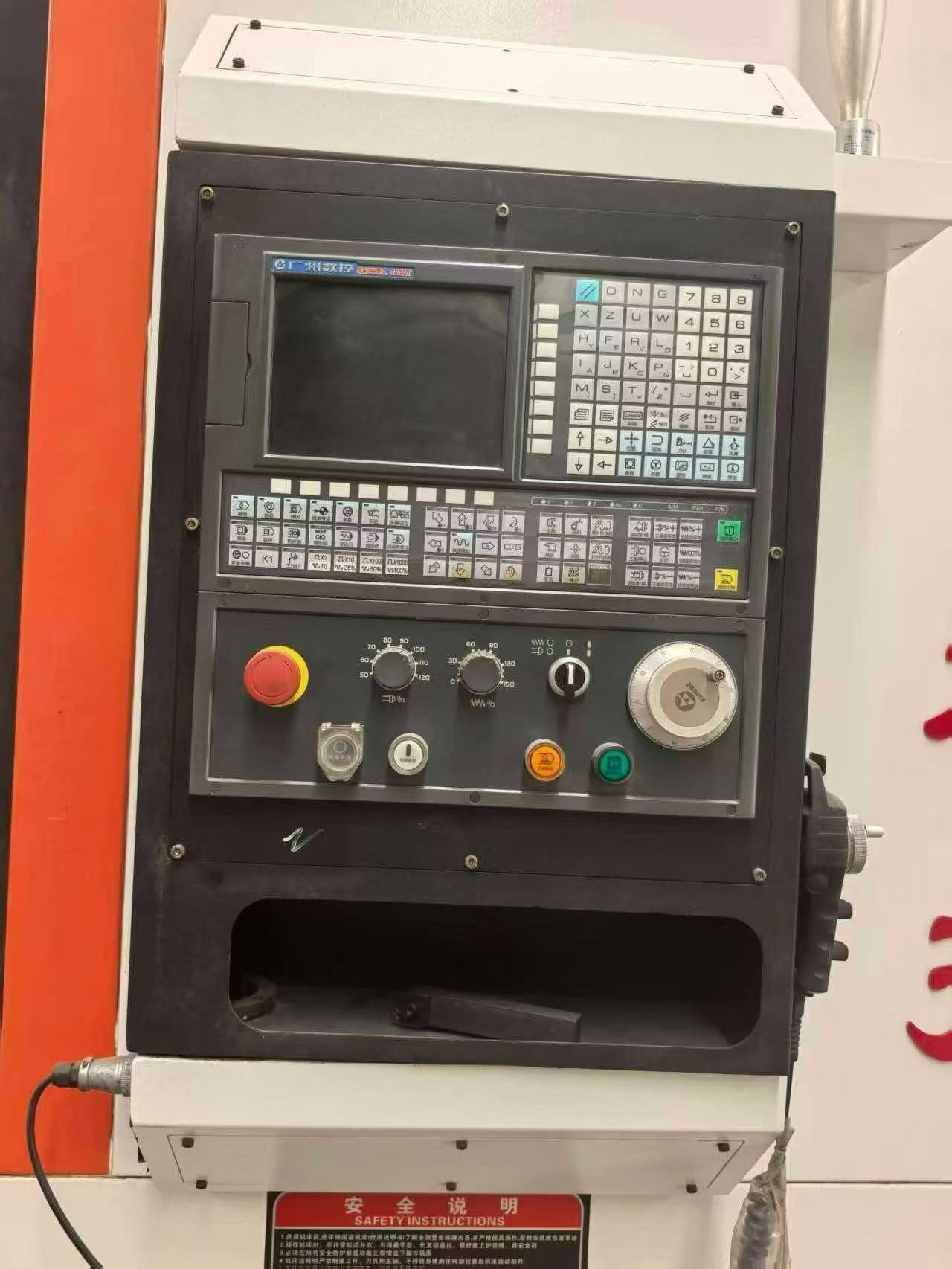

Controller	GSK 980 TDi
Brand	Yunnan Beitian
Control system	GSK 980 TDi
