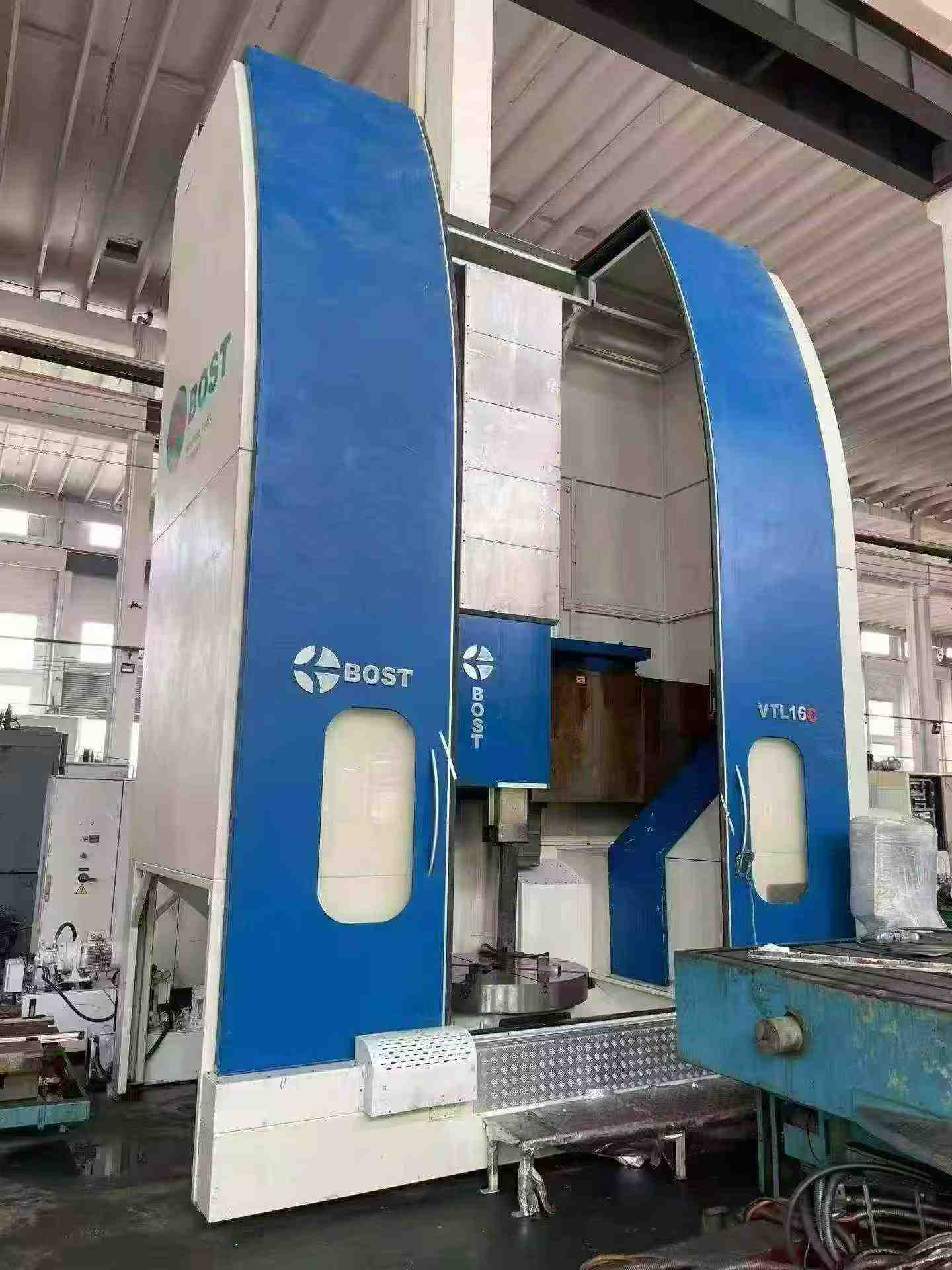

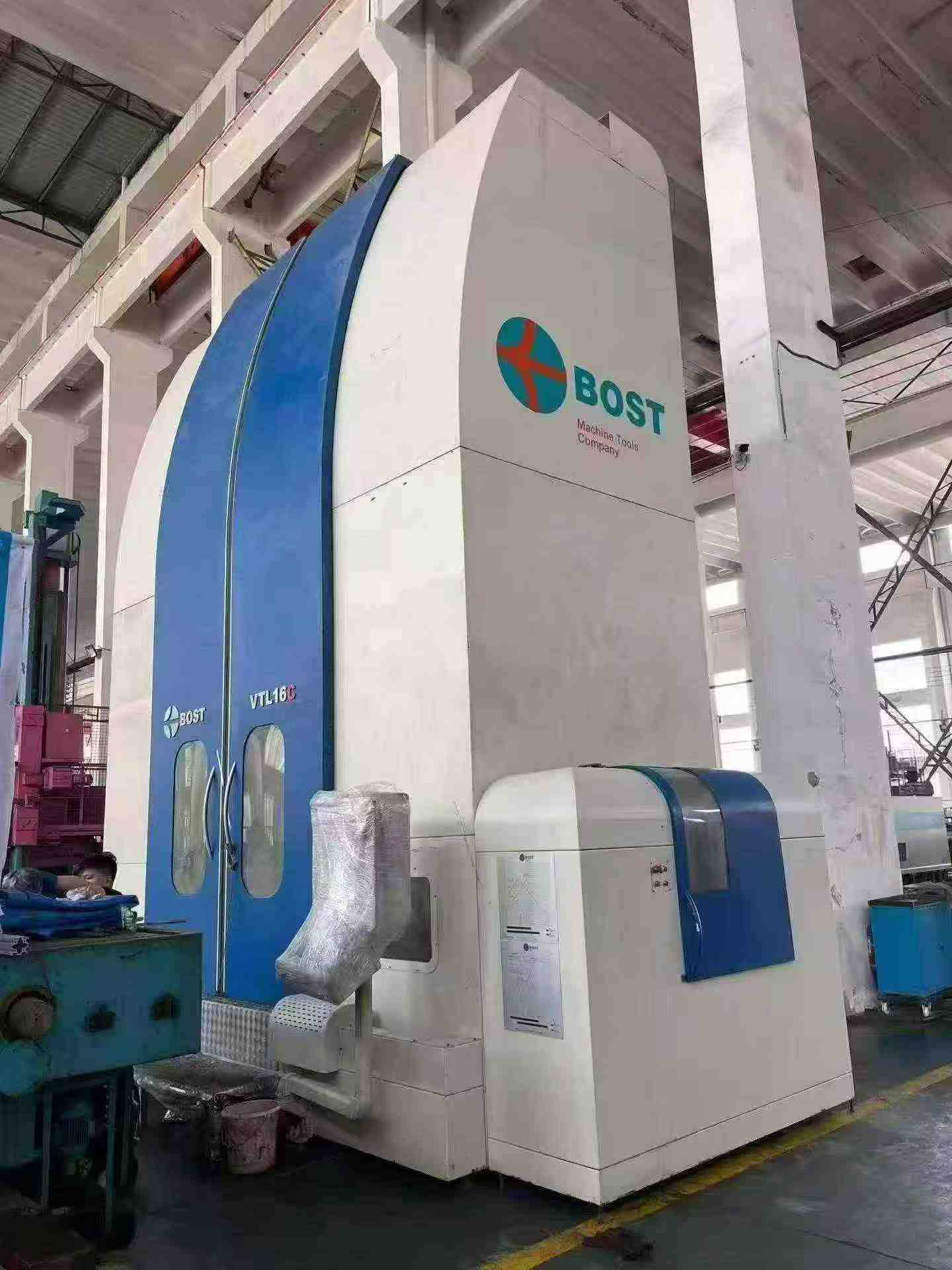

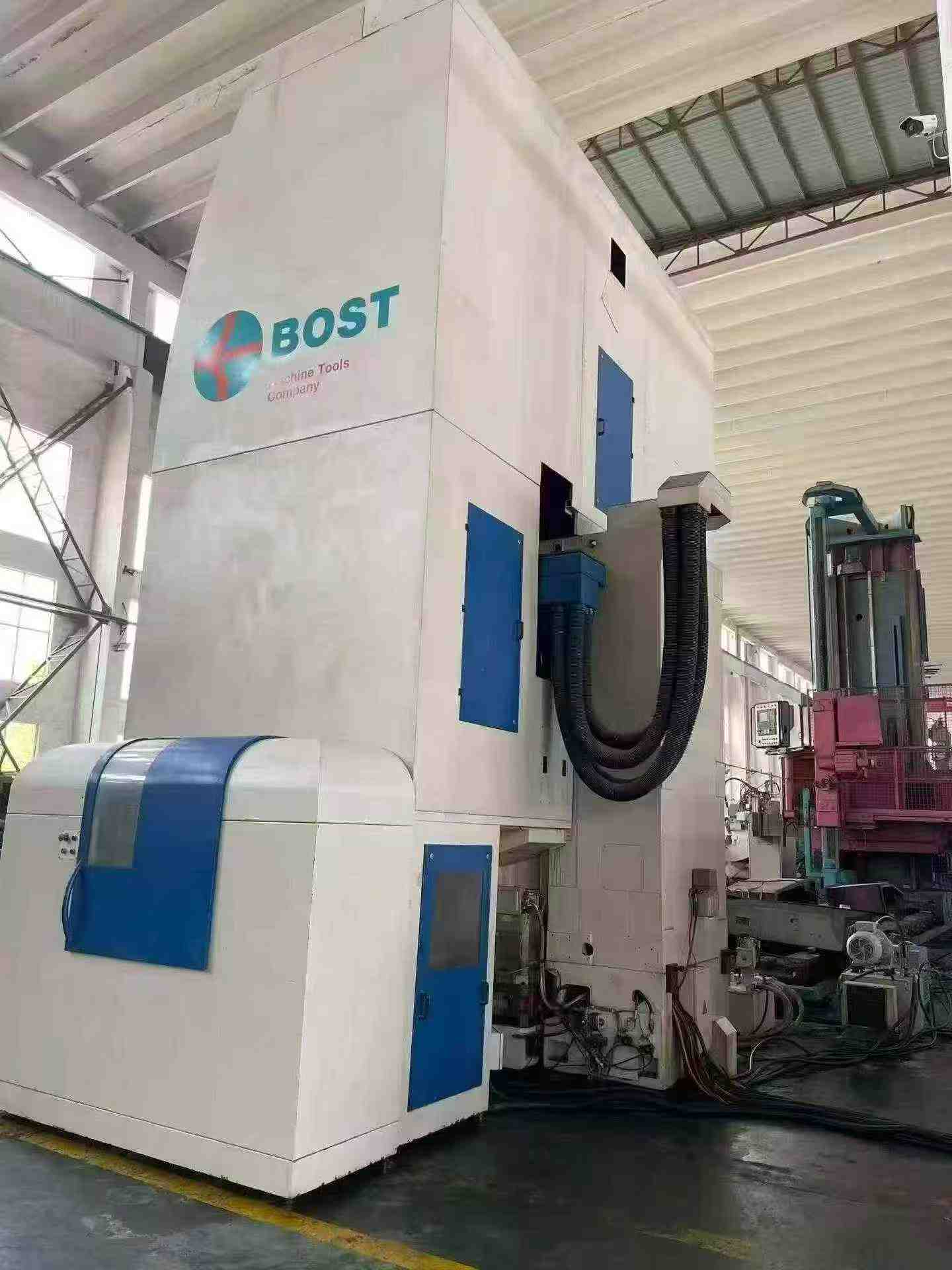

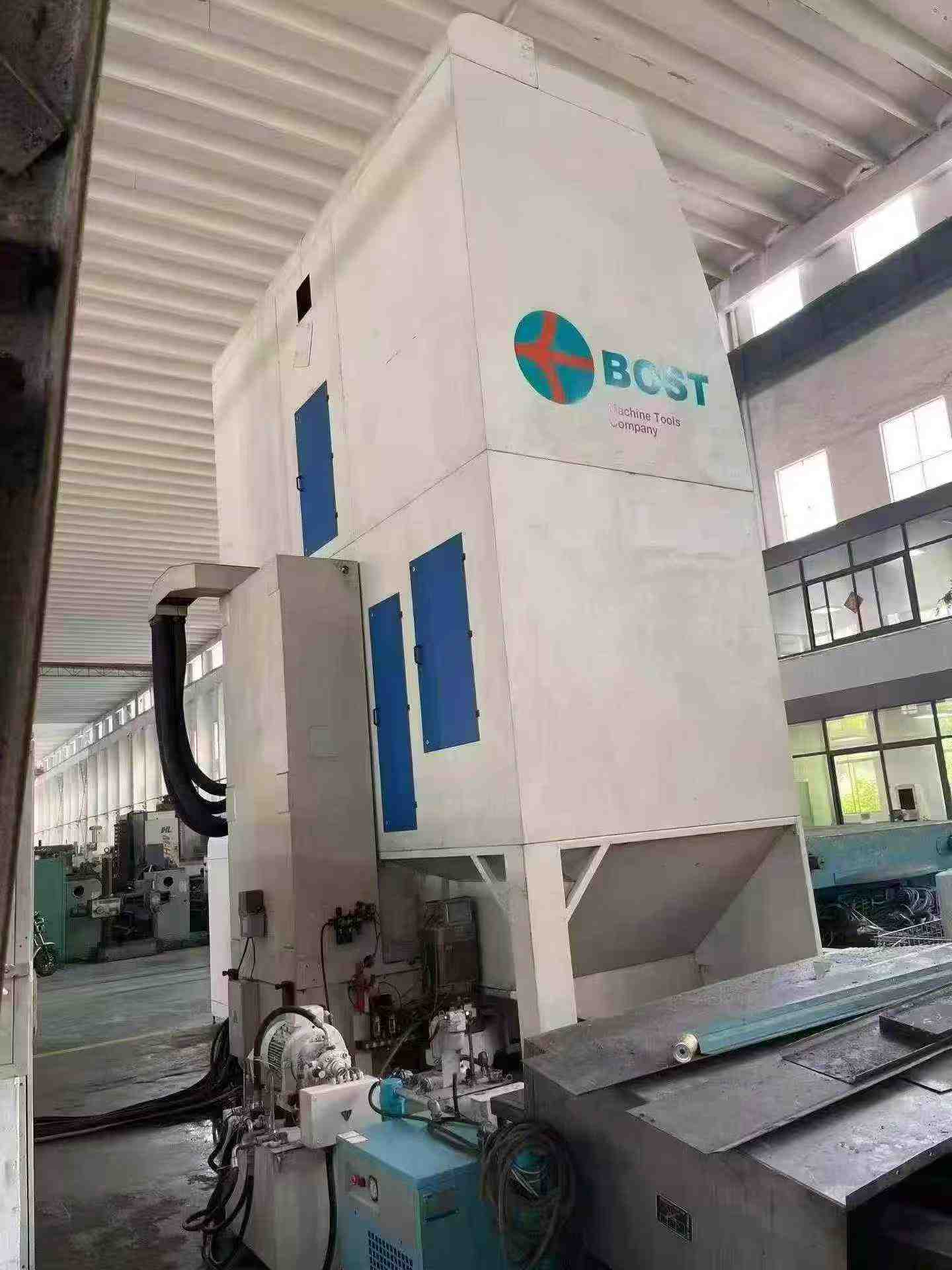

BOST VTL 16 C-1400 Vertical Turning Center, Installed 2011, Unused
The Rolls-Royce of vertical lathes. Spanish BOST VTL 16 C-1400 vertical turning machining center, installed in 2011 and never used. Equipped with movable cross rail, Siemens 840 D CNC, ram with built-in milling spindle, bi-directional C-axis drive, 15-position tool changer configured with a 21-station tool magazine (12 ISO 50 holder positions and 8 turning tool positions), worktable with independent 4-jaw chuck, EC-compliant protective guarding, cooling system, through-tool coolant at 20 bar, electrical cabinet air conditioning, and leveling elements.
- Machine Code
- MC260949
- Year
- 2011
- Location
- China
- Usage Hours
- On request
Accessories
Coolant system; through-tool coolant at 20 bar; electrical cabinet air conditioning; leveling elements
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Max turning diameter | 1600 mm |
|---|---|
| Chuck diameter | 1400 mm |
| Max machining height | 1500 mm |
| Ram vertical travel (Z) | 1200 mm |
| Ram cross-section | 250 x 250 mm |
| Main motor power | 60 kW (30/30) |
| Milling spindle power | 22 kW |
| Milling spindle speed | 2500 rpm |

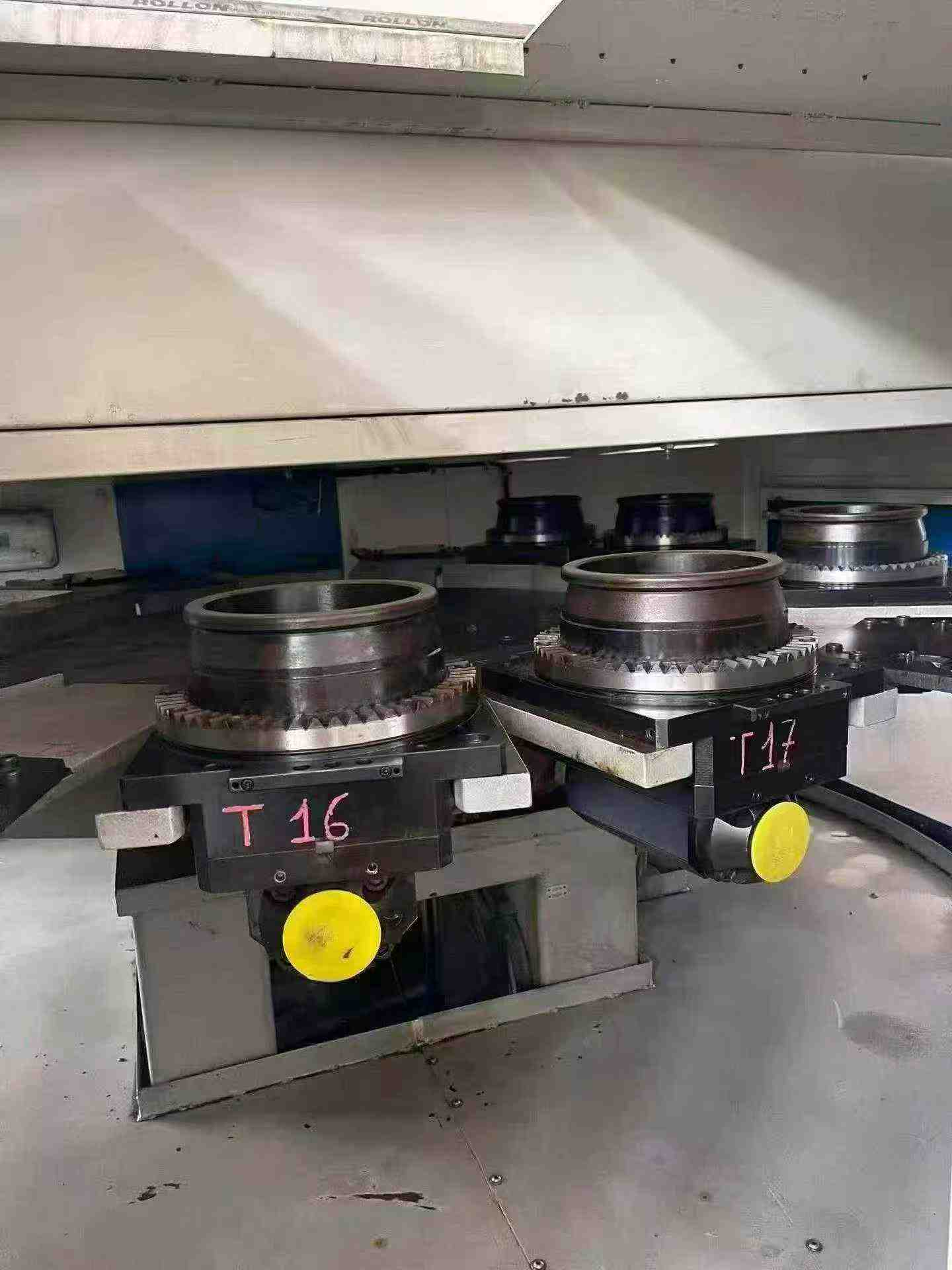

| Tool changer / magazine | 15-position tool changer; 21-station magazine (12 ISO 50 + 8 turning tool positions) |
| Through-tool coolant pressure | 20 bar |
| Machine Type | Vertical Turning Center |
| Brand | BOST |
| Model | VTL 16 C-1400 |
| Installation Year | 2011 |
| Condition | Installed but unused |
| Maximum Turning Diameter | 1600 mm |
| Maximum Machining Height | 1500 mm |
| Crossrail Type | Movable / traveling crossrail |
| Controller | Siemens 840 D |

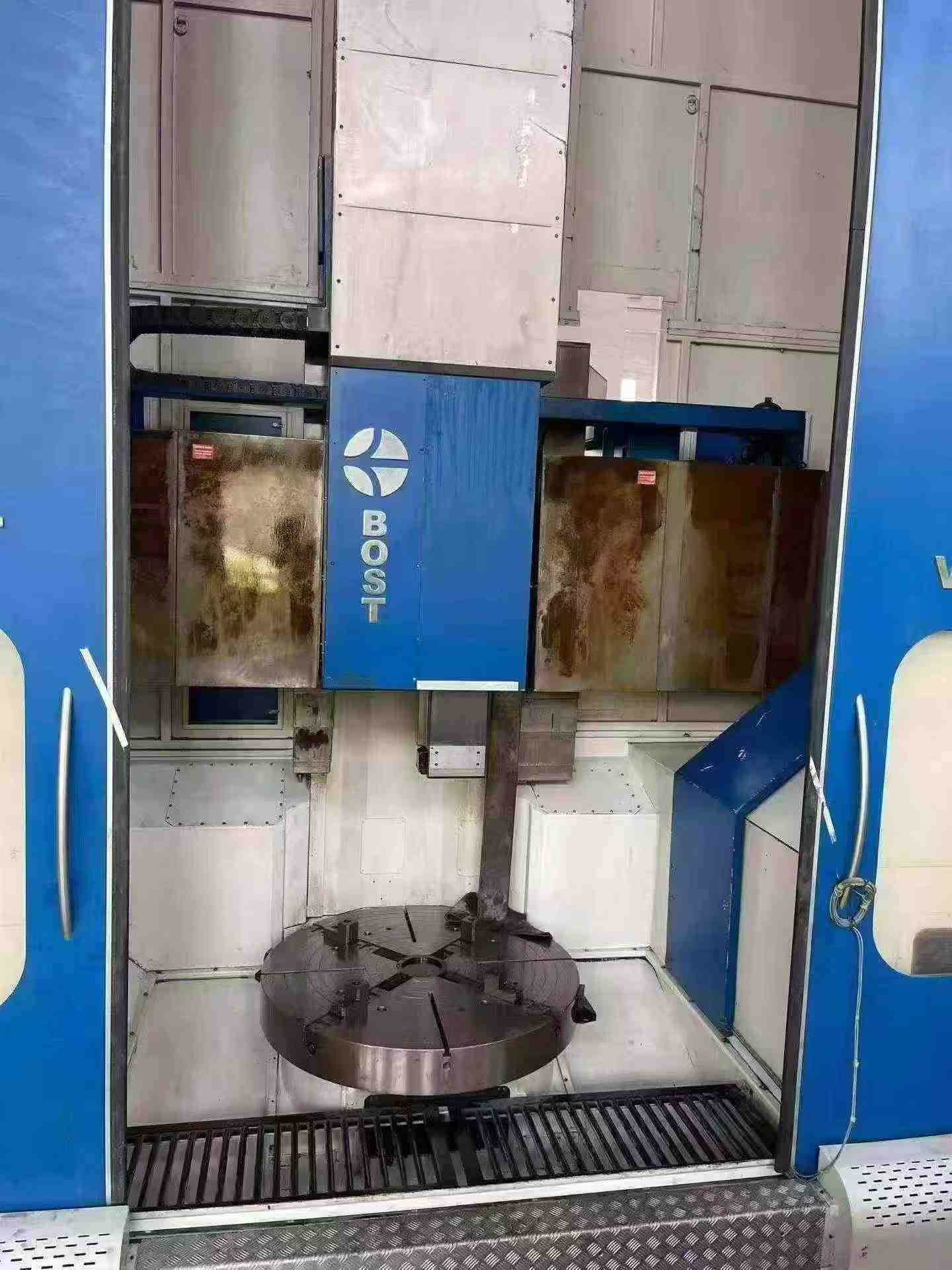

| Chuck Type | Independent 4-jaw chuck on worktable |
| Safety Guards | EC-compliant |
| Coolant System | Equipped |
| Leveling Elements | Equipped |
| C Axis | Bidirectional drive |

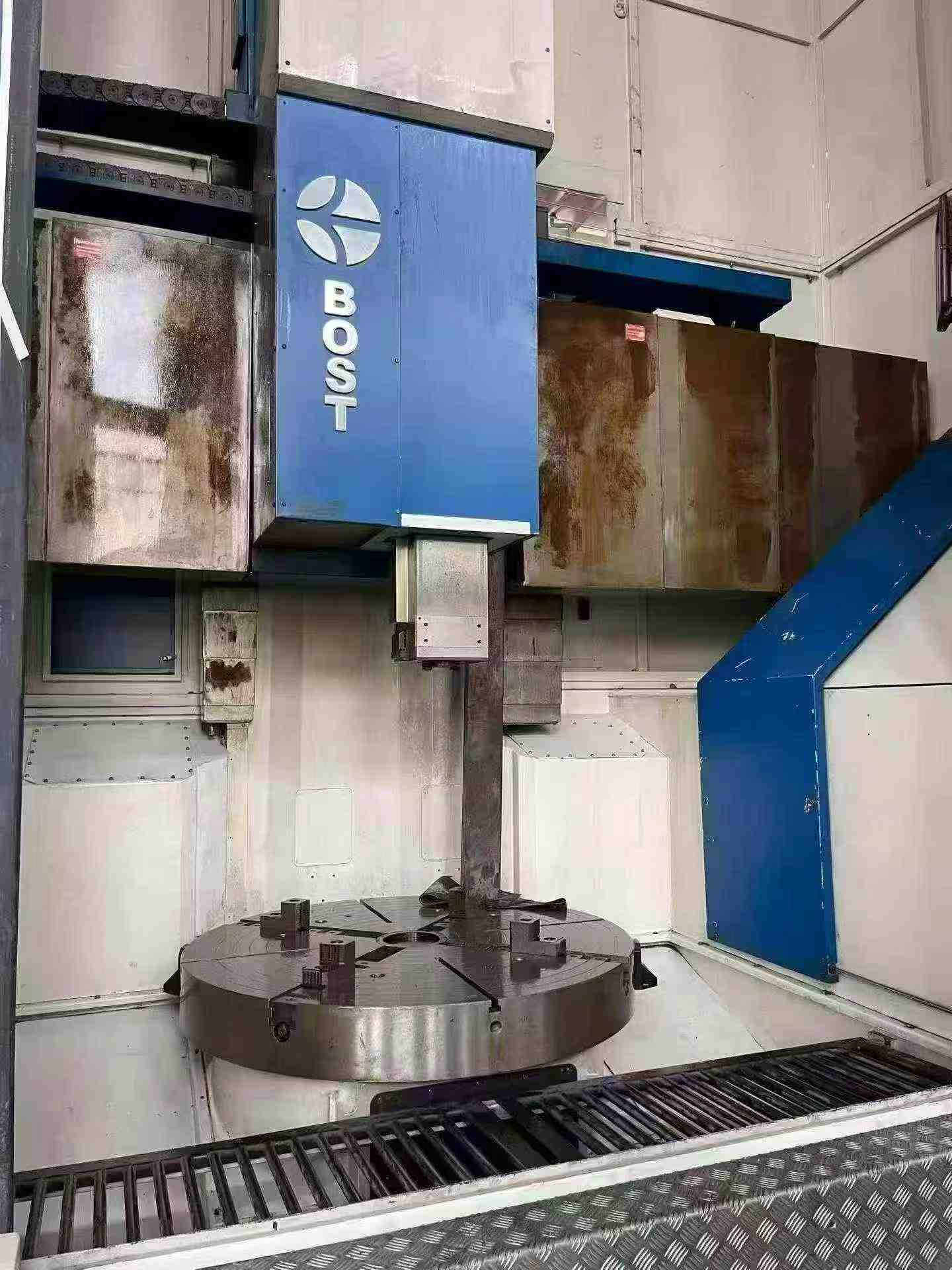

| Milling Spindle | Built into the ram |

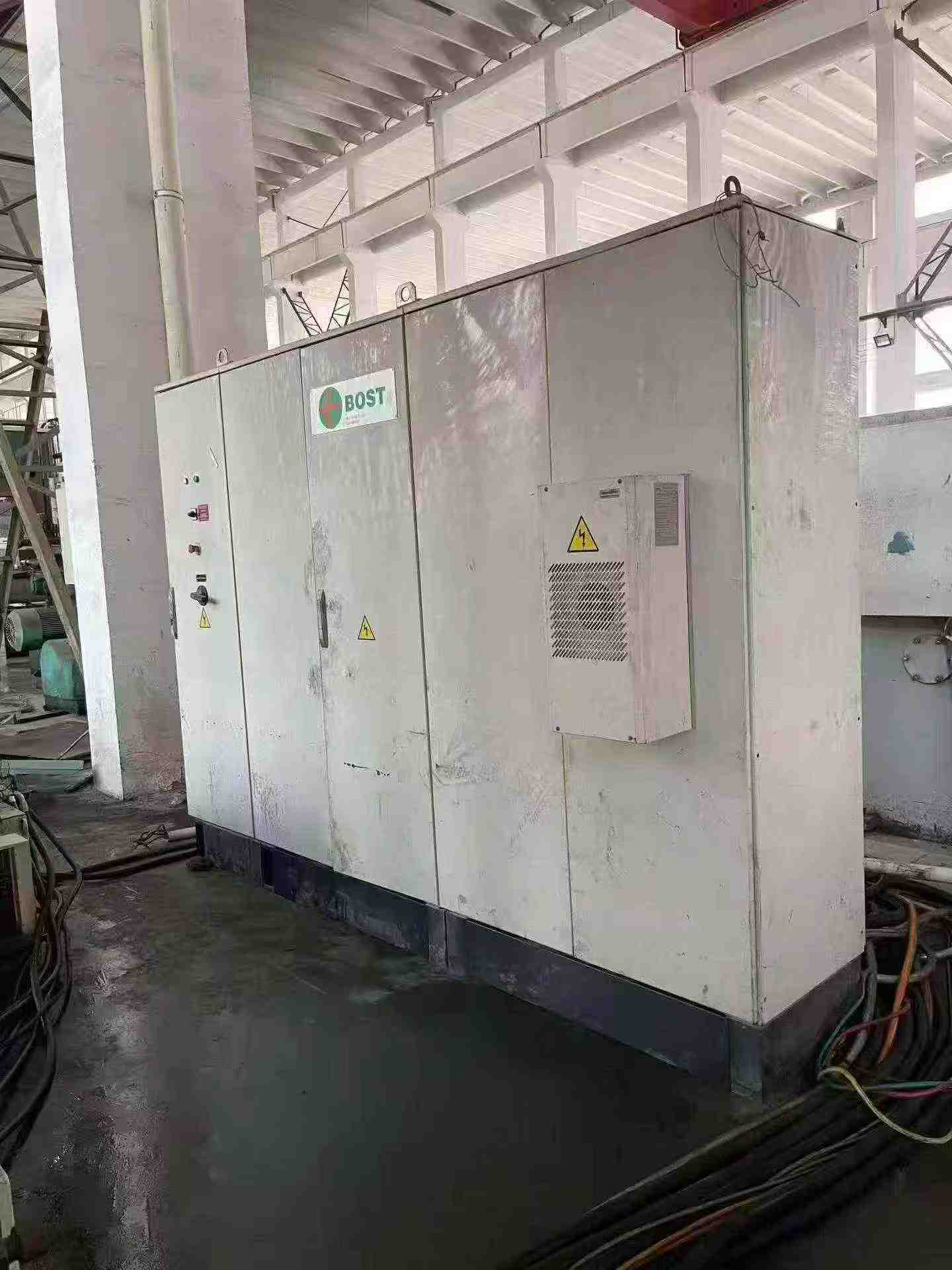

| Electrical Cabinet Air Conditioning | Equipped |
| Tool Changer | 15-position |
| Tool Magazine Capacity | 21-station |
| Tool Magazine Configuration | 12 ISO 50 tool positions + 8 turning-tool positions |
| Description | The Rolls-Royce of vertical lathes |
| Control system | Siemens 840 D |
| Year of manufacture | 2011 |
