AvailableCNC Drilling Machine

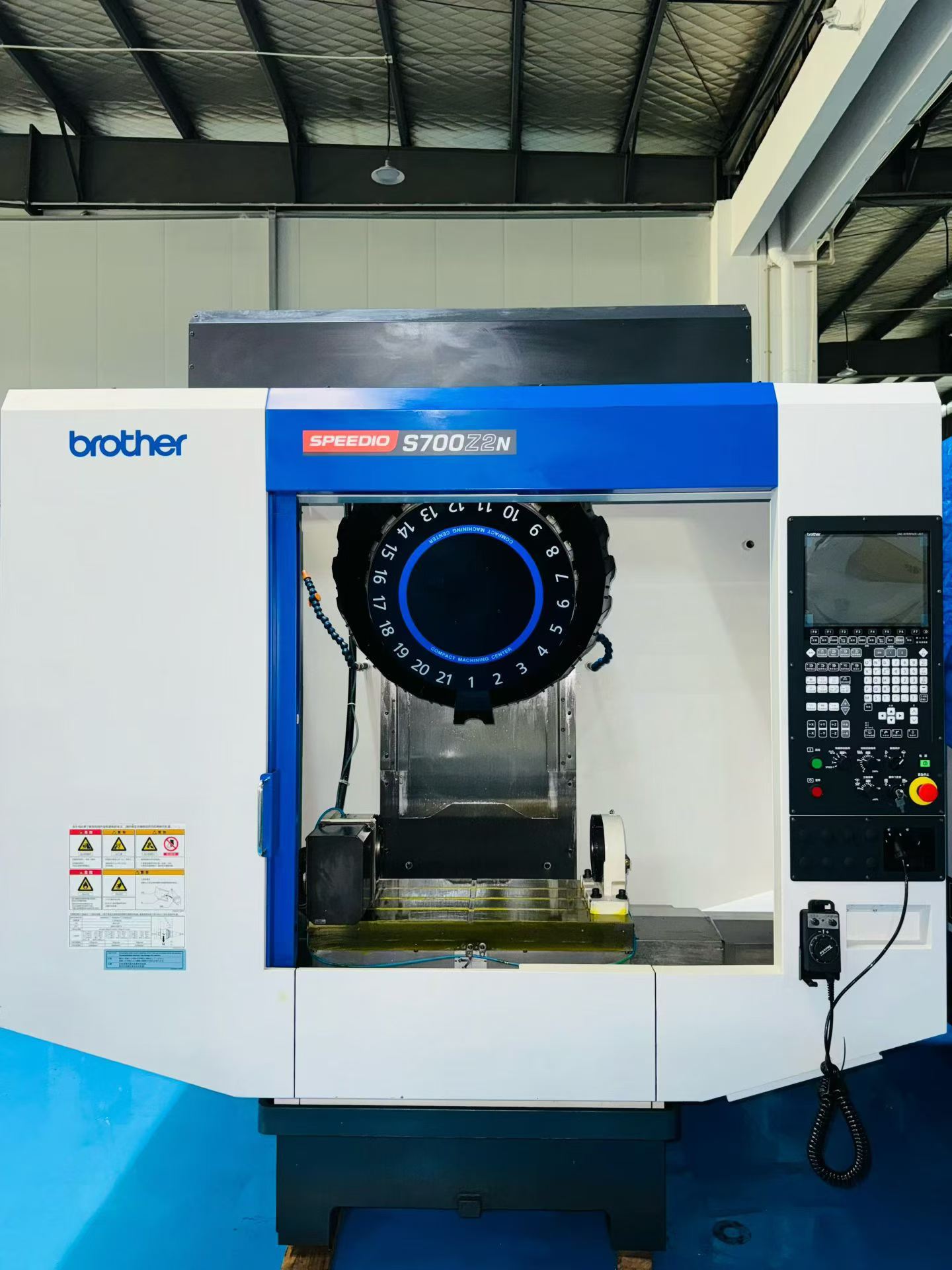

Used Brother S 700 Z 2 N CNC Drilling and Tapping Center with Tsudakoma 160 4 th Axis

Two Brother S 700 Z 2 N CNC drilling and tapping centers, manufactured in May 2023 by Brother Machinery (Xi'an) Co., Ltd. and lightly used since. Each machine is fitted with the Brother C 00 CNC control system, a BT30 spindle with a maximum speed of 10,000 rpm, and a 21-tool servo tool magazine. Spindle motor power is 7.0 kW. All three axes run on linear guideways, with X/Y/Z travels of 700 x 400 x 300 mm and rapid traverse rates of 50 / 50 / 56 m/min. The worktable measures 800 x 400 mm, and each unit is supplied with a Tsudakoma 160 4 th axis. Machine weight is 2,450 kg.

Machine Code: DR260942
Year: 2023
Location: China
Usage Hours: On request

Accessories

Brother C 00 CNC control system 21-tool servo tool magazine Tsudakoma 160 4 th axis BT30 spindle

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle taper	BT30
Spindle speed	10,000 rpm (max 10,000 min-1)
Spindle motor power	7.0 kW

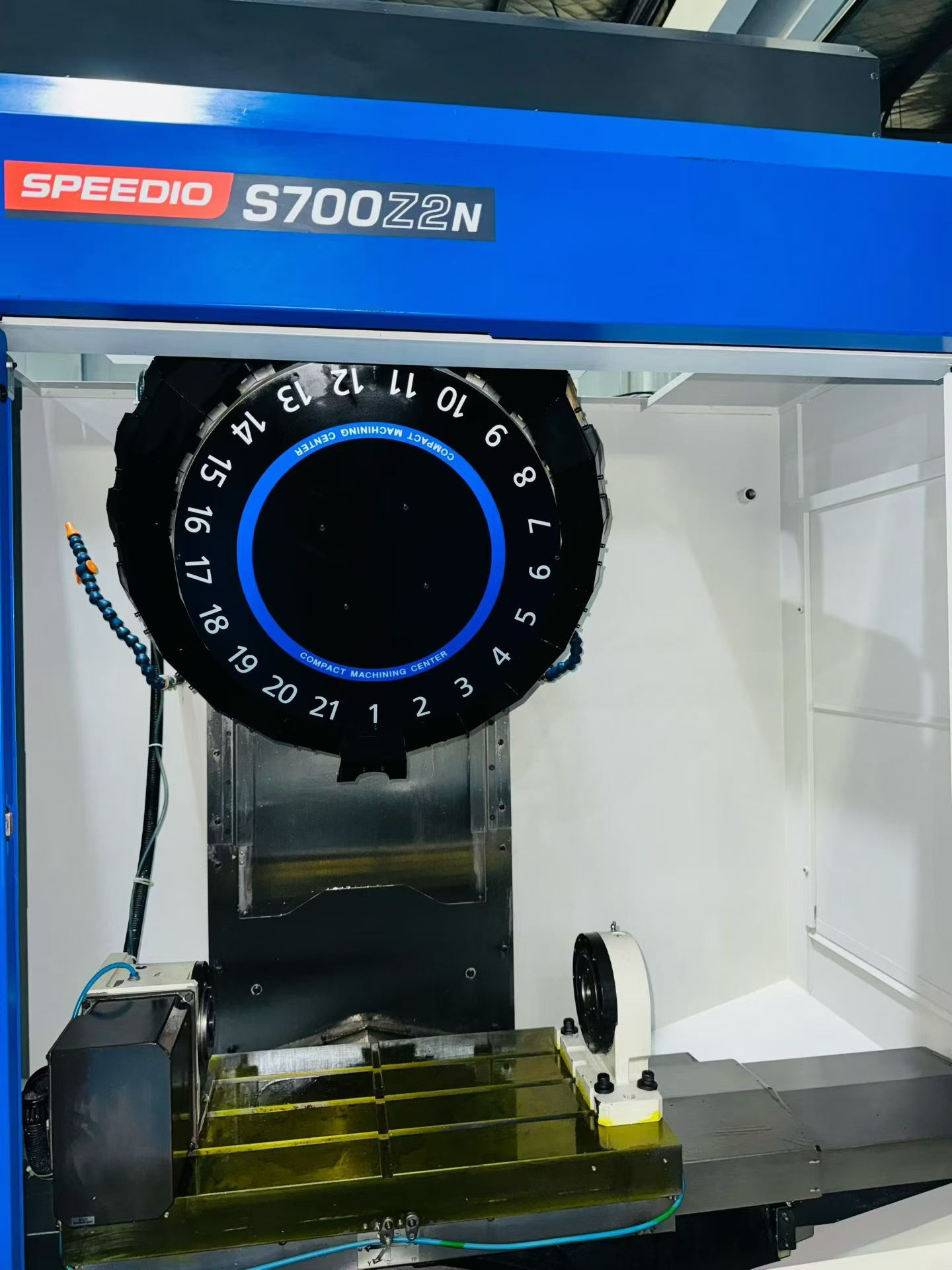

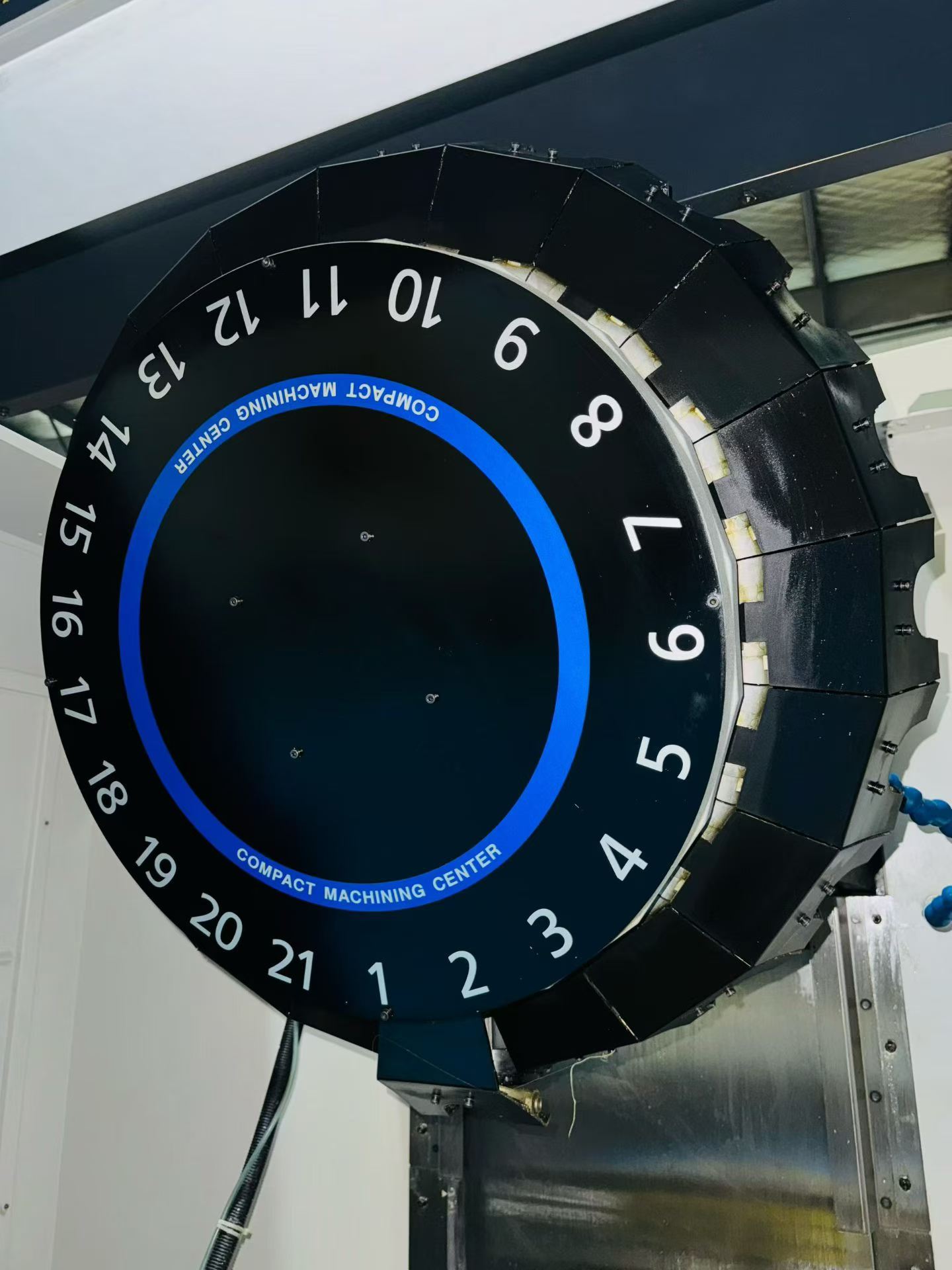

Tool magazine capacity	21 tools (servo tool magazine)
Guideway	3-axis linear guideway
X/Y/Z travel	700 x 400 x 300 mm
Rapid traverse X/Y/Z	50 / 50 / 56 m/min

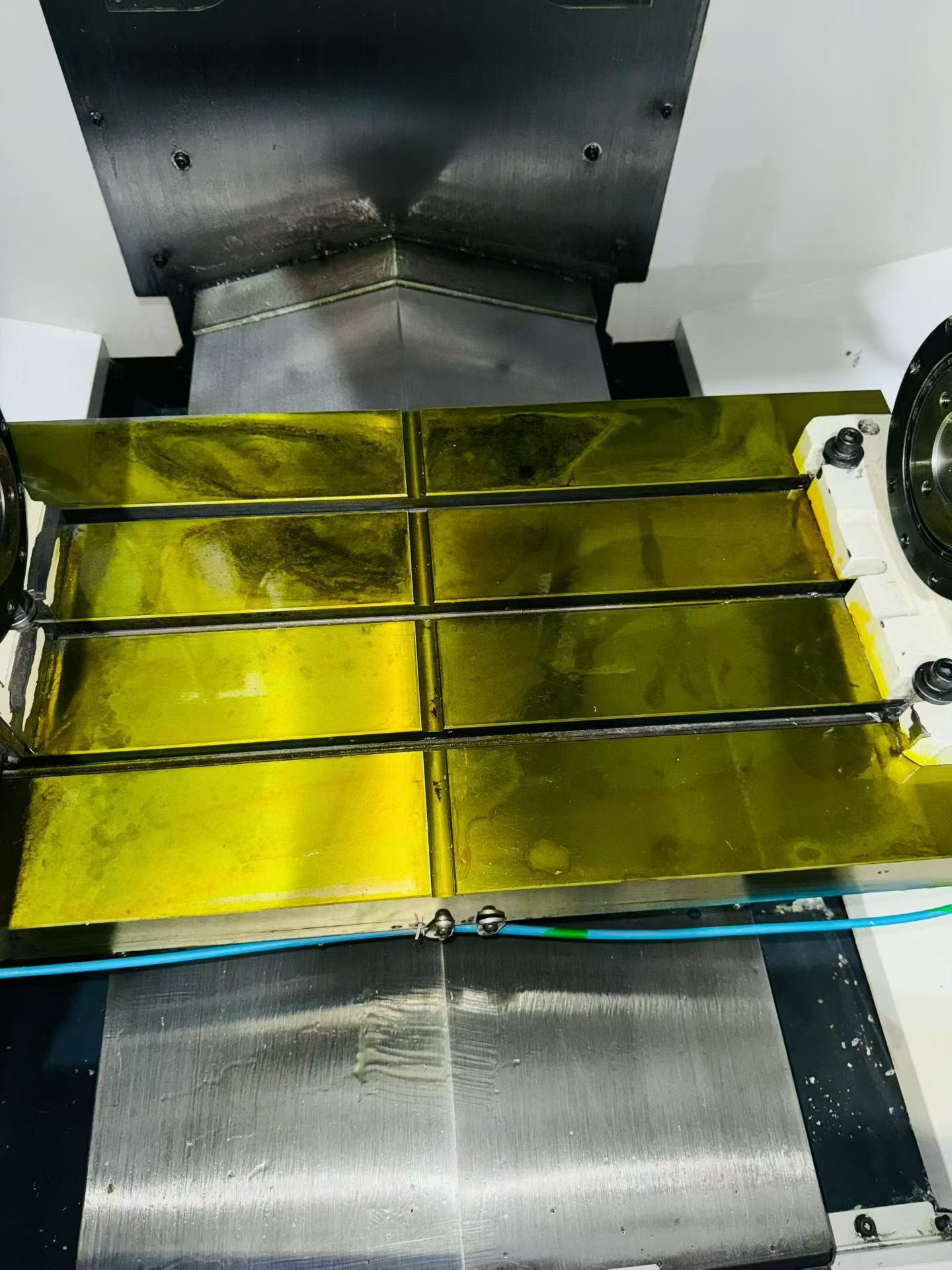

Worktable size	800 x 400 mm

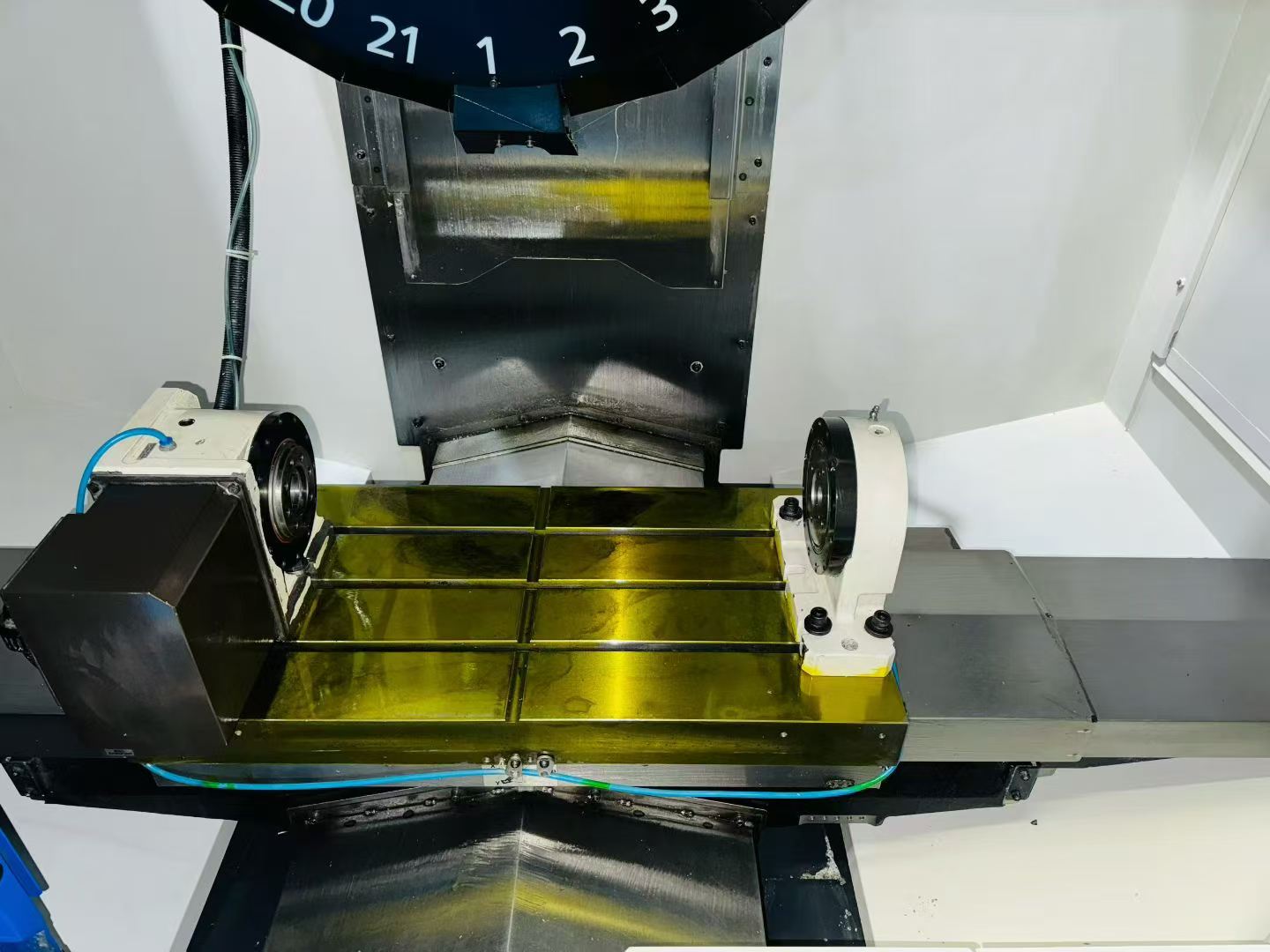

4th axis	Tsudakoma 160
Machine weight	2,450 kg
Manufacturing date	2023-05

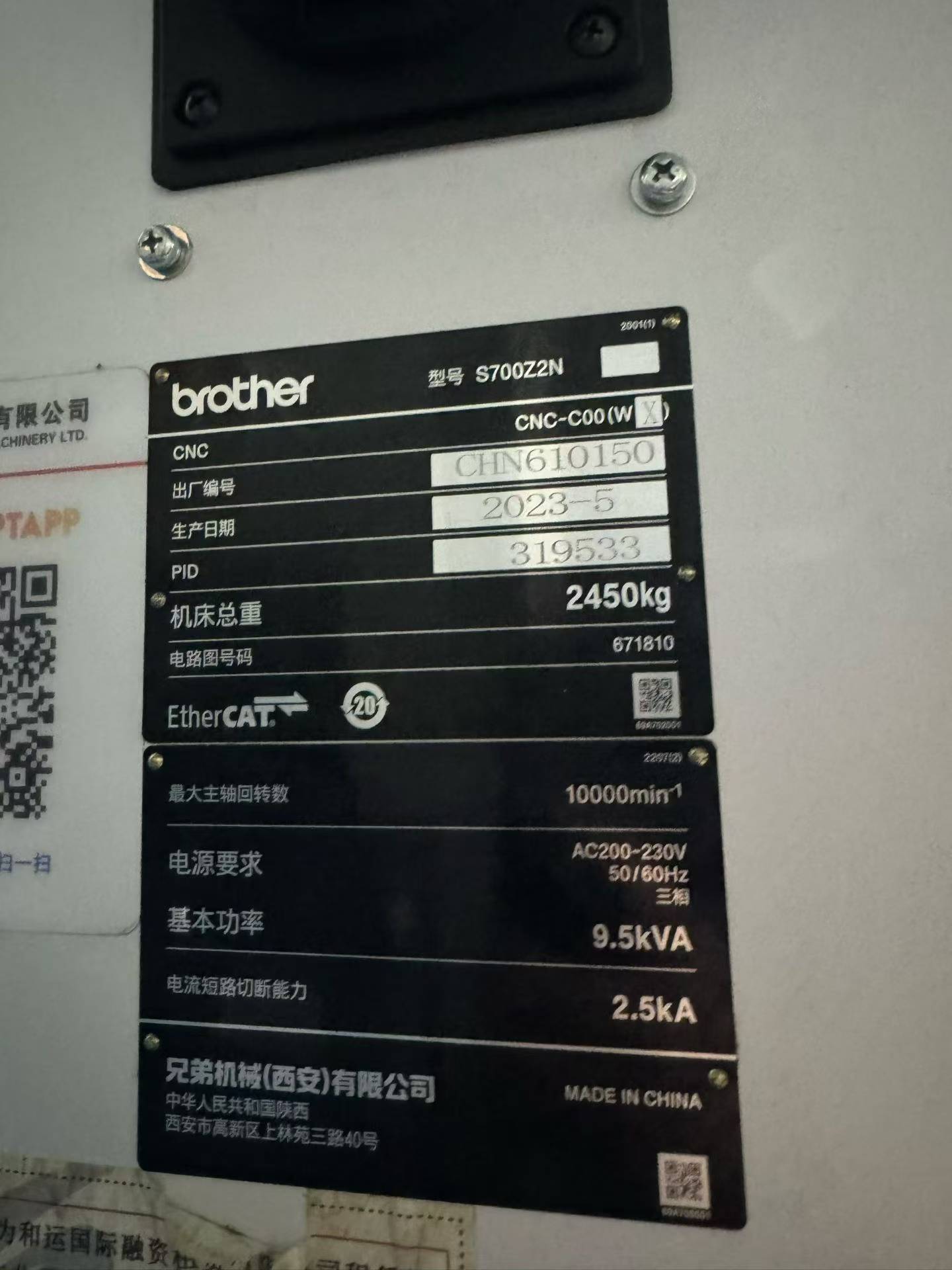

Serial number	CHN 610150
Brand	Brother

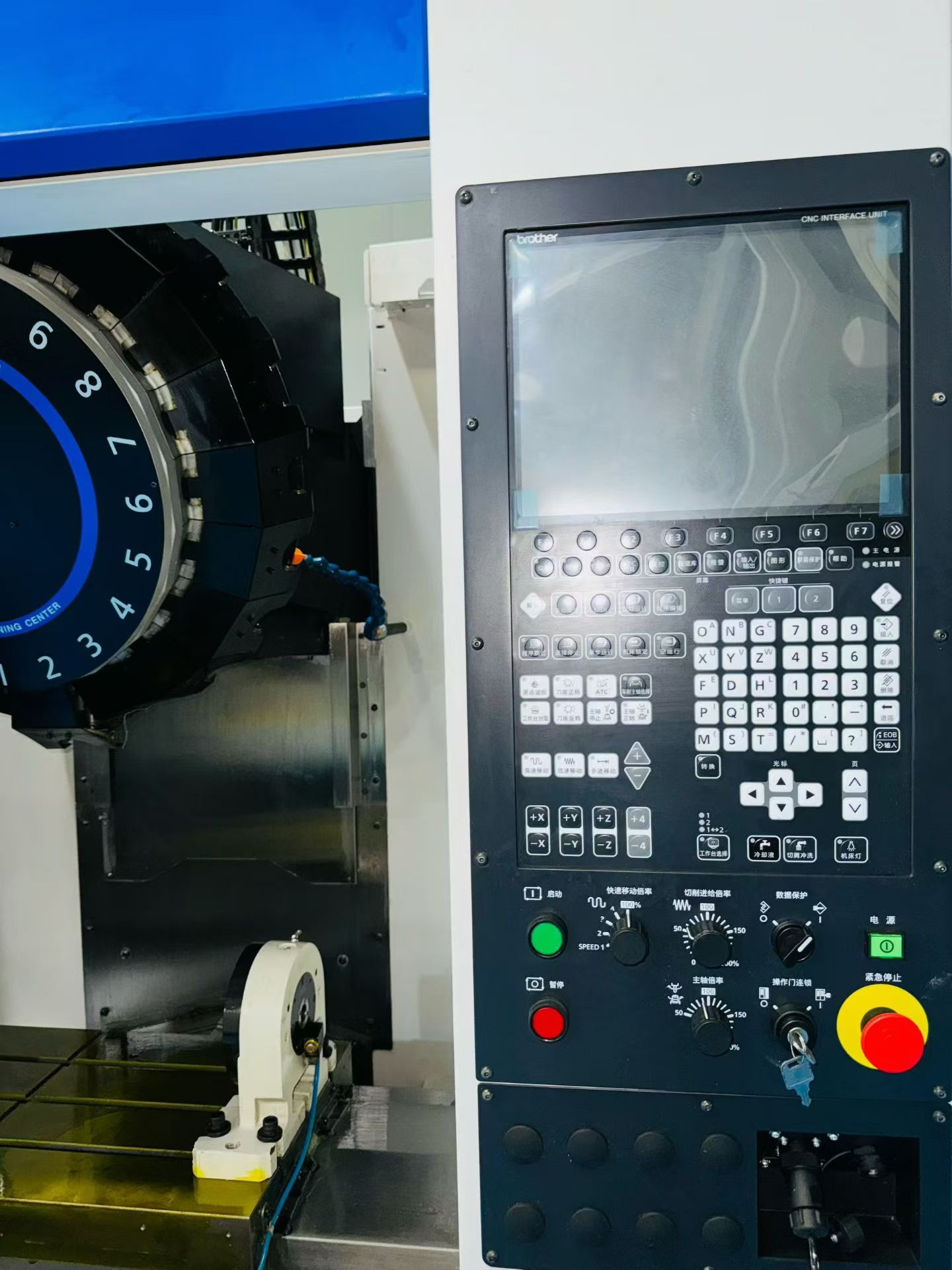

Control system	Brother C 00
Year of manufacture	2023
