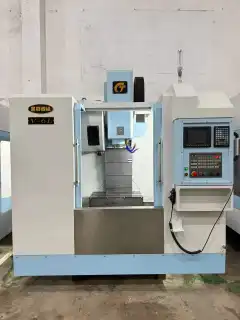

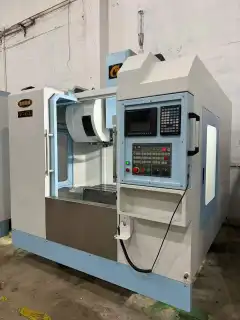

Used Chaoqun V-6 L Vertical Machining Center with Mitsubishi M 70 V Control

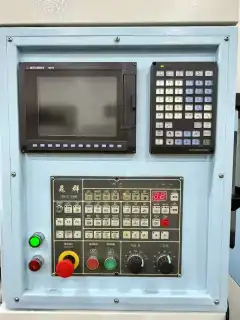

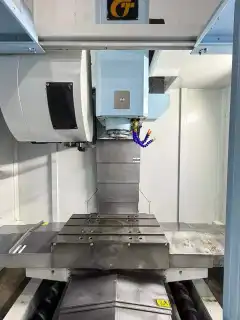

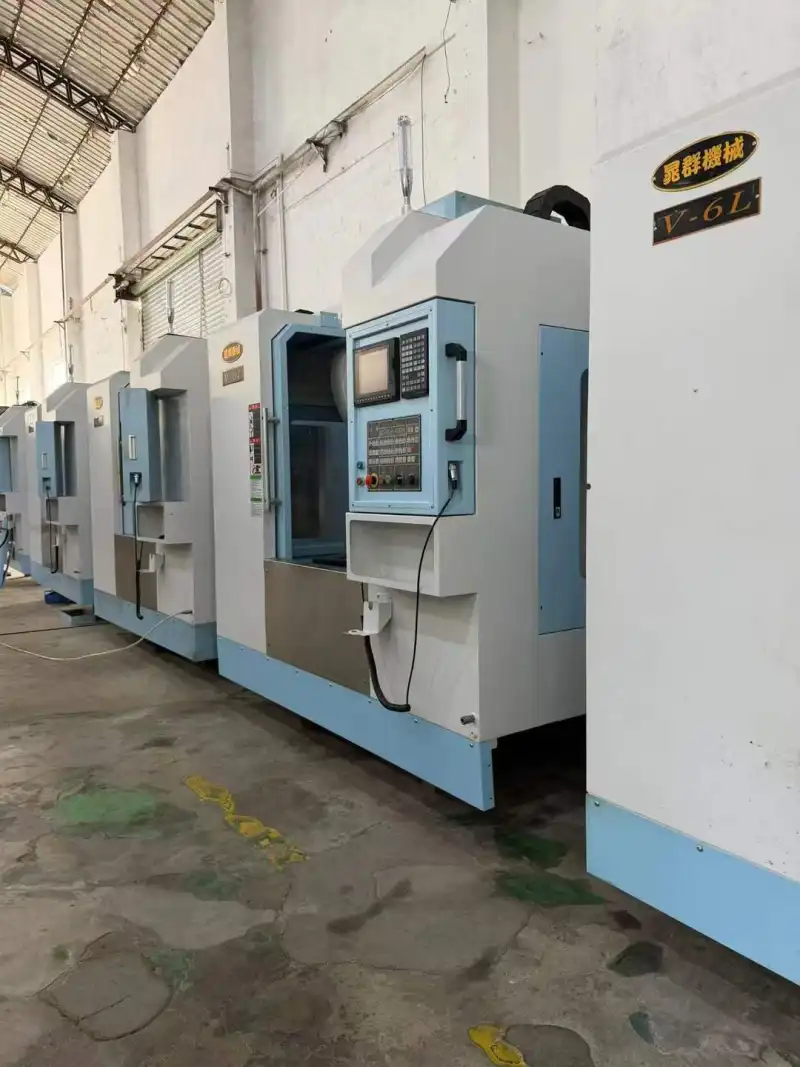

20 Chaoqun V-6 L vertical machining centers are available. Each machine is built on a large-base bed weighing up to 5 t and is equipped with a Mitsubishi M 70 V CNC control system. The operation panel is marked CHECK TEAM. The BT40 belt-drive spindle runs at 10,000 rpm. All three axes use 16 mm-pitch ball screws with double pretension, and rapid traverse reaches 48 m/min. The Z axis rides on a 45 linear guideway. X/Y/Z travel is 600/500/500 mm, with 150–620 mm spindle nose-to-table distance and a 700 x 450 mm worktable. A 24-tool arm-type tool magazine handles tool changes, and a built-in dual-screw automatic chip conveyor manages chip removal.

Machine Code: VMC2610203
Year: On request
Location: China
Usage Hours: On request

Accessories

24-tool arm-type tool magazine; built-in dual-screw automatic chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Control system	Mitsubishi M 70 V
Spindle taper	BT40
Spindle speed	10,000 rpm
Spindle drive	Belt drive
X-axis travel	600 mm
Y-axis travel	500 mm
Z-axis travel	500 mm
Rapid traverse speed	48 m/min
Ball screws	16 mm pitch, double pretension, X/Y/Z
Z-axis guideway	45 linear guideway
Spindle nose to table distance	150–620 mm
Worktable size	700 x 450 mm
Tool magazine capacity	24 tools
Tool magazine type	Arm type
Chip conveyor	Built-in dual-screw automatic
Bed	Large base, up to 5 t bed weight
Brand	Chaoqun
