AvailableCNC Lathe

Used Fuyu FCL 200 CNC Horizontal Lathe with FANUC 0i-TF Control

Two identical Taiwan Fuyu FCL 200 CNC horizontal lathes are available as a matched pair. Each machine is built on linear guideways and equipped with the FANUC Series 0i-TF CNC control system, an 8-inch chuck and an 8-station servo turret. A hydraulic tailstock supports shaft-type work, and a chain-type chip conveyor handles chip removal in continuous production. Maximum swing diameter is 500 mm and maximum machining length is 500 mm, with a spindle speed of 4,500 rpm. The machine has a net weight of 3,200 kg, a main voltage of 220 VAC and a rated capacity of 12 kVA.

Machine Code: CL2609105
Year: 2018
Location: China
Usage Hours: On request

Accessories

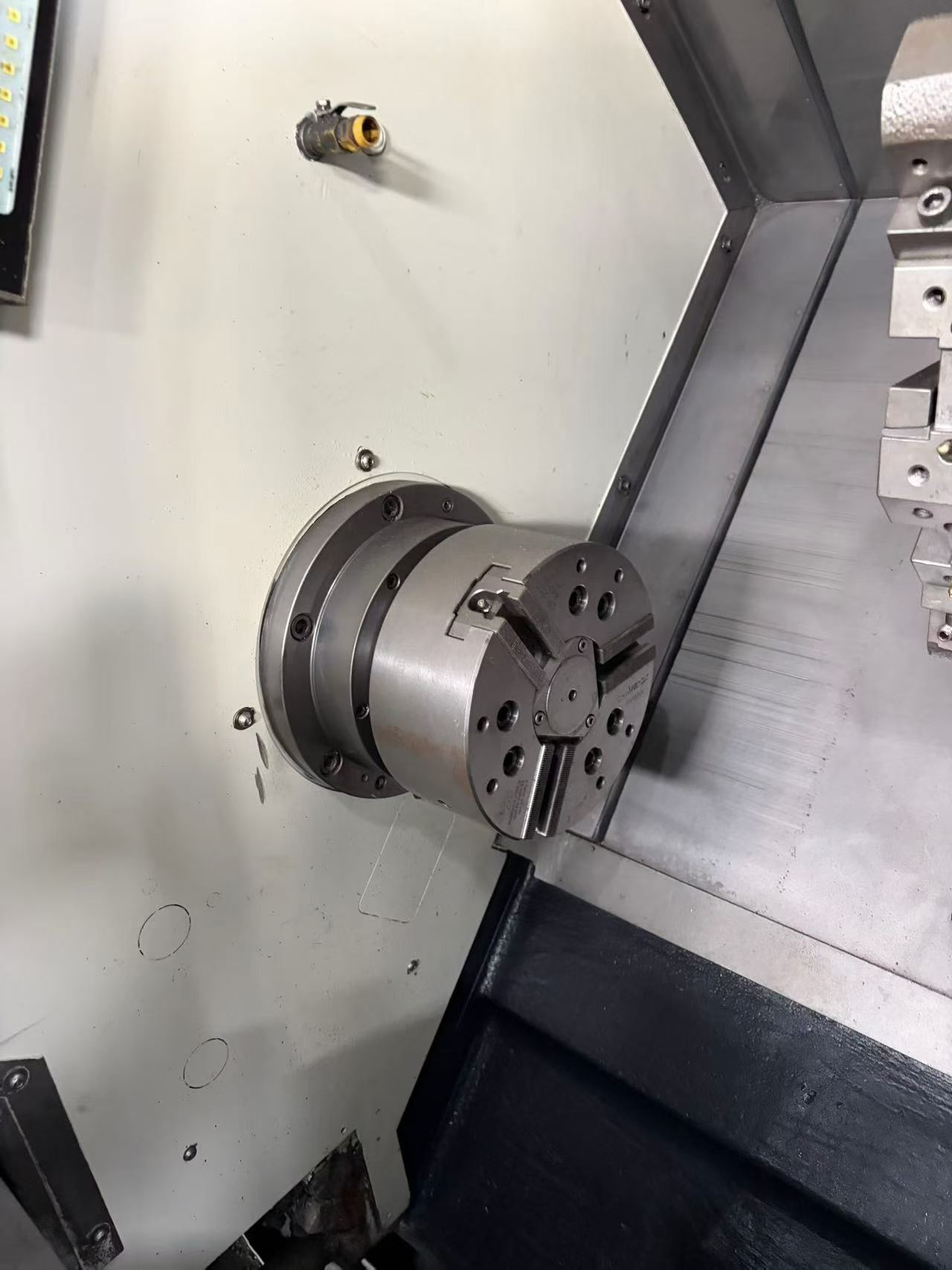

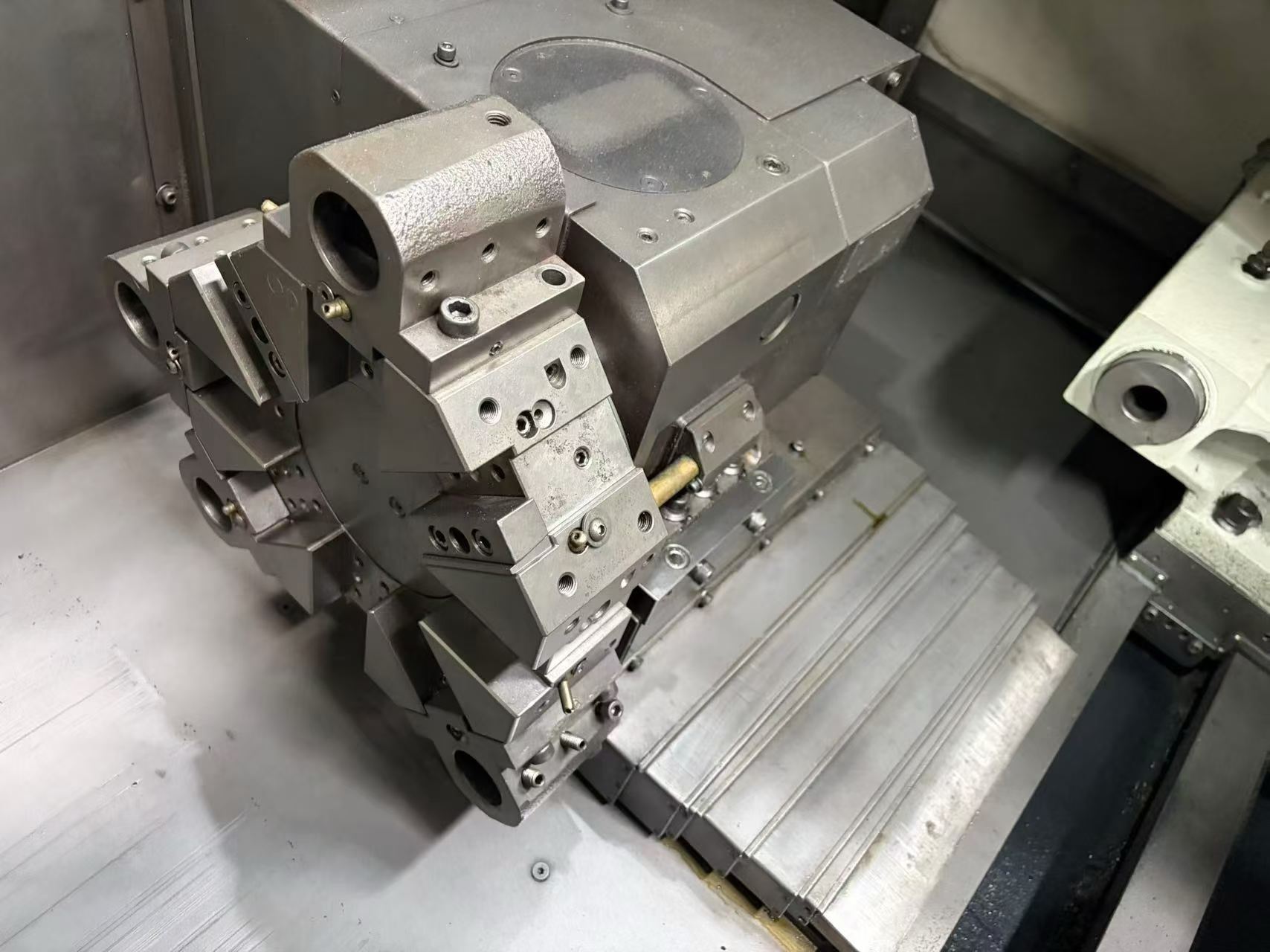

8-inch chuck; 8-station servo turret; hydraulic tailstock; chain-type chip conveyor.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Model	FCL-200
Machine type	CNC horizontal lathe
Guideway type	Linear guideway
Maximum swing diameter	500 mm
Maximum machining length	500 mm
Chuck size	8inch
Turret	8-station servo turret
Tailstock	Hydraulic tailstock
Spindle speed	4,500 rpm

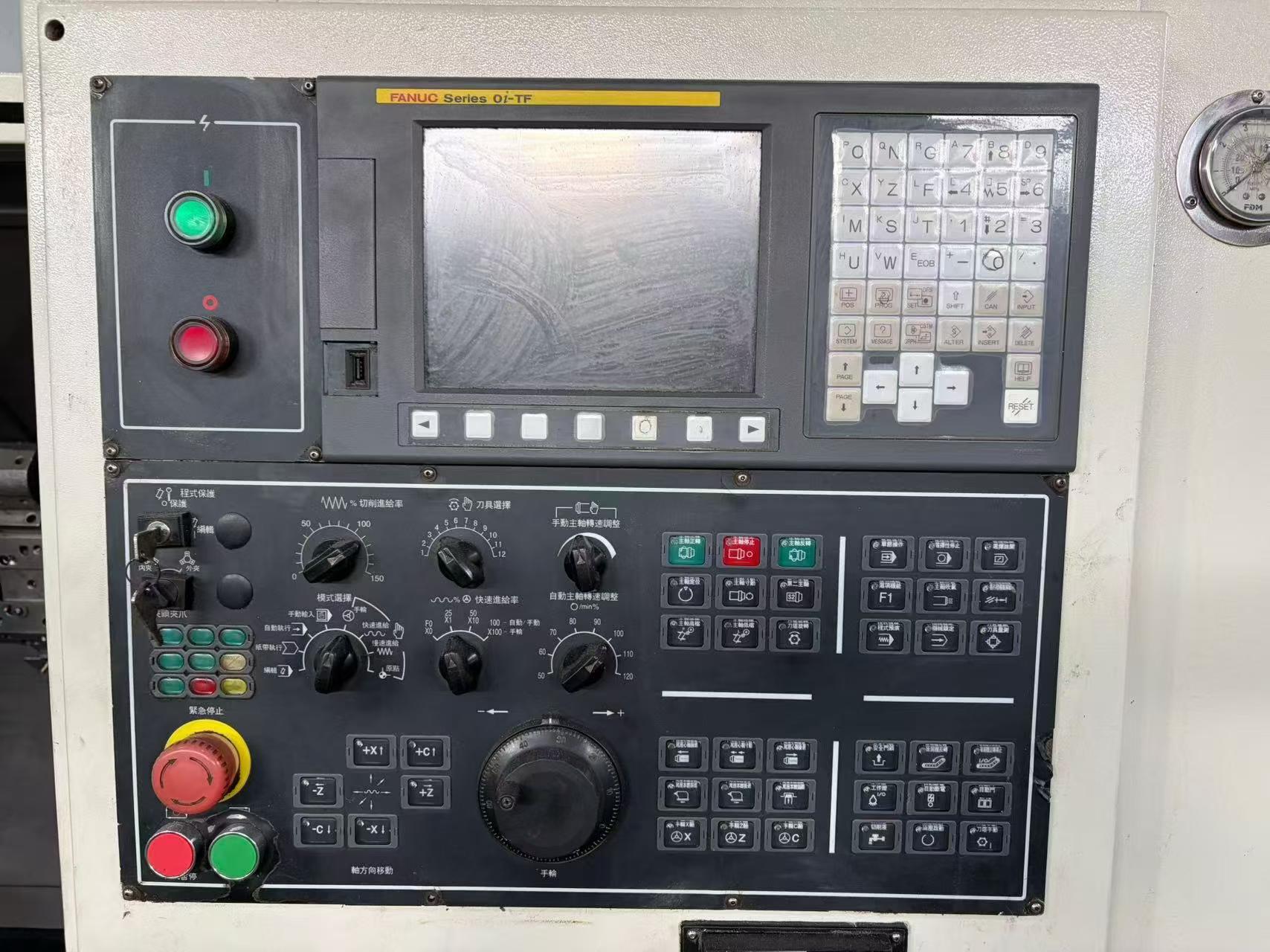

Control system	FANUC Series 0i-TF
Machine net weight	3,200 kg
Main voltage	220 VAC
Rated capacity	12 kVA
Brand	Fuyu
