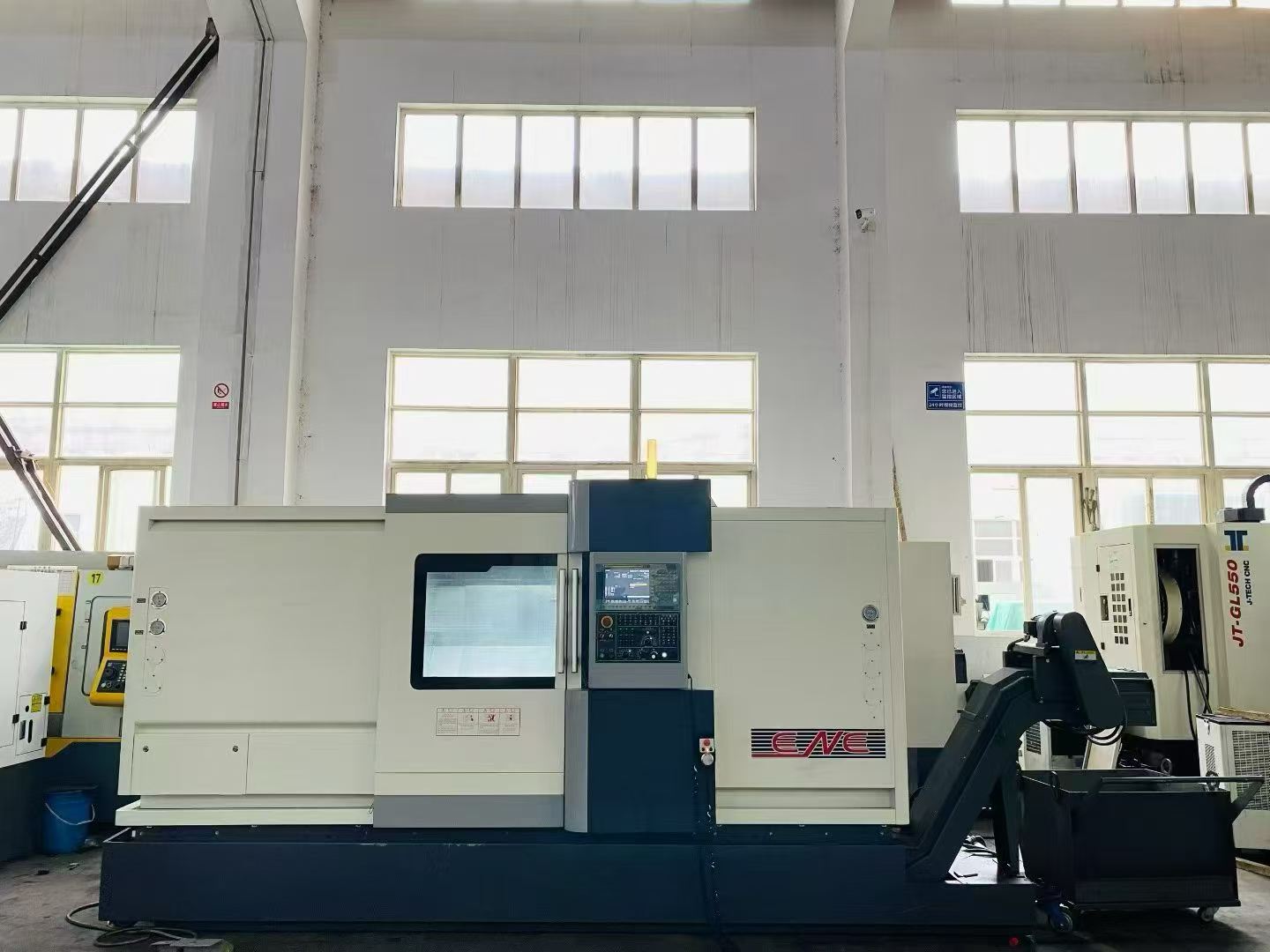

Used Dalian DL-25 M/1000 Heavy-Duty Slant-Bed Turret CNC Lathe with FANUC

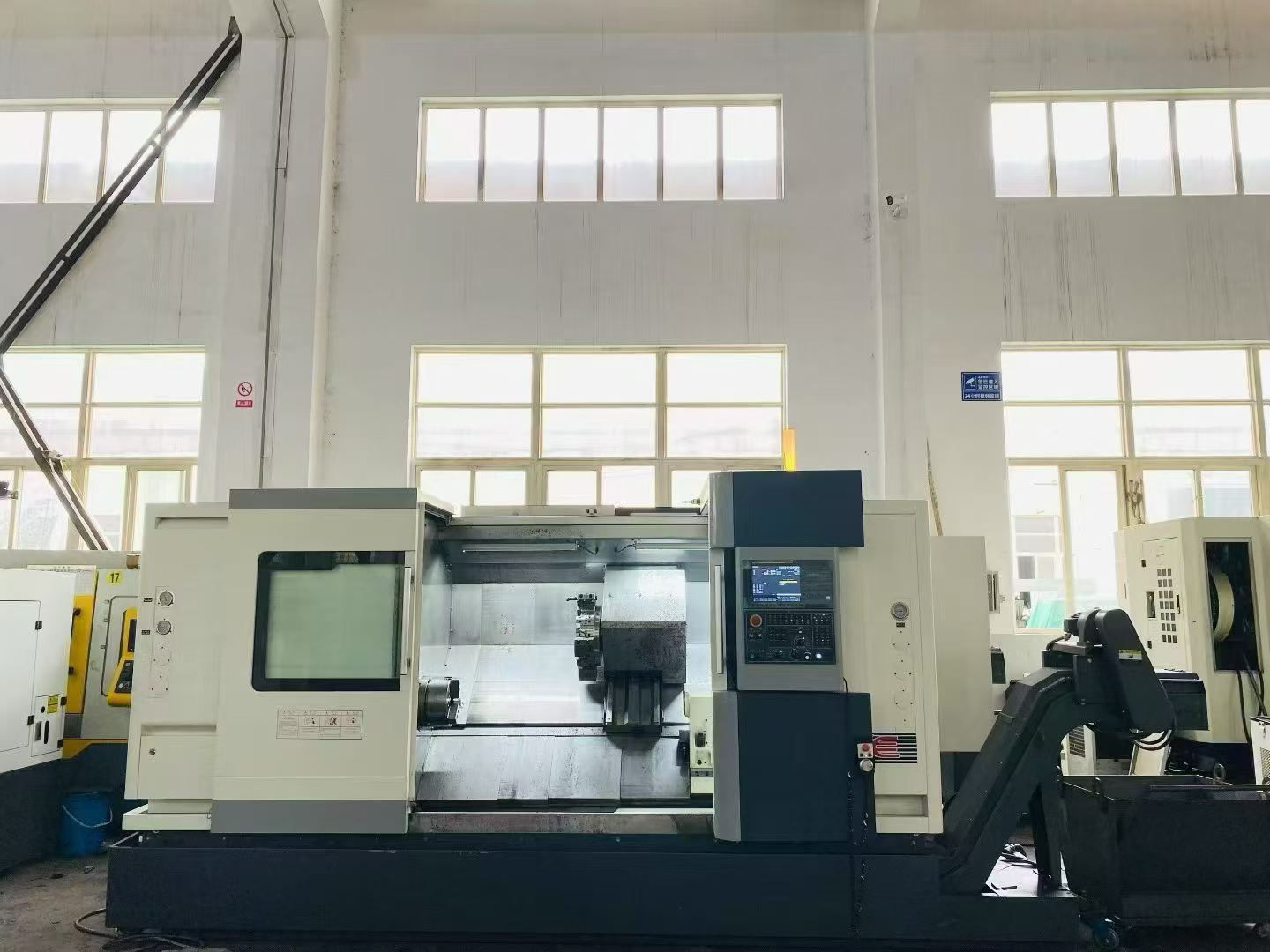

Used Dalian DL-25 M/1000 heavy-duty slant-bed turret CNC lathe with FANUC TF Plus control system. This machine is from a listed company's idle equipment, installed and rarely used, with cutting time of only a few hundred hours. It is in 95% new condition and available for inspection in China. Contact for more details.

Machine Code: CL2608295
Year: On request
Location: China
Usage Hours: On request

Accessories

Chain-type chip conveyor, 10-inch hydraulic chuck, 12-inch chuck available on request

Email Inquiry

Main Specifications

Maximum swing over bed	600 mm
Maximum turning diameter	520 mm
Maximum machining length	1000 mm
Guideway	THK precision linear guideways (X/Z axes)

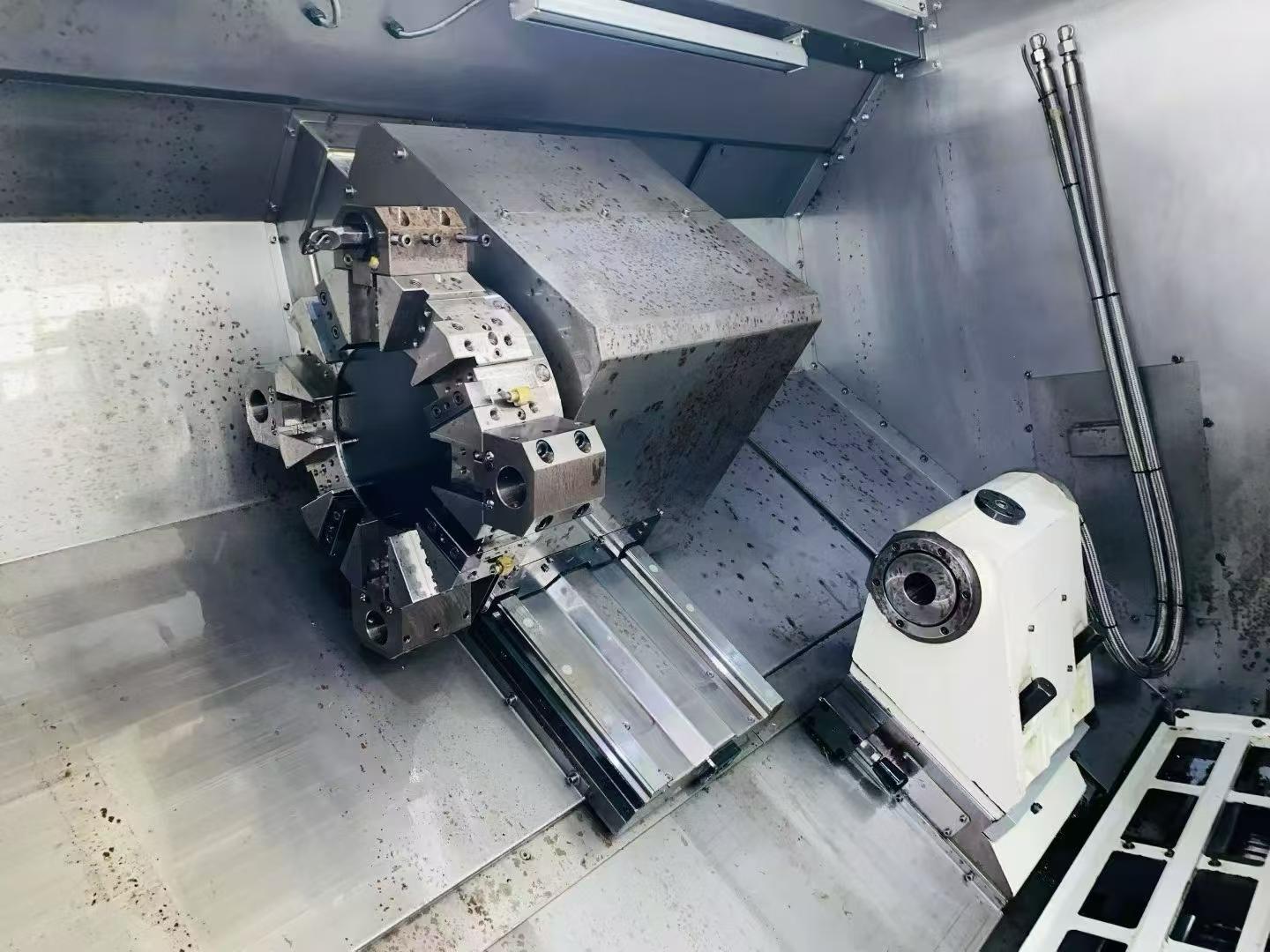

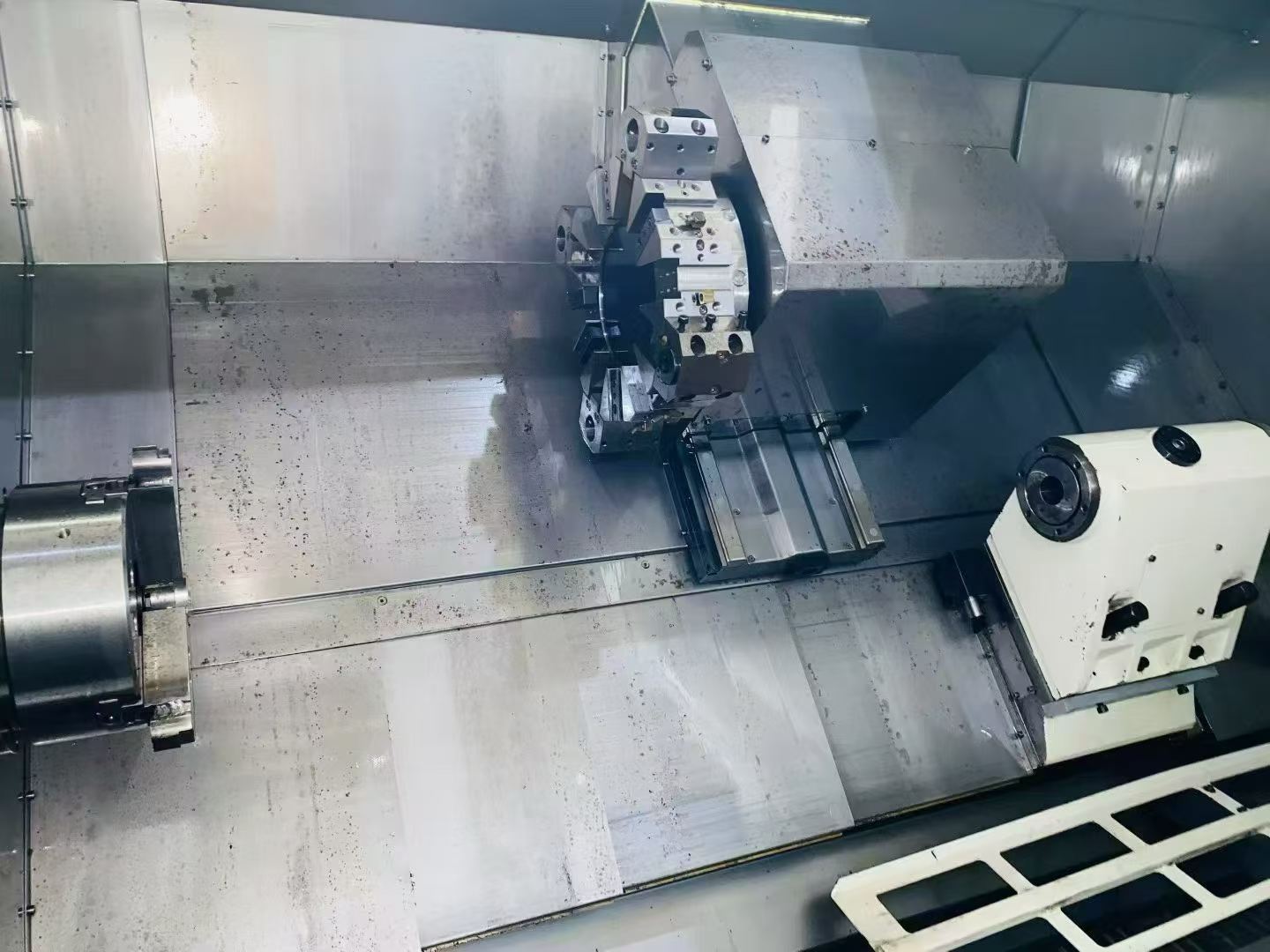

Turret	12-station hydraulic turret (Taiwan Dali)

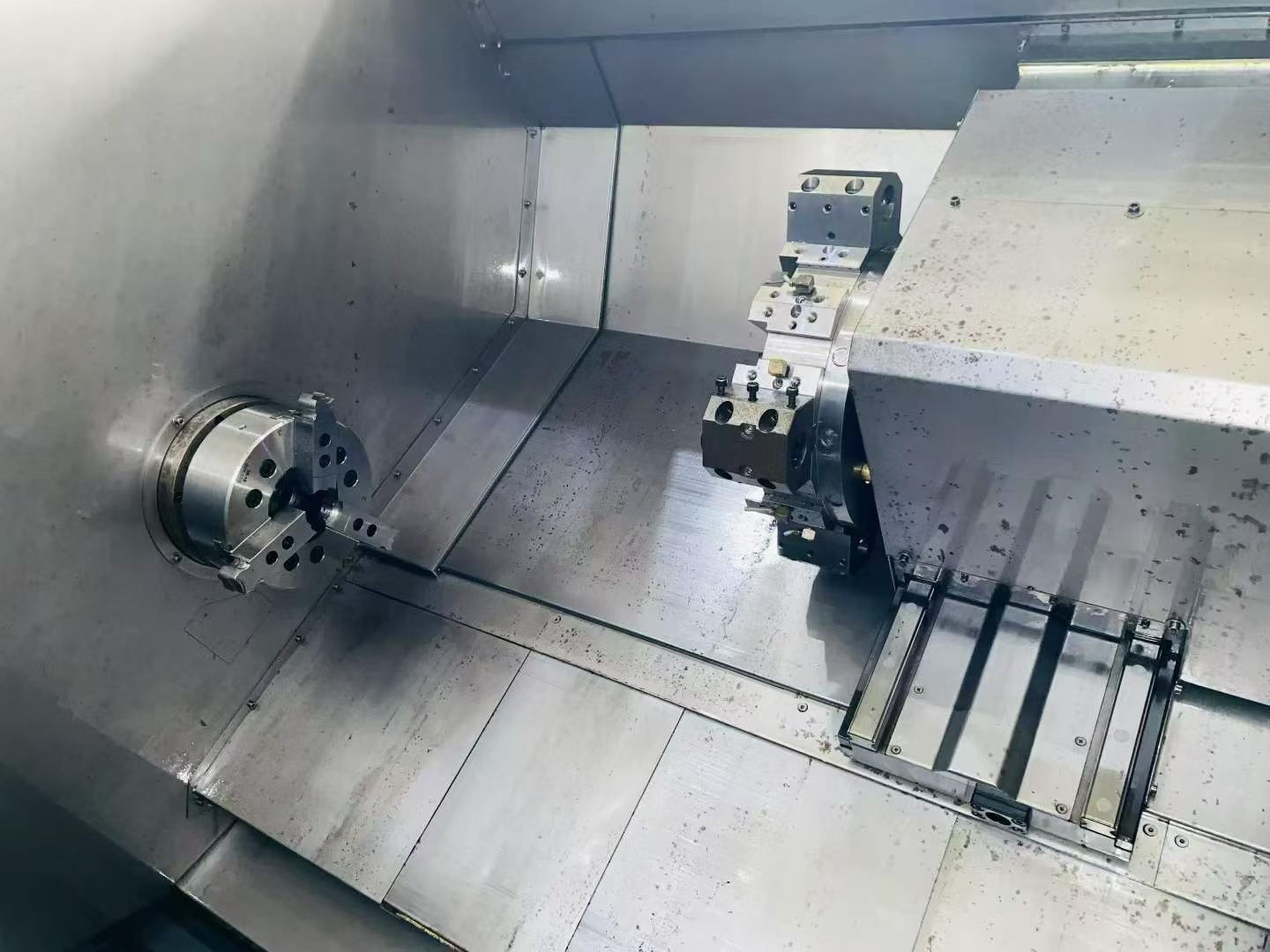

Chuck	10-inch hollow hydraulic chuck (12-inch optional)
Spindle nose	A 2-8
Spindle motor power	15/18.5 kW
Tailstock	MT 5 hydraulic tailstock

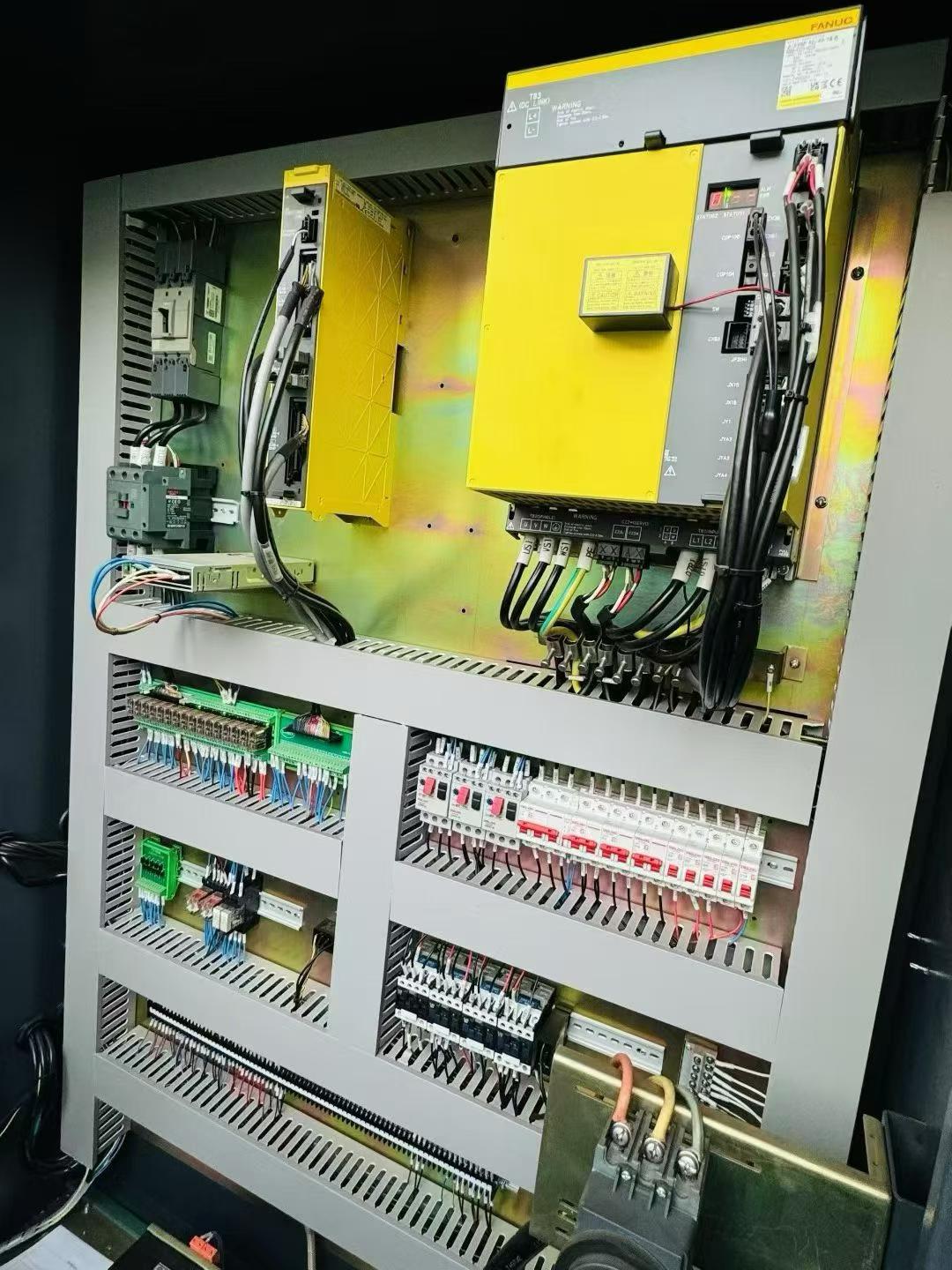

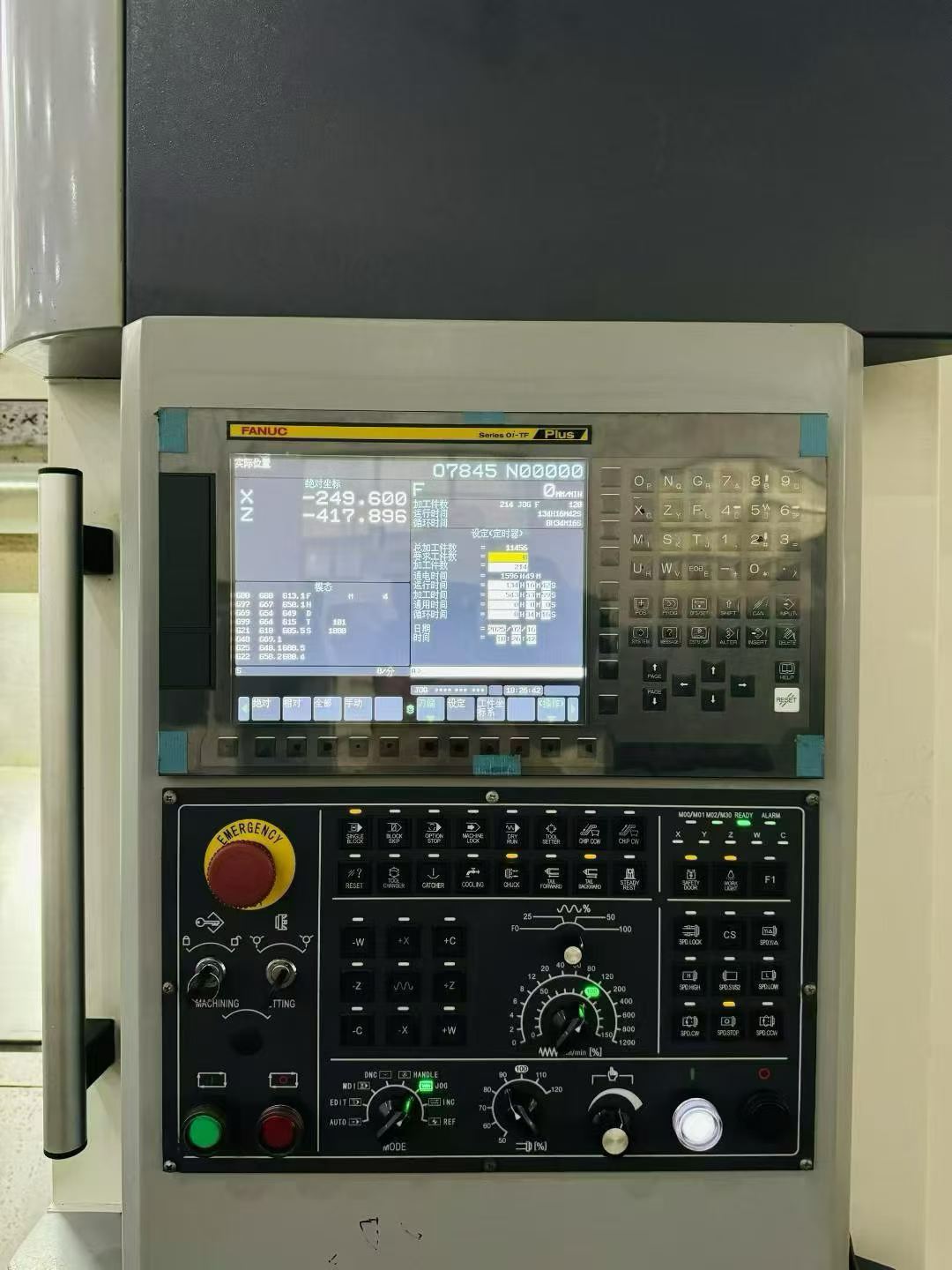

Control system	FANUC TF Plus
Chip conveyor	Chain-type chip conveyor
Machine weight	8.3 t
Guideway Configuration	THK precision linear guideways (X/Z axes)
Brand	Dalian
