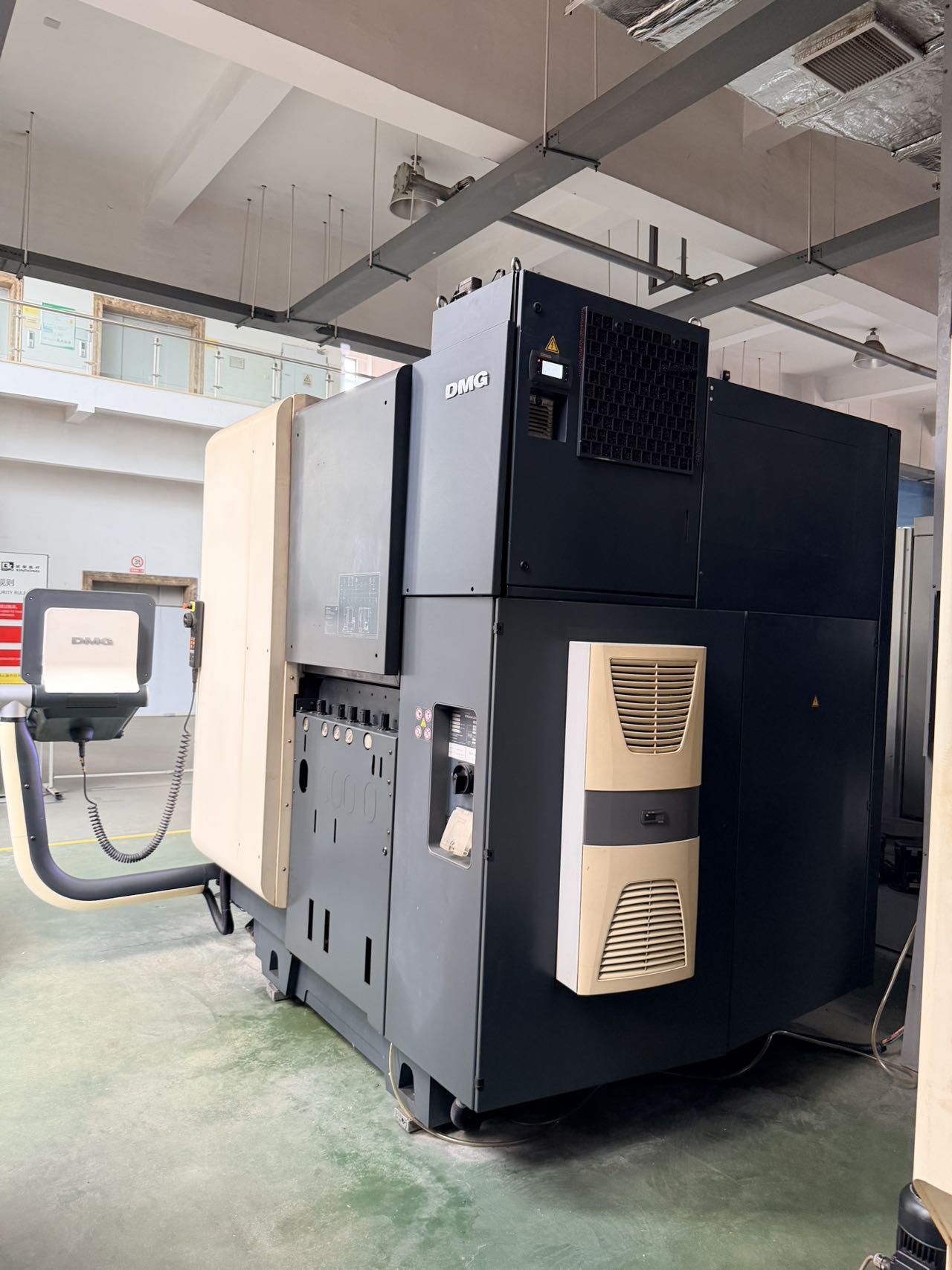

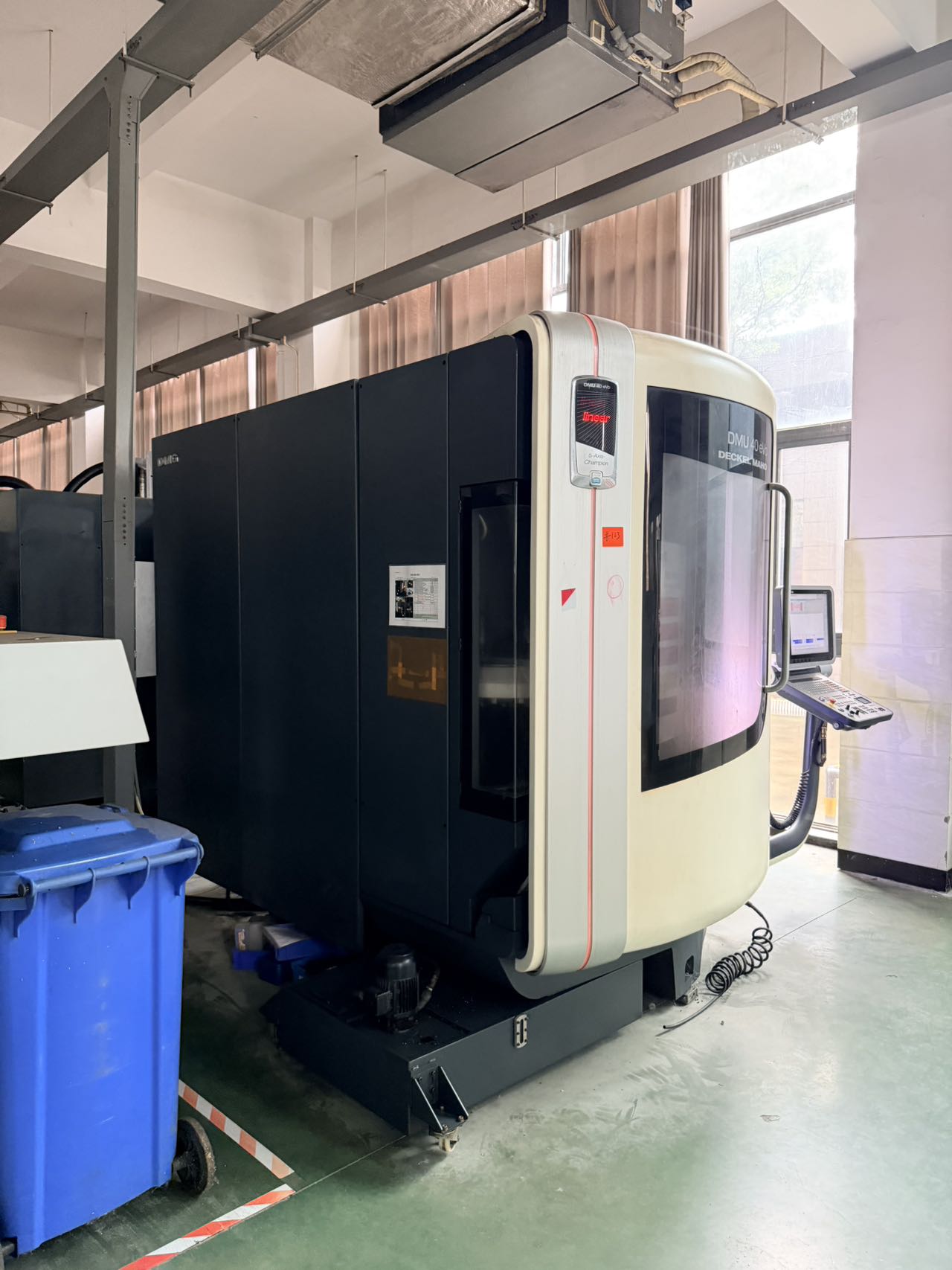

Used DMG MORI DMU 40 eVo 5-Axis Machining Center with HEIDENHAIN iTNC 530

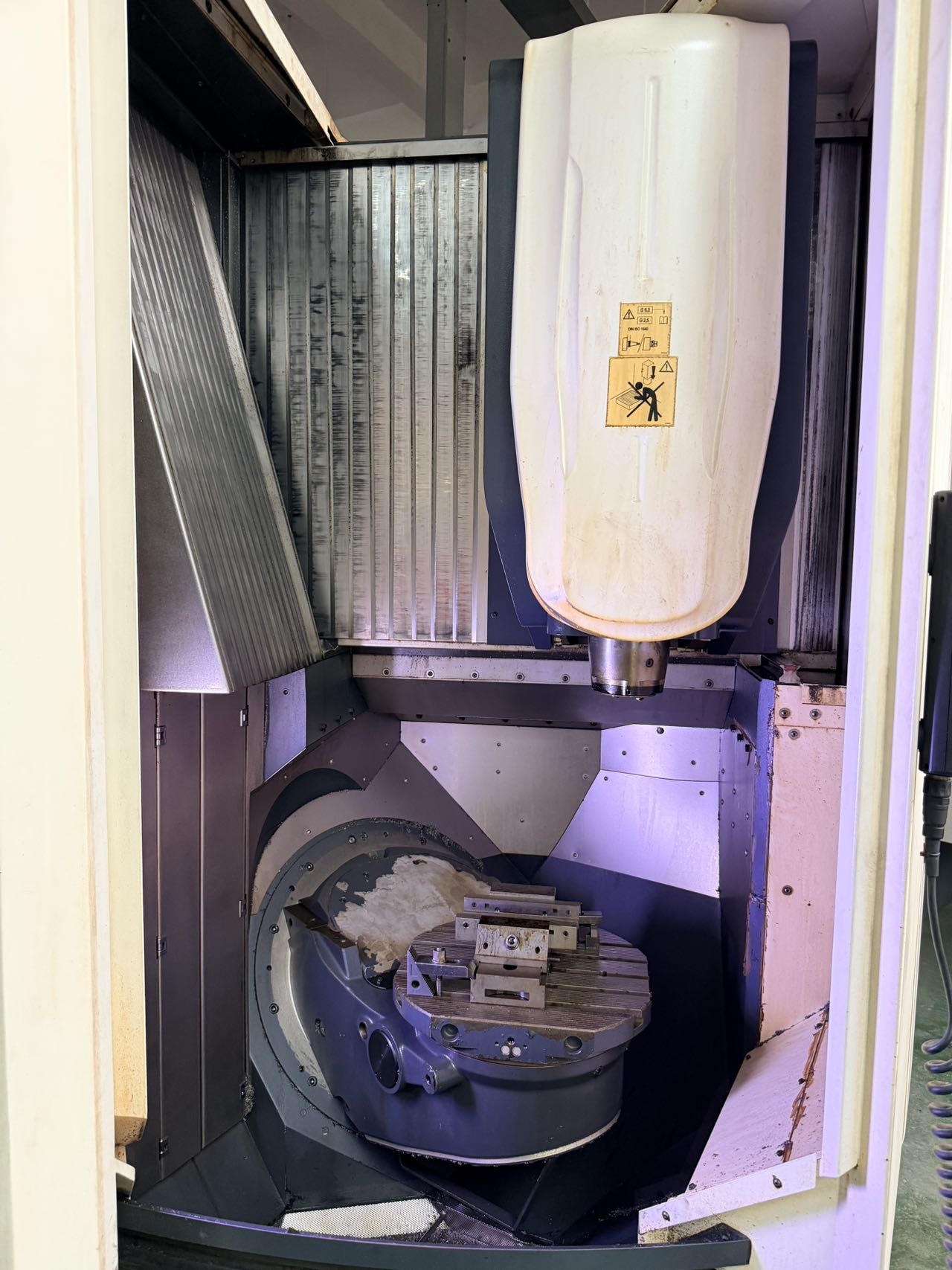

DMG MORI DMU 40 eVo 5-axis simultaneous machining center with HEIDENHAIN iTNC 530 control. Linear direct drive version. SK-40 tool holder, 18,000 rpm spindle, 25 kW spindle power. Granite machine bed. 30-station tool magazine. 5 axes with linear scales. Axis travels: X 400 mm, Y 400 mm, Z 375 mm. B-axis swivel range -5° to +110°, C-axis 360°. Worktable 450 x 400 mm, max workpiece diameter 450 mm, max workpiece height 460 mm, max table load 250 kg. Total operating time 20,199 hours.
- Machine Code
- MC2608371
- Year
- 2019
- Location
- China
- Usage Hours
- On request
Main Specifications

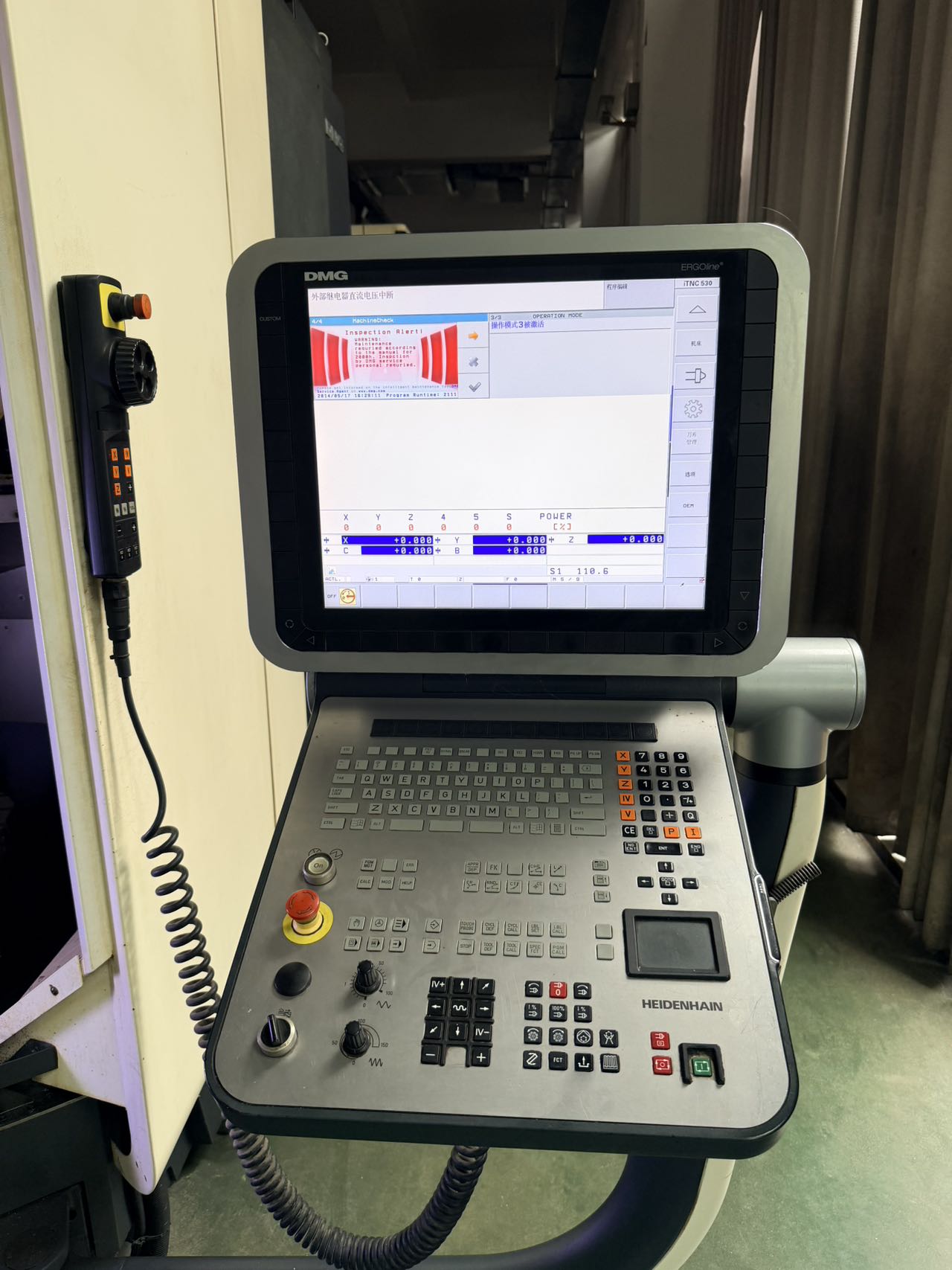

| Control system | HEIDENHAIN iTNC 530 |
|---|---|
| Spindle speed | 18,000 rpm |
| Spindle power | 25 kW |
| Spindle taper | SK-40 |
| X-axis travel | 400 mm |
| Y-axis travel | 400 mm |
| Z-axis travel | 375 mm |
| B-axis swivel range | -5° to +110° |
| C-axis rotation | 360° |

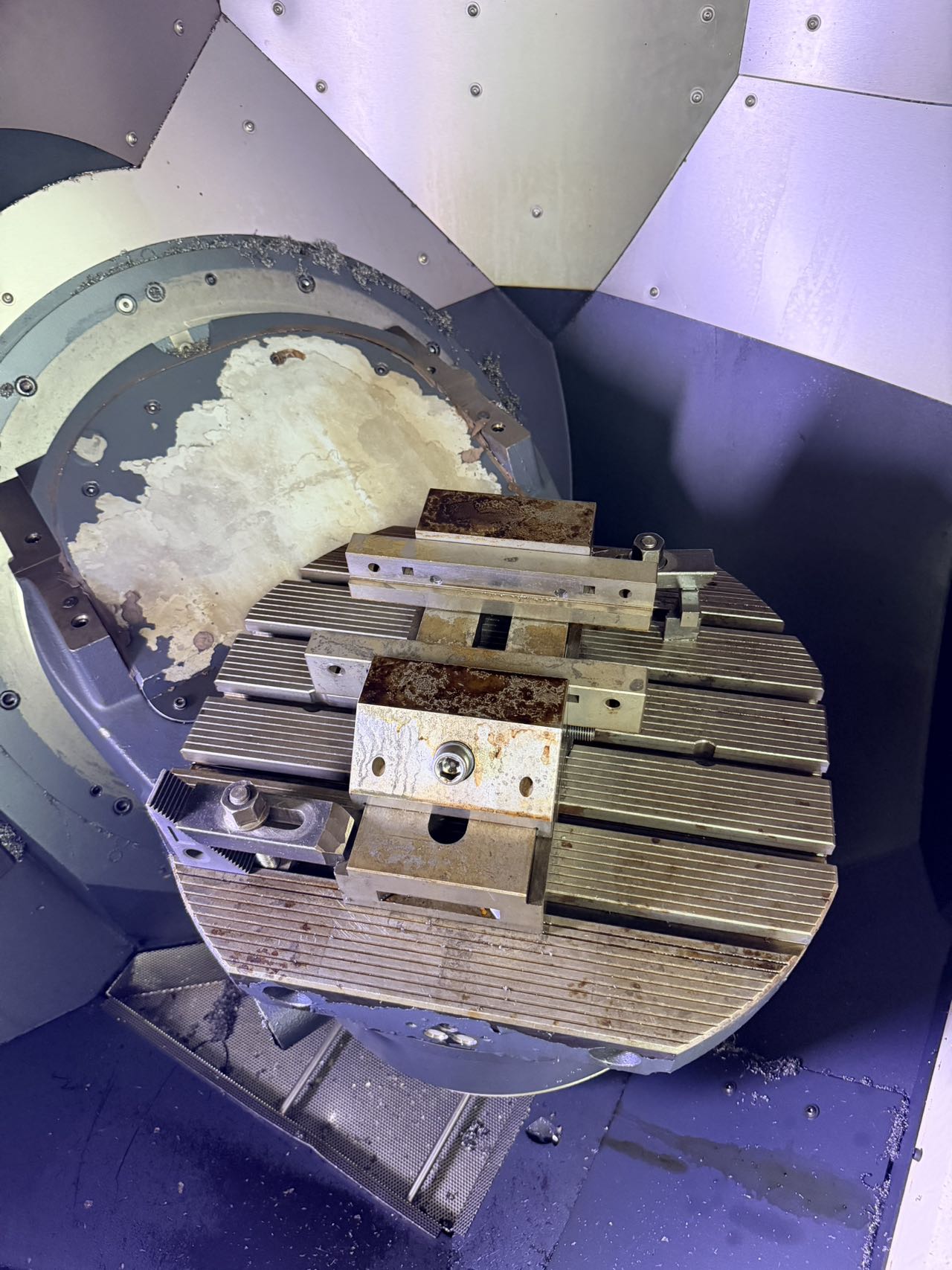

| Worktable size | 450 x 400 mm |
| Maximum workpiece diameter | 450 mm |
| Maximum workpiece height | 460 mm |
| Maximum table load | 250 kg |

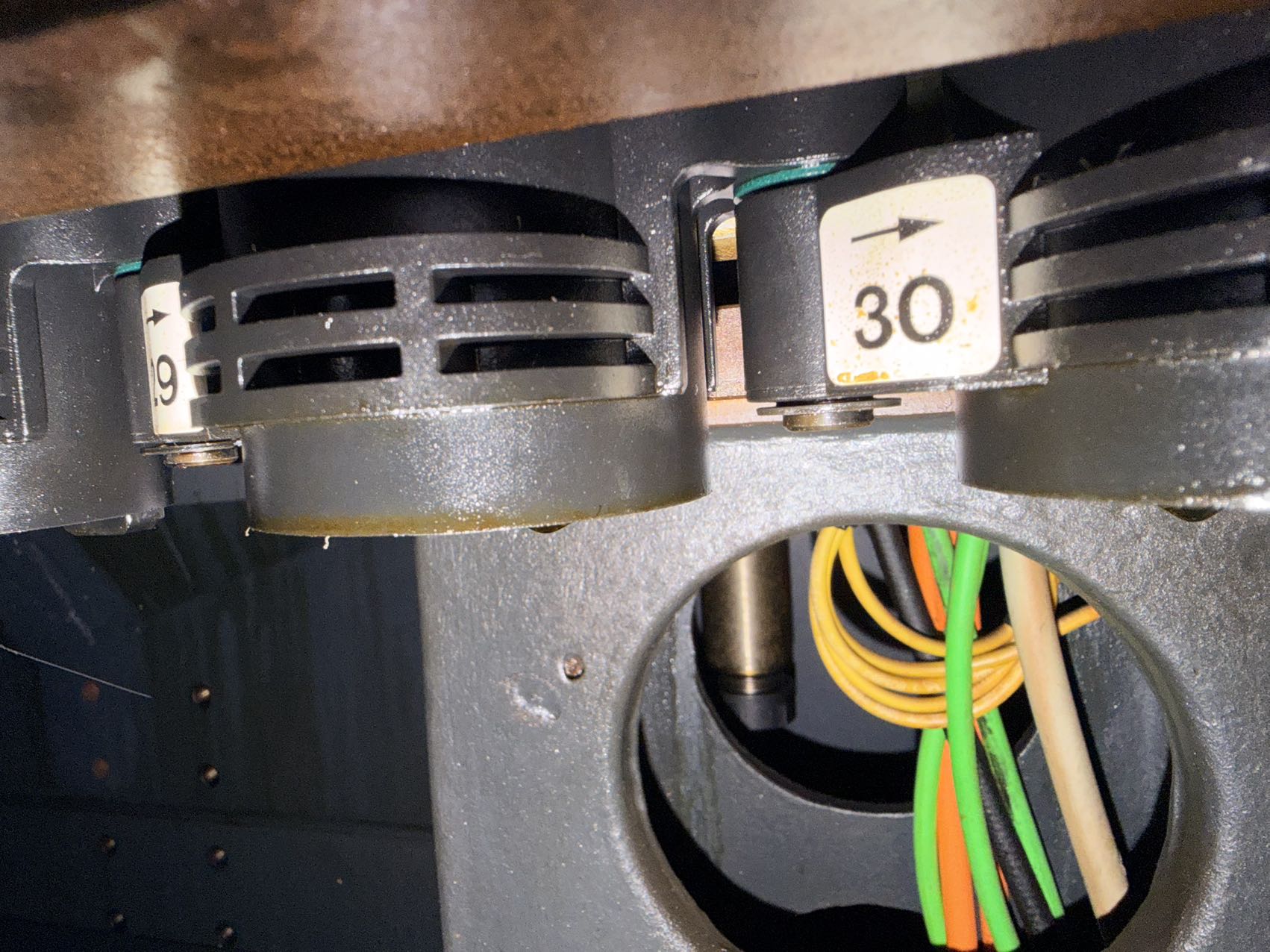

| Tool magazine capacity | 30 tools |
| Machine bed | Granite |
| Linear scale feedback | 5 axes |
| Operating hours | 20,199 h |
| Brand | DMG MORI |
| Year of manufacture | 2019 |
