AvailableMachining Center

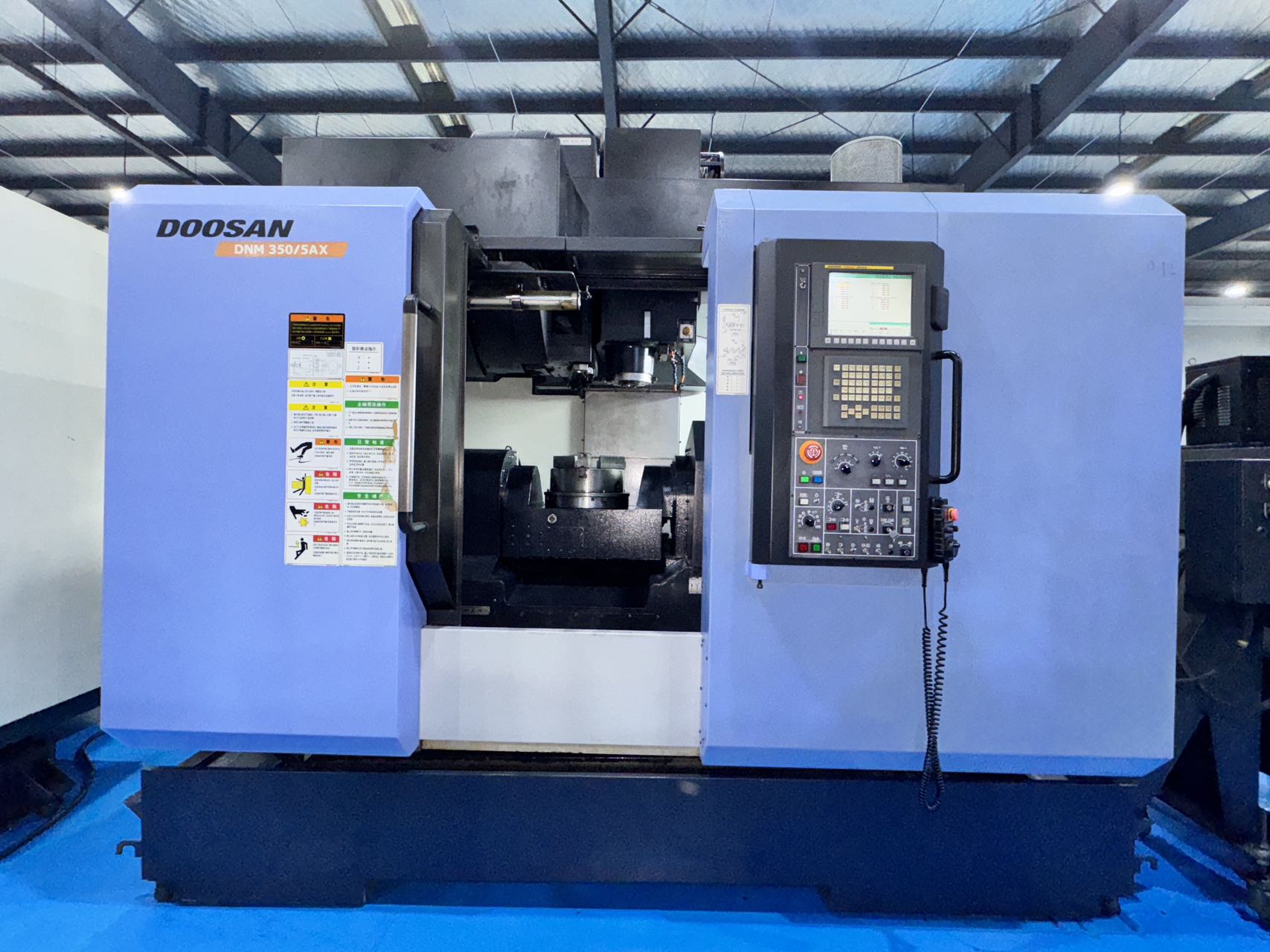

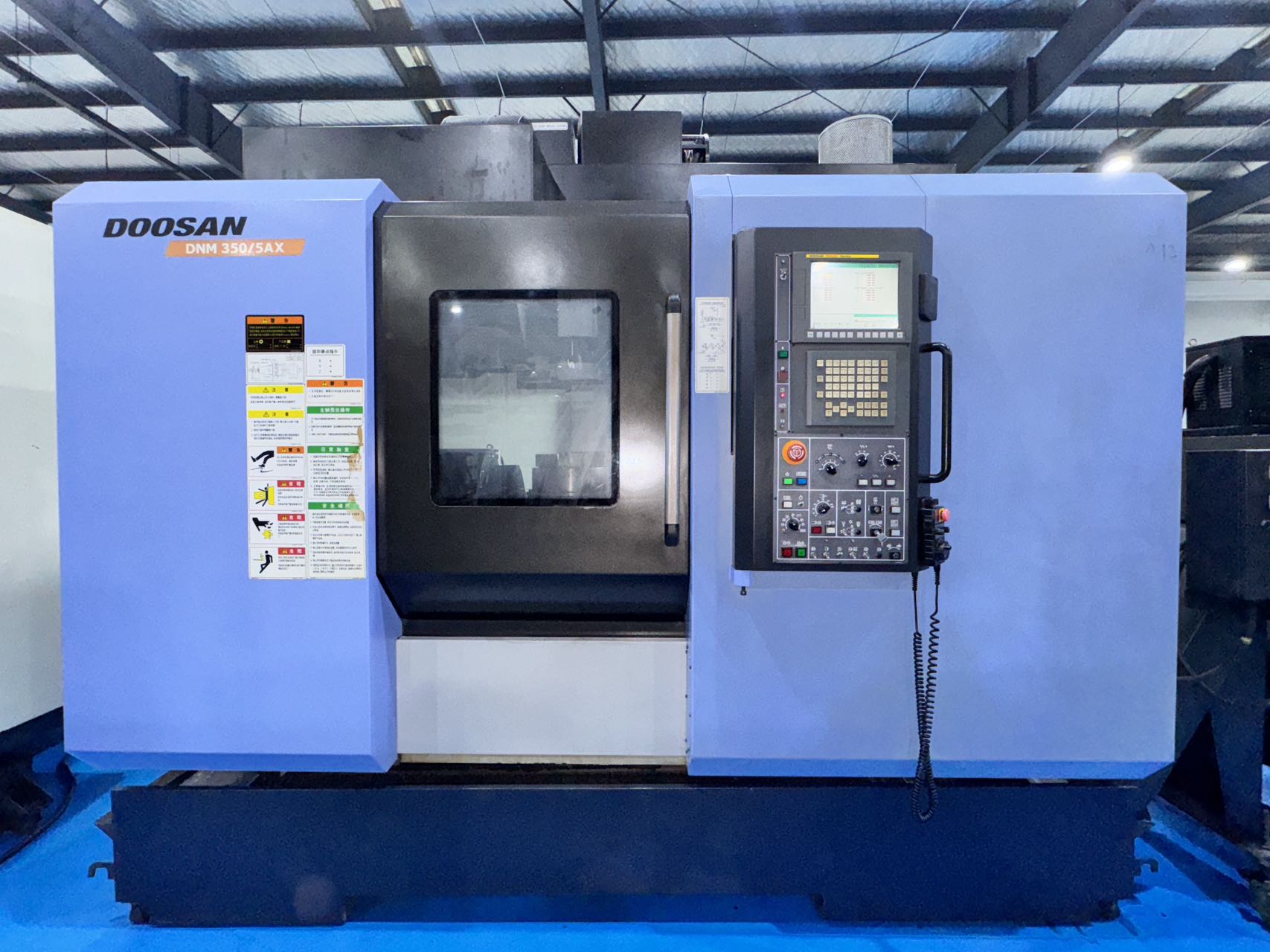

Used DN Solutions DNM 350/5 AX 5-Axis Machining Center with FANUC 0i-MD

FANUC 0i-MD control, BT40 12,000 rpm spindle, 17.5 kW spindle motor, 40-tool magazine, three-axis linear guideways, X/Y/Z travel 600 x 650 x 501 mm, rapid traverse 30/30/25 m/min, cradle swing angle -120° to +120°, rotary table diameter 380 mm, swing diameter 460 mm. Equipped with oil mist collector, 20 BAR through-spindle coolant, tool setter, chip conveyor and oil cooler. Accuracy test results: spindle runout 0.015 mm; Z-axis parallelism to spindle axis (front/side): 0.015 mm; X/Y/Z repeatability 0.005 mm. Manufactured in October 2016

Machine Code: MC2608252
Year: 2016
Location: China
Usage Hours: On request

Accessories

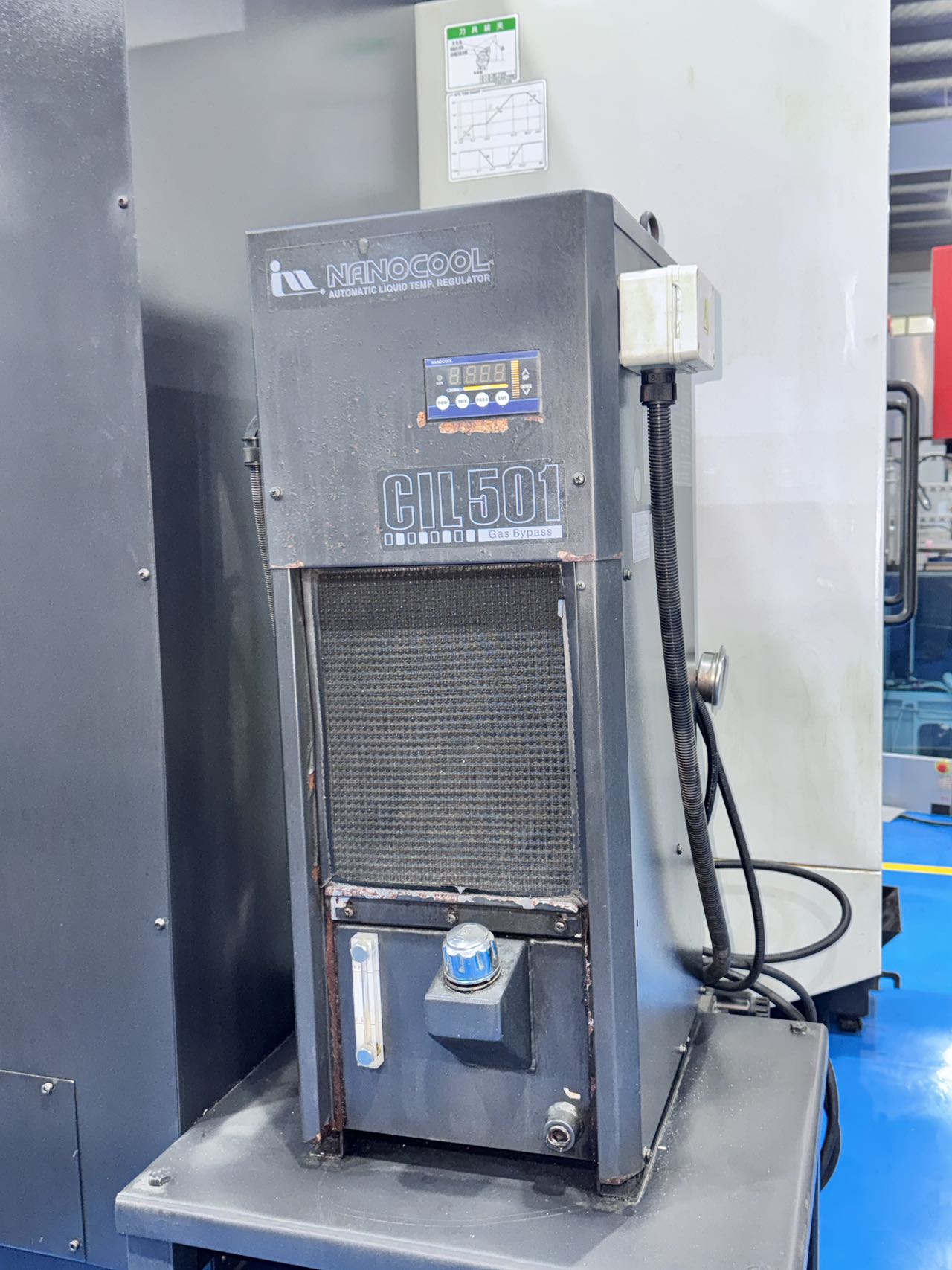

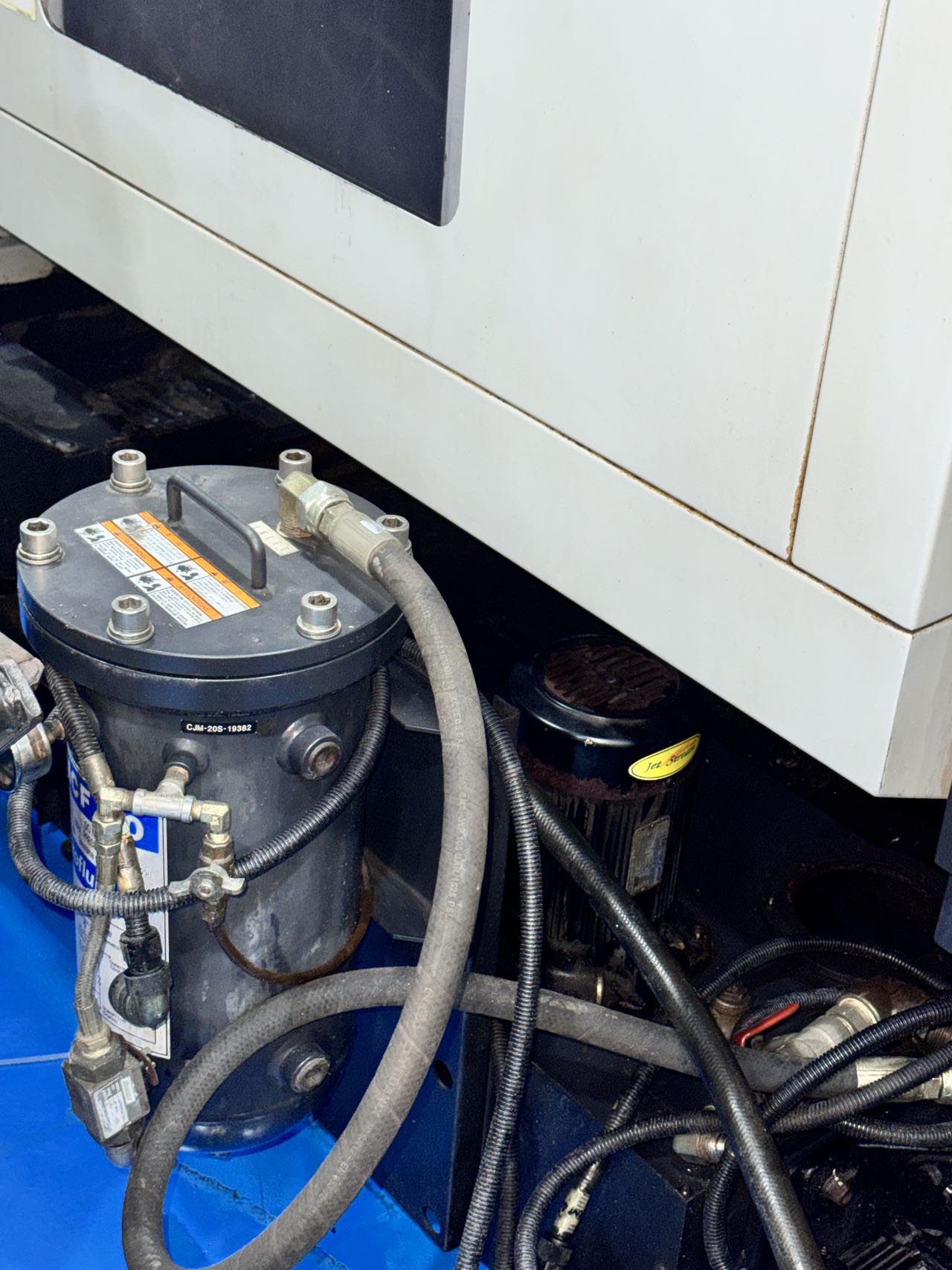

Oil mist collector, 20 BAR through-spindle coolant, tool setter, chip conveyor, oil cooler

Email Inquiry

Main Specifications

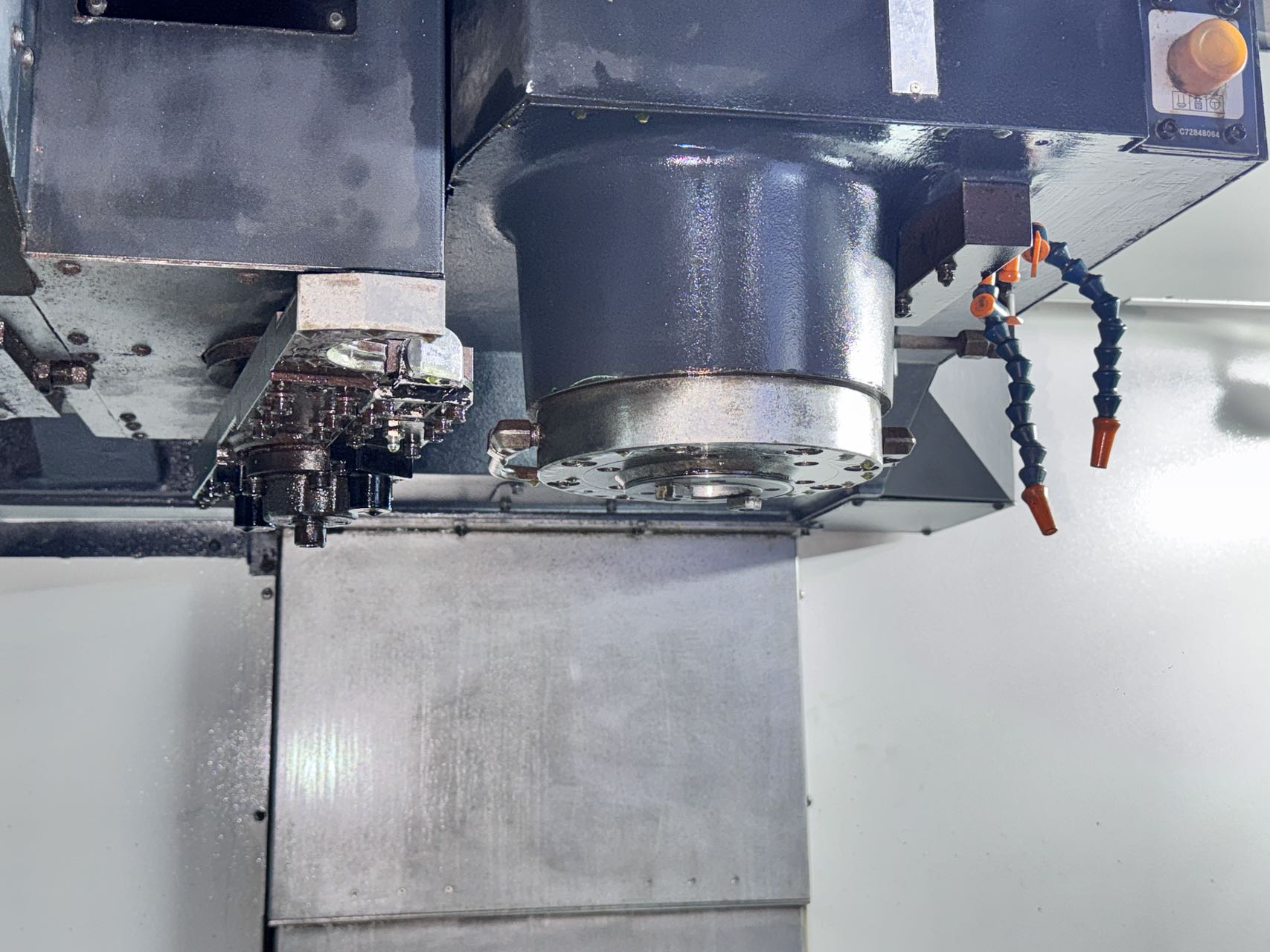

Spindle speed	12,000 rpm
Spindle motor power	17.5 kW

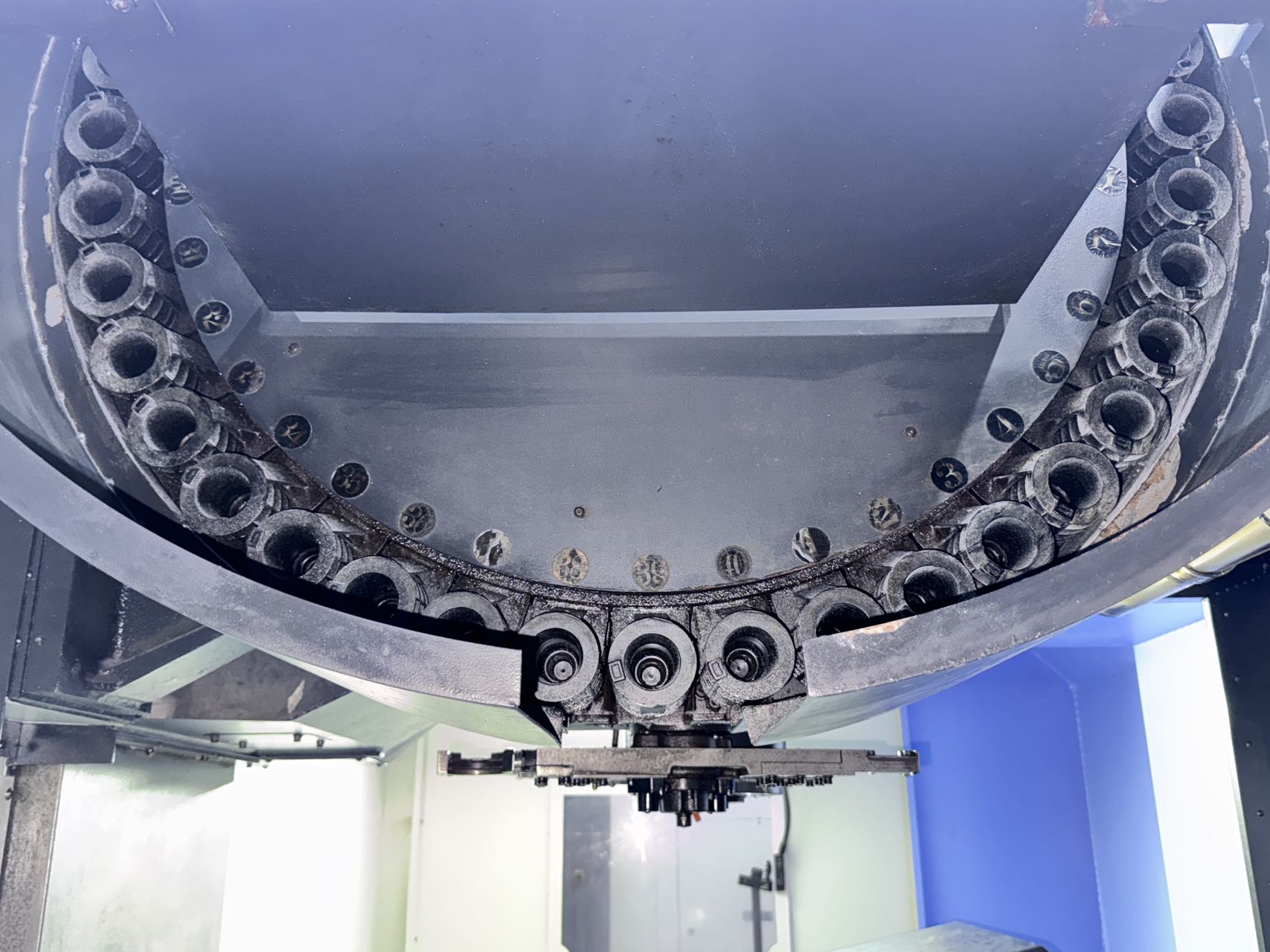

Tool magazine capacity	40 tools
X/Y/Z travel	600 x 650 x 501 mm
Rapid traverse	30/30/25 m/min

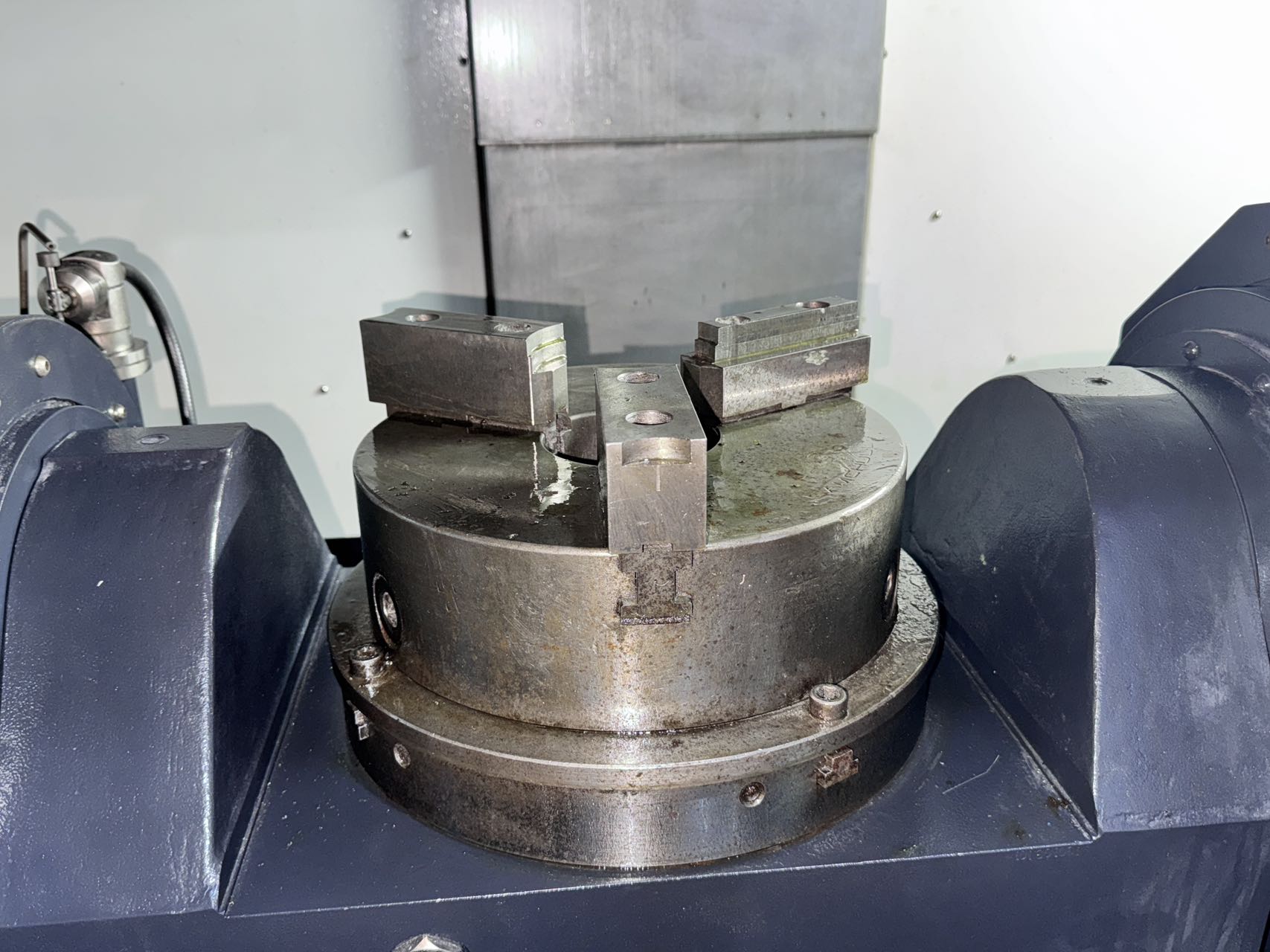

Rotary table diameter	380 mm
Swing diameter	460 mm

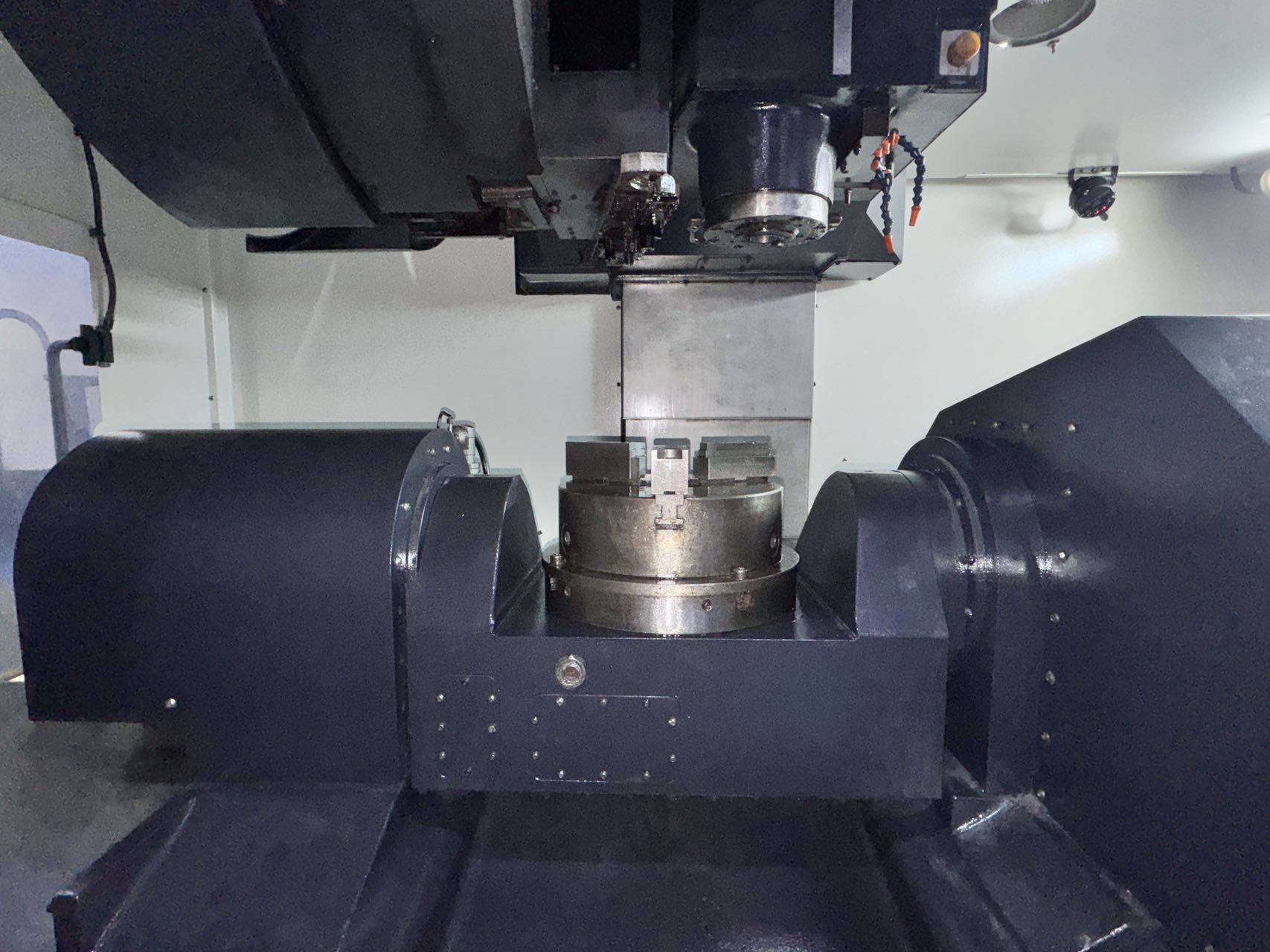

Cradle swing angle	-120° to +120°
Repeatability	0.005 mm

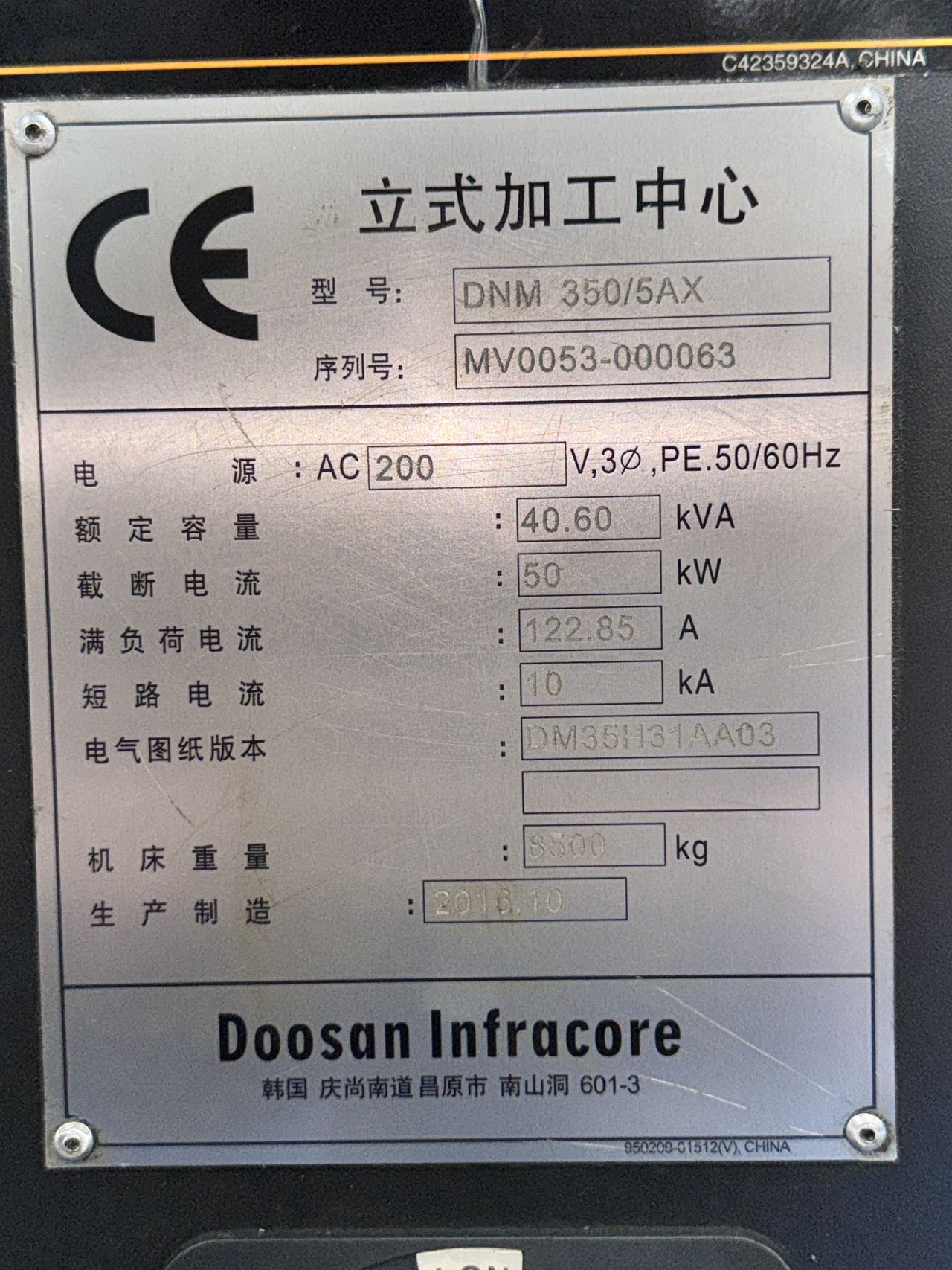

Manufacturing date	October 2016
Brand	DN Solutions

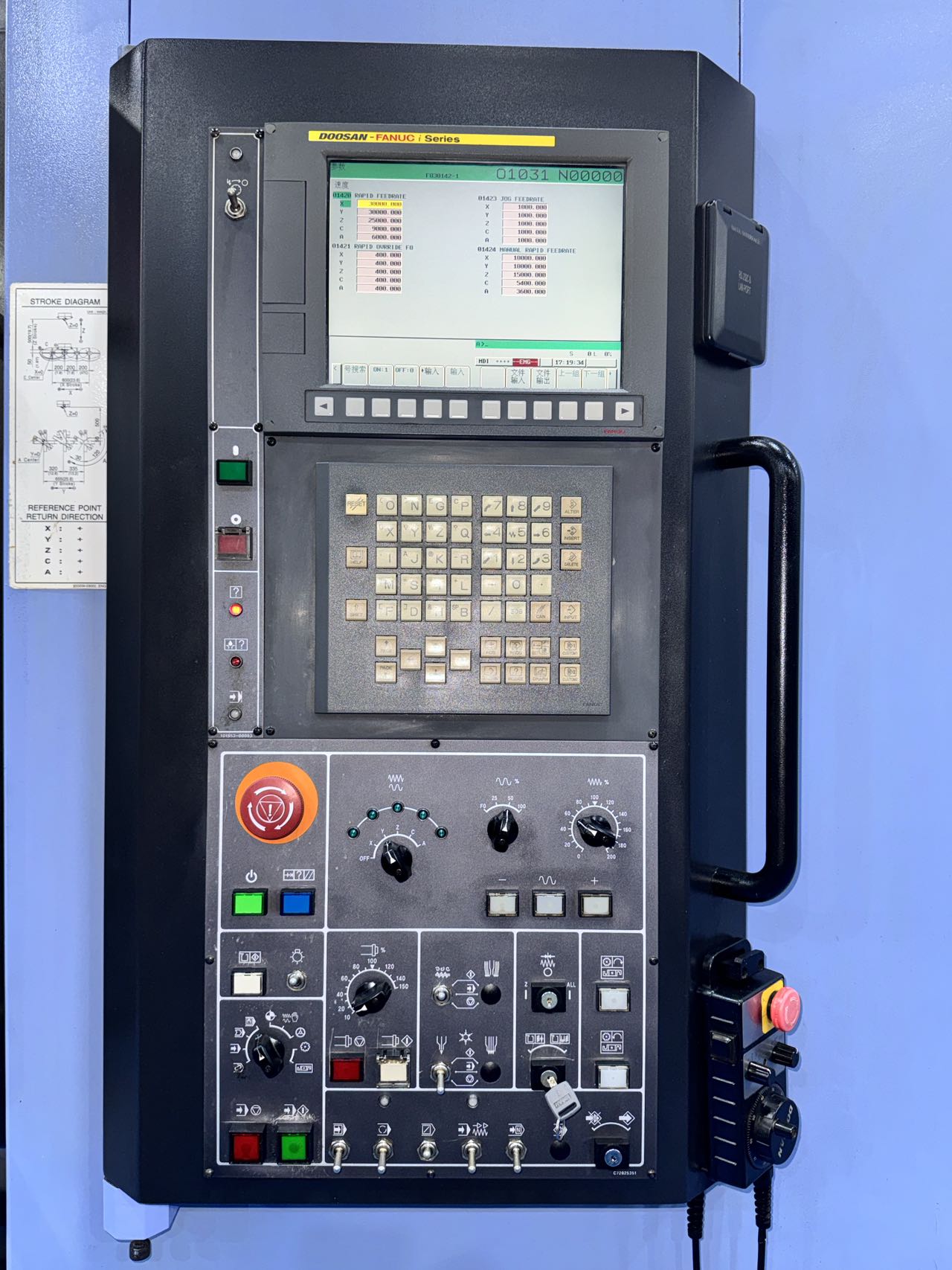

Control system	FANUC 0i-MD
Year of manufacture	2016
