Used Dongbu CXK 320-48-200 Slant-Bed Gang-Type CNC Lathe

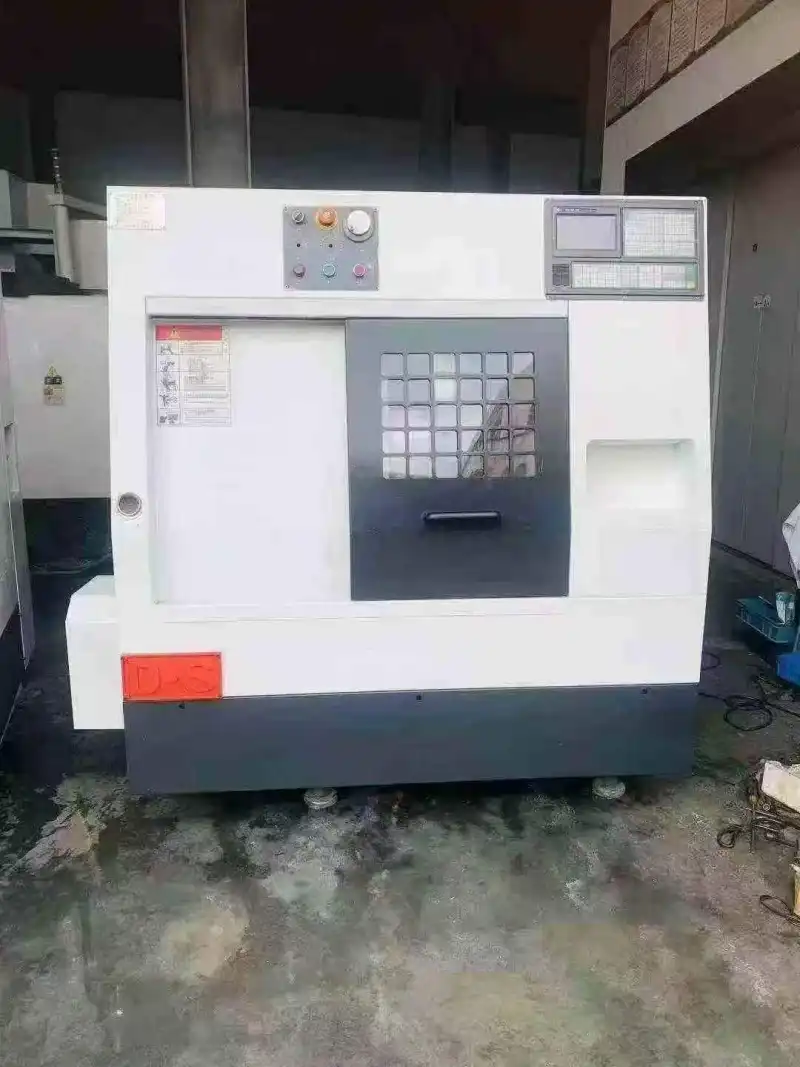

Dongbu CXK 320-48-200 slant-bed gang-type CNC lathe, built by Taizhou Dongbu CNC Equipment Co., Ltd. and configured with the GSK 980 TB 2 control system running a main servo drive. The machine handles workpieces up to 320 mm in diameter with a maximum machining length of 200 mm, and uses a gang tooling arrangement on a slant bed for fast, repeatable turning of small and medium parts. A hollow hydraulic system supports the workholding setup. The unit is complete and operating normally, with serial number DB 13860.
- Machine Code
- CL261044
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories

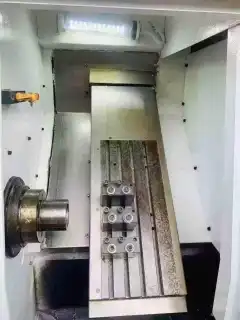

Hollow hydraulic system Gang tooling plate
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Model | CXK 320-48-200 |
|---|---|
| Maximum machining diameter | 320 mm |
| Maximum machining length | 200 mm |

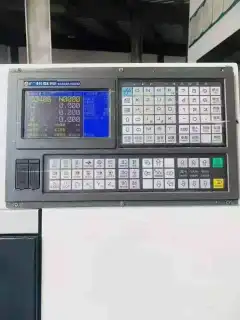

| Controller | GSK 980 TB 2 |

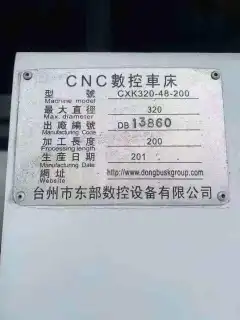

| Serial number | DB 13860 |
| Machine type | Slant-bed gang-type CNC lathe |
| Hydraulic system | Hollow hydraulic system |
| Brand | Dongbu |
| Control system | GSK 980 TB 2 |
