AvailableCNC Drilling Machine

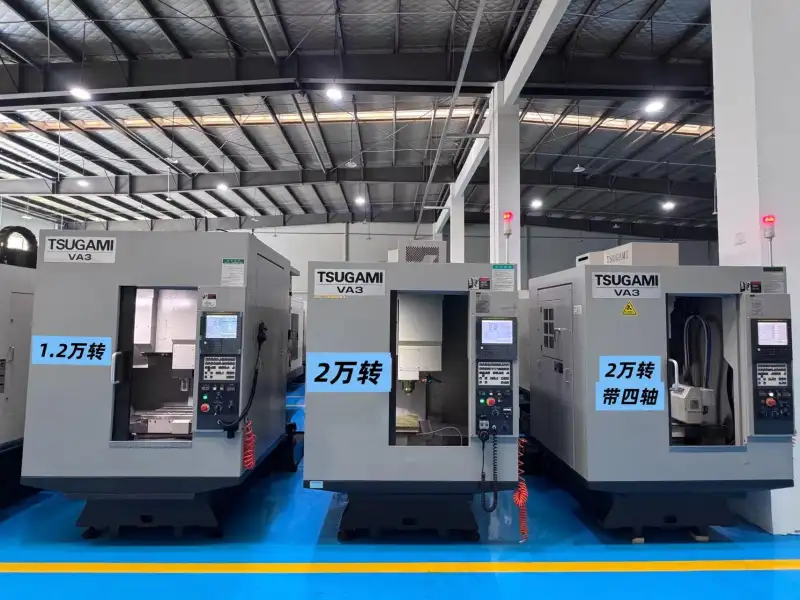

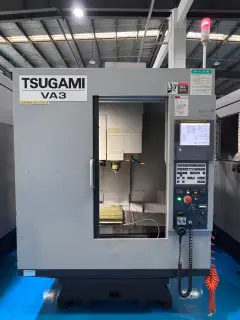

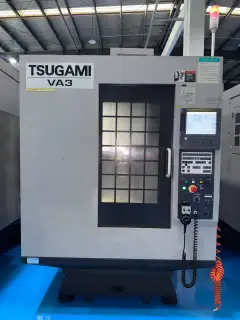

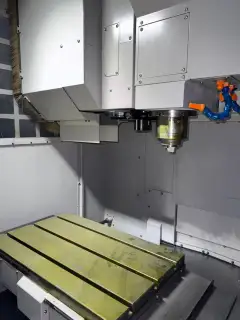

Used Tsugami VA 3 Drilling and Tapping Center

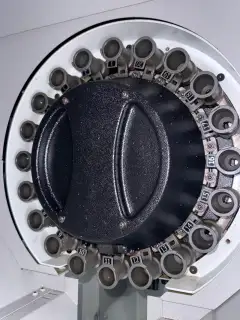

Tsugami VA 3 drilling and tapping center. Equipped with FANUC 0i-MF Plus control, BT30 direct-drive spindle (20000 rpm, 20 tools), 9 kW spindle motor, three-axis linear guideways, X/Y/Z travel of 500 x 400 x 350 mm, rapid traverse of 48 m/min, worktable size of 650 x 400 mm, and spindle nose to table distance of 150-500 mm. Accuracy inspection results: spindle runout 0.01 mm, spindle axis parallelism (front/side) 0.01 mm, and three-axis repeat positioning accuracy 0.003 mm. Manufactured in 2021.

Machine Code
DR260936
Year
2021
Location
China
Usage Hours
On request
Email Inquiry

Main Specifications

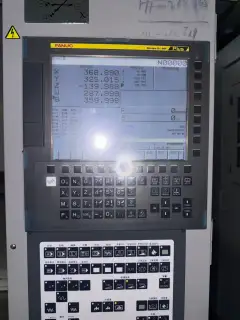

Control systemFANUC 0i-MF Plus

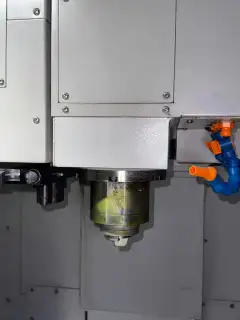

Spindle taperBT30
Spindle speed20000 rpm
Tool magazine capacity20 tools
Spindle motor power9 kW
Guideway configurationLinear guideways on all axes
X/Y/Z travel500 x 400 x 350 mm
Rapid traverse speed48 m/min
Worktable size650 x 400 mm
Spindle nose to table distance150-500 mm
Spindle runout0.01 mm
Spindle axis parallelism (front/side)0.01 mm
Three-axis repeat positioning accuracy0.003 mm
BrandTsugami
Year of manufacture2021
