AvailableCNC Drilling Machine

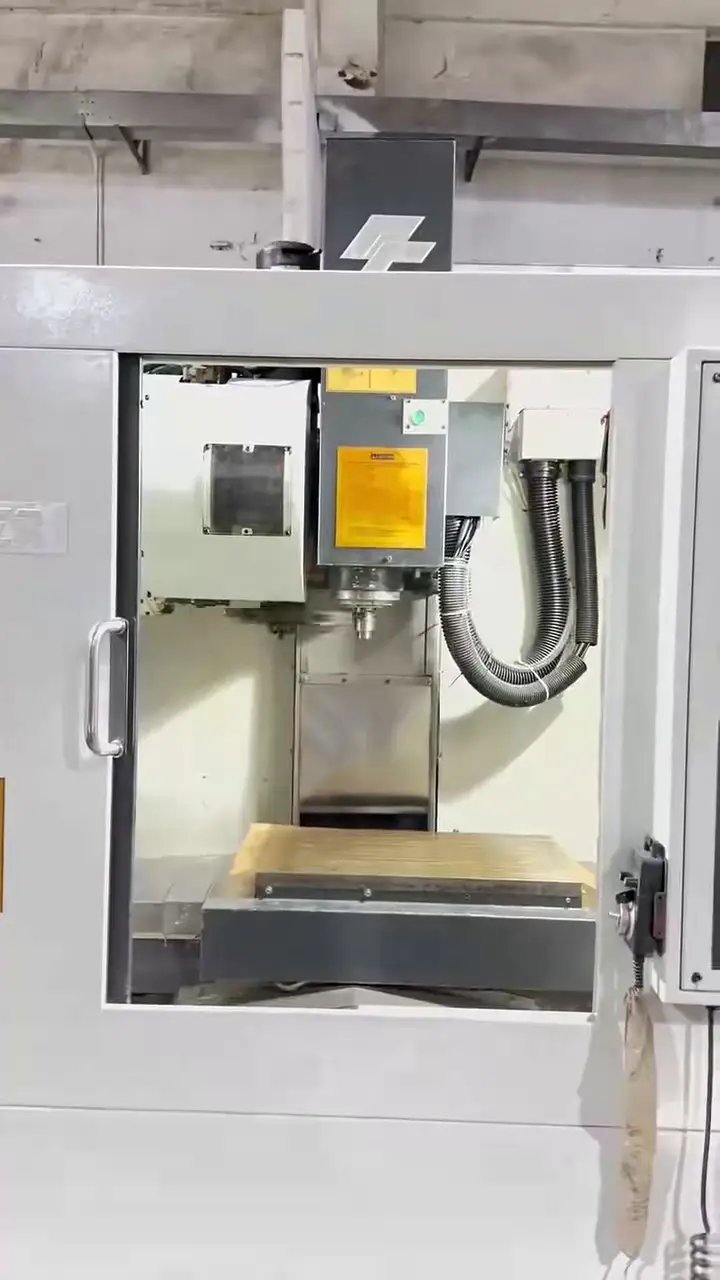

Used FEELER QM-22 Vertical Drilling and Tapping Center

FEELER QM-22 vertical drilling and tapping center set up for drilling and tapping iron and stainless steel workpieces. X, Y and Z travels measure 560 x 420 x 450 mm, and the BT30 spindle reaches speeds up to 15,000 rpm. The machine is fitted with a Fanuc Alpha drive system and an arm-type automatic tool changer holding 20 tools, supporting quick tool-to-tool changes across multi-step drilling and tapping operations.

Machine Code
DR261011
Year
On request
Location
China
Usage Hours
On request

Accessories

Arm-type 20-tool automatic tool changer; BT30 spindle; Fanuc Alpha drive system

Open machine videoEmail Inquiry

Main Specifications

X/Y/Z travel560 x 420 x 450 mm
Spindle taperBT30
Spindle speed15,000 rpm
Tool magazine capacity20 tools
Tool changer typeArm-type ATC
Drive systemFanuc Alpha
BrandFEELER
