AvailableCNC Lathe

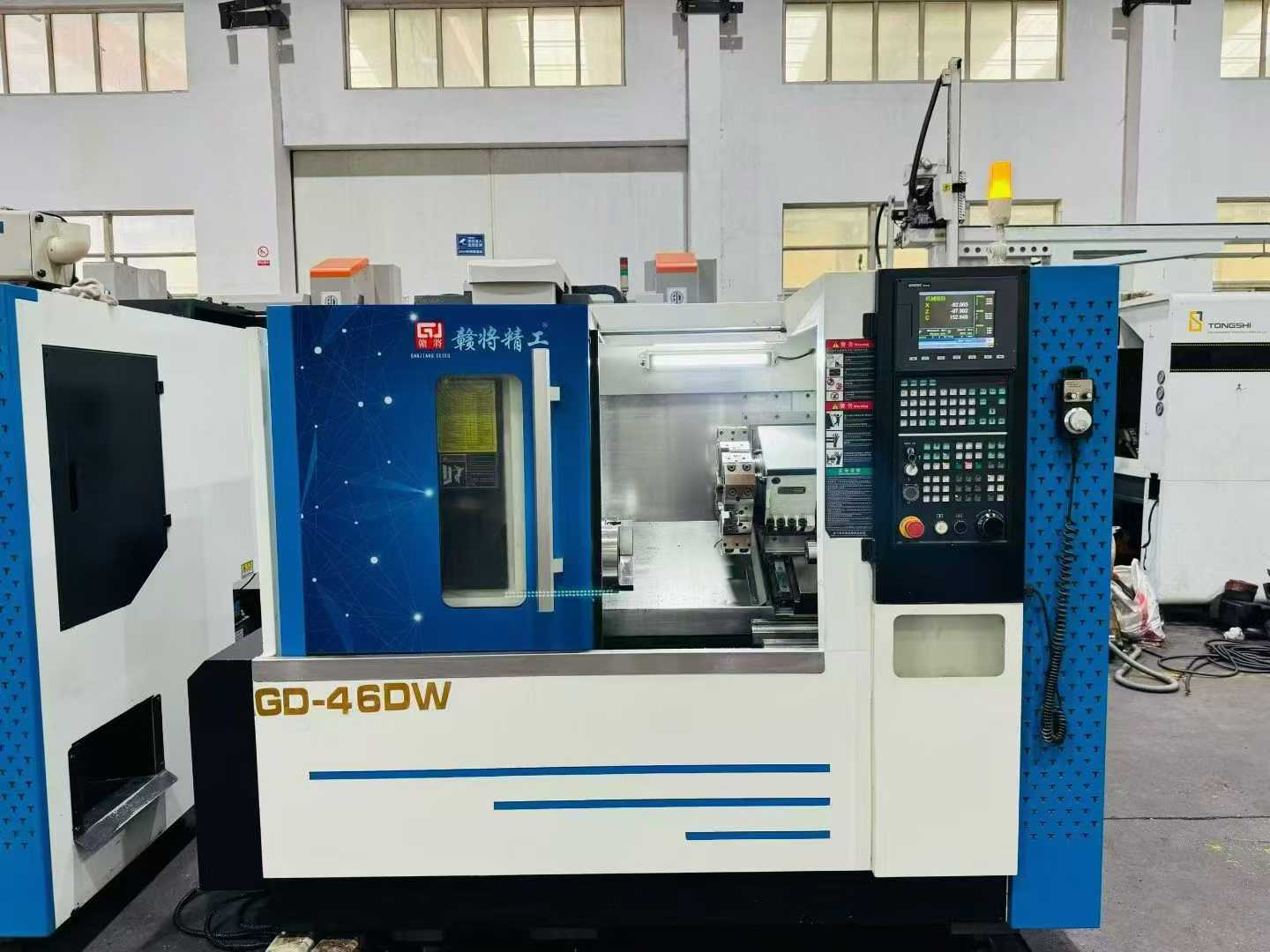

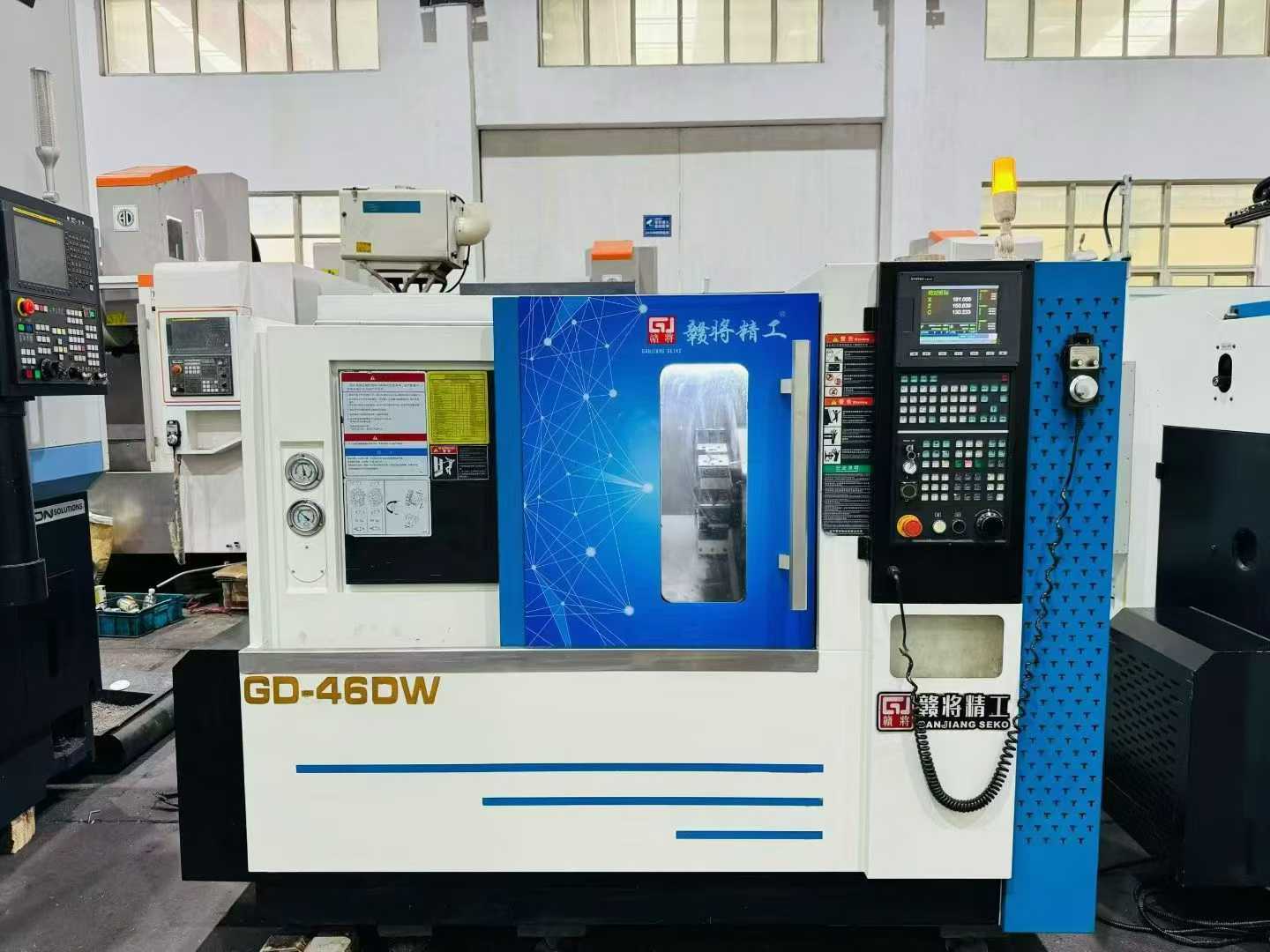

Used Ganjiang GD-46 DW Slant-Bed Turret-Type CNC Lathe

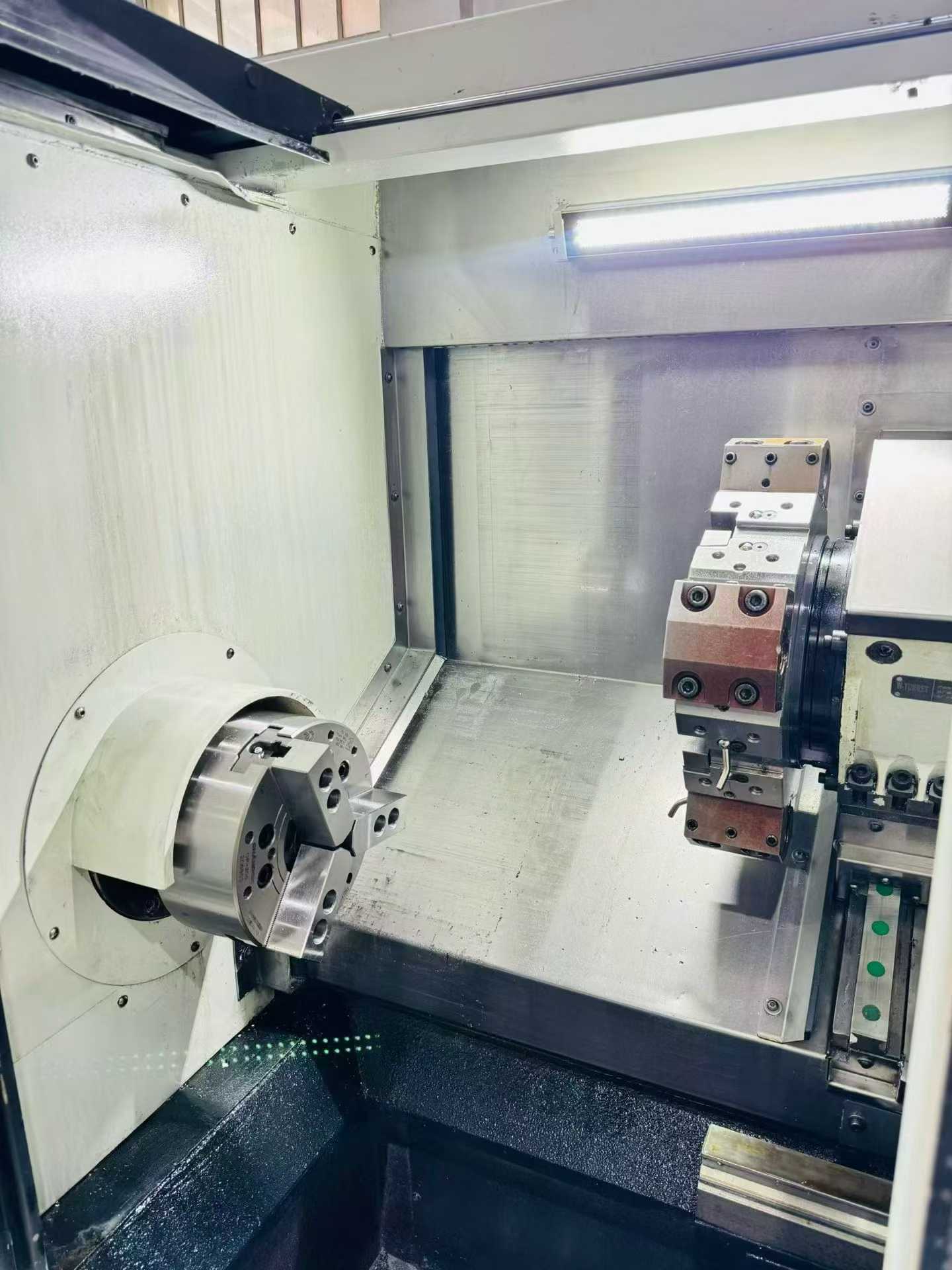

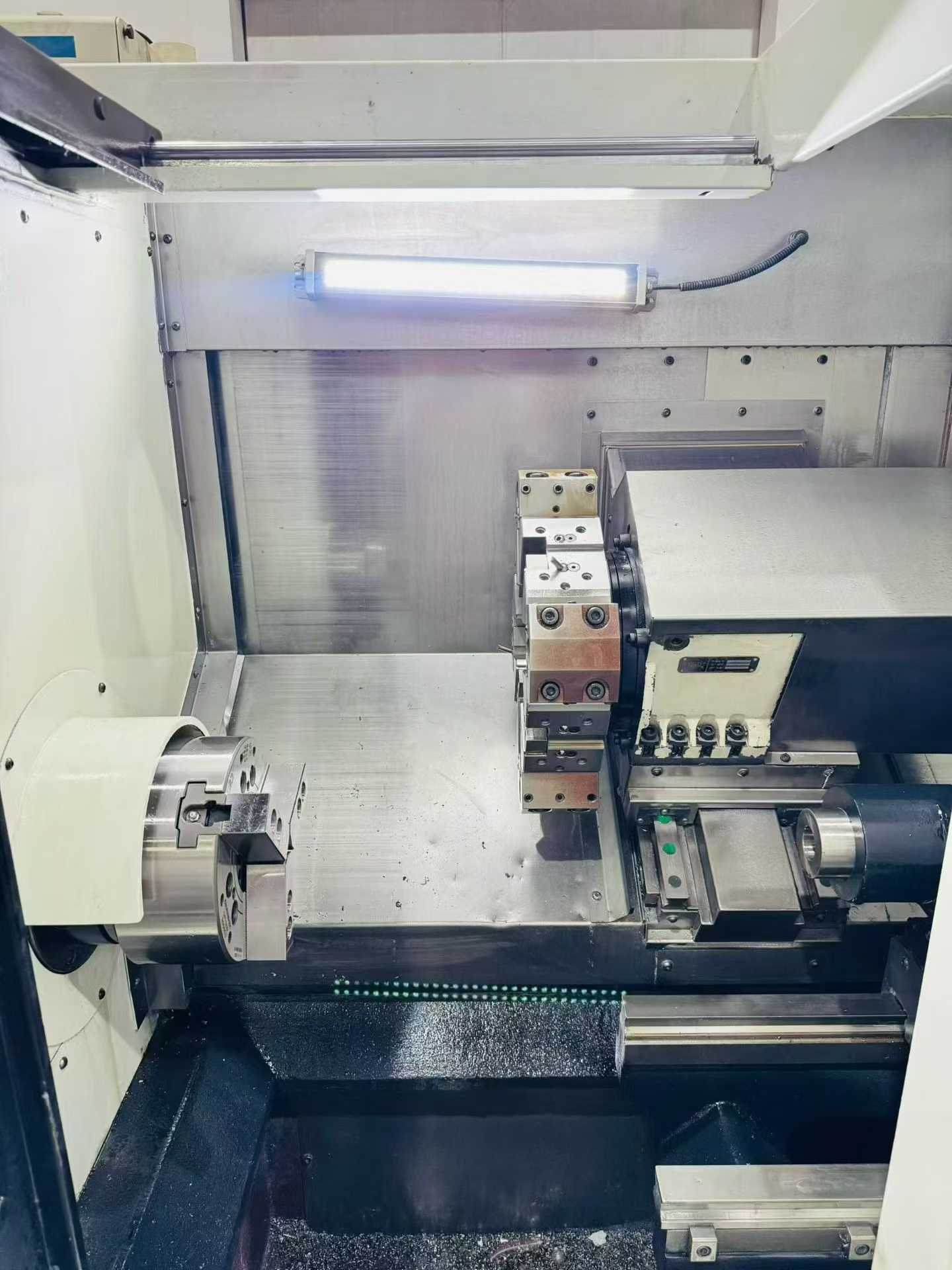

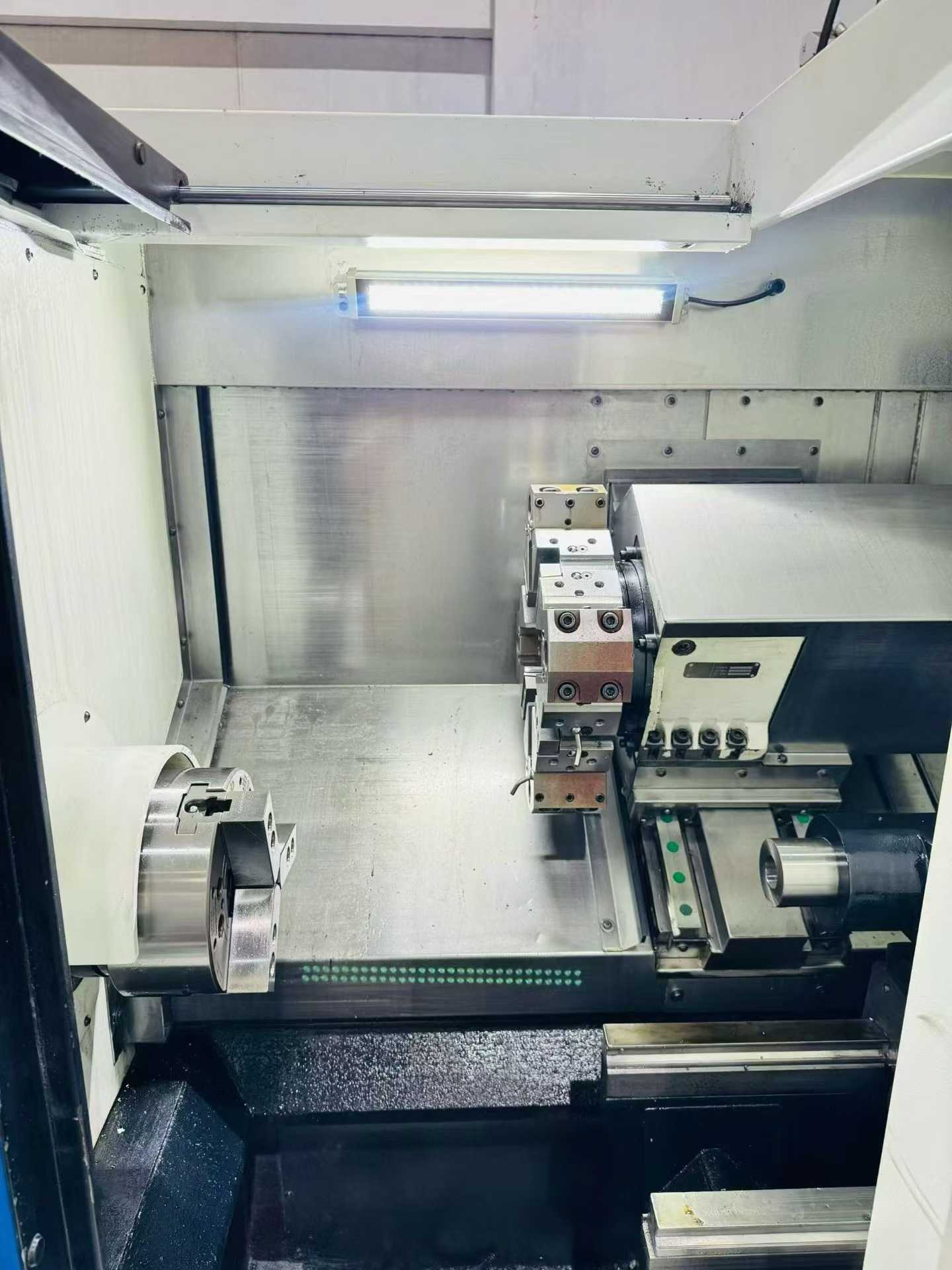

Used Ganjiang GD-46 DW slant-bed turret-type CNC lathe in nearly new condition, built at the end of 2023. The machine offers a ∅500 mm swing diameter and a maximum machining length of 400 mm, supported by two-axis HIWIN heavy-duty roller linear guideways for rigid, stable turning. It is equipped with a high-speed spindle unit, an 8-station servo turret, an 8-inch hollow hydraulic chuck, and a fully automatic programmable MT 4 hydraulic tailstock. The SYNTEC 6 TA-E bus-type absolute CNC system provides absolute-position feedback and reliable, repeatable control. Two units are available.

Machine Code: CL260977
Year: 2023
Location: China
Usage Hours: On request

Accessories

8-station servo turret; 8-inch hollow hydraulic chuck; fully automatic programmable MT 4 hydraulic tailstock; high-speed spindle unit

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Slant-bed turret-type CNC lathe
Swing diameter	∅500 mm
Maximum machining length	400 mm
Guideway type	Two-axis HIWIN heavy-duty roller linear guideway

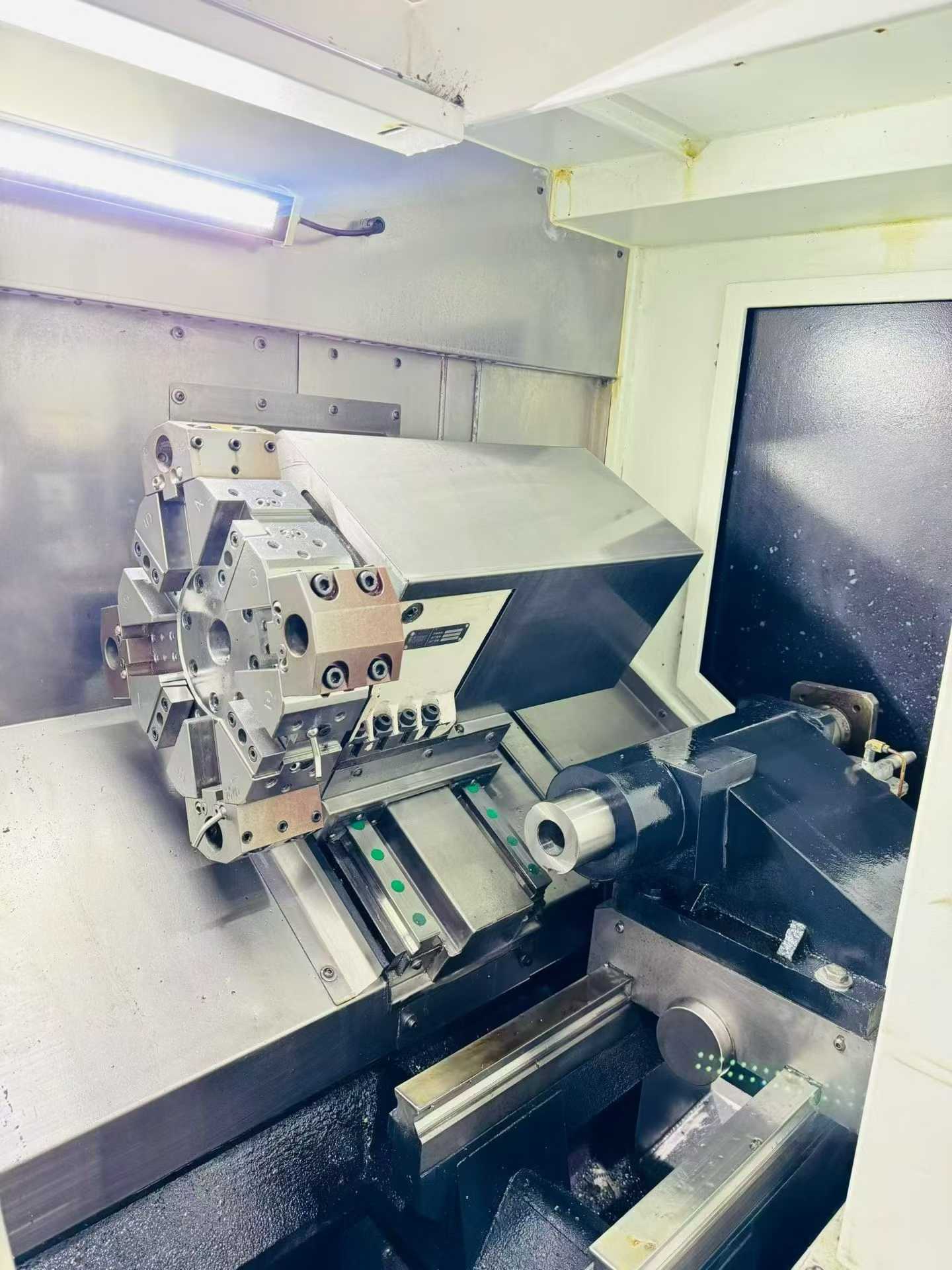

Tool turret	8-station servo turret
Chuck	8-inch hollow hydraulic chuck
Tailstock	Fully automatic programmable MT 4 hydraulic tailstock

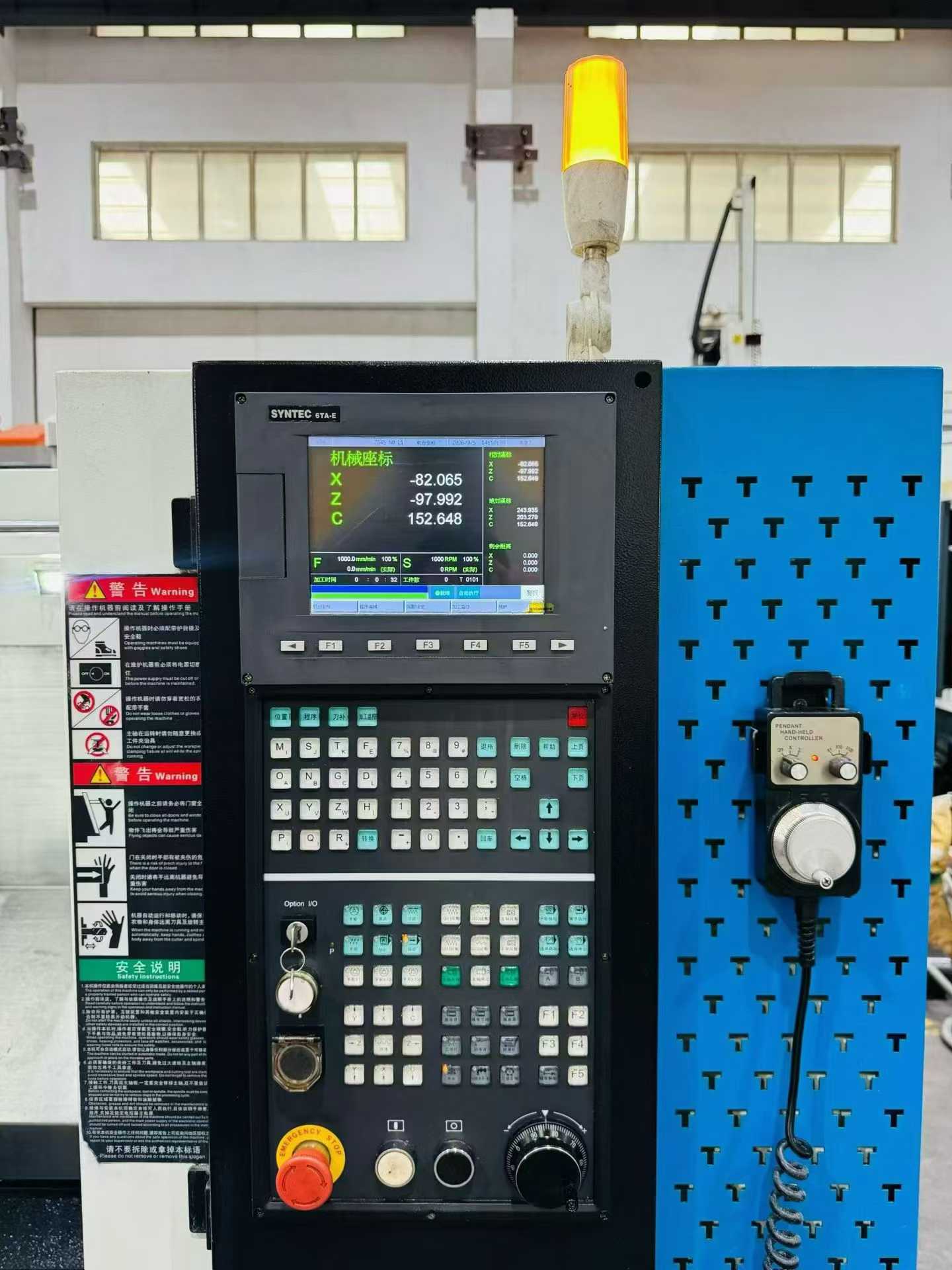

CNC control system	SYNTEC 6 TA-E bus-type absolute
Manufacturing date	End of 2023
Brand/Model	Kunshan Ganjiang 46 DW
Quantity	2 units
Guideway Configuration	Two-axis HIWIN heavy-duty roller linear guideway
Spindle	High-speed spindle unit
Controller	SYNTEC 6 TA bus-type absolute system
Condition	High cost-performance
Availability	Just arrived
Brand	Ganjiang
Control system	SYNTEC 6 TA-E
Year of manufacture	2023
