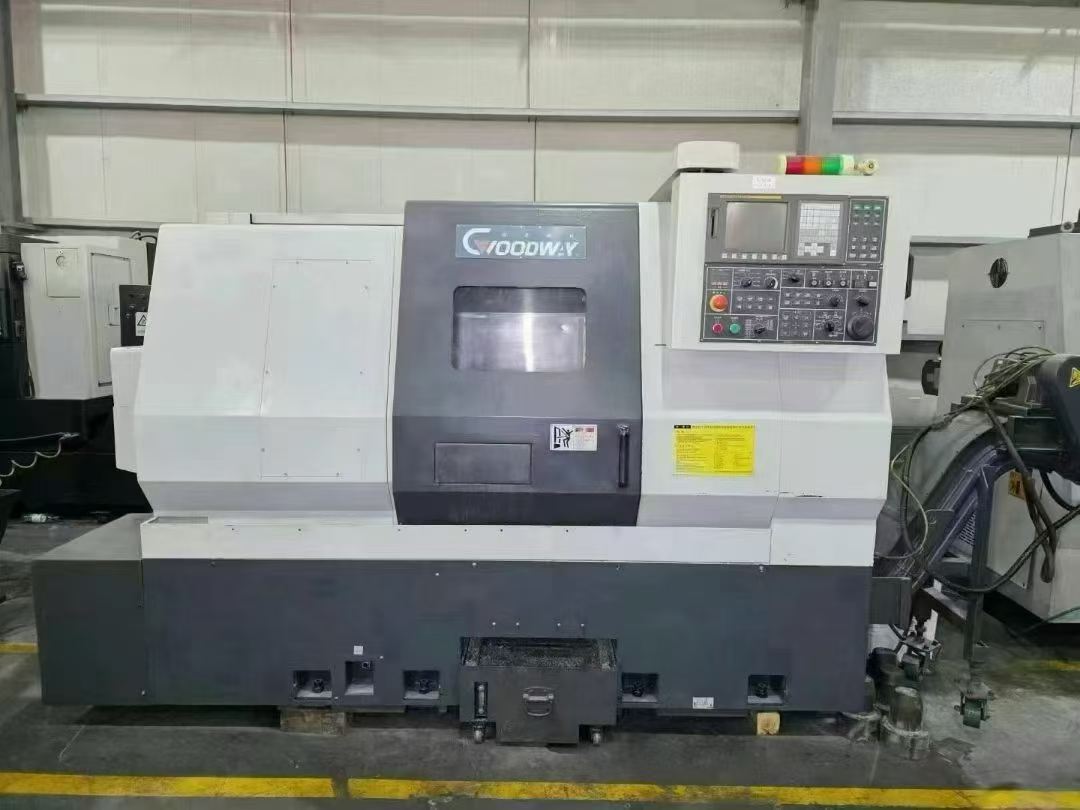

Used Goodway GS-260 CNC Horizontal Lathe with FANUC 0i-TD

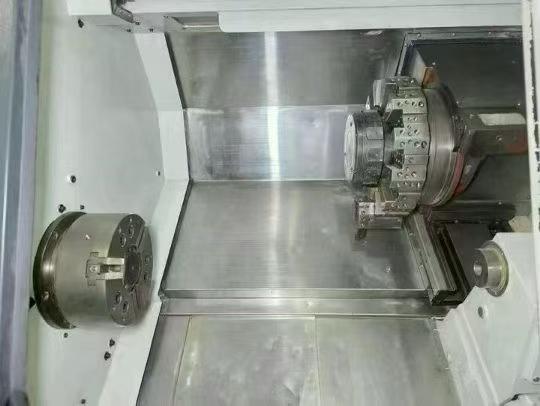

Goodway GS-260 CNC horizontal lathe in used condition, built in Taiwan and offered as a complete machine ready for inspection. The lathe is equipped with a FANUC 0i-TD CNC control system and a servo-driven 12-station tool turret. Workholding is a 10-inch 3-jaw chuck, and the belt-driven spindle reaches a maximum speed of 4,000 rpm. Both axes run on box guideways for heavy-duty turning, with X-axis travel of 480 mm and Z-axis travel of 600 mm. Swing diameter is 470 mm, maximum cutting diameter is 470 mm, and maximum machining length is 600 mm. A tailstock and chain-type chip conveyor are included with the machine.

Machine Code: CL2609104
Year: On request
Location: China
Usage Hours: On request

Accessories

10-inch 3-jaw chuck, servo 12-station tool turret, tailstock, chain-type chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	CNC Horizontal Lathe

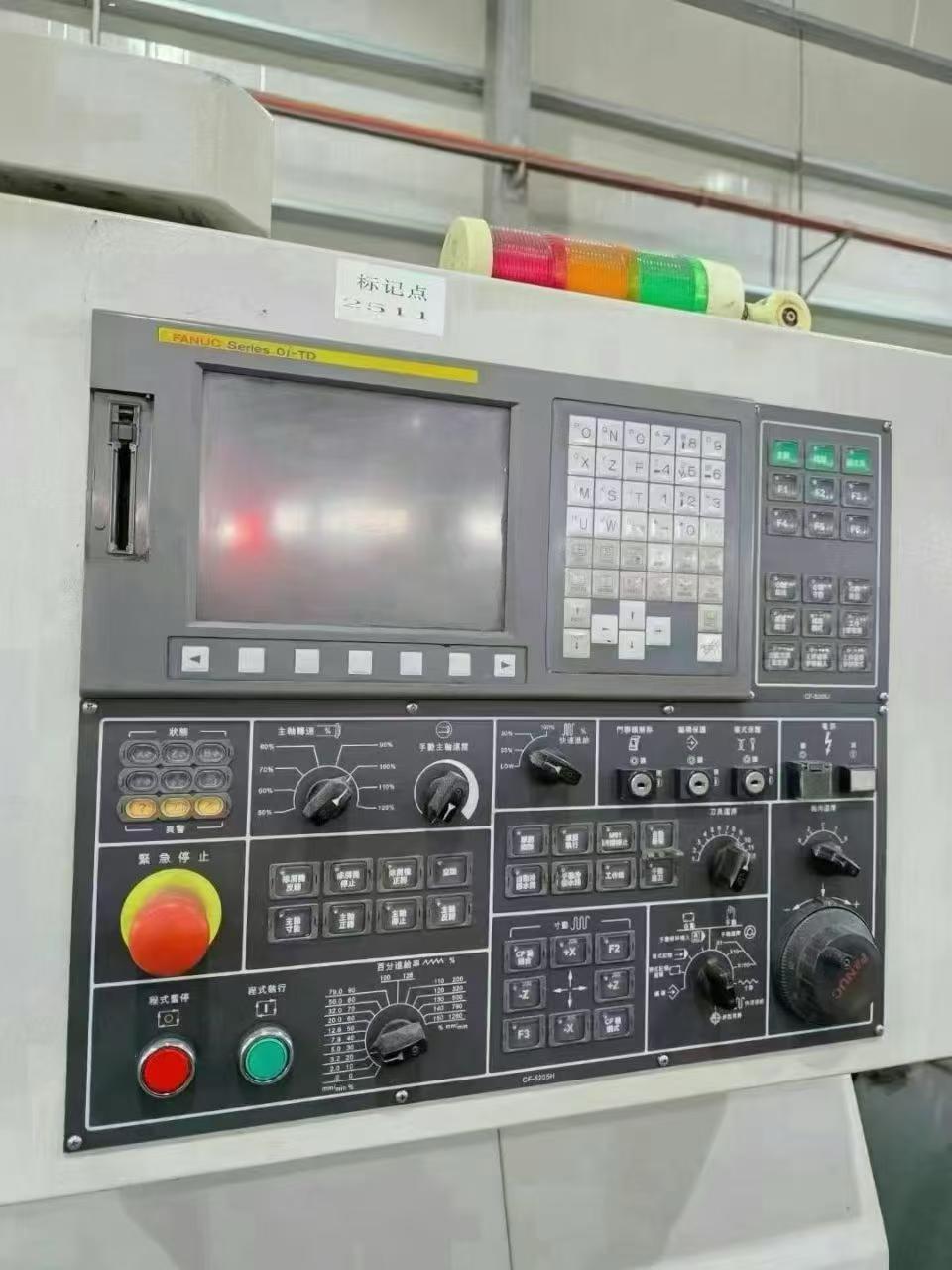

Control system	FANUC 0i-TD

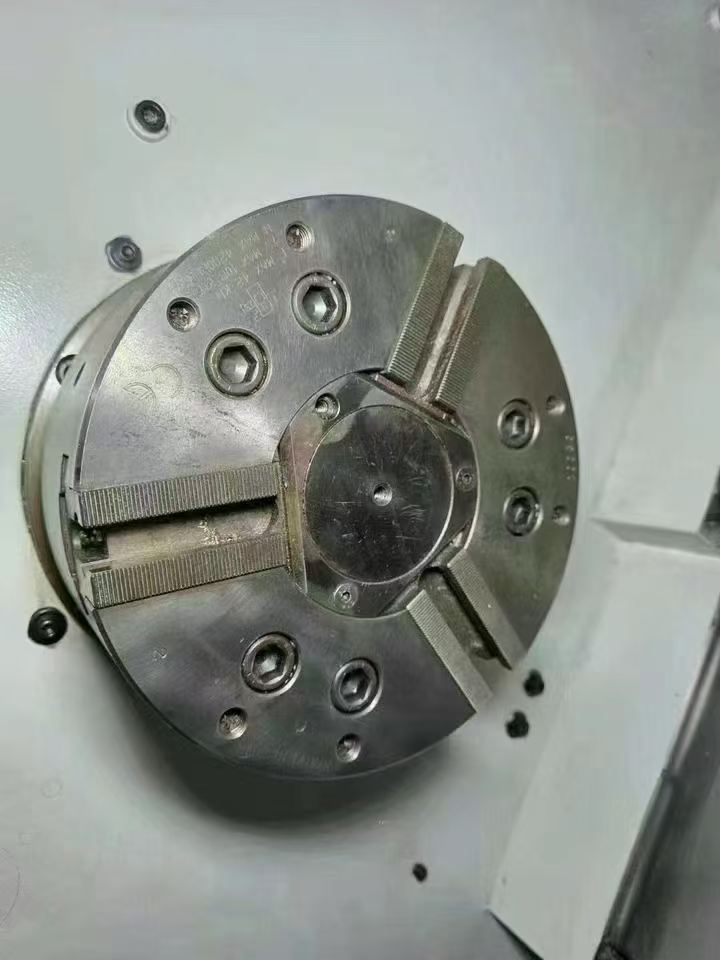

Chuck size	10 inch, 3-jaw

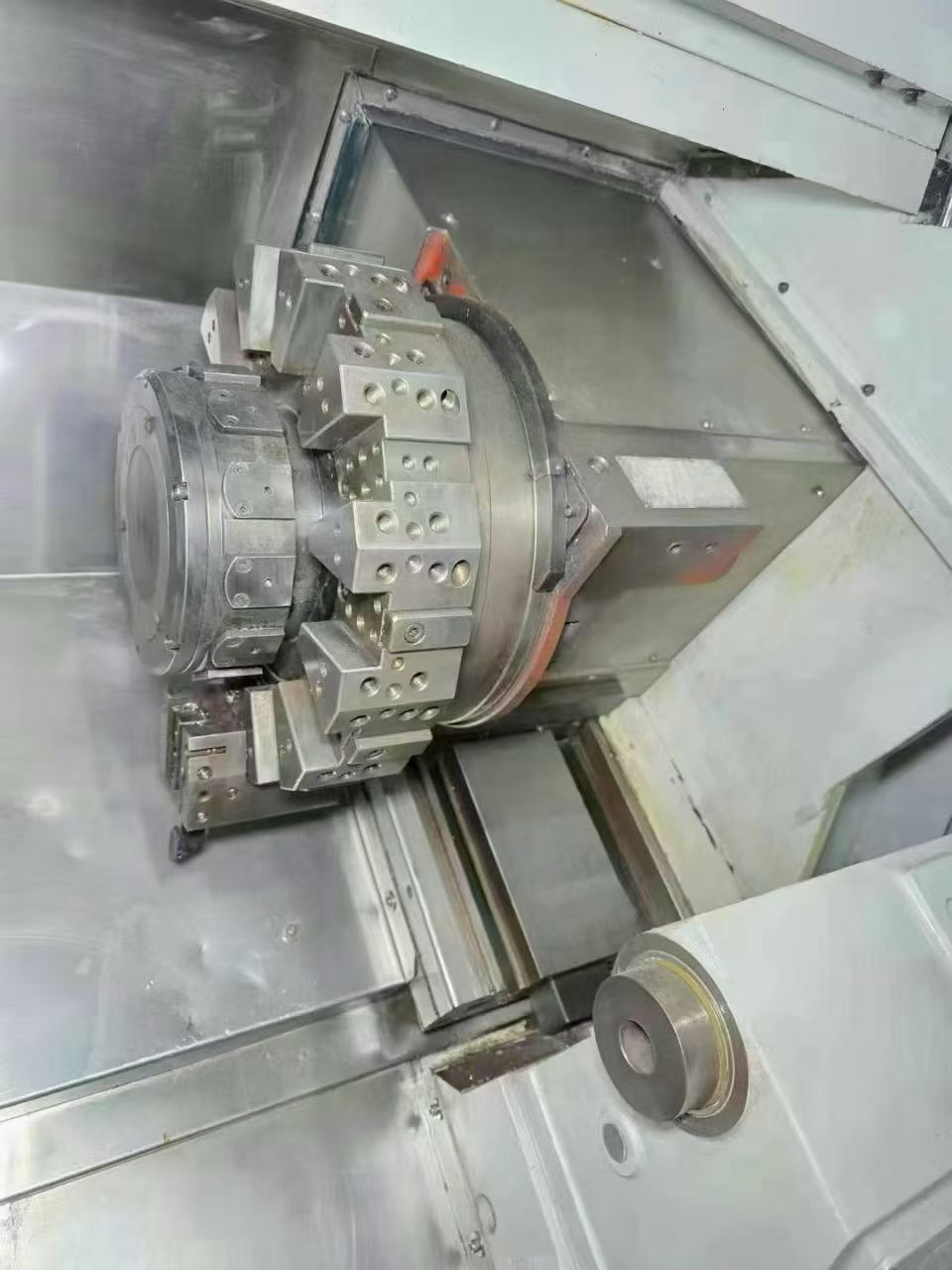

Tool turret	Servo 12-station
Spindle type	Belt-driven
Spindle speed	4,000 rpm max
Guideway type	Box guideway (X and Z)
X-axis travel	480 mm
Z-axis travel	600 mm
Swing diameter	470 mm
Maximum cutting diameter	470 mm
Maximum machining length	600 mm
Tailstock	Included
Chip conveyor	Chain-type
Brand	Goodway
