Used Taikan 500 H CNC Lathe with Mitsubishi M 70 A Control
Taikan · 500H
Year on request · Mitsubishi · China
AvailableCNC Lathe

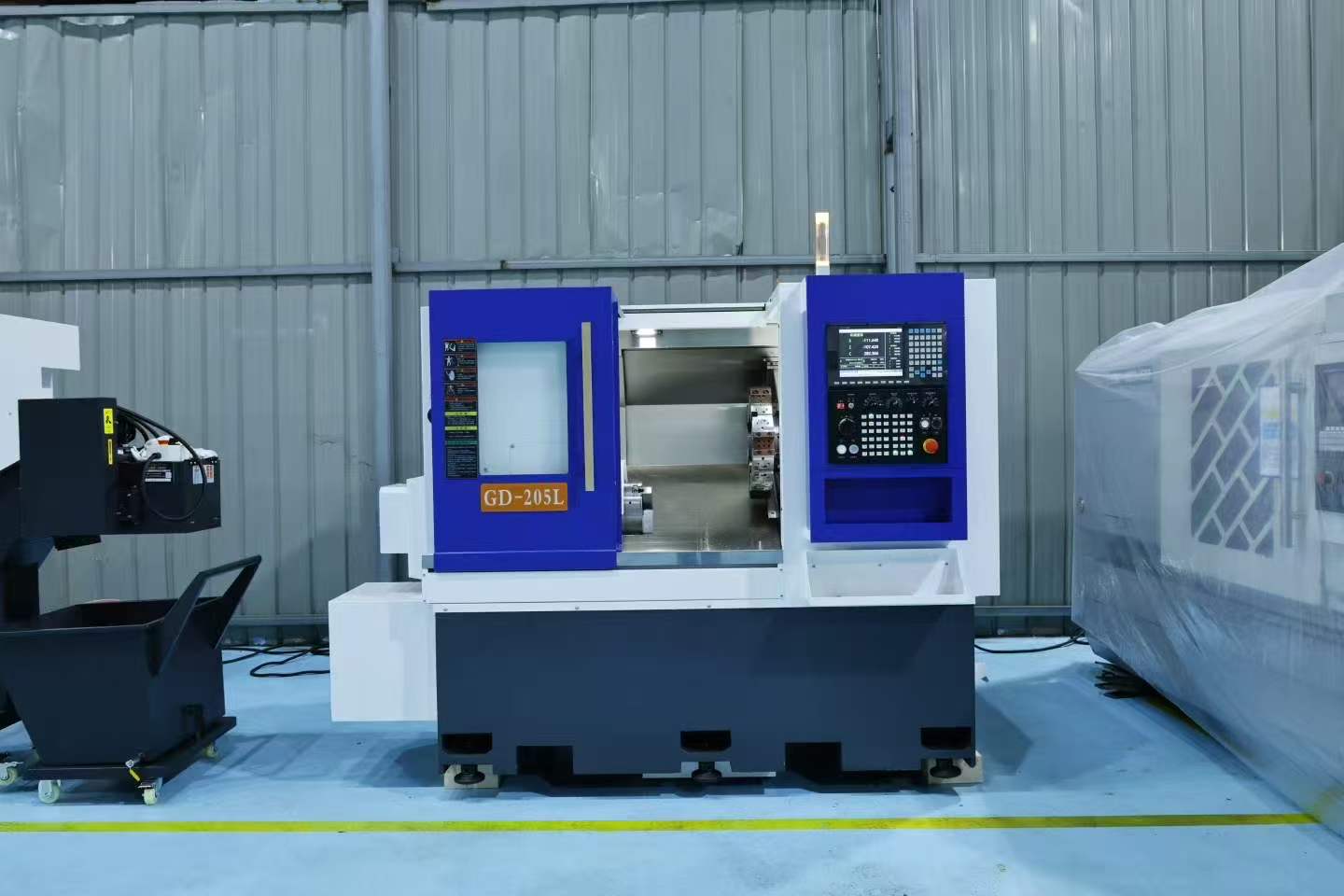

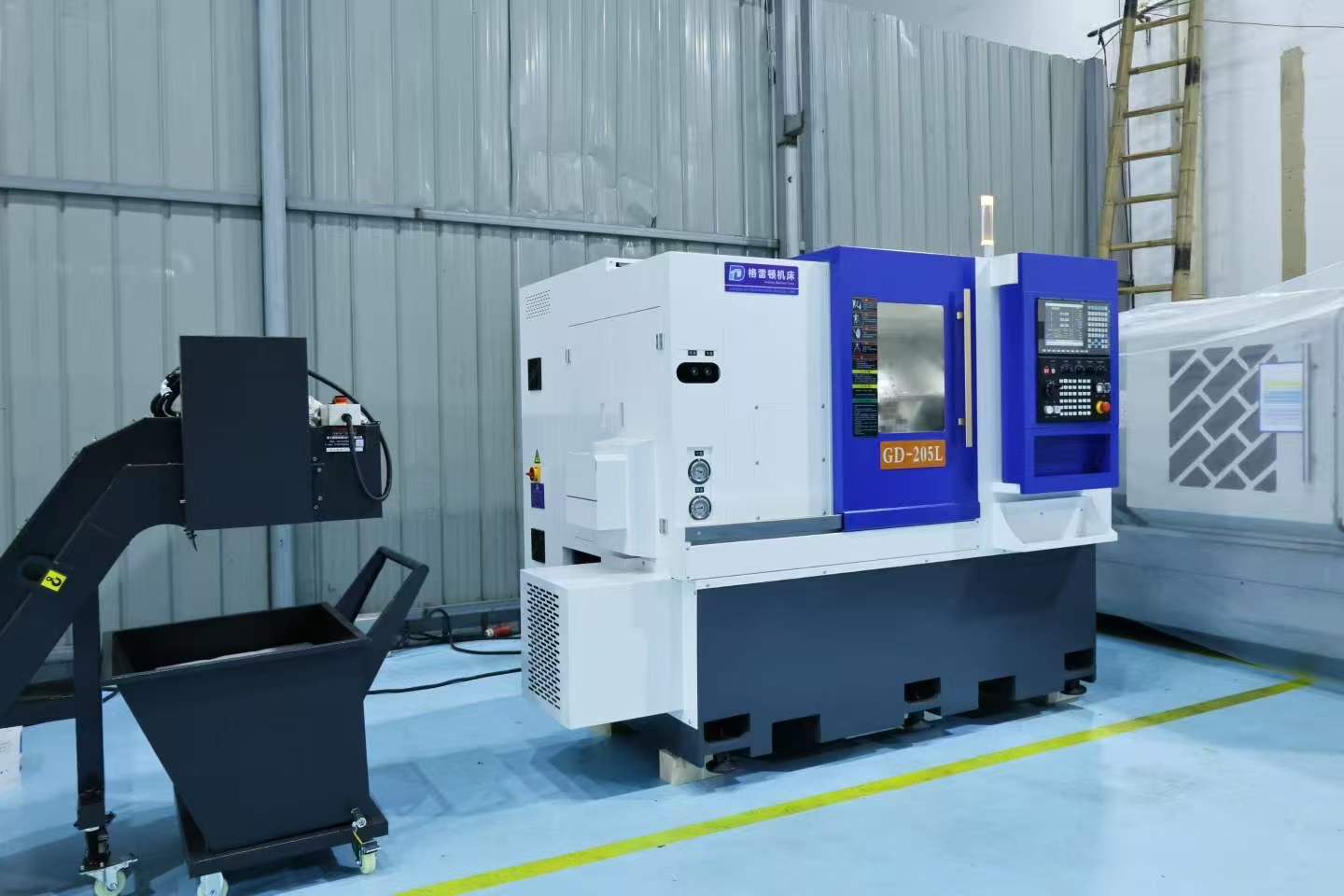

Gredon GD-205 L Turret-Type CNC Lathe

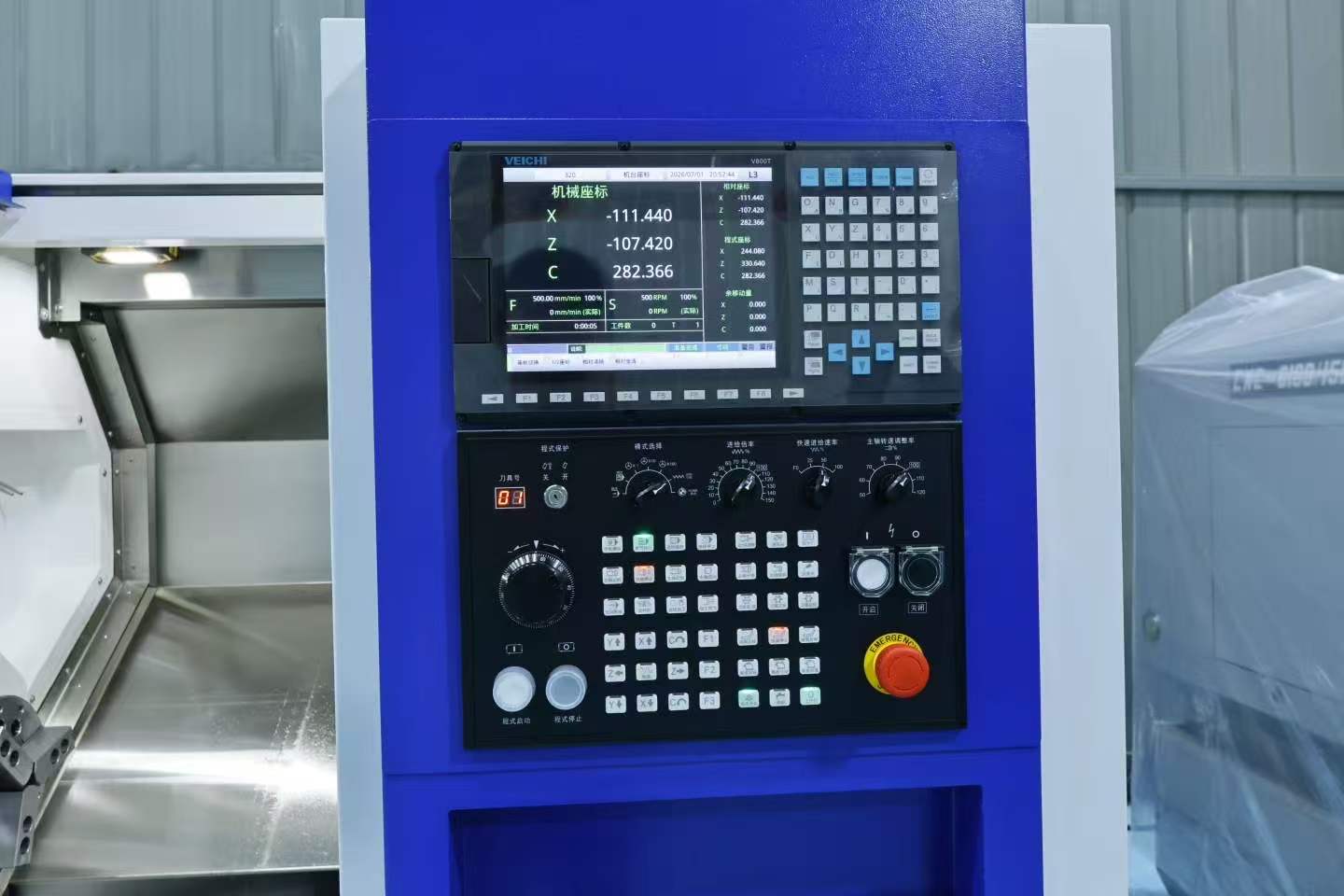

New Gredon GD-205 L slant-bed CNC lathe with 50-turret design, in stock. Equipped with Weichuang V 600 T large-screen control system (similar to Syntec 22 TA operation). Ready for immediate shipment, invoicing available, and full warranty on accessories. High cost-performance ratio.
- Machine Code
- CL260787
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories
Including standard accessories with warranty.
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Swing over bed | 550 mm |
|---|---|
| Maximum machining diameter | 500 mm |
| Maximum machining length | 500 mm |
| Spindle motor power | 11/15 kW (servo) |

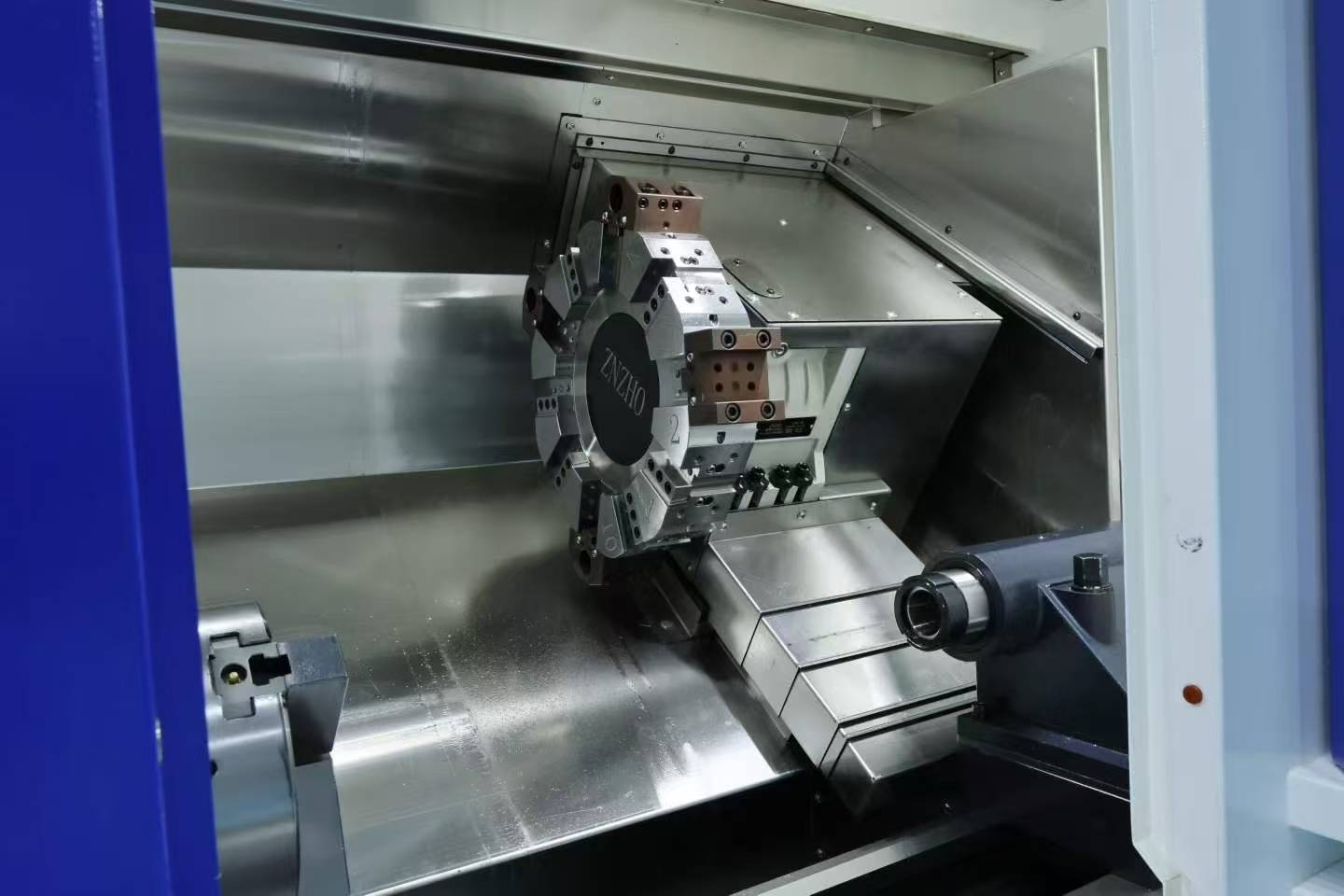

| Turret stations | 10 |
| Turret disc diameter | 390 mm |
| Chuck size | 8-inch hydraulic |
| Spindle nose | A 2-6 |
| Guideway | Roller linear guideway (2 axes) |
| Tailstock | Hydraulic |
