AvailableTurn-Mill CNC Lathe

Nearly New Guangdong Dingbang 52/46 Turn-Mill Centers with SYNTEC 22 TB (2024)

Two nearly new Guangdong Dingbang turn-mill centers are now available: one 52-type and one 46-type, both manufactured in 2024 and installed with little use. Each machine is 95% new and features a Haozhi motorized spindle, a servo live-tool turret with lifting Y-axis, and the SYNTEC 22 TB bus absolute-value control system. The 52-type has an 11 kW A 2-6 spindle and an 8-inch chuck with a 12-station BMT 45 turret; the 46-type has a 7.5 kW A 2-5 spindle and a 6-inch chuck with a 15-station turret. Every machine includes four live tools (two 0° and two 90°).

Machine Code: TML260842
Year: 2024
Location: China
Usage Hours: On request

Accessories

4 live tools per machine (2 at 0°, 2 at 90°)

Email Inquiry

Main Specifications

Machine type	Turn-Mill Center
Brand	Guangdong Dingbang
Model	52-type and 46-type
Year of manufacture	2024

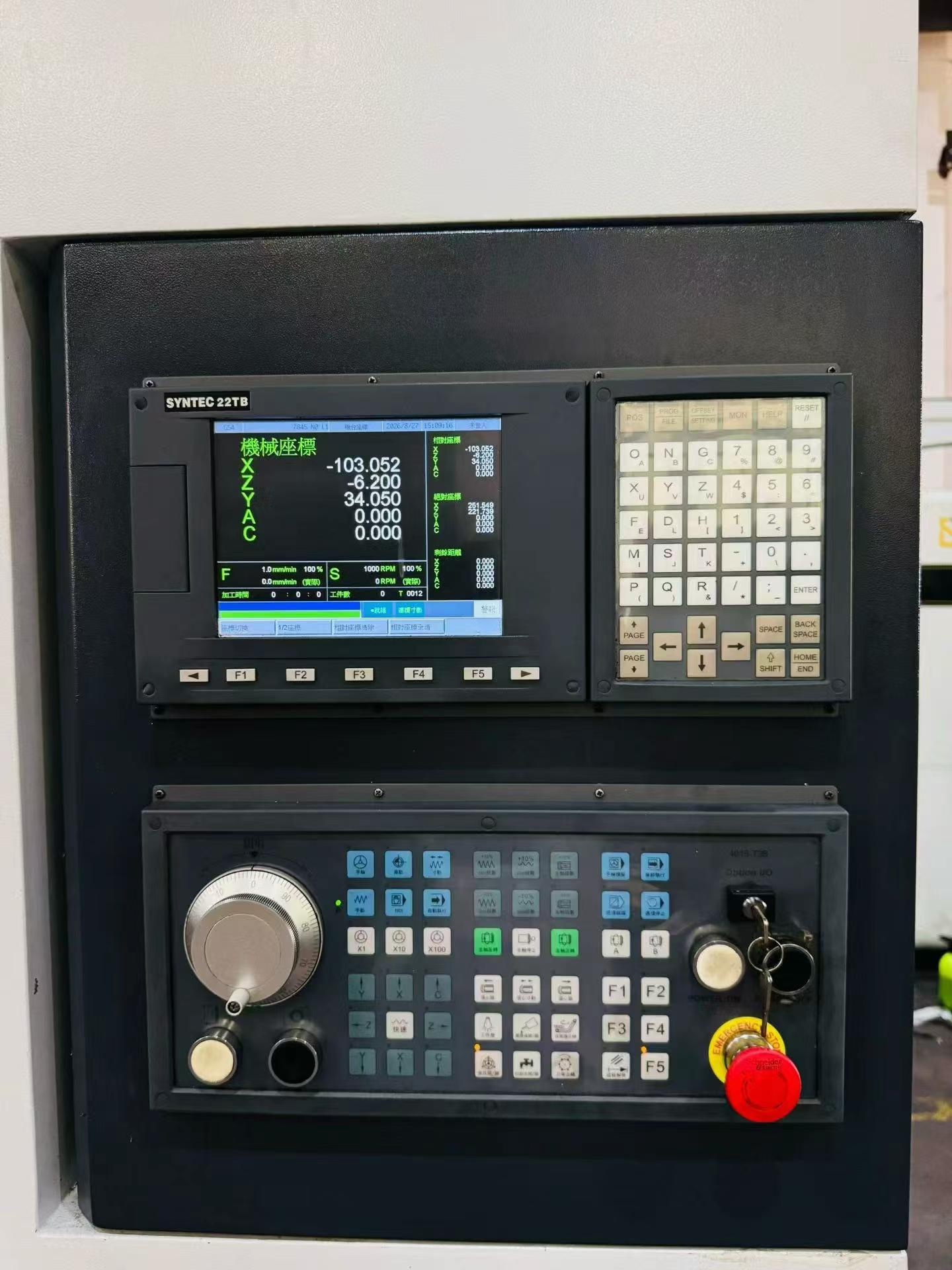

Controller	SYNTEC 22 TB bus absolute-value system
Spindle nose (52-type)	A 2-6
Spindle power (52-type)	11 kW
Chuck size (52-type)	8inch

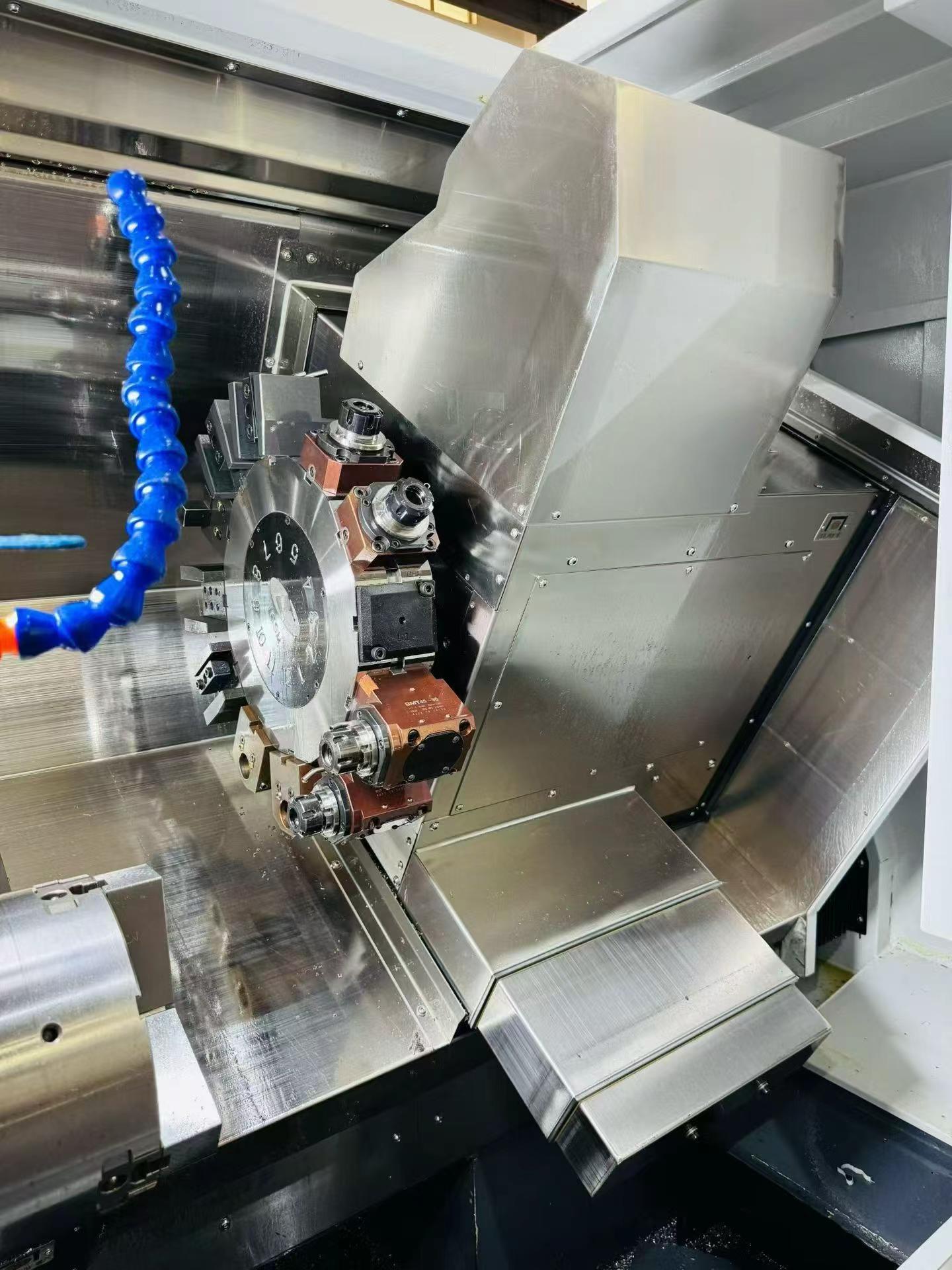

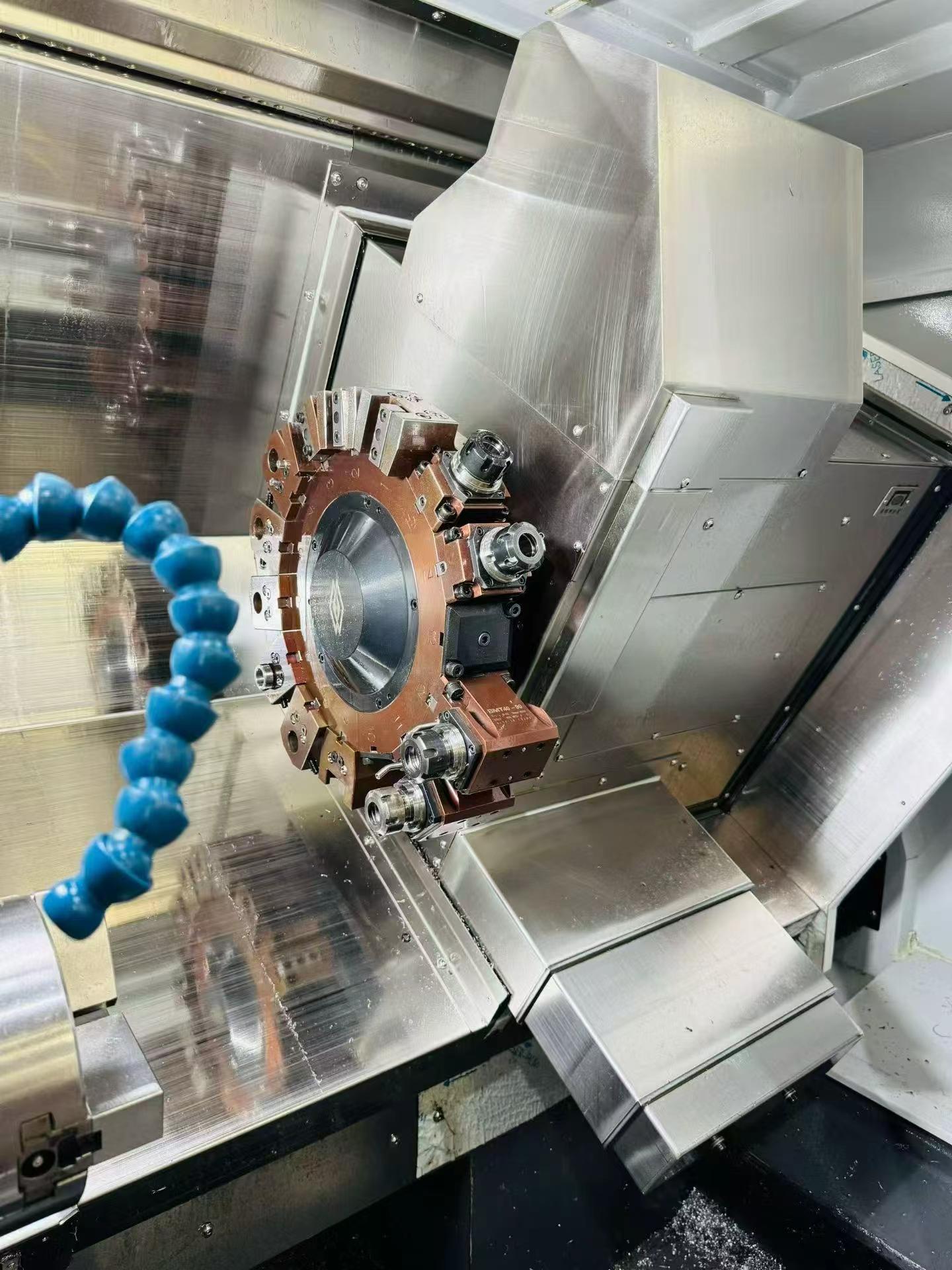

Turret (52-type)	12-station BMT 45 lifting Y-axis servo live-tool turret
Spindle nose (46-type)	A 2-5
Spindle power (46-type)	7.5 kW
Chuck size (46-type)	6inch
Turret (46-type)	15-station lifting Y-axis servo live-tool turret
Live tools per machine	4 (2 at 0°, 2 at 90°)
Quantity	2 units
Condition	Nearly new, 95% new, installed with little use
Usage	Installed with little use
Number Of Live Tools Per Machine	4
Live Tools At 0°	2
Live Tools At 90°	2
Quantity (52-type)	1
Spindle Type (52-type)	Motorized spindle
Spindle Brand (52-type)	Hozhi
Quantity (46-type)	1
Spindle Type (46-type)	Motorized spindle
Spindle Brand (46-type)	Hozhi
Control system	SYNTEC 22 TB
