Used Nantong Guosheng QVM 1160 S Vertical Machining Center with FANUC 0i-MF Plus

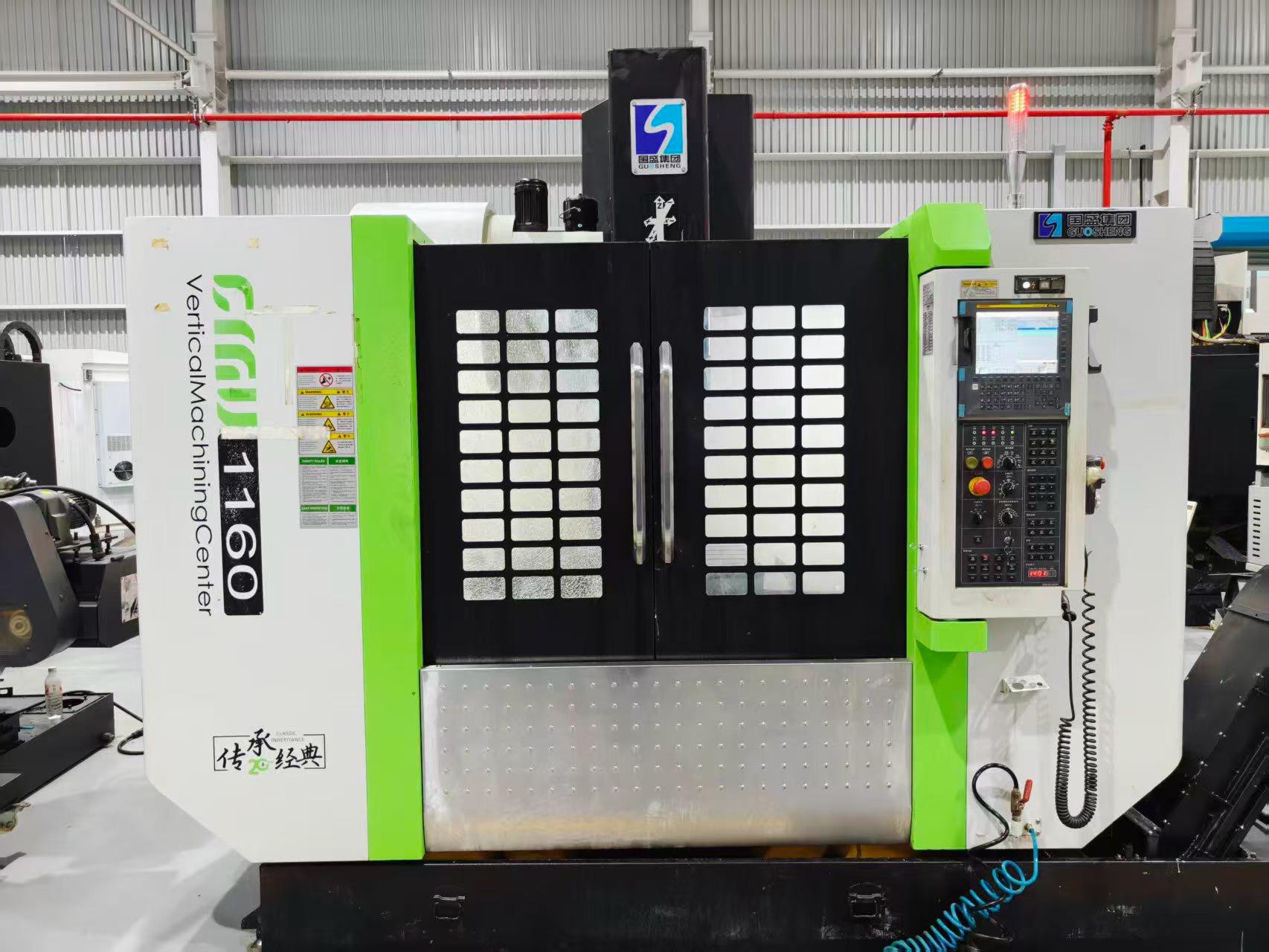

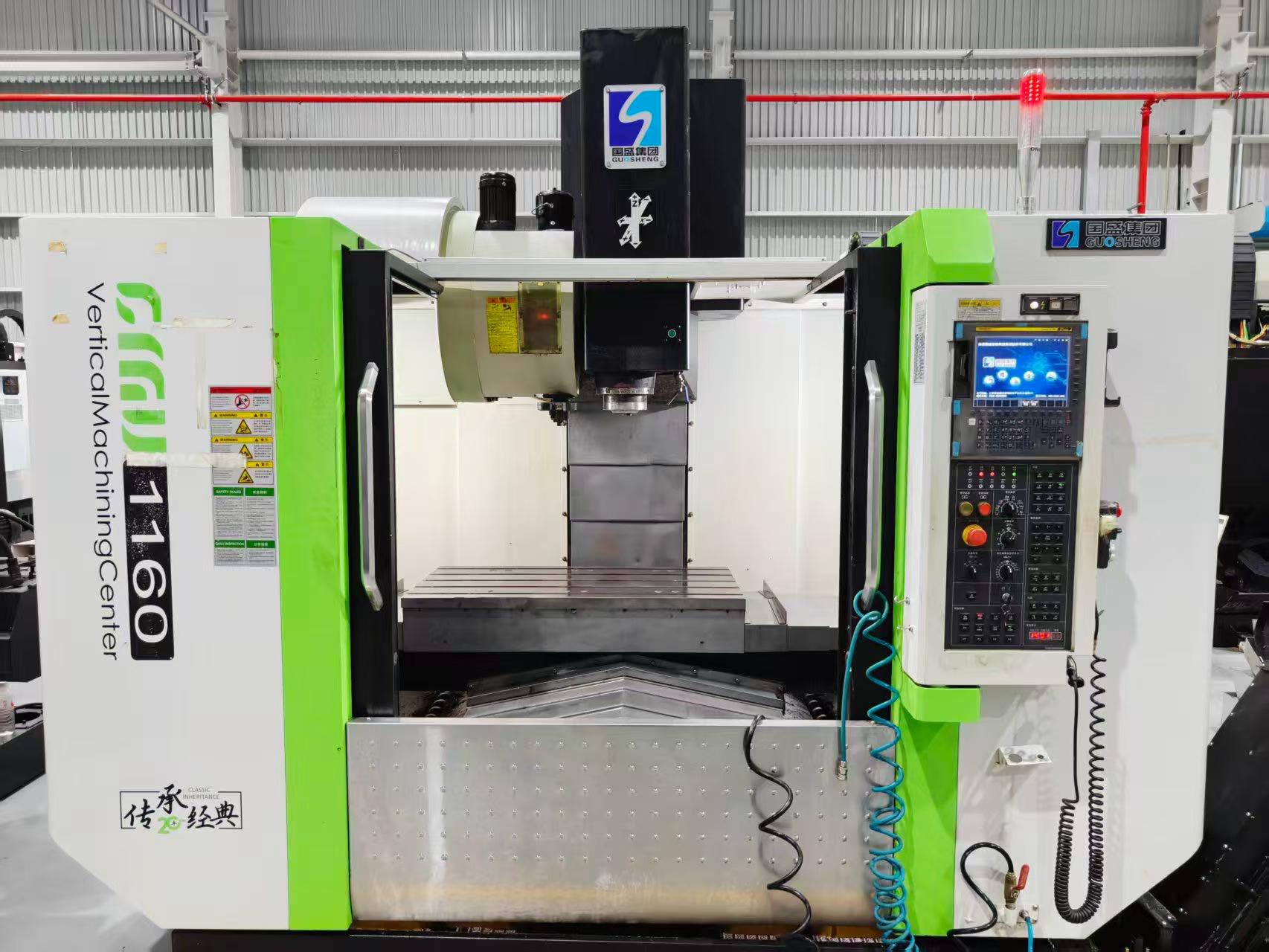

Guosheng QVM 1160 S heavy-duty vertical machining center, built in 2022 (factory date February 2022, serial number 2112366). The machine is a 1160-size vertical machining center arranged on a heavy rigid structure with two linear guideways and one box guideway on the feed axes for stable heavy cutting. Equipped with the FANUC 0i-MF Plus CNC control system. The BT40 belt-driven spindle runs up to 8000 rpm, and tooling is handled by a 24-tool disc-type automatic tool changer. Worktable size is 1200 x 600 mm with X/Y/Z travels of 1100 / 600 / 600 mm. The machine is supplied with two screw-type chip conveyors, one chain-type chip conveyor and an oil-water separator. Used machine, in current running condition and available for inspection.

Machine Code: VMC2609186
Year: 2022
Location: China
Usage Hours: On request

Accessories

Two screw-type chip conveyors One chain-type chip conveyor Oil-water separator

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Vertical machining center
Model	QVM 1160 S
Year	2022
Factory date	February 2022

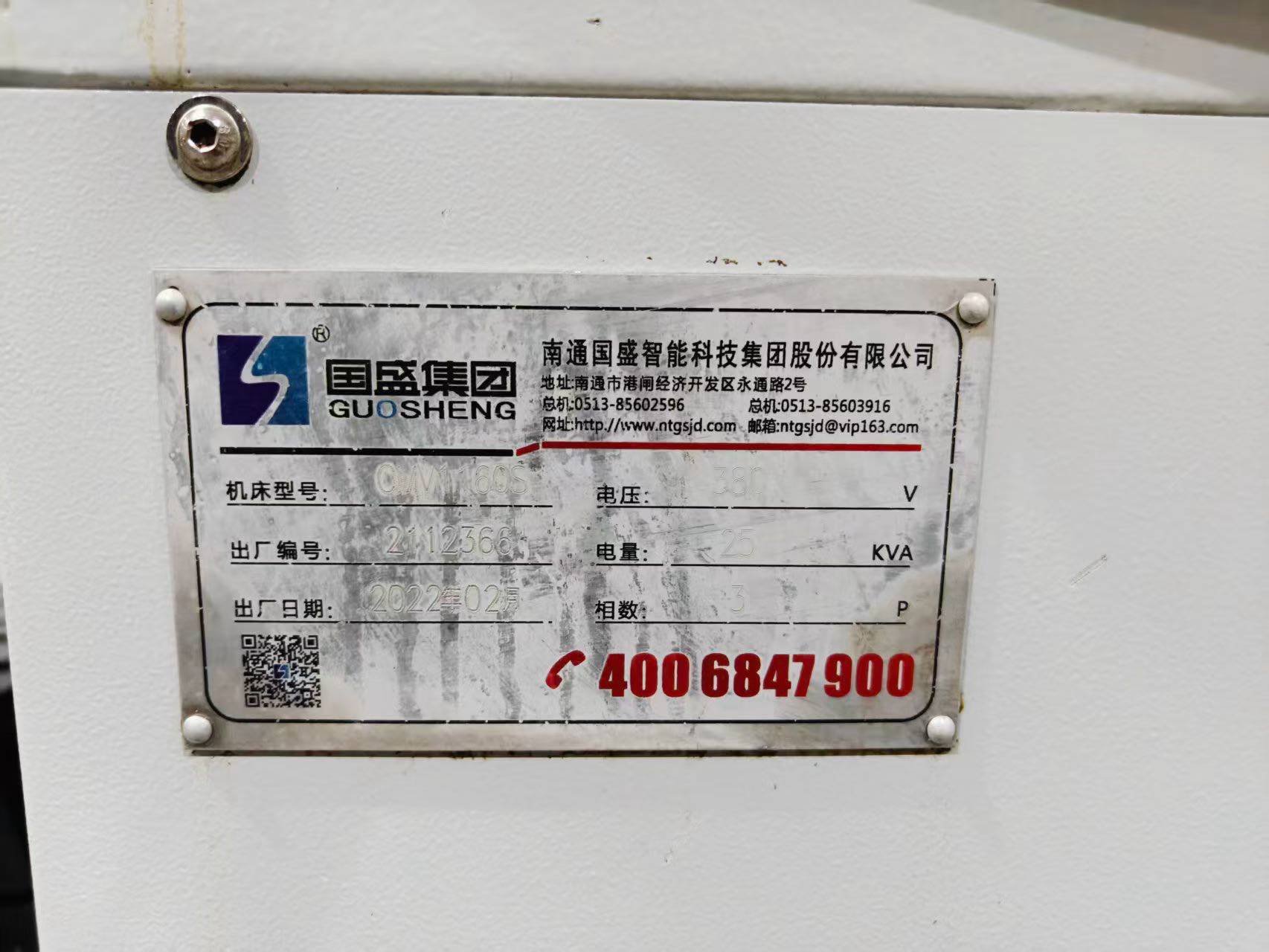

Serial number	2112366

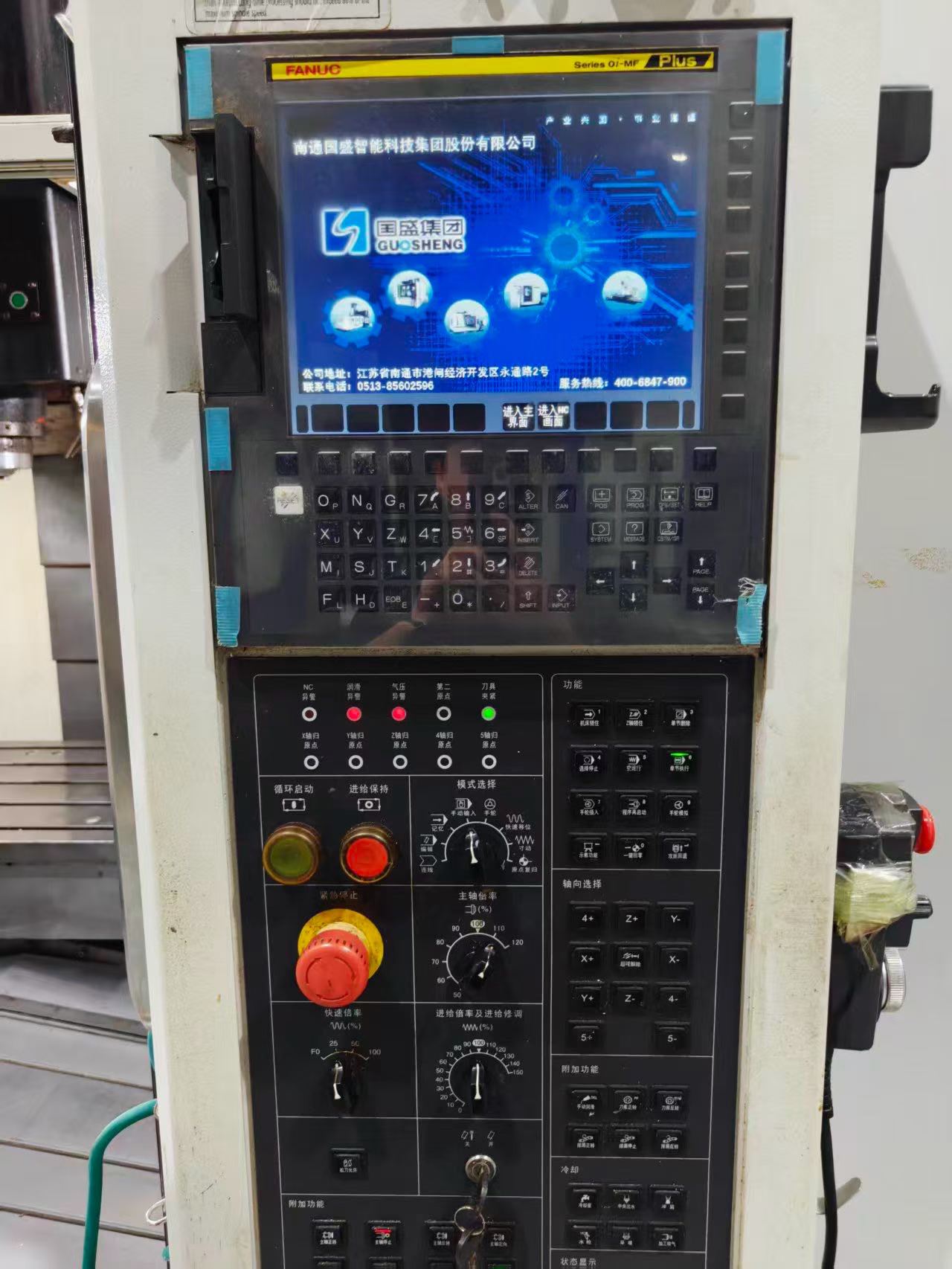

Control system	FANUC 0i-MF Plus

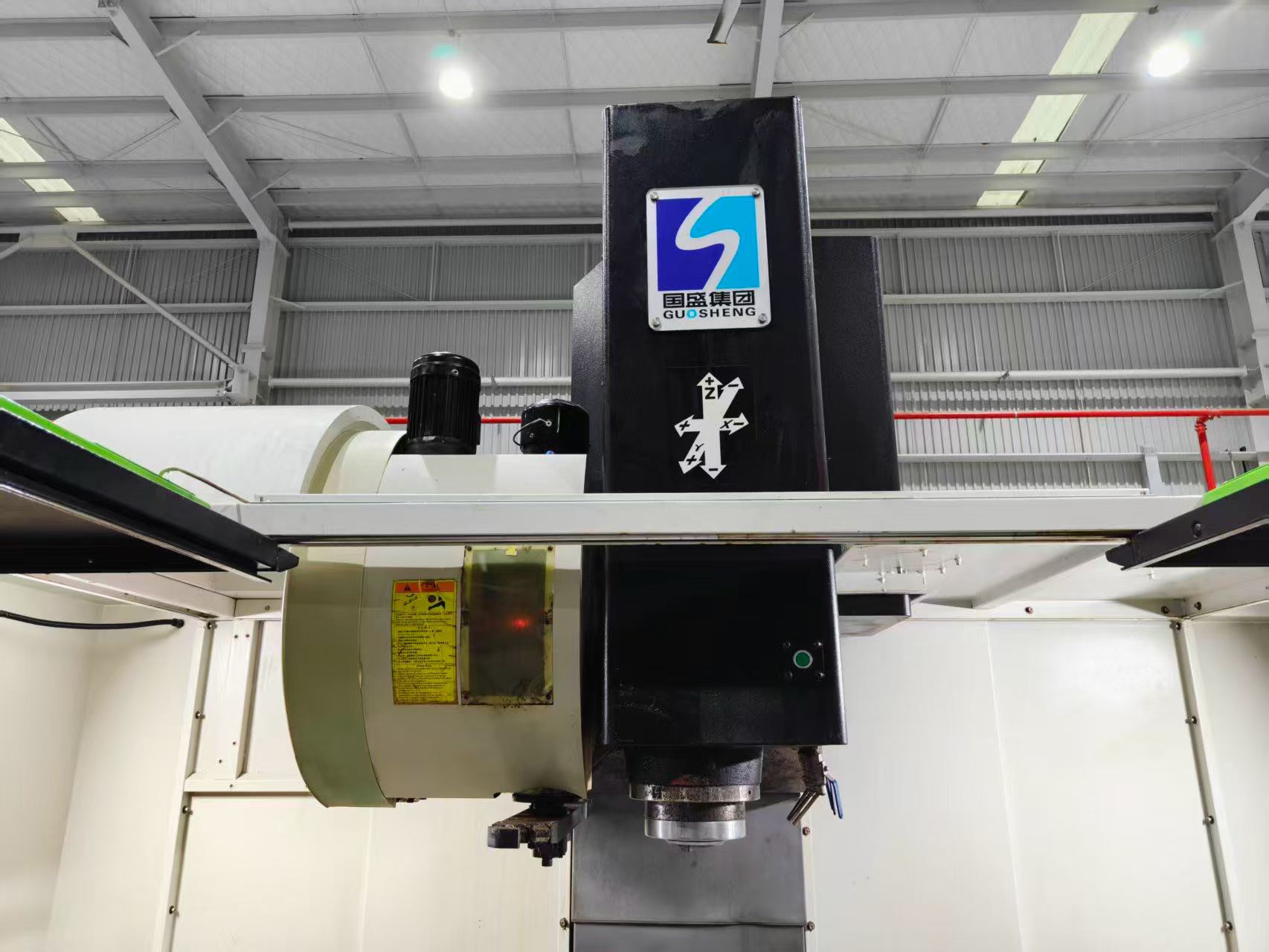

Spindle taper	BT40
Spindle speed	8000 rpm
Spindle drive	Belt-driven spindle

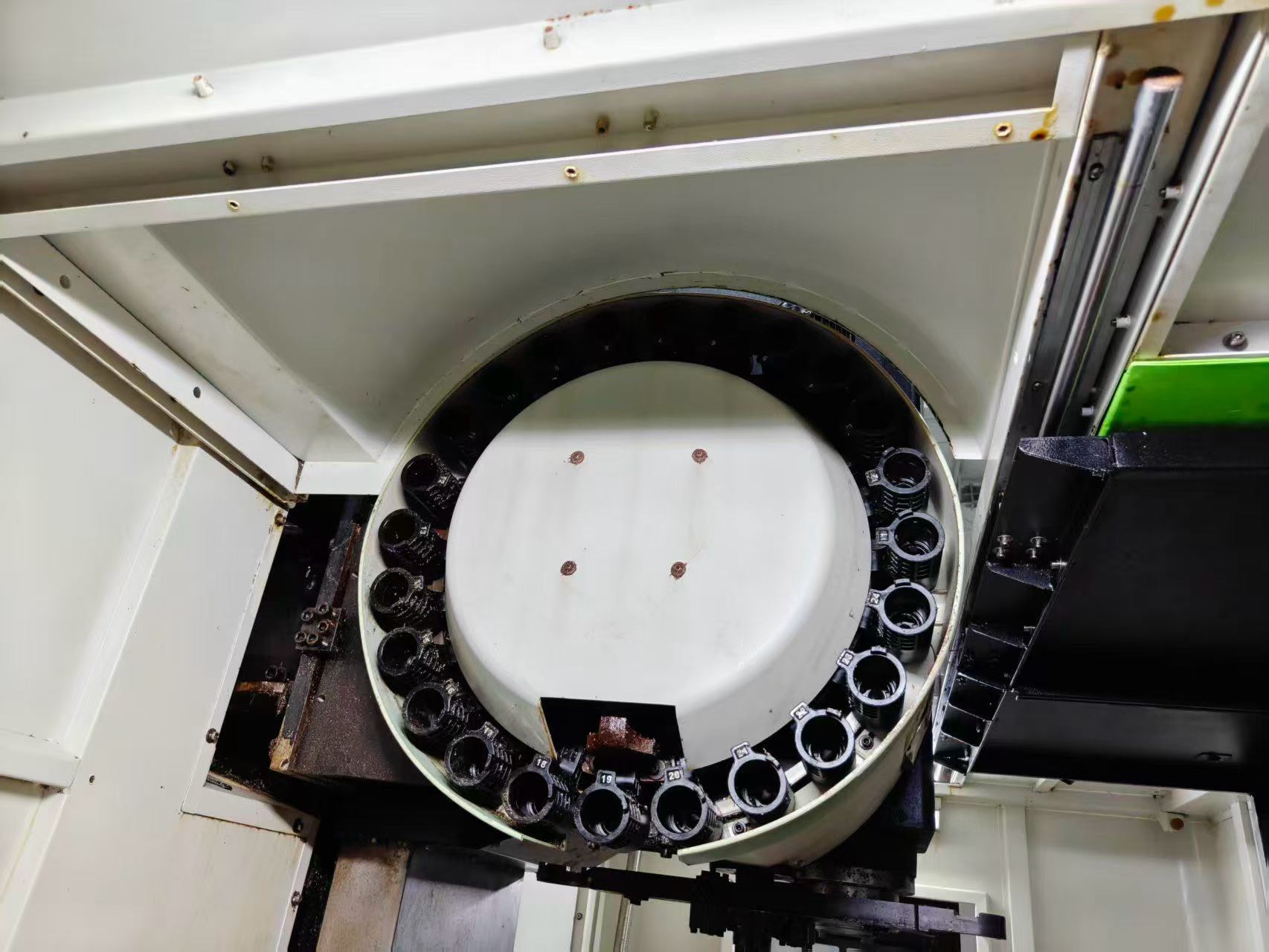

Tool magazine capacity	24 tools (disc-type automatic tool changer)
Guideway type	Two linear guideways and one box guideway

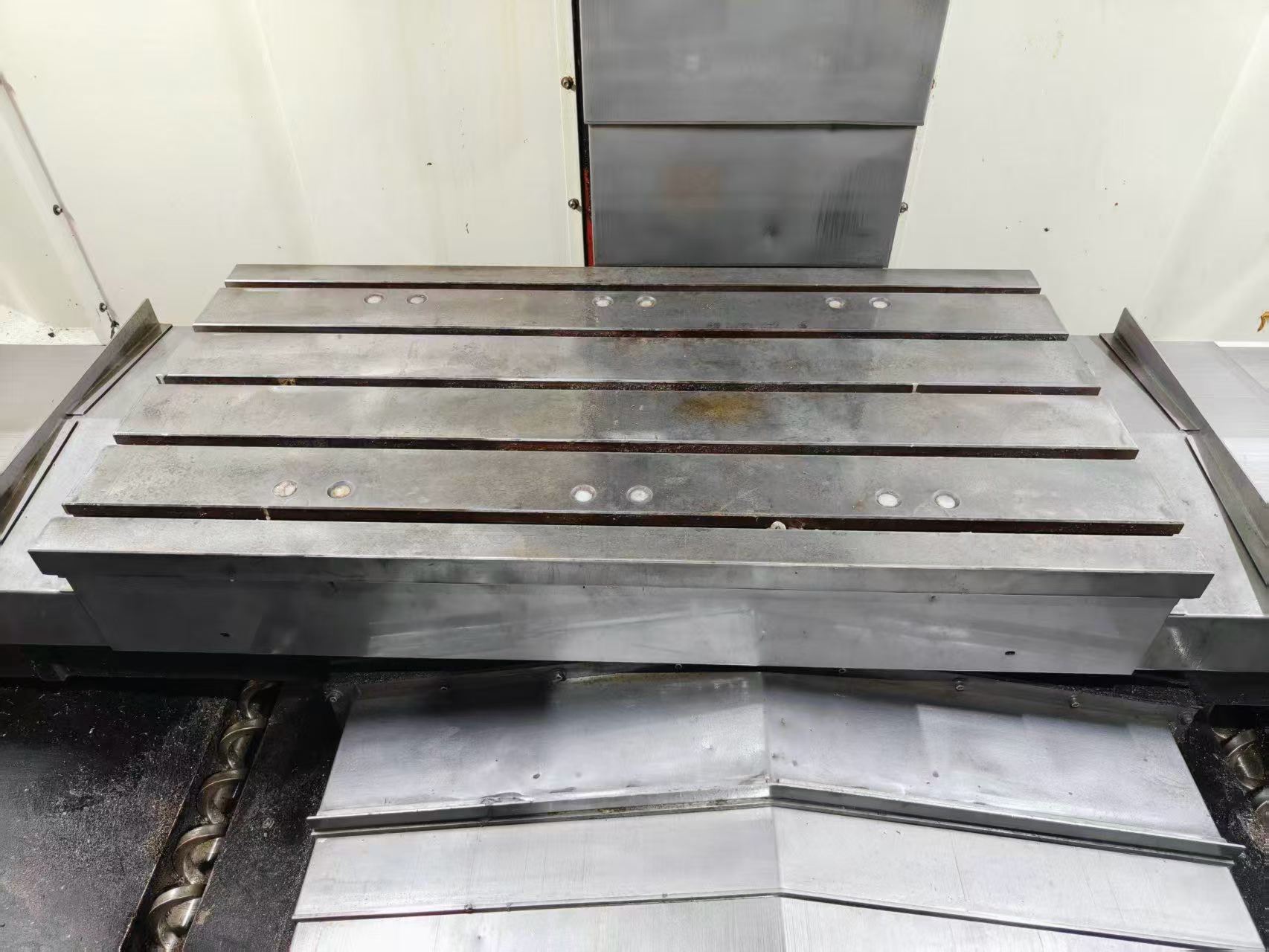

Worktable size	1200 x 600 mm
X/Y/Z travel	1100 / 600 / 600 mm
Brand	Nantong Guosheng
Year of manufacture	2022
