AvailableVertical Machining Center

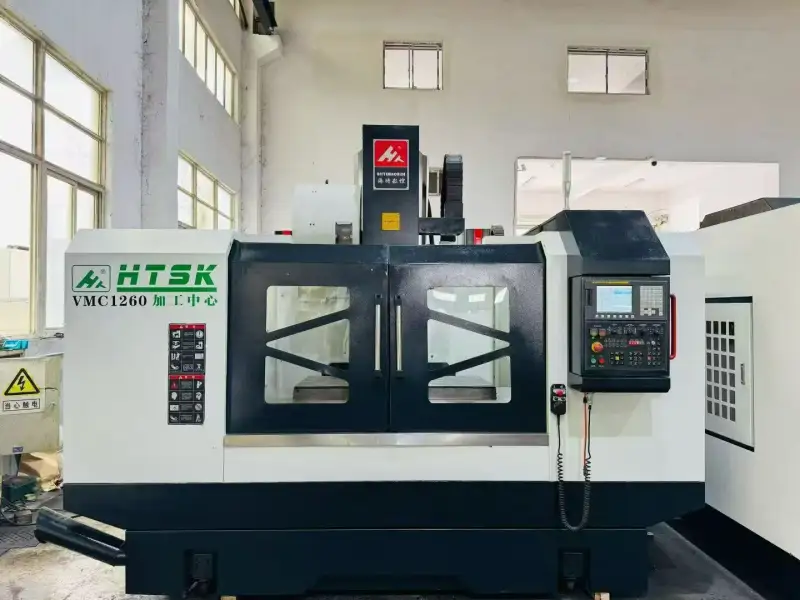

Used HTSK VMC 1260 Vertical Machining Center with FANUC 0i-MF

This HTSK VMC 1260 vertical machining center is a heavy-duty 1260-size machine built on 45-series roller linear guideways across all three axes, giving it the rigidity to take deep cuts in steel and cast iron. Axis travels are X 1200 mm, Y 600 mm and Z 650 mm, which covers a wide range of plate, frame and mould work. The 8000 rpm BT40 spindle runs with a 24-station disc-type tool magazine for quick tool changes through long cycles, and the machine is equipped with the FANUC Series 0i-MF CNC control system. A spiral chip conveyor keeps the work area clear during continuous cutting. The machine is in excellent condition and is ready for inspection.

Machine Code: VMC261099
Year: On request
Location: China
Usage Hours: On request

Accessories

24-station disc-type tool magazine; Spiral chip conveyor

Email Inquiry

Main Specifications

X/Y/Z travel	1200 / 600 / 650 mm
Guideway type	45-series roller linear guideway (3 axes)

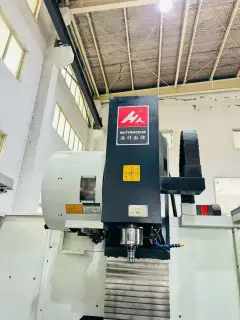

Spindle speed	8000 rpm
Spindle taper	BT40

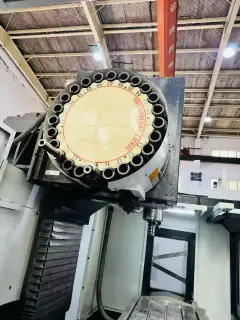

Tool magazine capacity	24 (disc type)

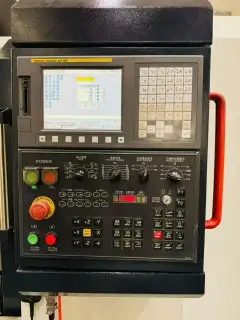

CNC control	FANUC Series 0i-MF
Chip conveyor	Spiral type
Brand	HTSK
Control system	FANUC 0i-MF
