AvailablePlaner Milling Machine

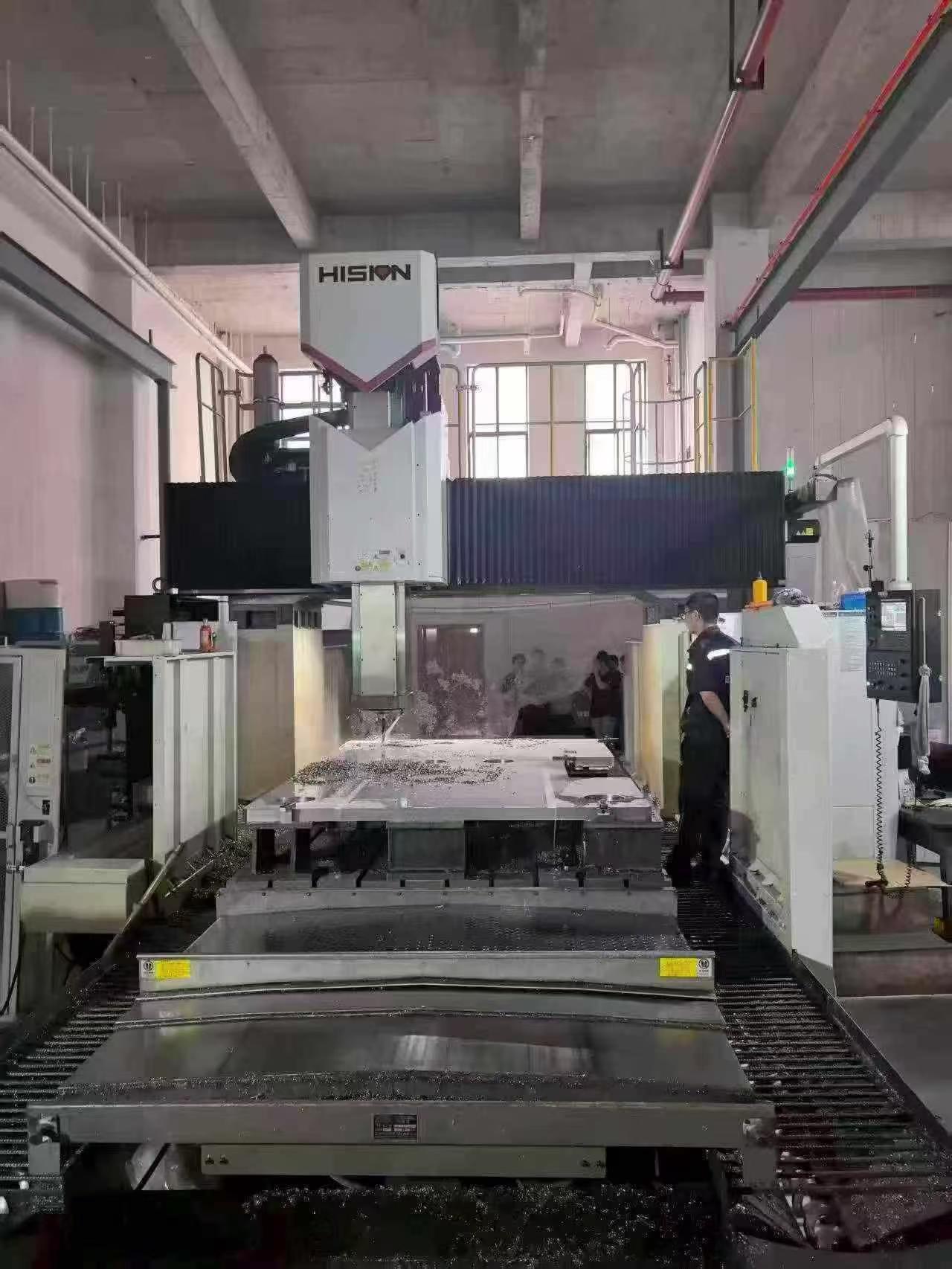

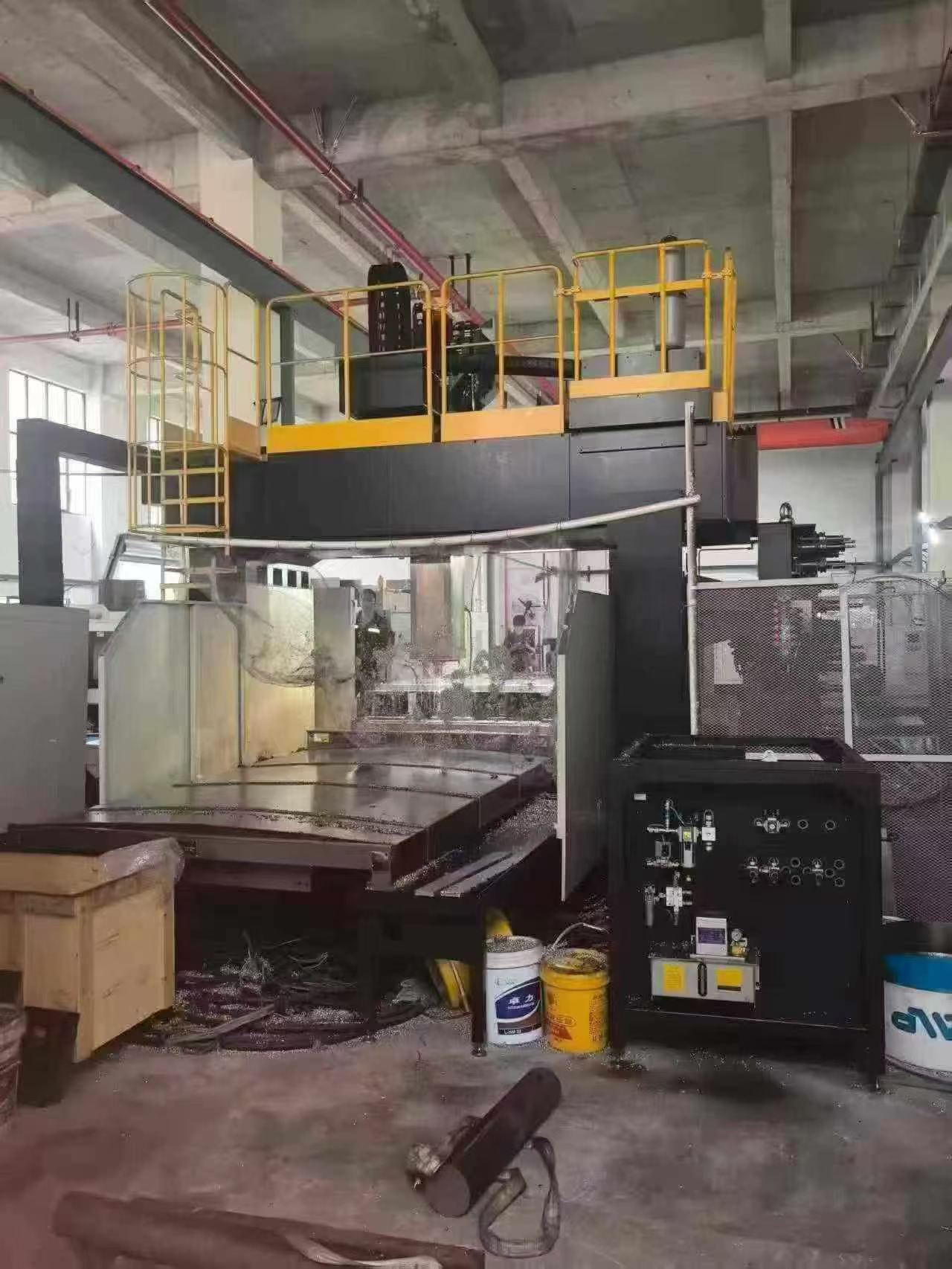

Haitian GLU 28 x 30 L CNC Gantry Machining Center with FANUC MF Plus for Sale

Haitian GLU 28 x 30 L CNC gantry machining center, equipped with gear-driven spindle, FANUC MF Plus control system, Alpha high-power drive, square ram guideway, BT50 taper, 48-tool vertical/horizontal tool magazine and right-angle automatic head. Worktable size: 2000 x 3000 mm. X/Y/Z travel: 3200 x 2700 x 1000 mm. Gantry clearance: 1400 mm height, 2800 mm width. Spindle nose to table distance: 250/1250 mm. Manufactured in July 2023.

Machine Code: MC260887
Year: 2023
Location: China
Usage Hours: On request

Accessories

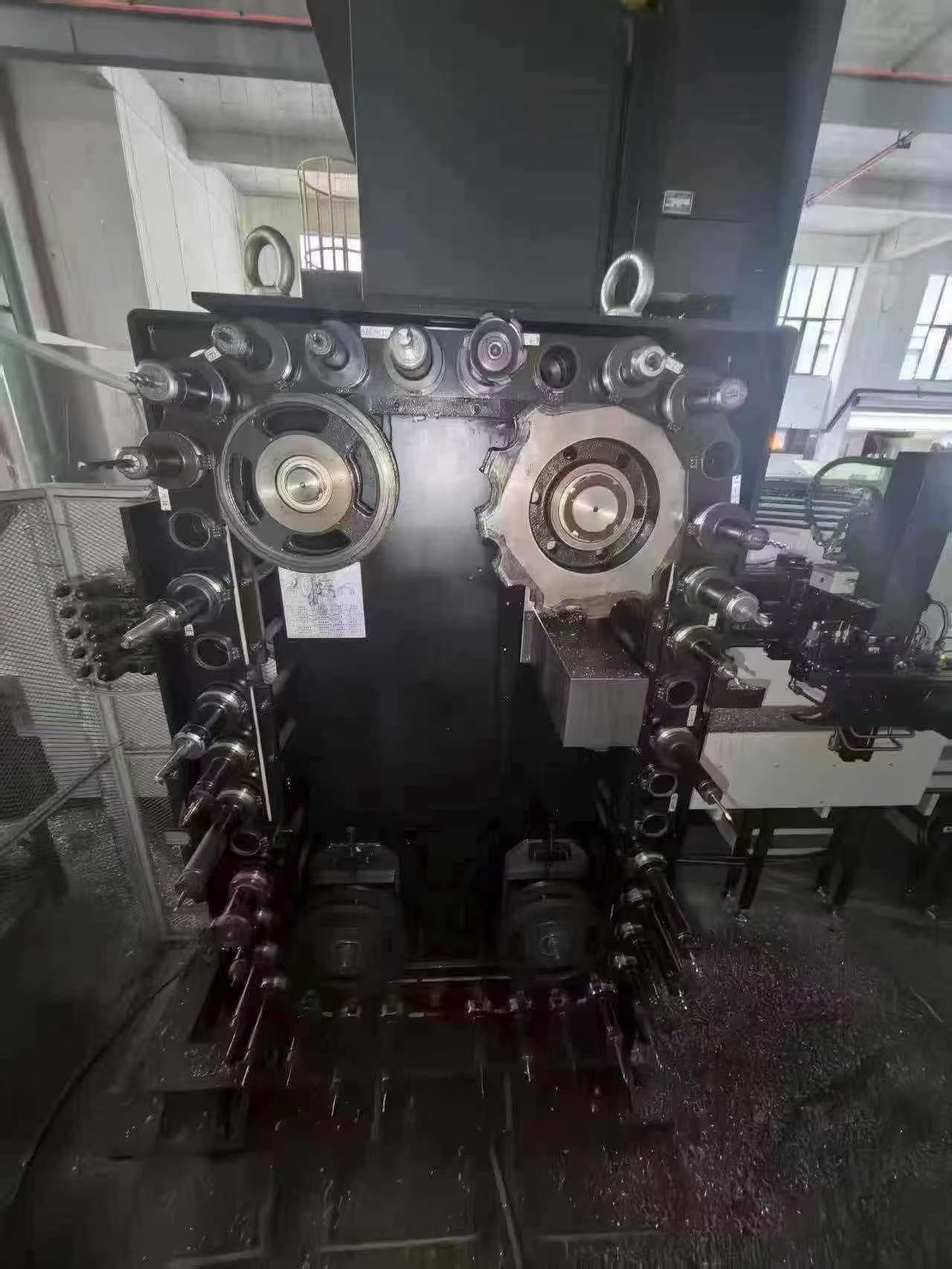

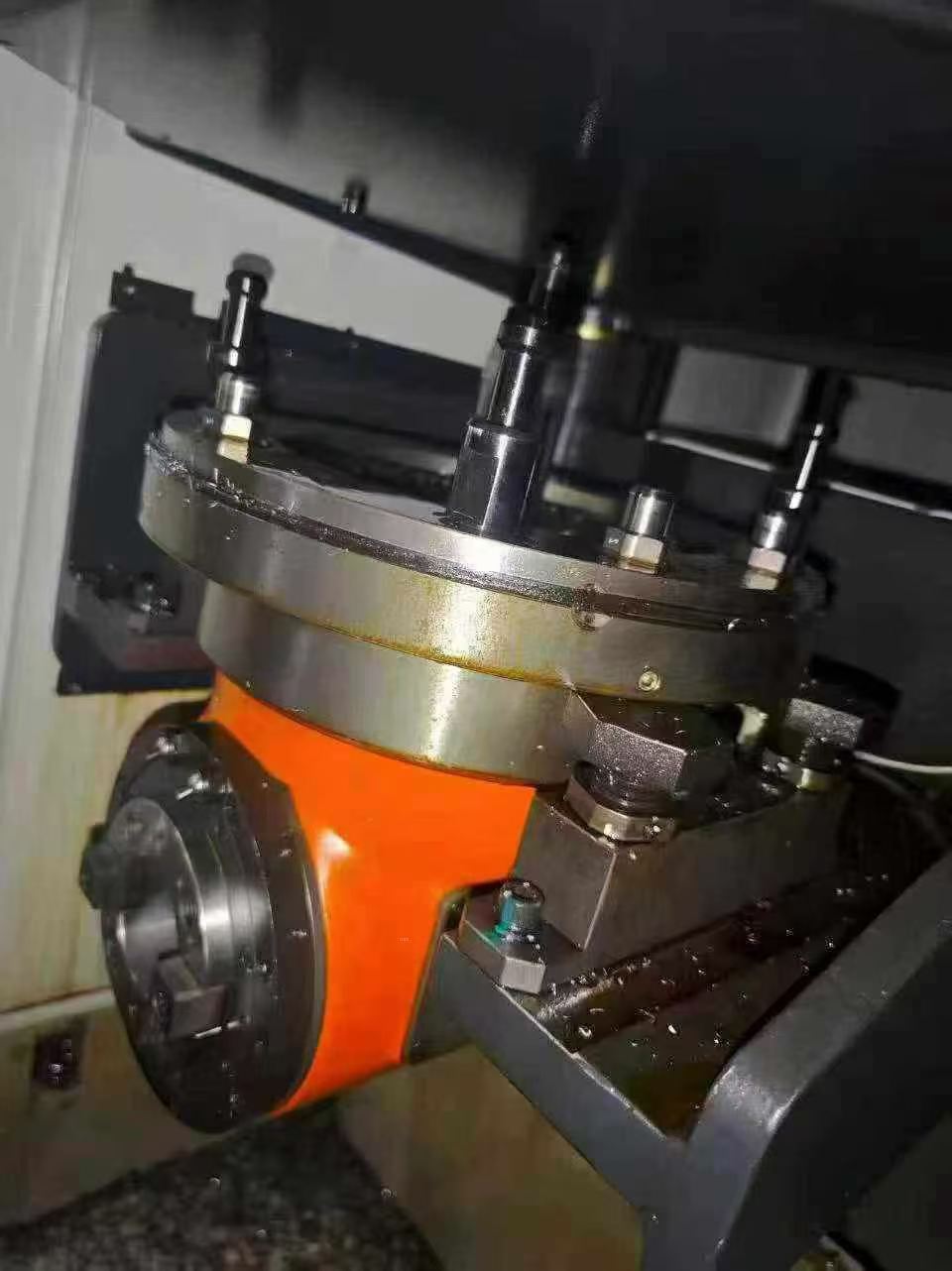

48-tool vertical/horizontal tool magazine; right-angle automatic head

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

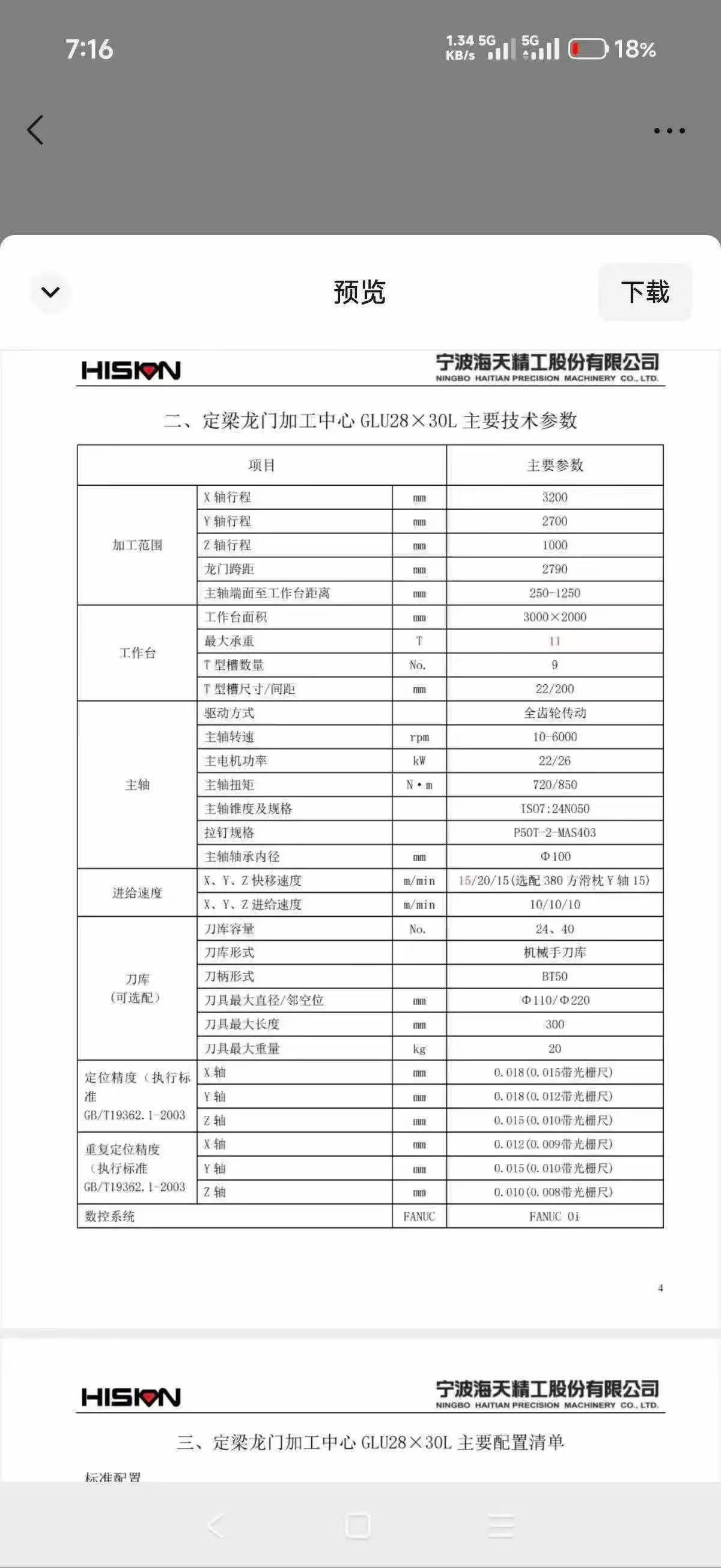

Main Specifications

Year	2023
Controller	FANUC MF Plus
Spindle taper	BT50
Spindle drive	Gear drive

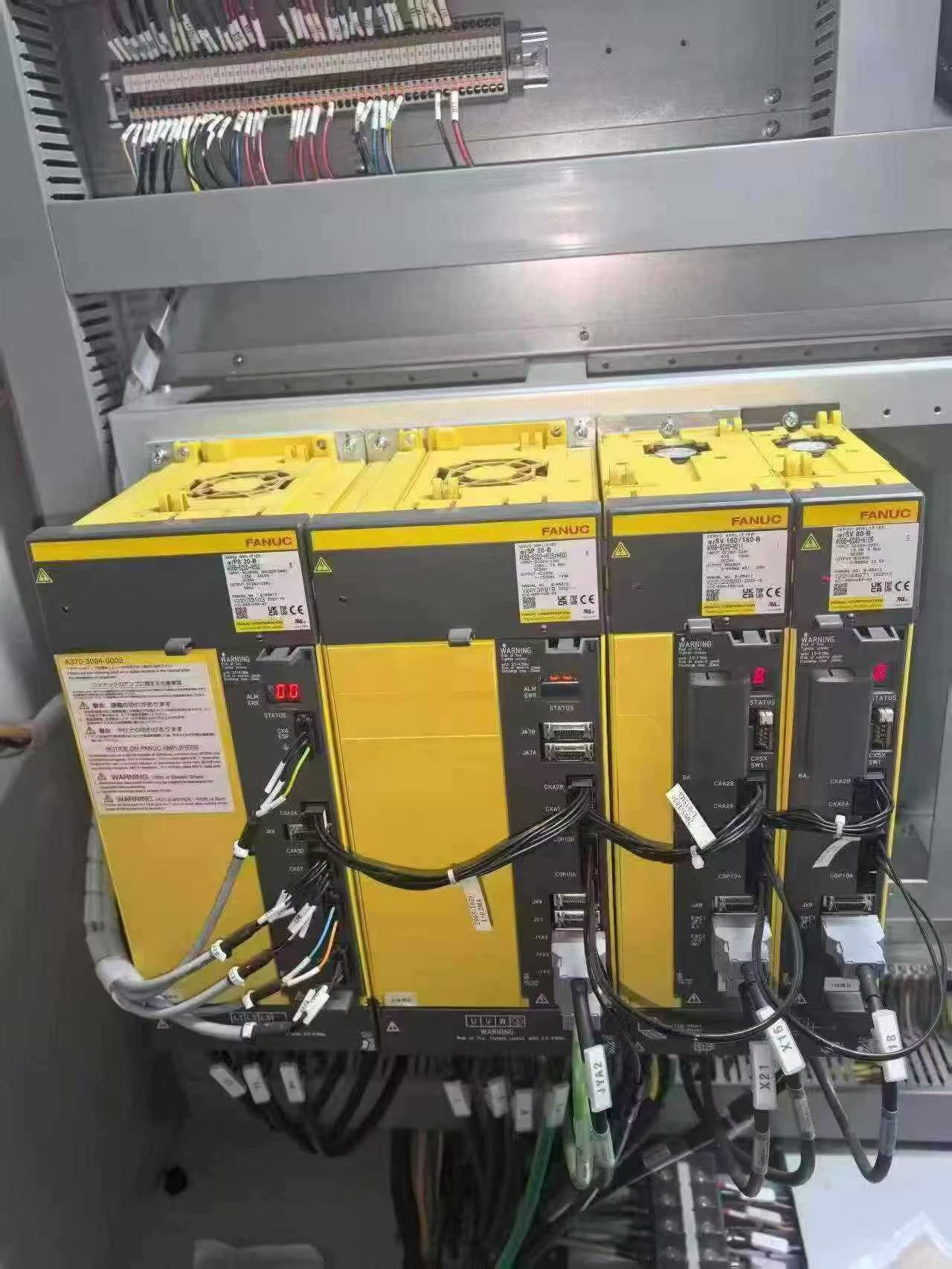

Drive system	Alpha high-power drive
Guideway	Square ram
Worktable size	2000 x 3000 mm
X/Y/Z travel	3200 x 2700 x 1000 mm
Gantry clearance height	1400 mm
Gantry clearance width	2800 mm
Spindle nose to table distance	250/1250 mm
Tool magazine	48 tools, vertical/horizontal
Right-angle automatic head	Included
