Used Hardinge TALENT-10/78 Slant-Bed CNC Lathe with FANUC 0i-TD

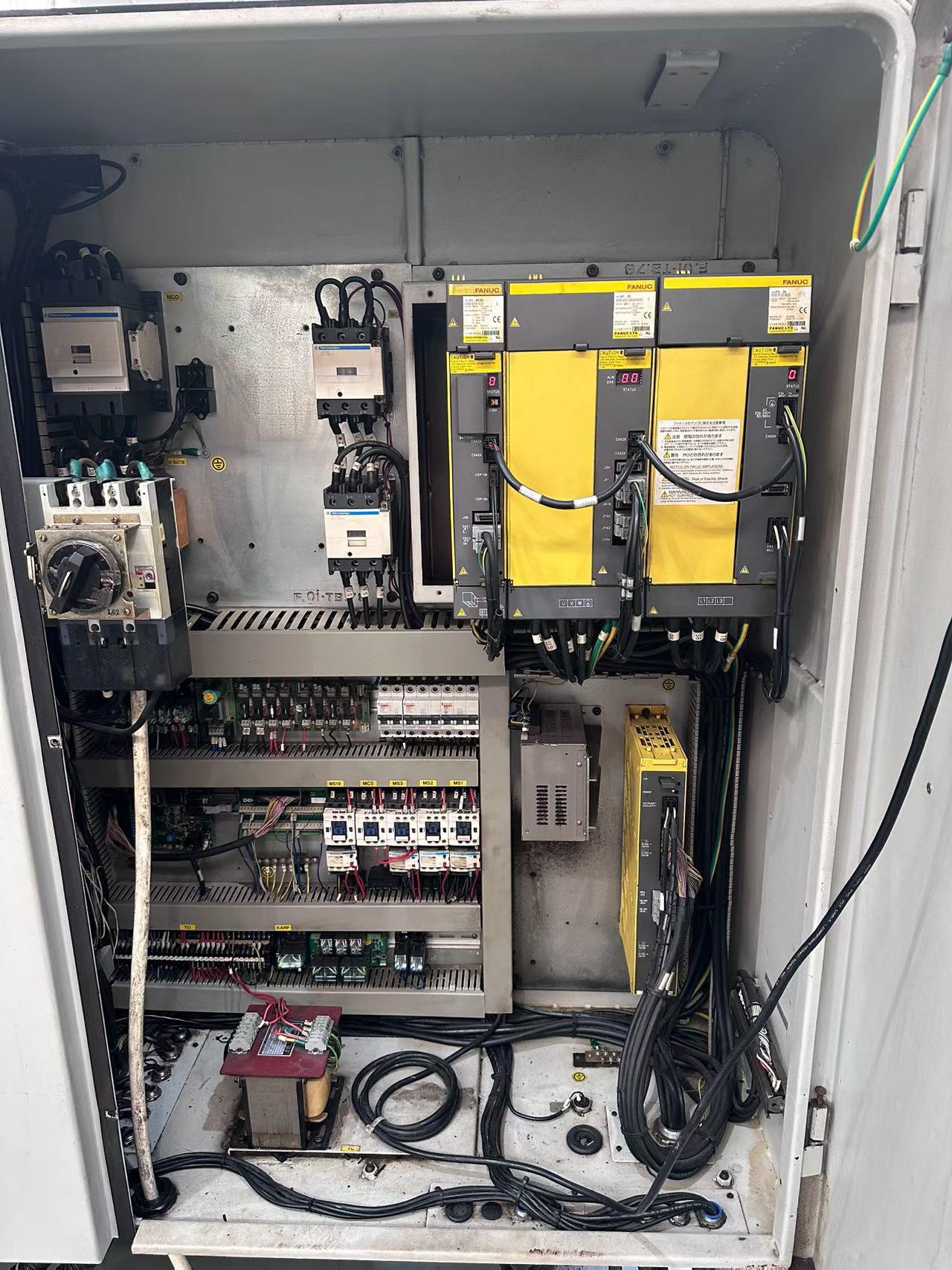

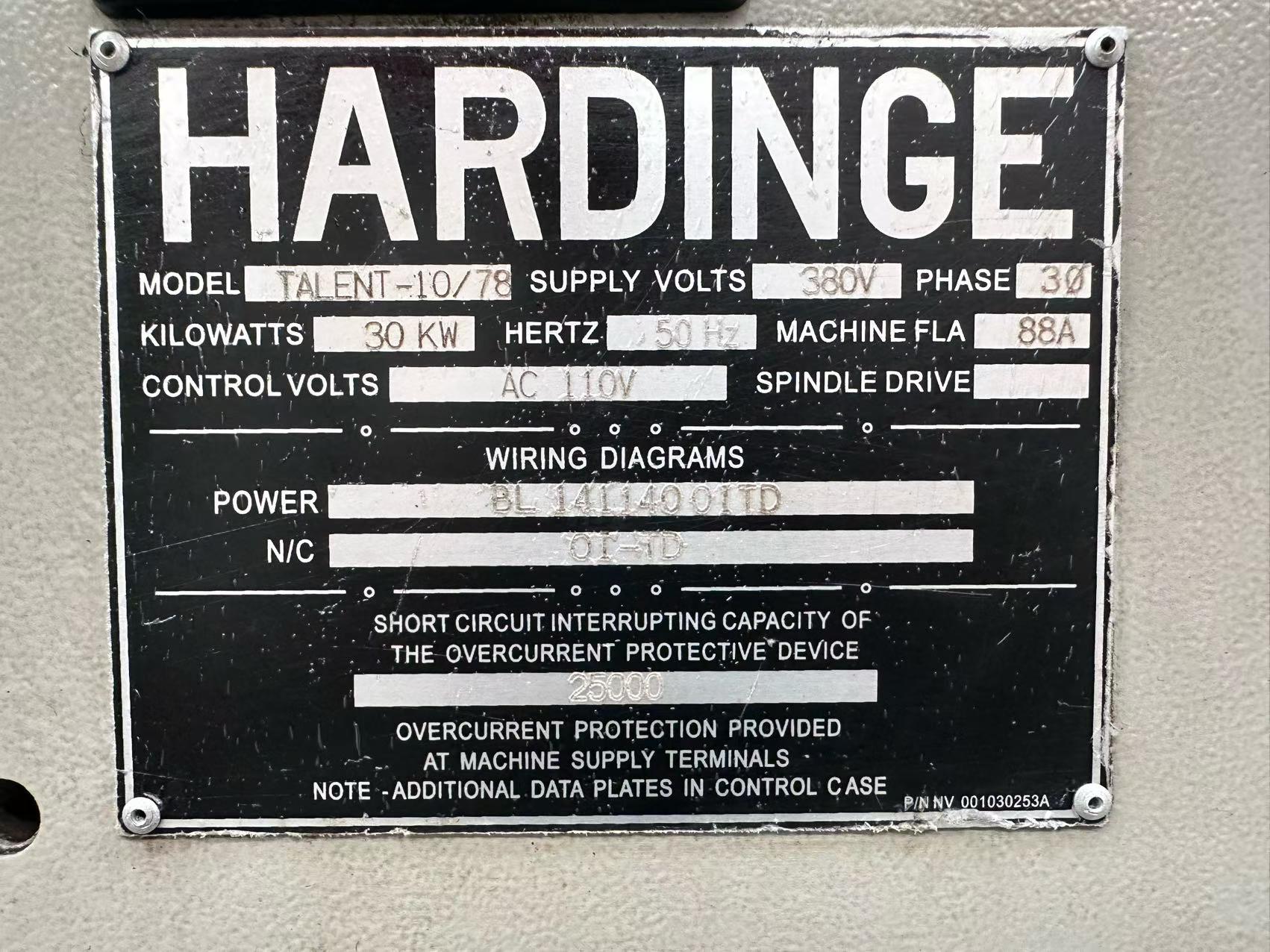

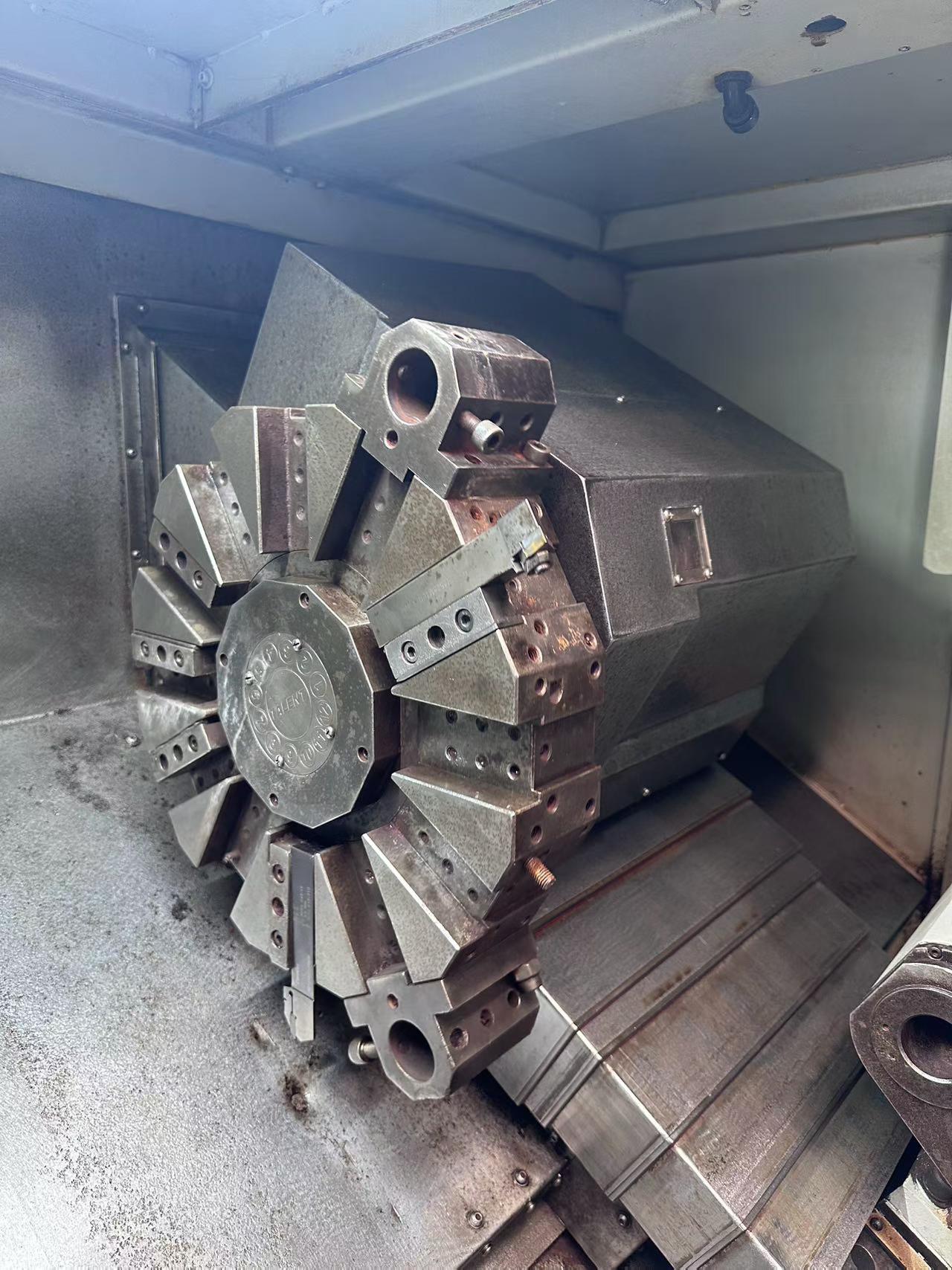

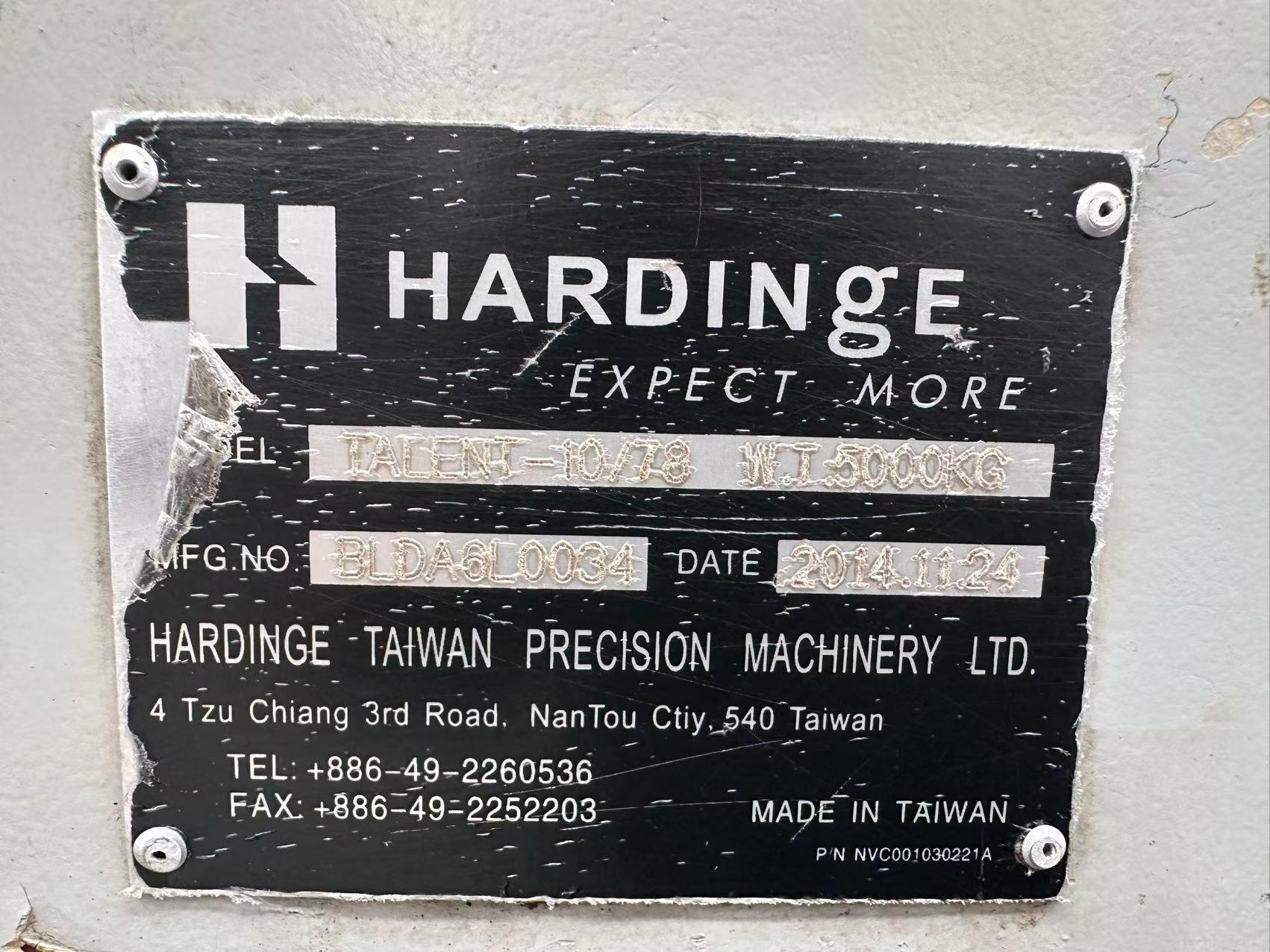

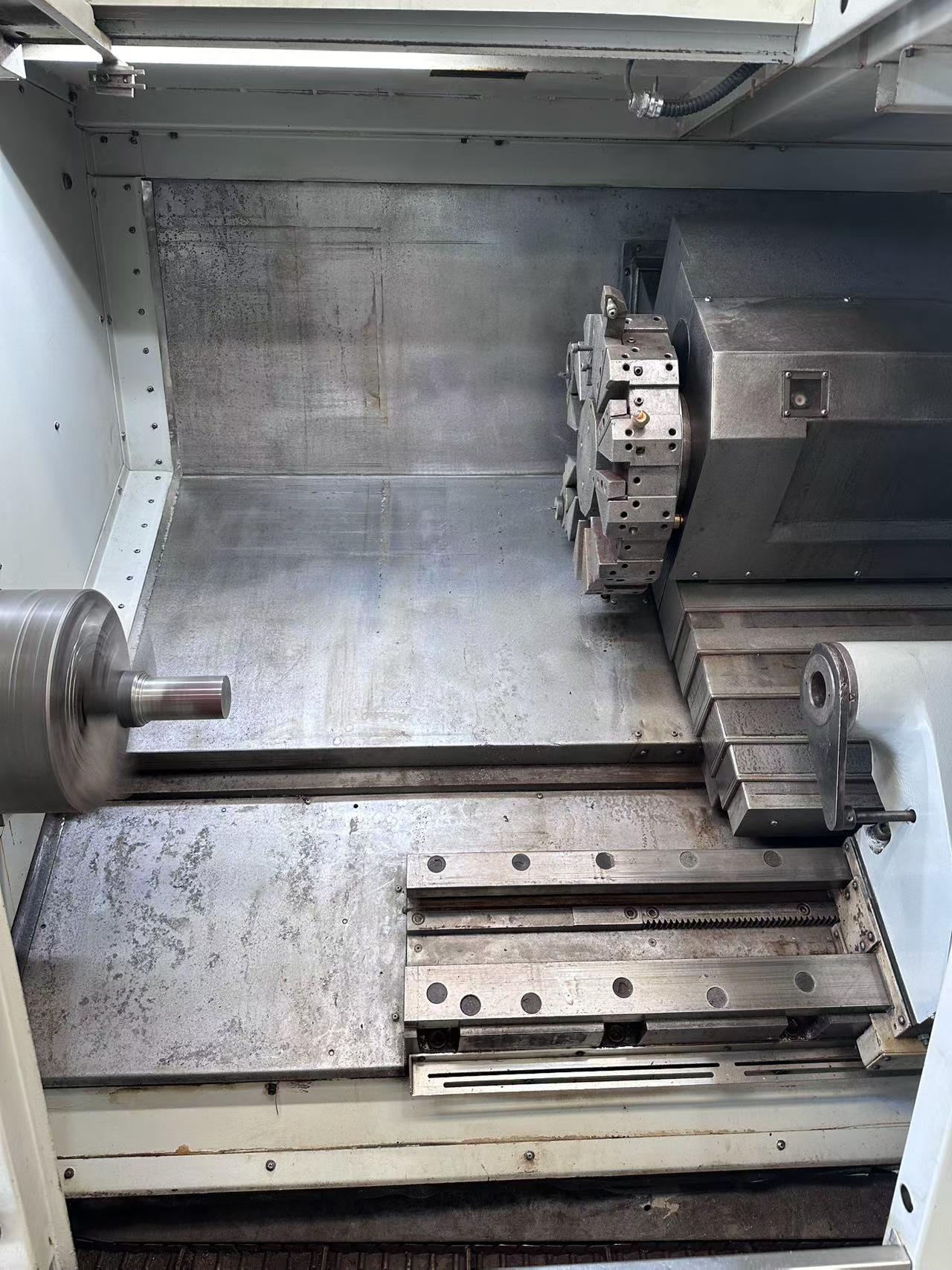

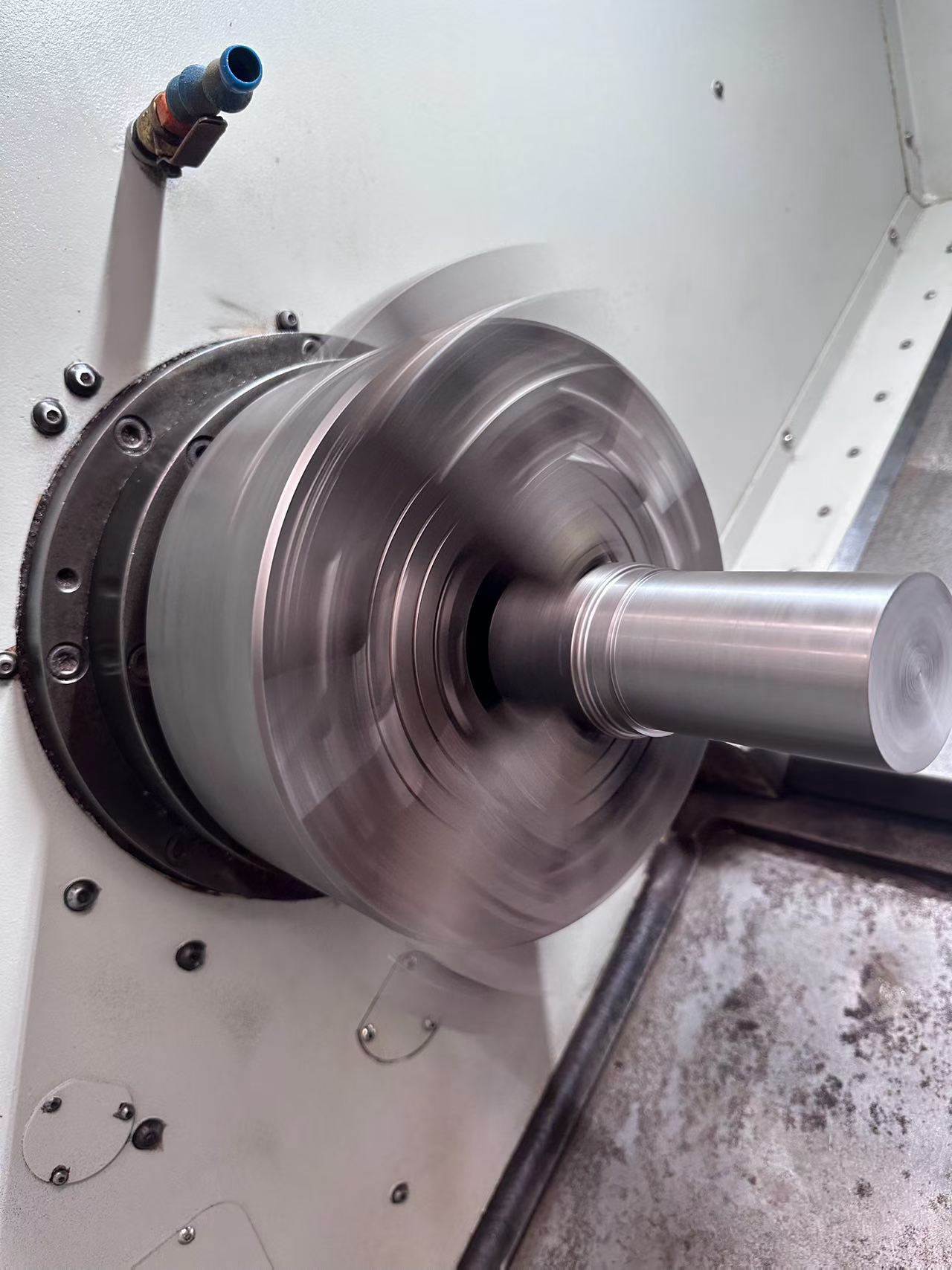

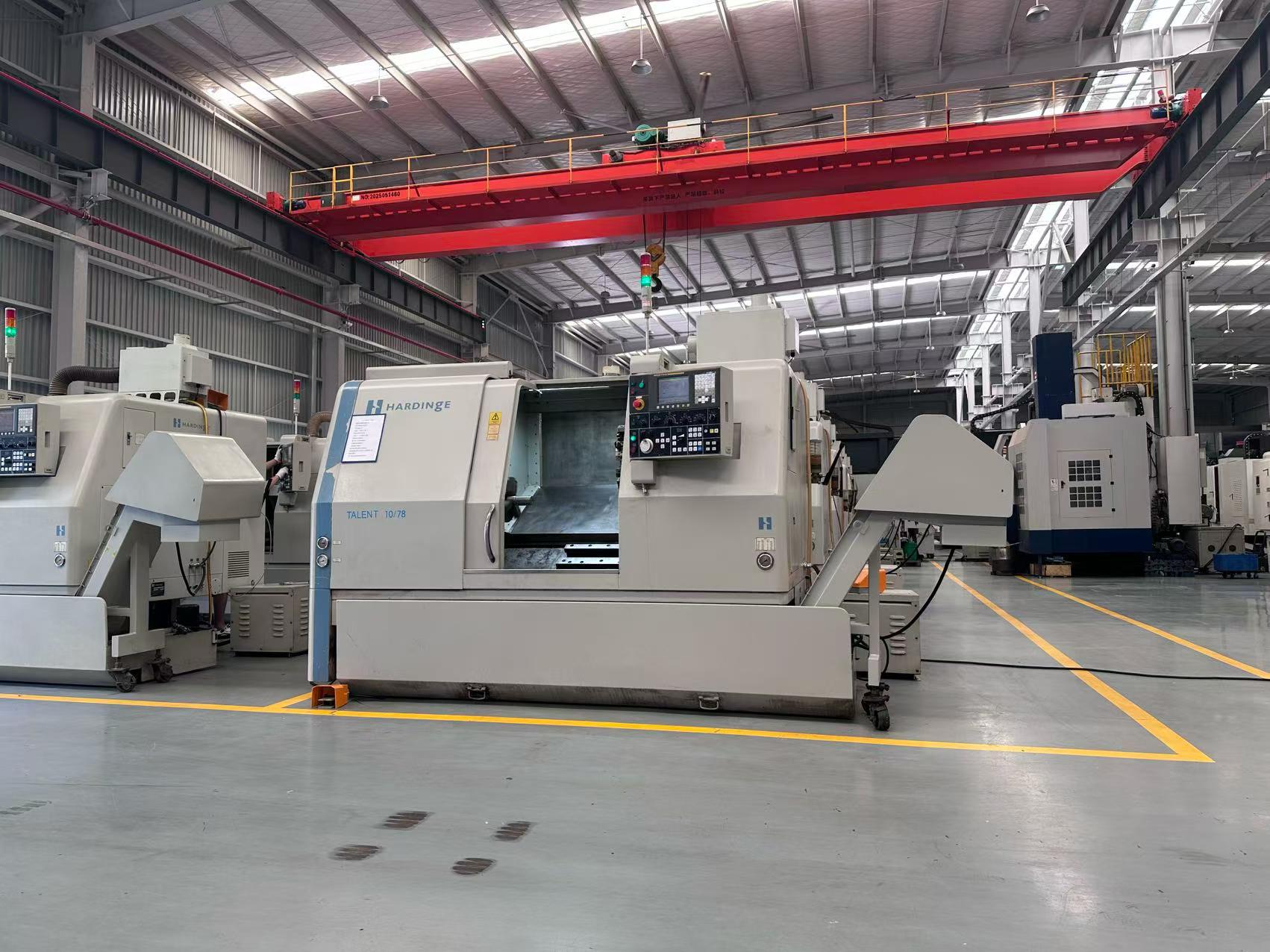

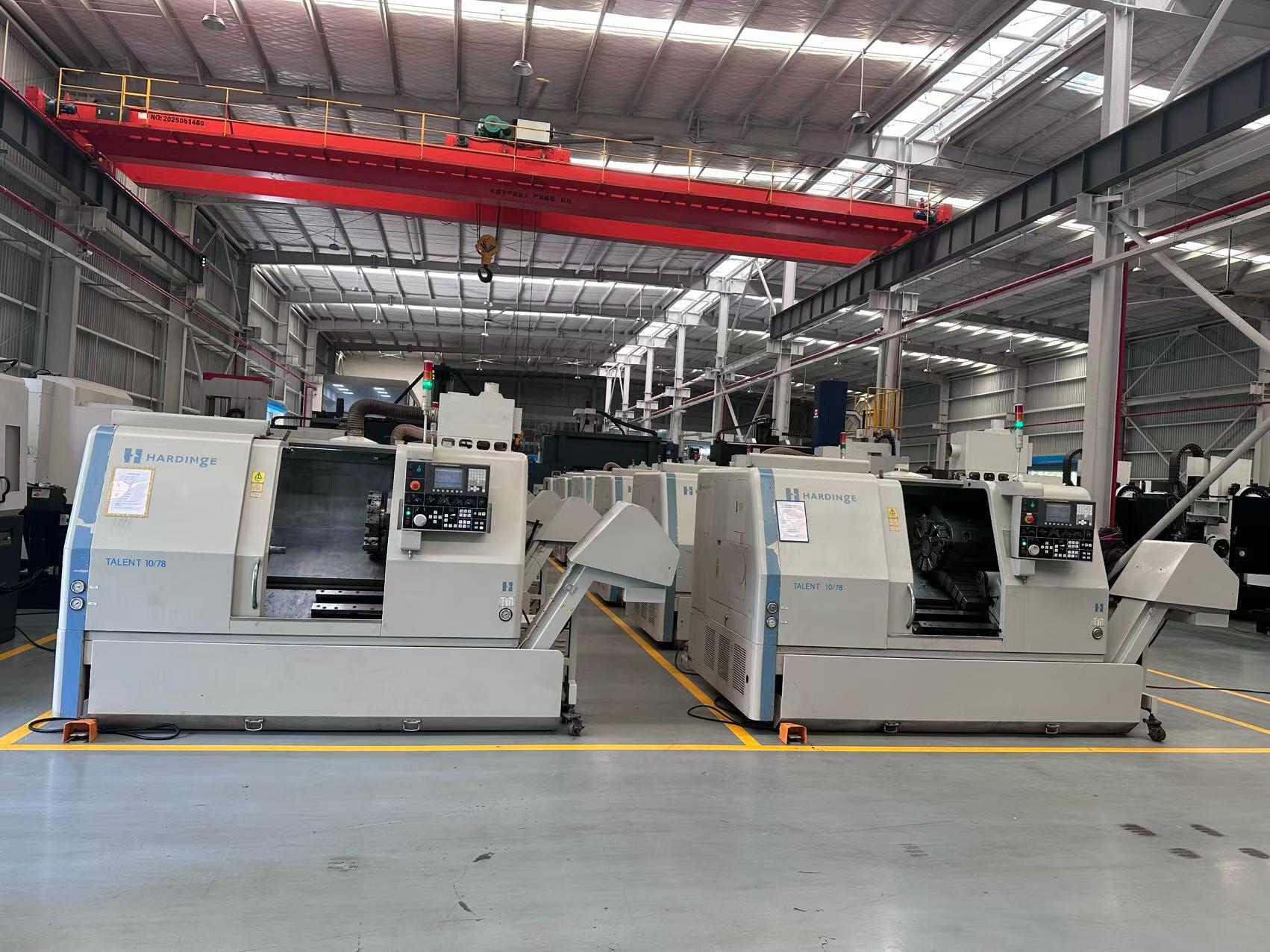

Used Hardinge TALENT-10/78 Slant-Bed CNC Lathe This Hardinge TALENT-10/78 is a slant-bed CNC lathe built in 2014 and only lightly used since installation. It is equipped with the FANUC 0i-TD CNC control system, with FANUC drives housed in the electrical cabinet, and a 10-inch hydraulic chuck. The machine uses a 12-station hydraulic turret on two-axis linear guideways. Maximum swing diameter is 580 mm and maximum machining length is 630 mm. The spindle runs up to 4000 rpm and has a 78 mm bore. The lathe is complete with a tailstock, a drag-type chip conveyor and an oil mist collector. Machine weight is 5000 kg, and the nameplate model is TALENT-10/78 with serial number BLDA 6 L 0034. The machine was manufactured by Hardinge Precision Machinery (Taiwan). Available for inspection and ready for loading.

Machine Code

CL2609100

Year

2014

Location

China

Usage Hours

On request
