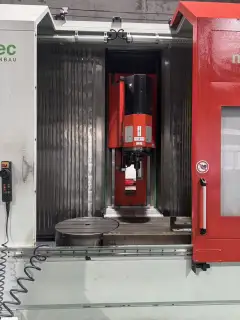

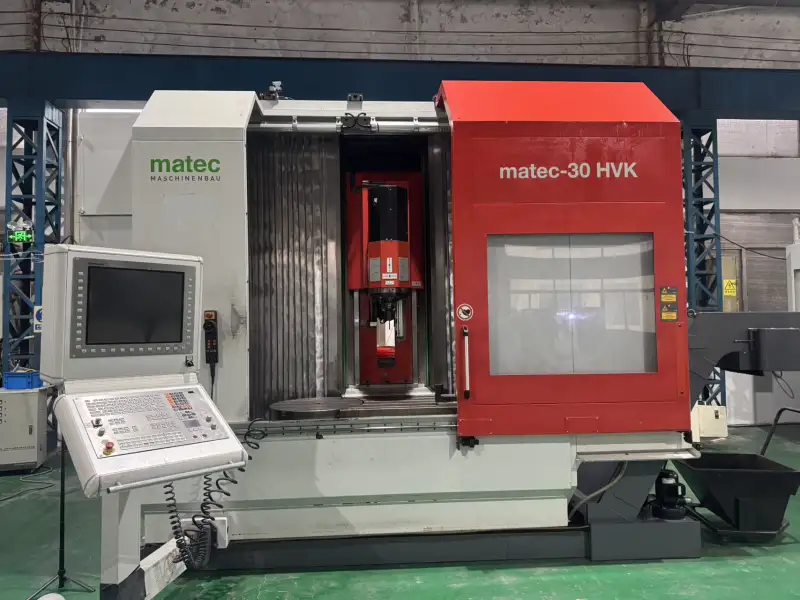

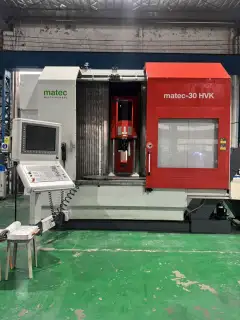

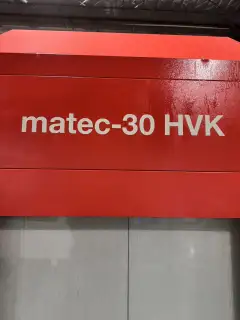

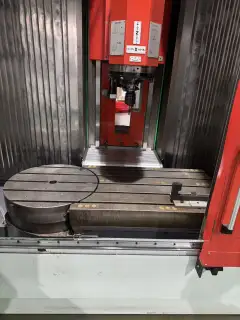

Used MATEC matec-30 HVK 5-Axis Machining Center with HEIDENHAIN iTNC 530
German MATEC matec-30 HVK vertical/horizontal 5-axis machining center. Equipped with HEIDENHAIN iTNC 530 control system. Featuring X/Y/Z travel of 1300/600/675-800 mm, B-axis ±105°, C-axis 360°, worktable size 1515 x 635 mm, 5-axis rotary table Ø630 mm, rotary table speed 80 rpm, load capacity 1000 kg, spindle taper HSK-A 63 (optional), spindle speed 15000 rpm, and 48-tool magazine. Includes laser tool setter, probe receiver, coolant paper filter, through-spindle coolant, and chip conveyor.
- Machine Code
- MC260935
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories
Laser tool setter, probe receiver, coolant paper belt filter, through-spindle coolant, chip conveyor
Main Specifications
| X axis travel | 1300 mm |
|---|---|
| Y axis travel | 600 mm |
| Z axis travel | 675 mm (vertical) / 800 mm (horizontal) |
| B axis travel | ±105° |
| C axis travel | 360° |
| Worktable size | 1515 x 635 mm |
| 5-axis rotary table diameter | Ø630 mm |
| Rotary table speed | 80 rpm |
| Rotary table load capacity | 1000 kg |
| Spindle taper | HSK-A 63 (optional) |

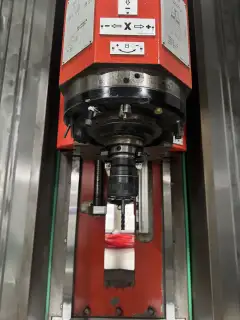

| Spindle speed | 15000 rpm |

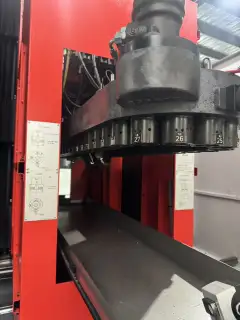

| Tool magazine capacity | 48 tools |
| Brand | MATEC |

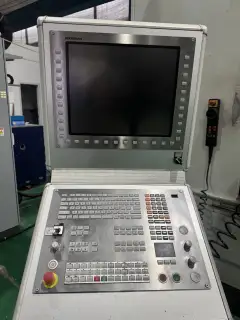

| Control system | HEIDENHAIN iTNC 530 |
