AvailableMachining Center

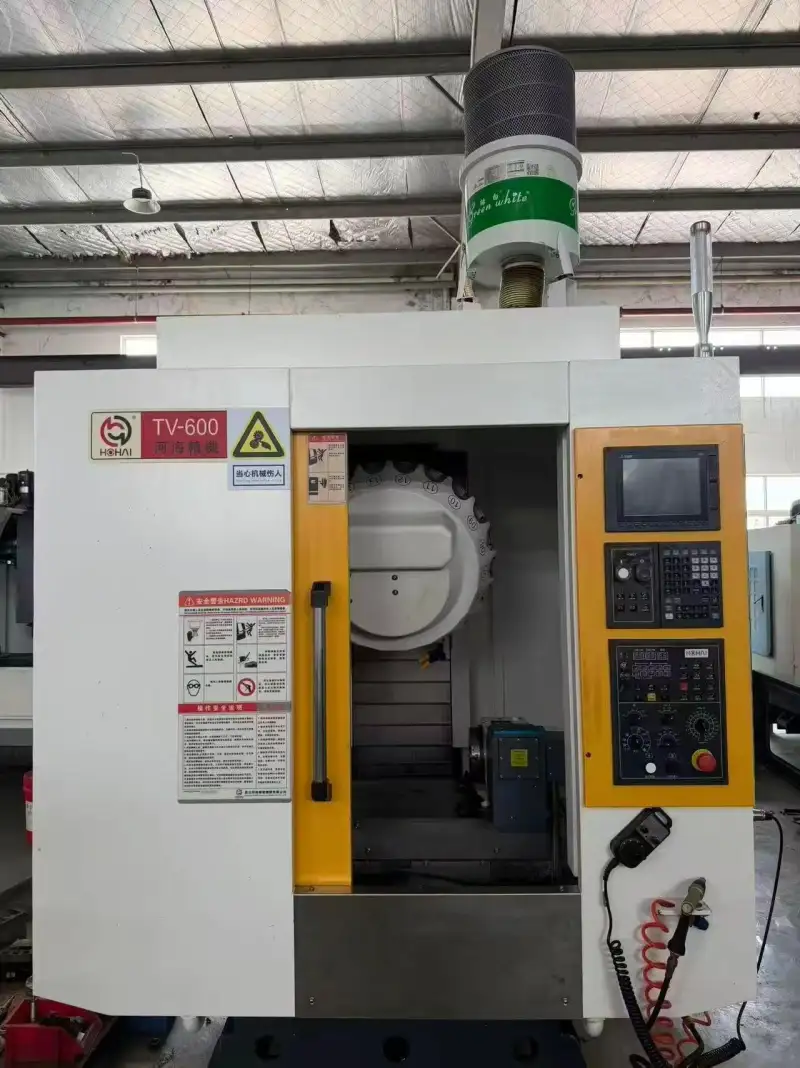

Used Hehai TV-600 Drilling and Tapping Center with Mitsubishi M 80 Control
Model TV-600 drilling and tapping center built in 2024 and equipped with the Mitsubishi M 80 CNC control system. The machine carries a BBT 30 spindle rated to 20,000 rpm and a disc-type servo tool magazine holding 21 tools, giving fast, reliable tool changes for high-speed drilling and tapping work. X/Y/Z travels are 600 x 400 x 320 mm, and the T-slotted worktable provides secure fixturing for a wide range of plate and small-box parts. An oil cooler is fitted to keep the spindle and machine thermally stable during continuous production. Serial number HB 24019 C.
- Machine Code
- MC2609114
- Year
- 2024
- Location
- China
- Usage Hours
- On request
Accessories
Oil cooler T-slotted worktable
Main Specifications
| Machine type | Drilling and Tapping Center |
|---|---|
| Model | TV-600 |
| Year of manufacture | 2024 |
| Control system | Mitsubishi M 80 |
| Spindle taper | BBT 30 |
| Spindle speed | 20,000 rpm |
| Tool magazine capacity | 21 tools, disc type, servo driven |
| X/Y/Z travel | 600 x 400 x 320 mm |
| Serial number | HB 24019 C |
| Brand | Hehai |
