AvailableVertical Machining Center

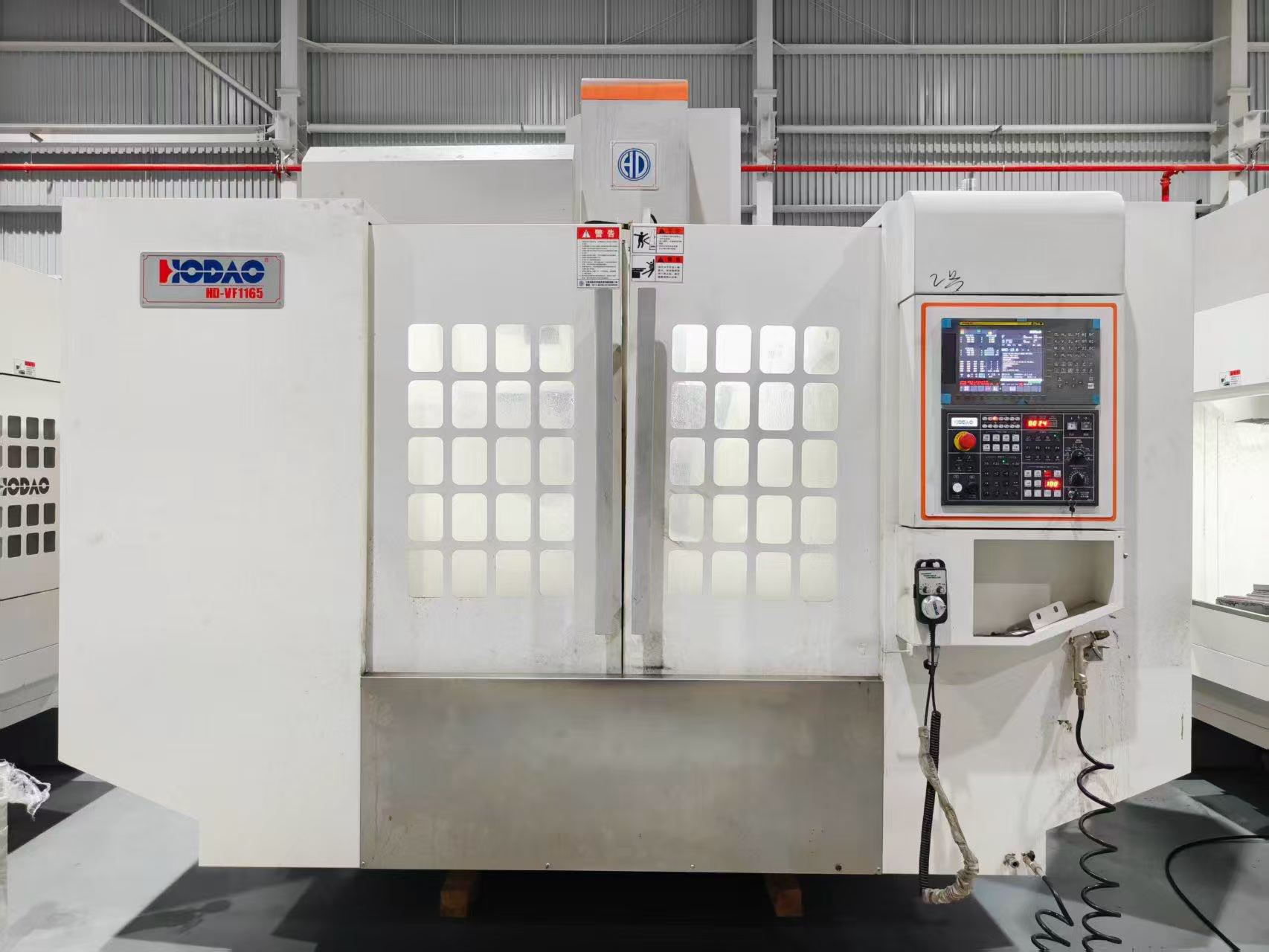

Used Houdao HD-VF 1165 Vertical Machining Center with FANUC 0i-MF Plus

Houdao HD-VF 1165 heavy-duty vertical machining center in near-new condition, manufactured 2025/08 and built by Jiangsu Houdao CNC Technology Co., Ltd. The machine is equipped with the FANUC 0i-MF Plus CNC control system. The BT40 direct-drive spindle reaches 12,000 rpm, supported by a spindle oil cooler and a constant-temperature electrical cabinet air conditioner for stable thermal performance during heavy cutting. Tool changes are handled by a 24-tool fully enclosed tool magazine. All three axes ride on heavy-duty 45-size roller linear guideways, giving the machine rigid, accurate motion under load. The worktable measures 1,200 x 600 mm, with X/Y/Z travels of 1,100 / 650 / 600 mm. Machine weight is 6.8 t. The unit is available for inspection.

Machine Code: VMC2609187
Year: 2025
Location: China
Usage Hours: On request

Accessories

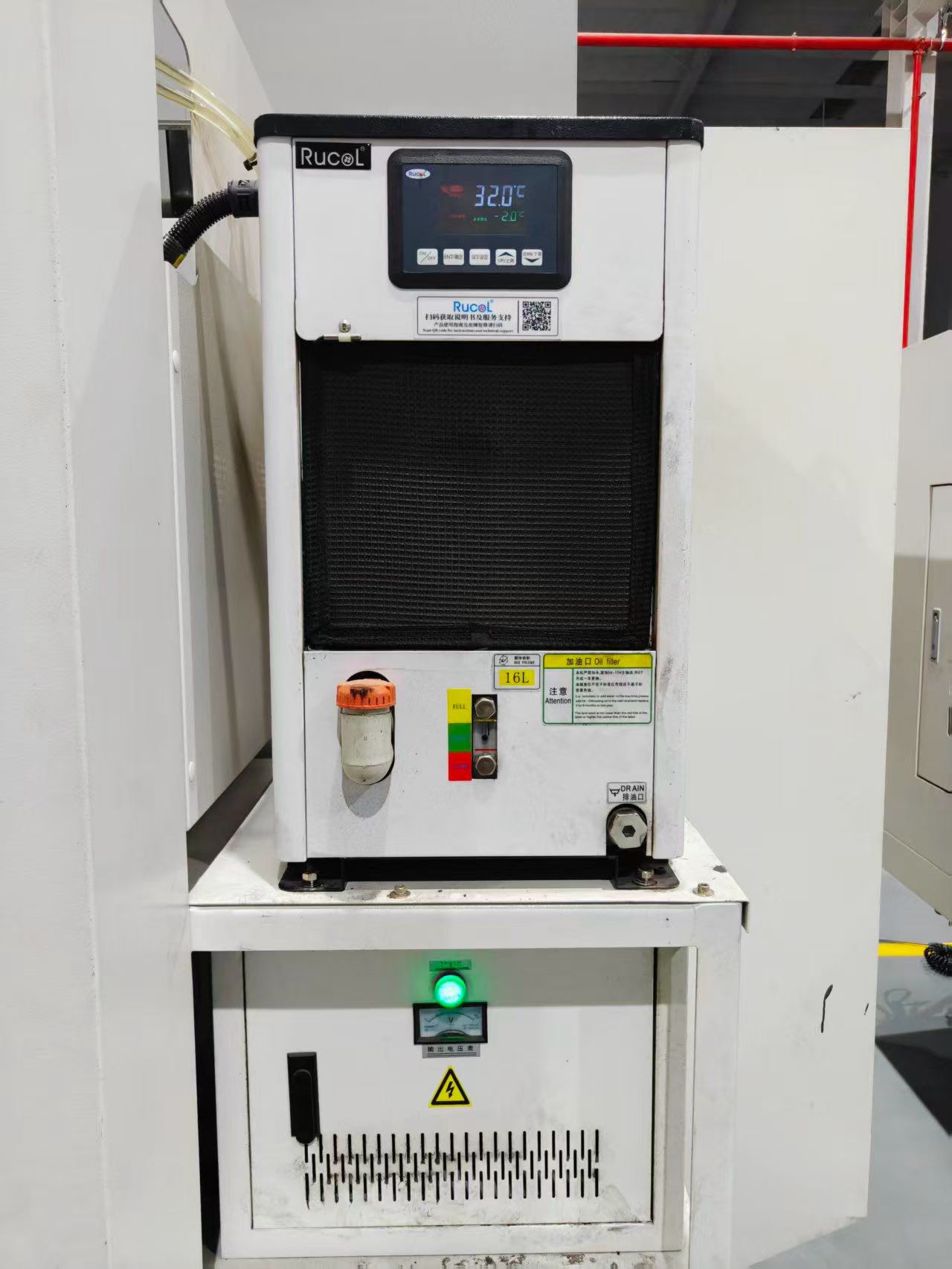

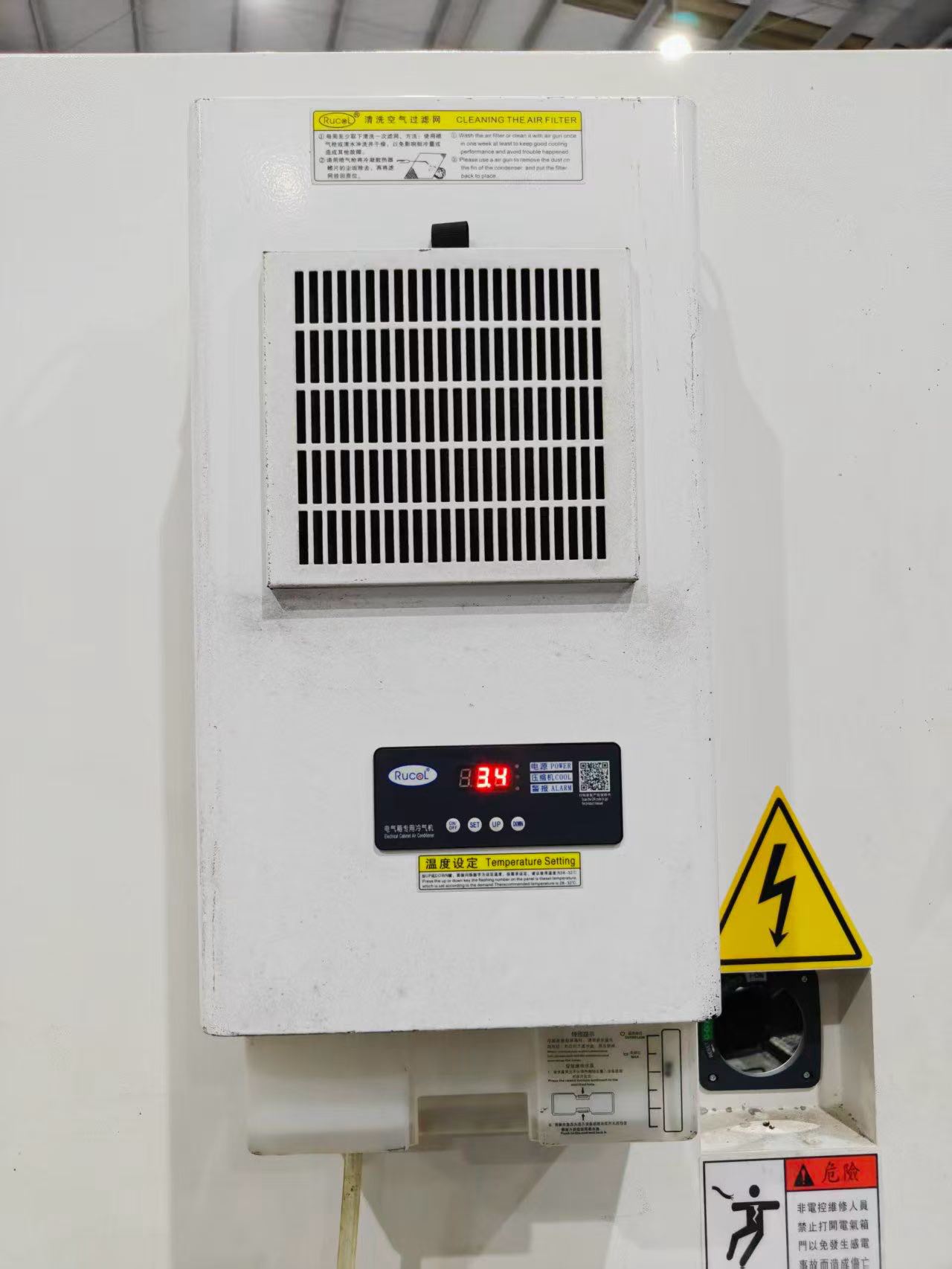

Spindle oil cooler (Rucol) Constant-temperature electrical cabinet air conditioner 24-tool fully enclosed tool magazine

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Vertical Machining Center
Model	HD-VF 1165

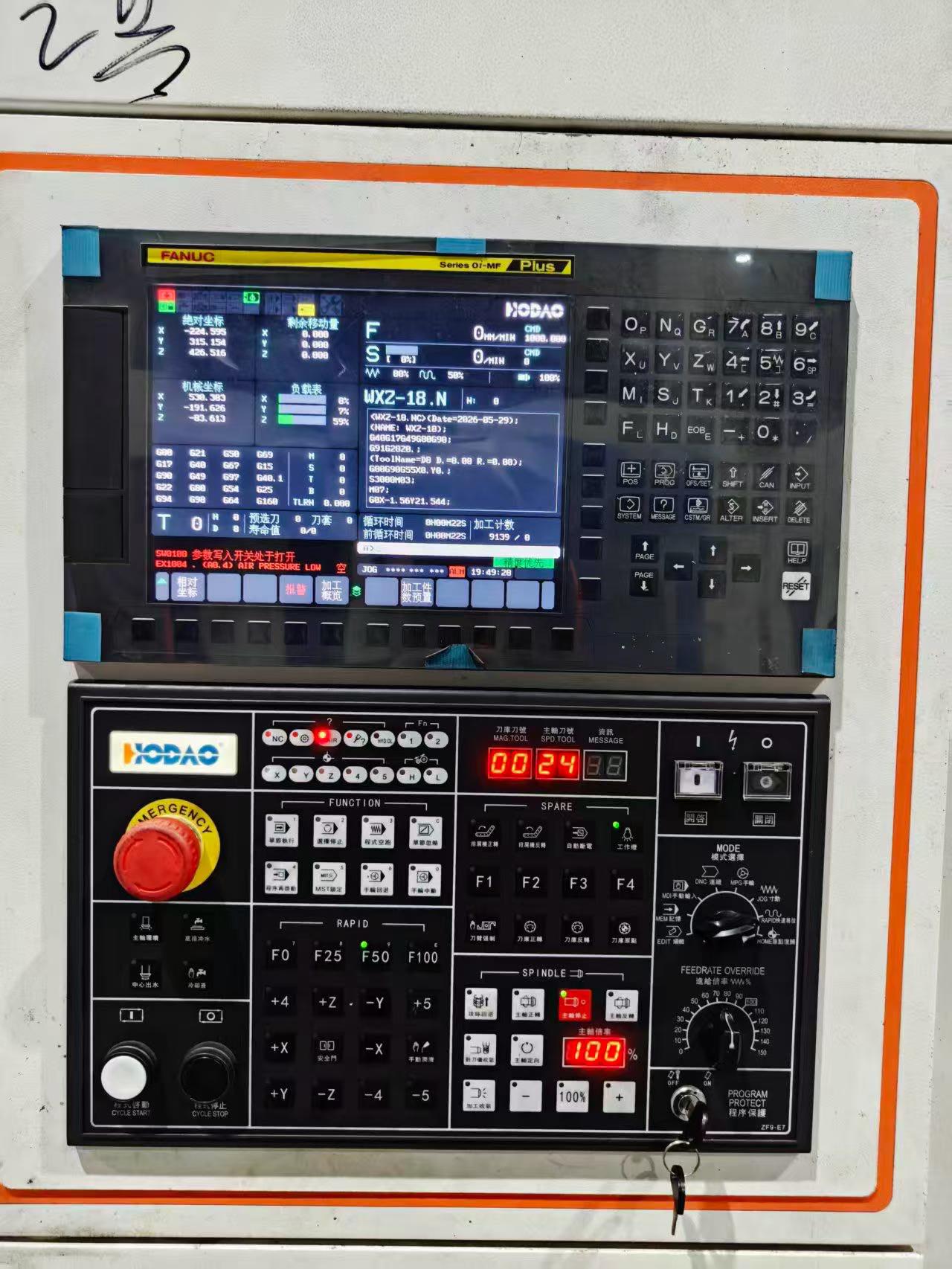

Control system	FANUC 0i-MF Plus
Spindle taper	BT40
Spindle speed	12,000 rpm
Spindle drive	Direct-drive spindle

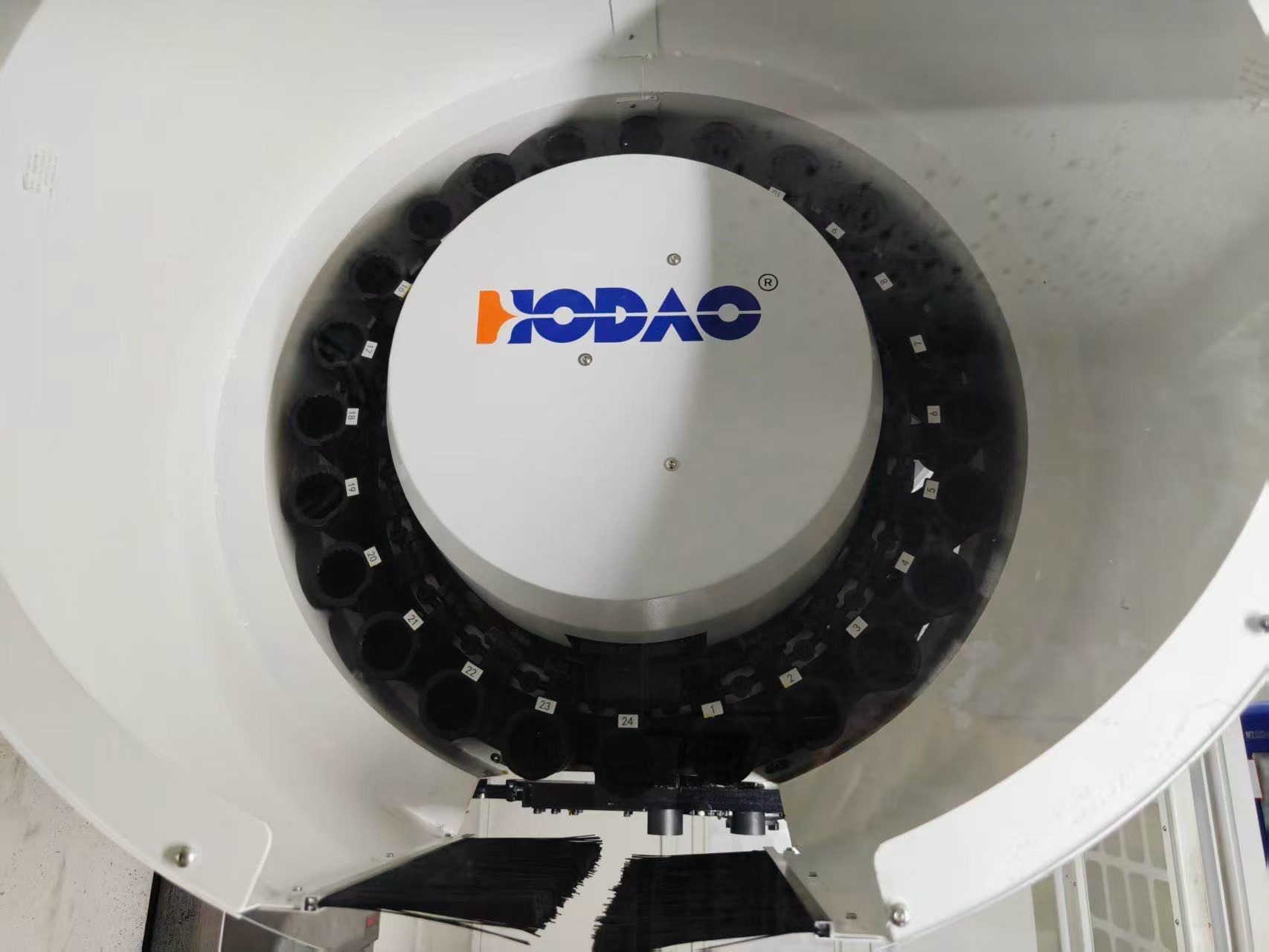

Tool magazine capacity	24 tools
Tool magazine type	Fully enclosed
Guideway type	Roller linear guideway, 45 size, three axes
Worktable size	1,200 x 600 mm
X/Y/Z travel	1,100 / 650 / 600 mm
Machine weight	6.8 t
Factory date	2025/08
Year	2025
Brand	Houdao
Year of manufacture	2025
