AvailableVertical Machining Center

Used Houdao HD-VL 116 Heavy-Duty Vertical Machining Center

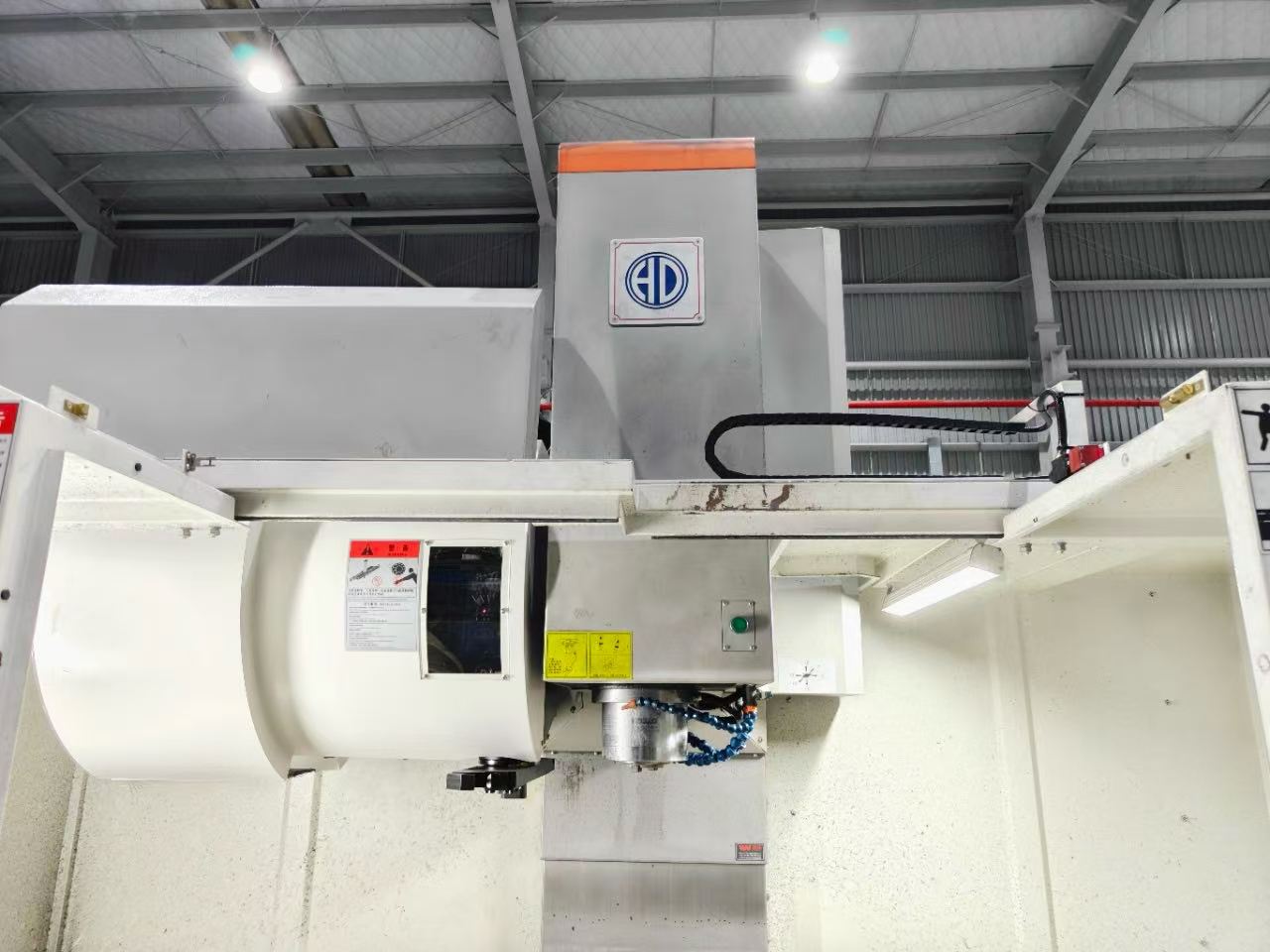

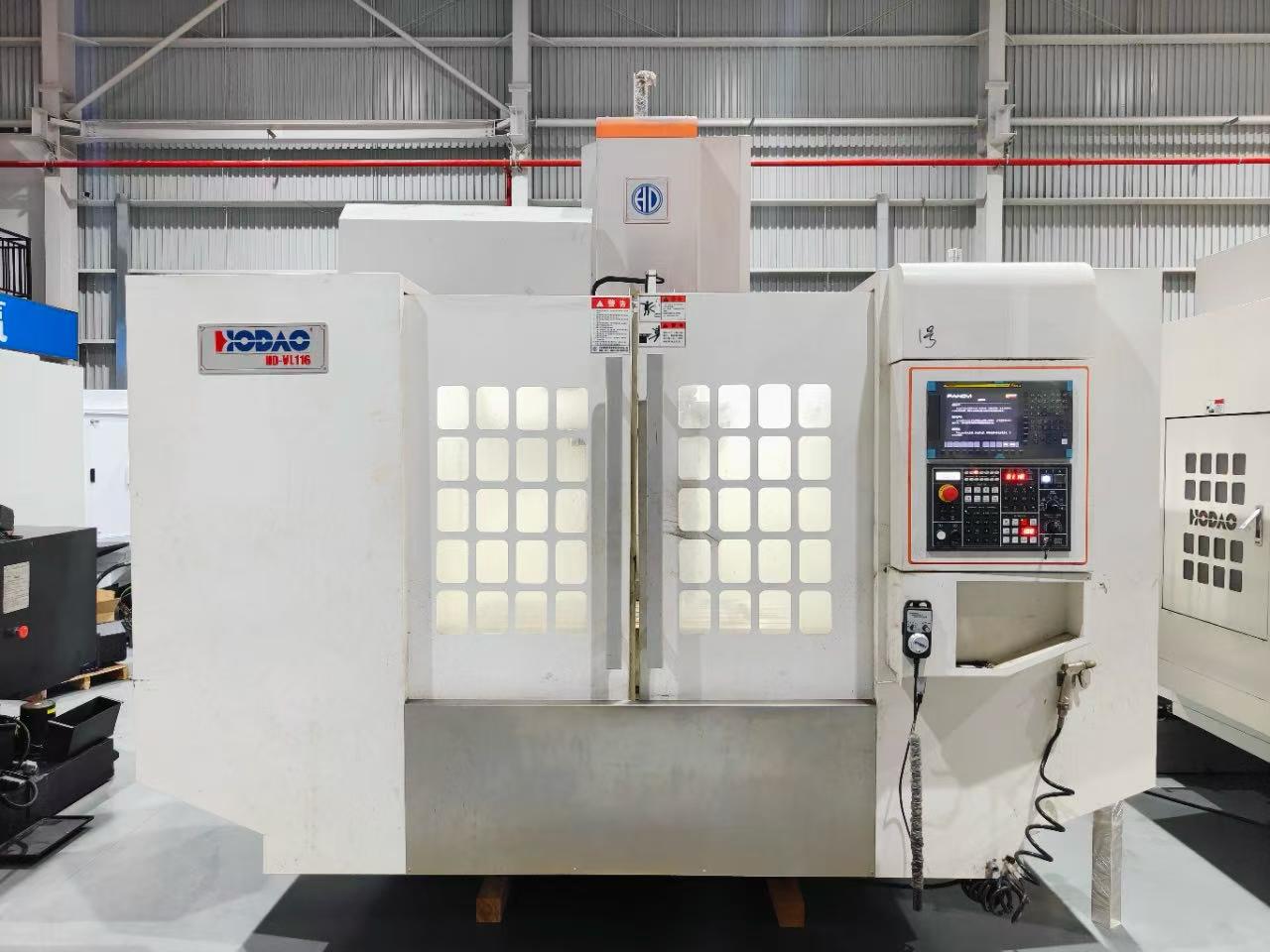

Heavy-duty Houdao HD-VL 116 vertical machining center in like-new condition, manufactured by Jiangsu Houdao CNC Technology Co., Ltd. with a factory date of March 2025. The machine is equipped with the FANUC 0i-MF Plus CNC control system and a BT40 spindle running up to 10,000 rpm. Tooling is handled by a 24-pocket fully enclosed arm-type tool magazine, and the guideway arrangement combines two linear guideways with one box guideway. The 1200 x 600 mm worktable travels 1100 mm on X, 600 mm on Y and 600 mm on Z, and the machine weighs 7.2 t. A spindle oil cooler, a constant-temperature air conditioner for the electrical cabinet and a Z-axis nitrogen balance cylinder are fitted.

Machine Code: VMC2609188
Year: 2025
Location: China
Usage Hours: On request

Accessories

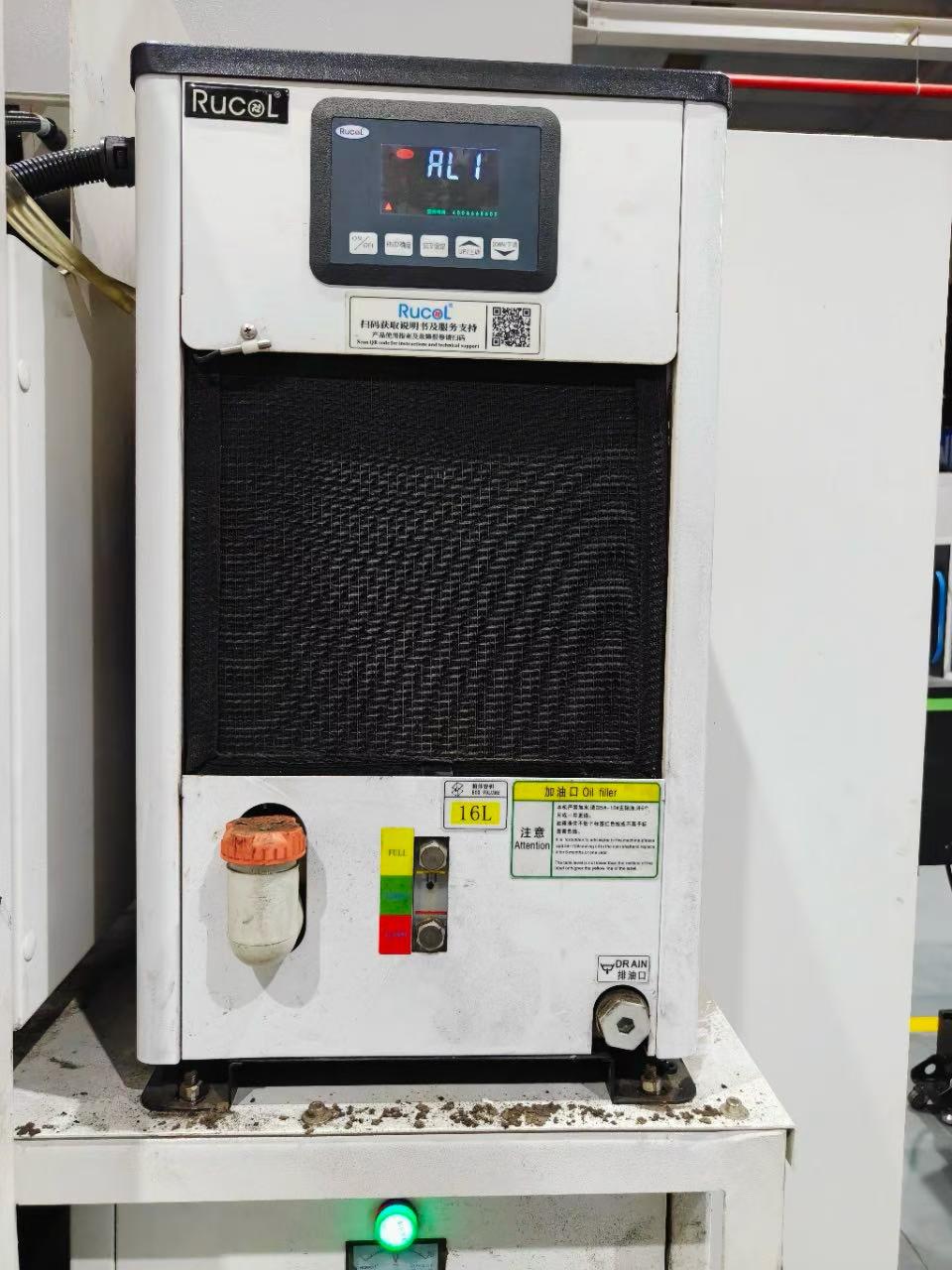

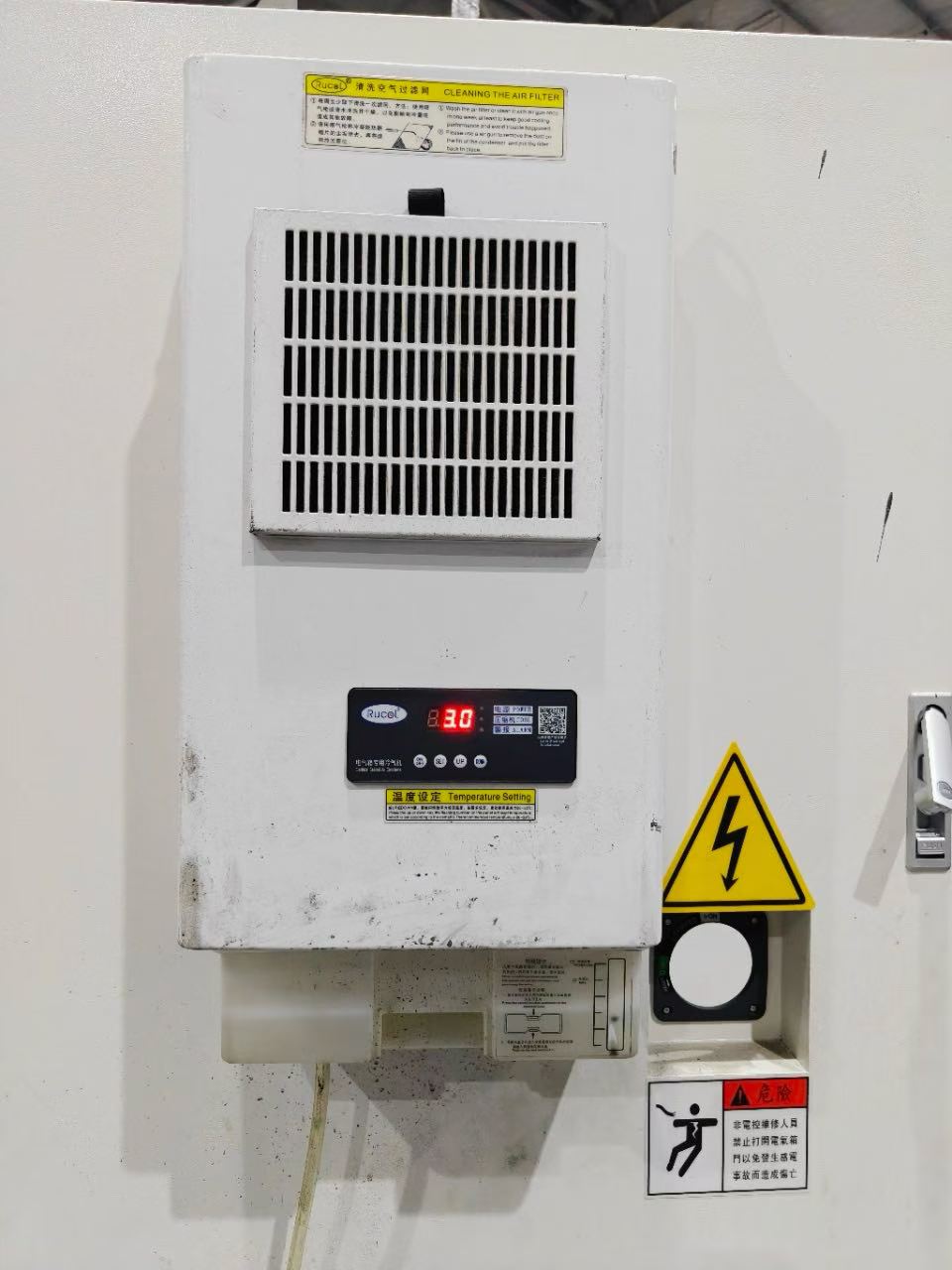

Spindle oil cooler; constant-temperature air conditioner for the electrical cabinet; Z-axis nitrogen balance cylinder

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Vertical machining center

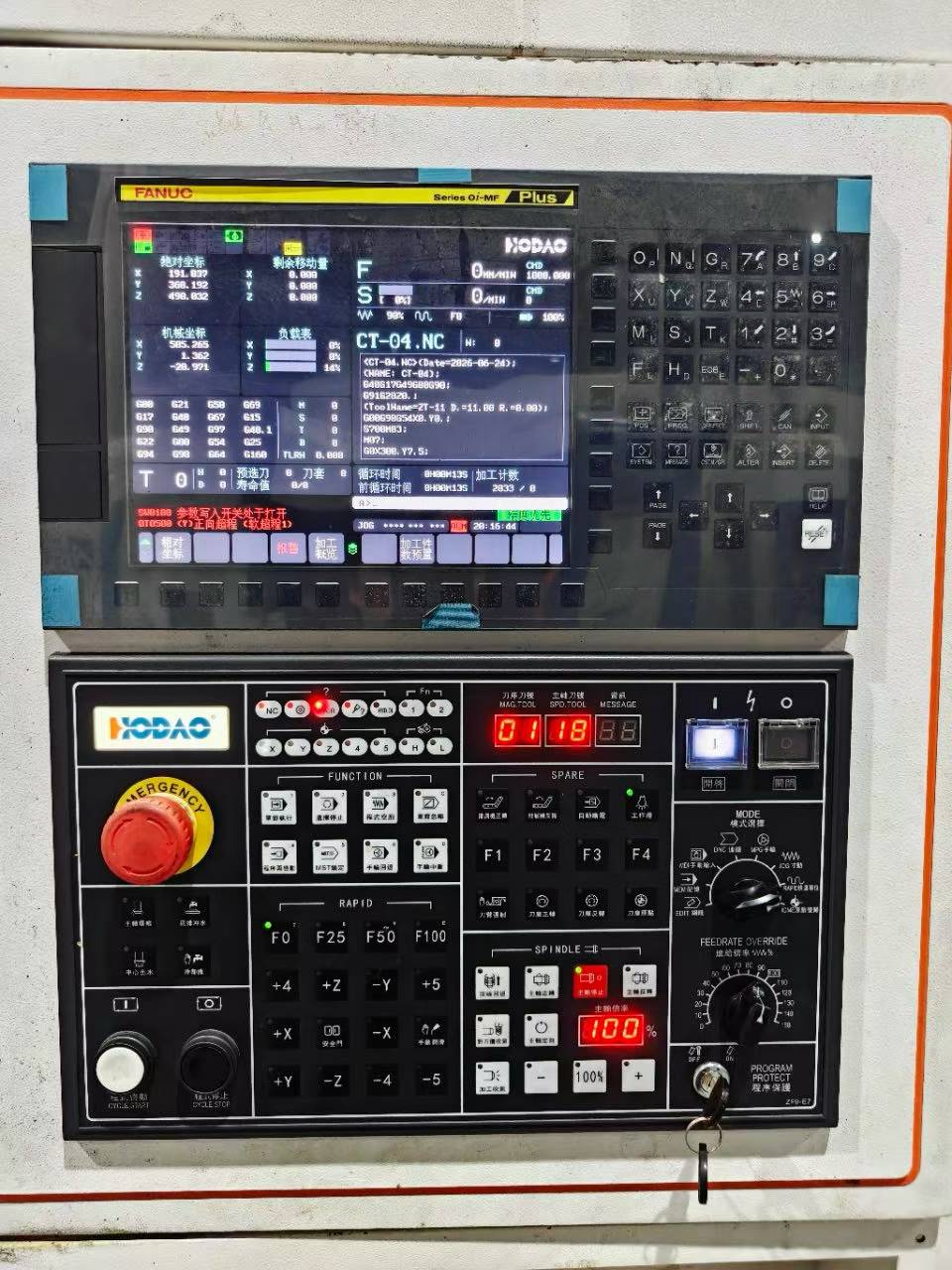

Control system	FANUC 0i-MF Plus
Spindle taper	BT40
Spindle speed	10,000 rpm
Tool magazine capacity	24 pockets, fully enclosed arm-type
Guideway configuration	Two linear guideways and one box guideway
Worktable size	1200 x 600 mm
X/Y/Z travel	1100 / 600 / 600 mm
Machine weight	7.2 t

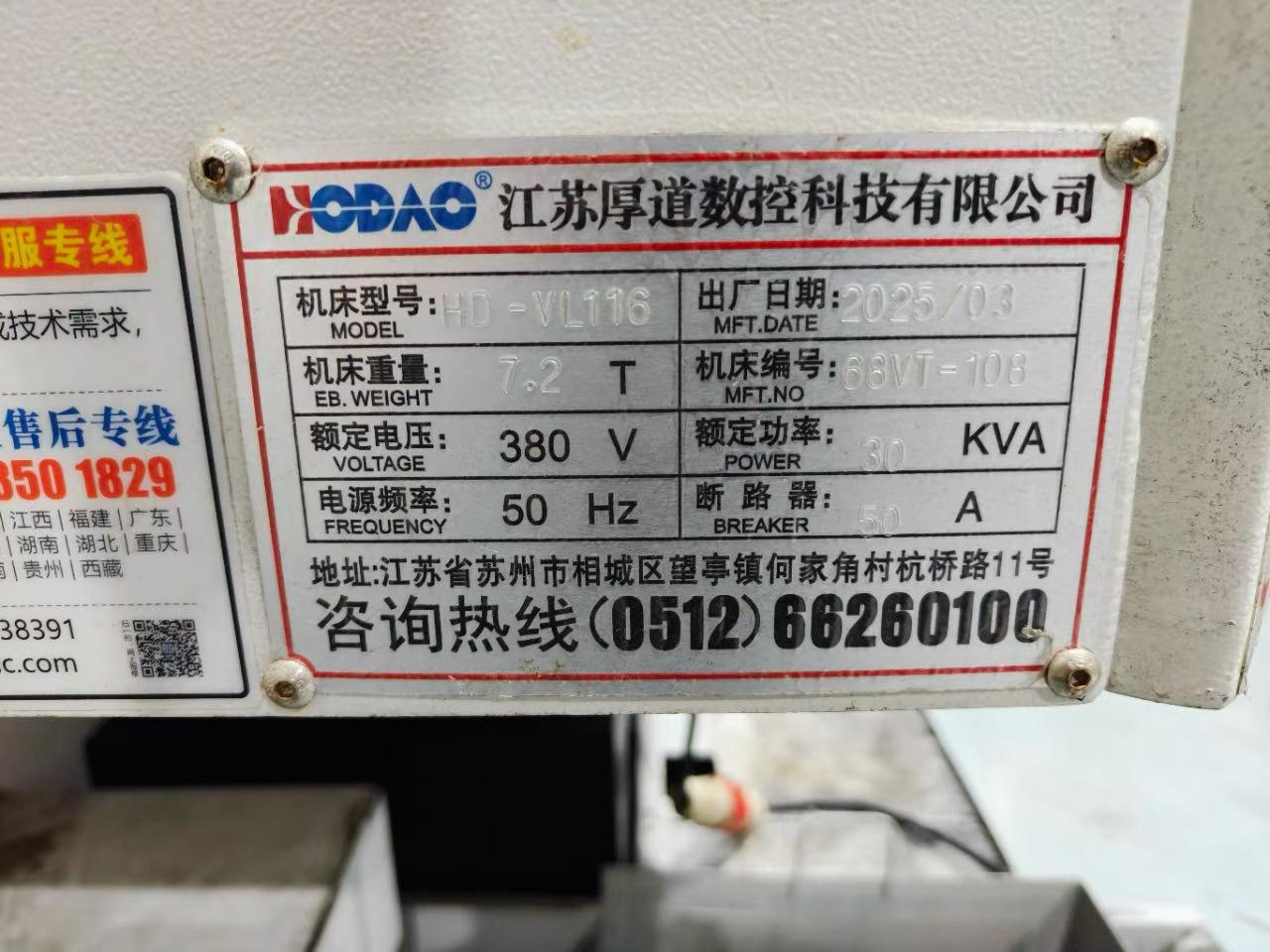

Factory date	2025/03
Brand	Houdao
Year of manufacture	2025
