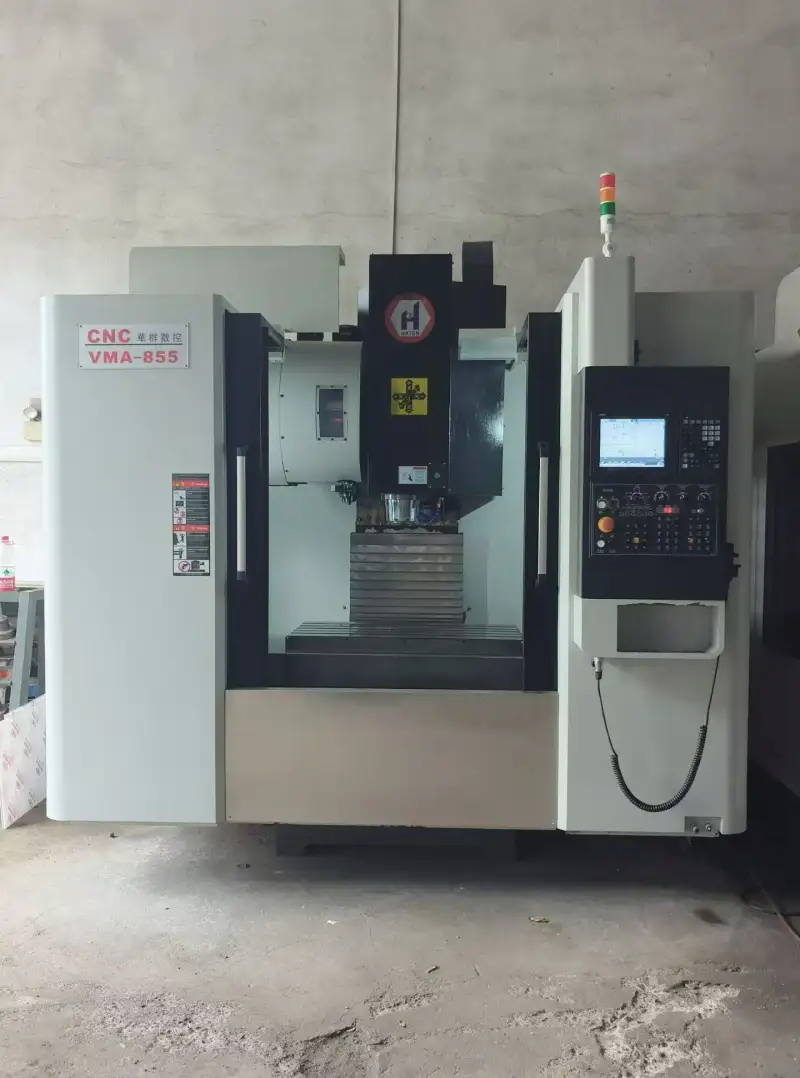

Used Huaqun V 855 Vertical Machining Center with Mitsubishi M 80

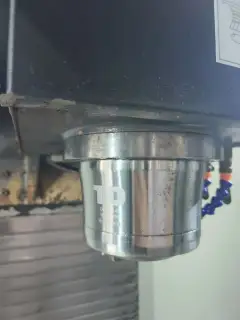

Two identical used Huaqun V 855 vertical machining centers are available from China. Each machine is equipped with a Mitsubishi M 80 control, a BT40 belt-driven spindle rated at 11 kW with a 10000 rpm maximum speed and spindle oil cooler, heavy-duty 45 roller linear guideways on X/Y/Z axes, a Z-axis with six heavy-duty slide blocks, and an arm-type 24-station tool magazine. The spindle and axes run quietly, and positioning accuracy is approximately 0.01 mm. The machines can be inspected on site.

Machine Code
VMC260961
Year
On request
Location
China
Usage Hours
On request
Email Inquiry

Main Specifications

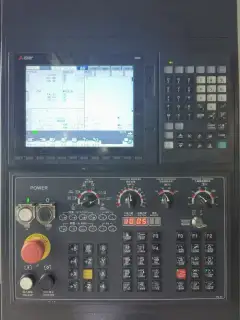

Control systemMitsubishi M 80
Spindle taperBT40
Spindle driveBelt-driven
Spindle power11 kW
Max spindle speed10000 rpm
Spindle oil coolerIncluded
Guideway typeHeavy-duty 45 roller linear guideways on X/Y/Z axes
Z-axis slide blocks6 heavy-duty slide blocks
Tool magazine typeArm-type
Tool magazine capacity24 tools
AccuracyApprox. 0.01 mm
BrandHuaqun
