AvailableCNC Lathe

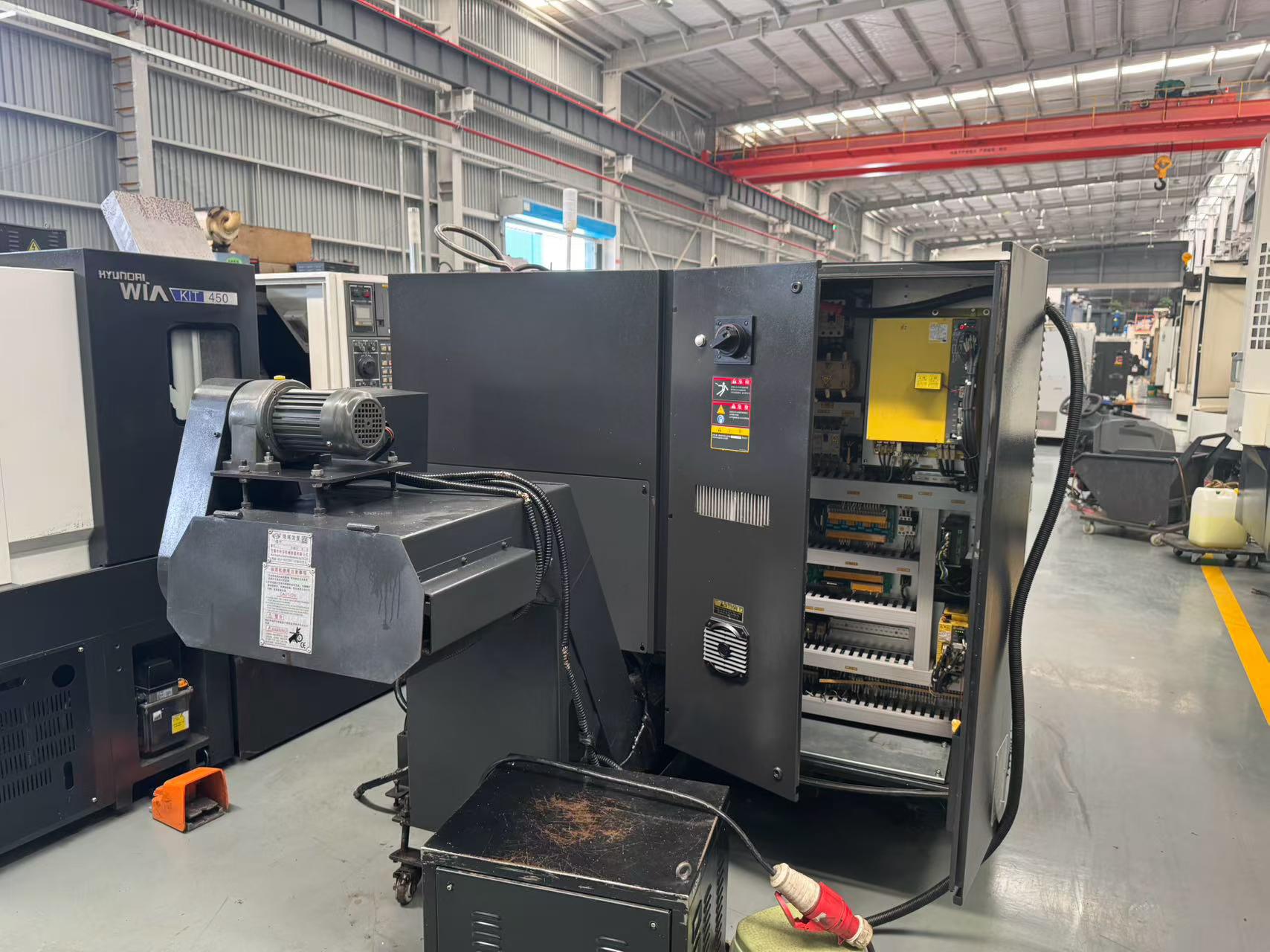

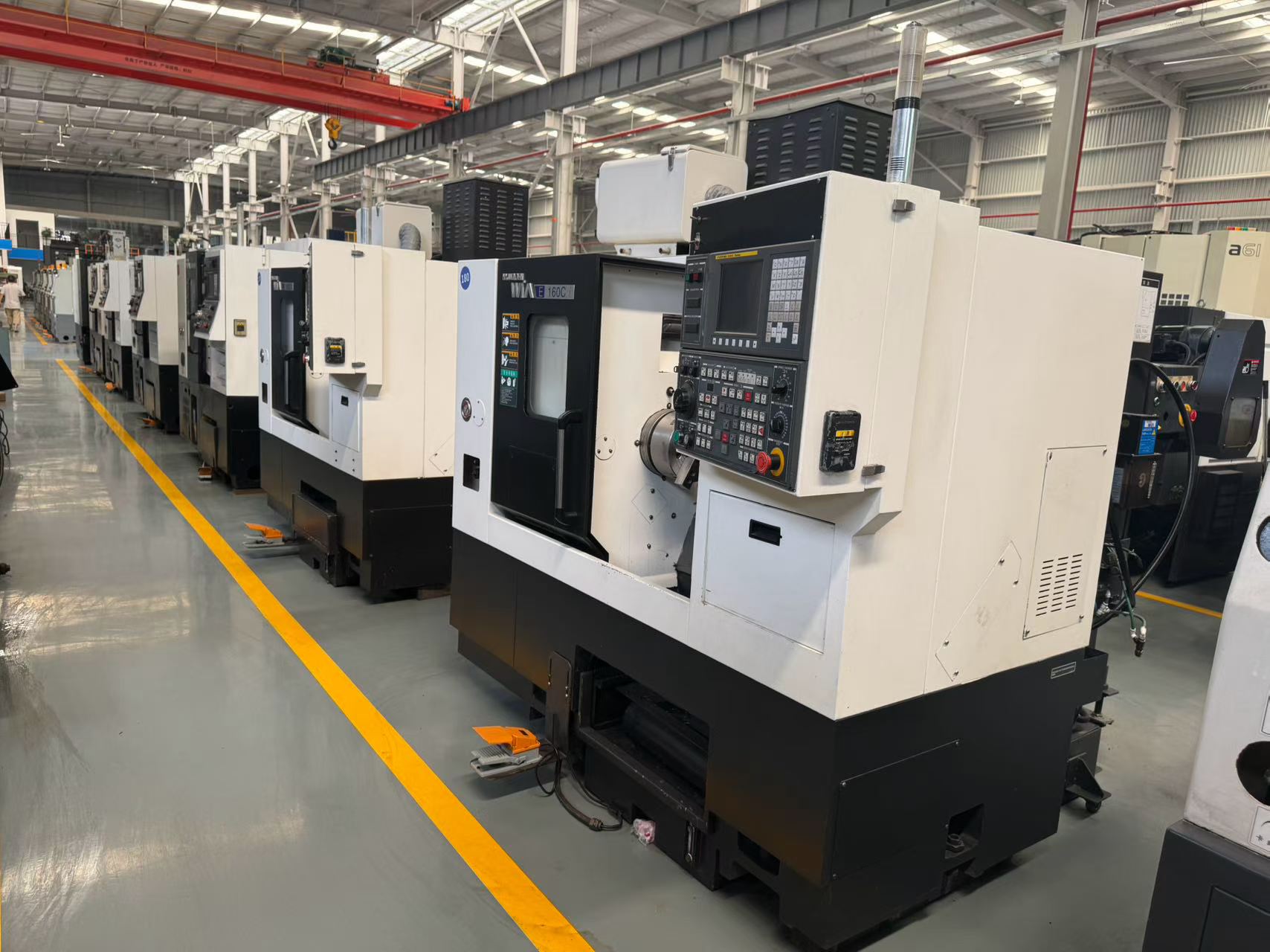

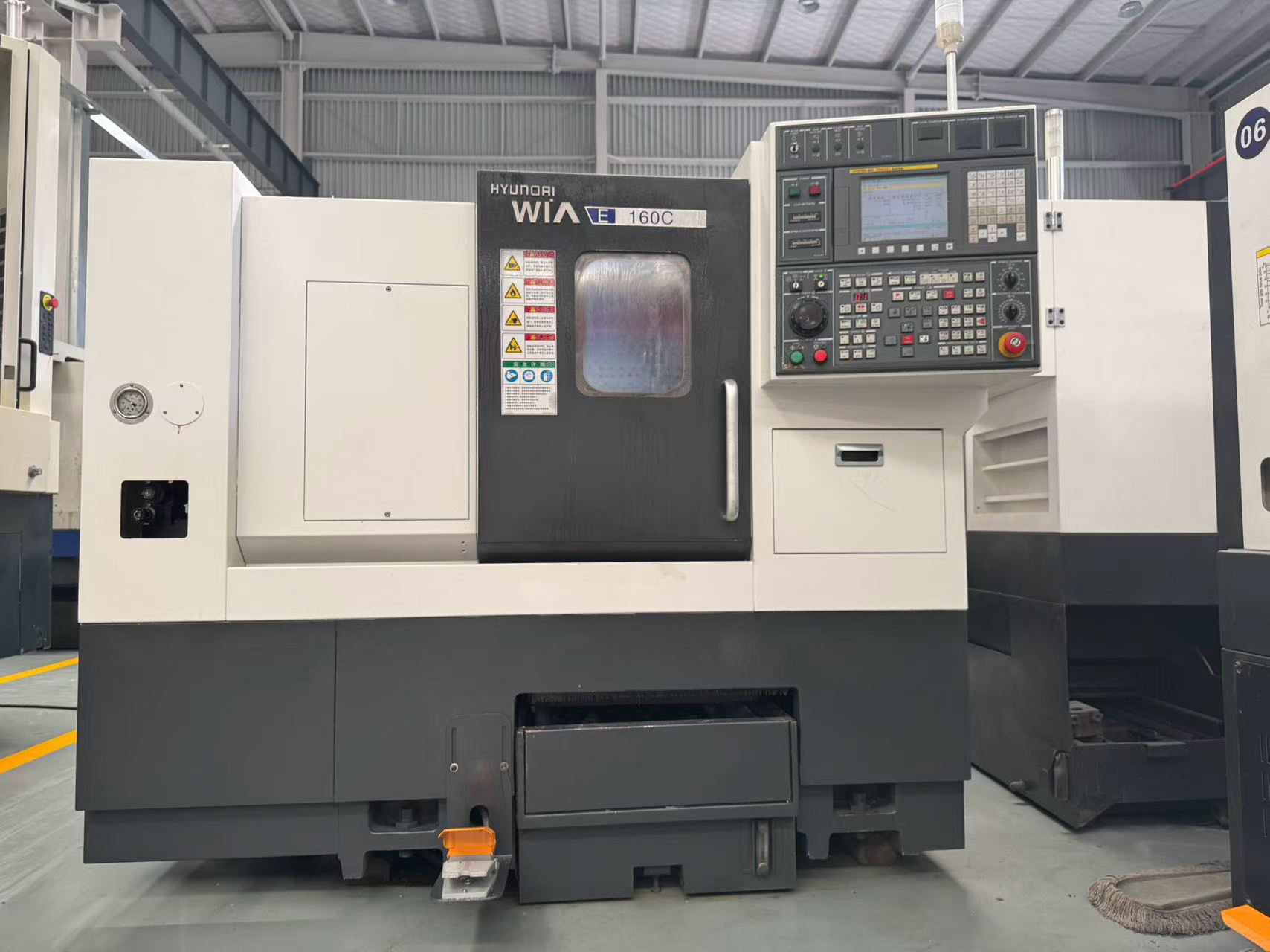

Used Hyundai WIA E 160 C CNC Horizontal Lathe

Hyundai WIA E 160 C CNC horizontal lathe, a turret-type turning machine built for continuous production work. The machine is equipped with an 8-inch chuck and a 10-station servo turret, and its spindle reaches a maximum speed of 4,000 rpm driven by a 7.5/11 kW spindle motor. Maximum swing is 480 mm, maximum machining length is 280 mm and the spindle through-hole is 51 mm. The machine is fitted with the Fanuc CNC control system (HYUNDAI WIA FANUC Series) and a rear chip conveyor. Three units are available.

Machine Code: CL2609106
Year: On request
Location: China
Usage Hours: On request

Accessories

Rear chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Chuck size	8inch

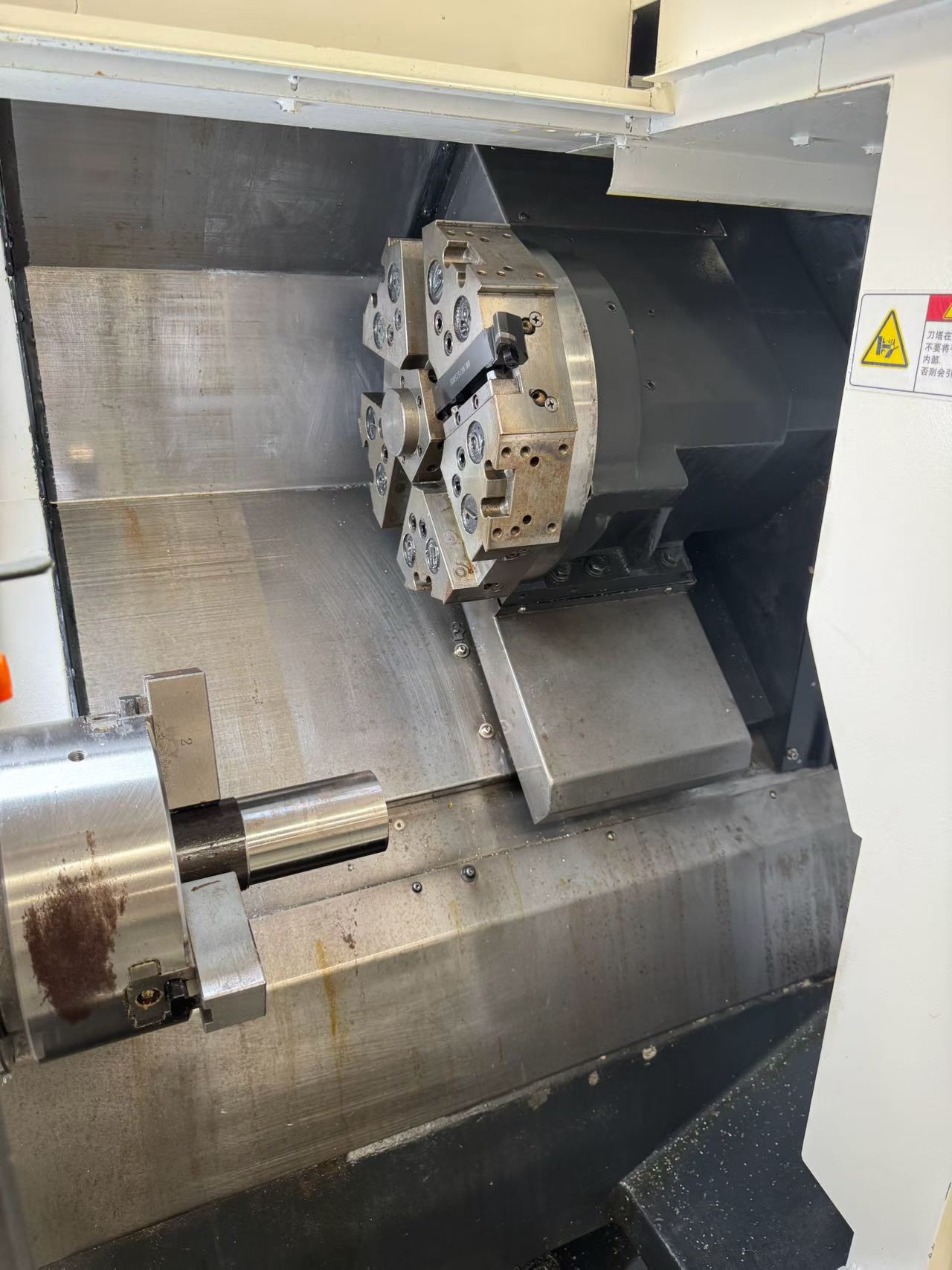

Tool turret	10-station servo turret
Spindle speed	4,000 rpm
Spindle motor power	7.5/11 kW
Maximum swing	480 mm
Maximum machining length	280 mm
Spindle bore	51 mm

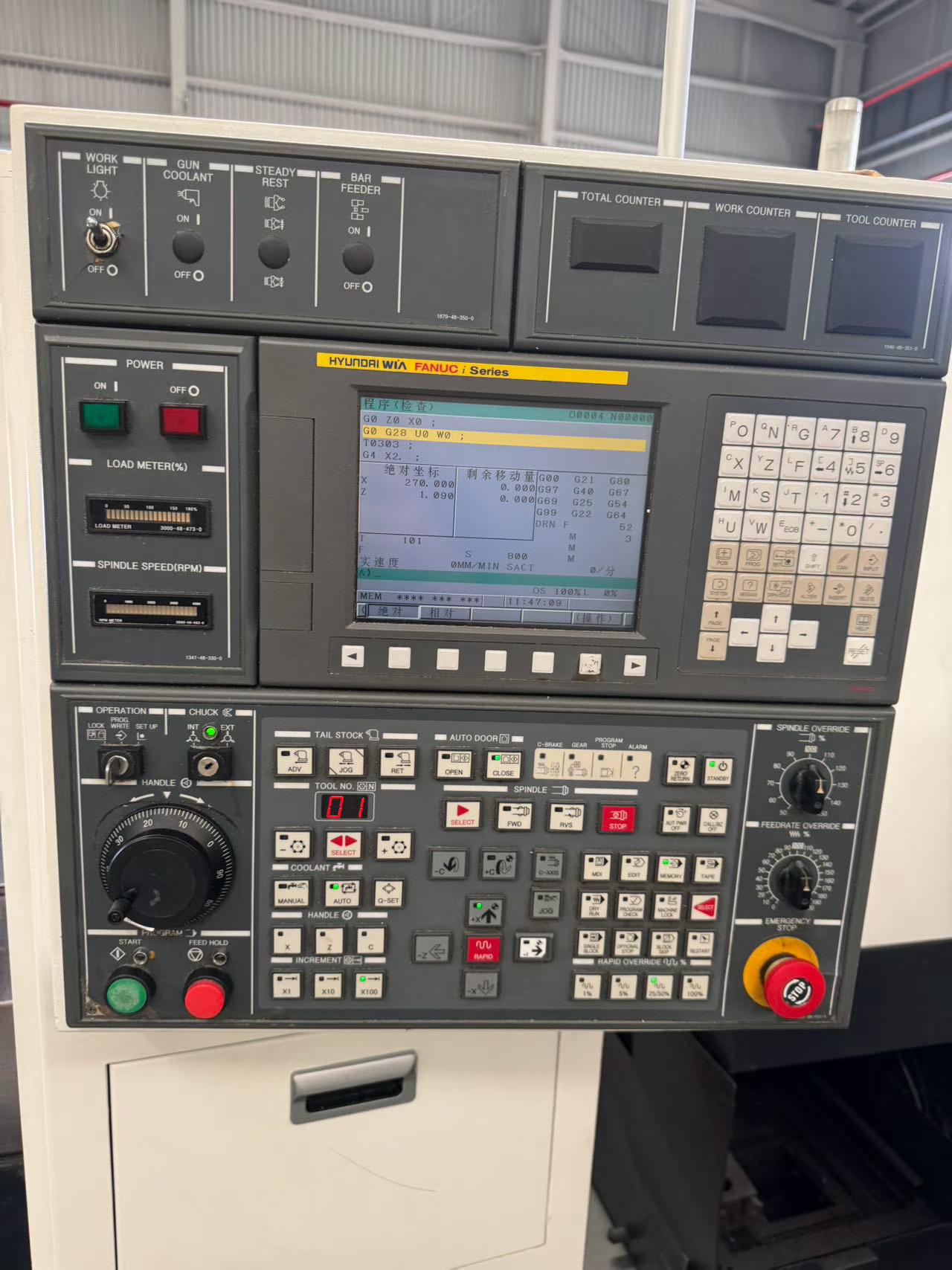

Control system	Fanuc (HYUNDAI WIA FANUC Series)
Chip conveyor	Rear-type chip conveyor
Brand	Hyundai WIA
