Used Jiafu 2016 Gantry Milling Machine with FANUC MF Plus

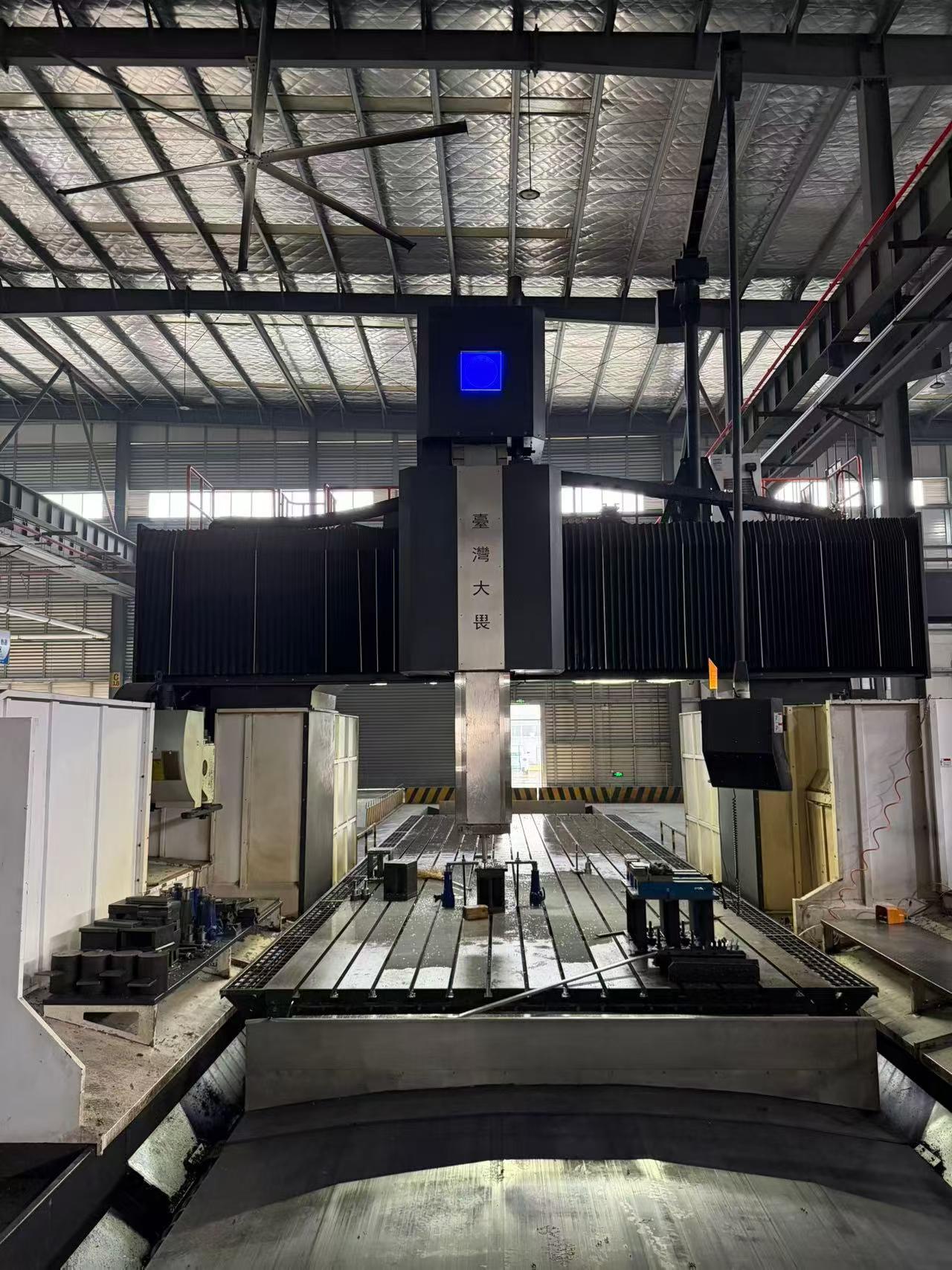

Used Jiafu 2016 gantry milling machine with FANUC MF Plus control. This machine features INA roller linear guideways on X/Y axes and a box guideway on Z axis, BT50 spindle with 6000 rpm. Three-axis travel: X 2000 mm, Y 1700 mm, Z 800 mm. Gantry width 1650 mm, max workpiece height 1050 mm. Equipped with dual screw chip conveyor. The machine is in stock in China and can be inspected on site or via video.
- Machine Code
- PM260853
- Year
- 2016
- Location
- China
- Usage Hours
- On request
Accessories
Chip conveyor
Main Specifications
| Machine type | Gantry milling machine |
|---|---|
| Year | 2016 |
| Spindle taper | BT50 |
| Spindle speed | 6000 rpm |
| Control system | FANUC MF Plus |
| X/Y/Z travel | 2000 x 1700 x 800 mm |
| Gantry width | 1650 mm |
| Max workpiece height | 1050 mm |
| Guideway configuration | X/Y: INA roller linear guideway (size 55); Z: box guideway |
| Chip conveyor | Dual screw type |
| Brand | Jiafu |
| Year of manufacture | 2016 |
