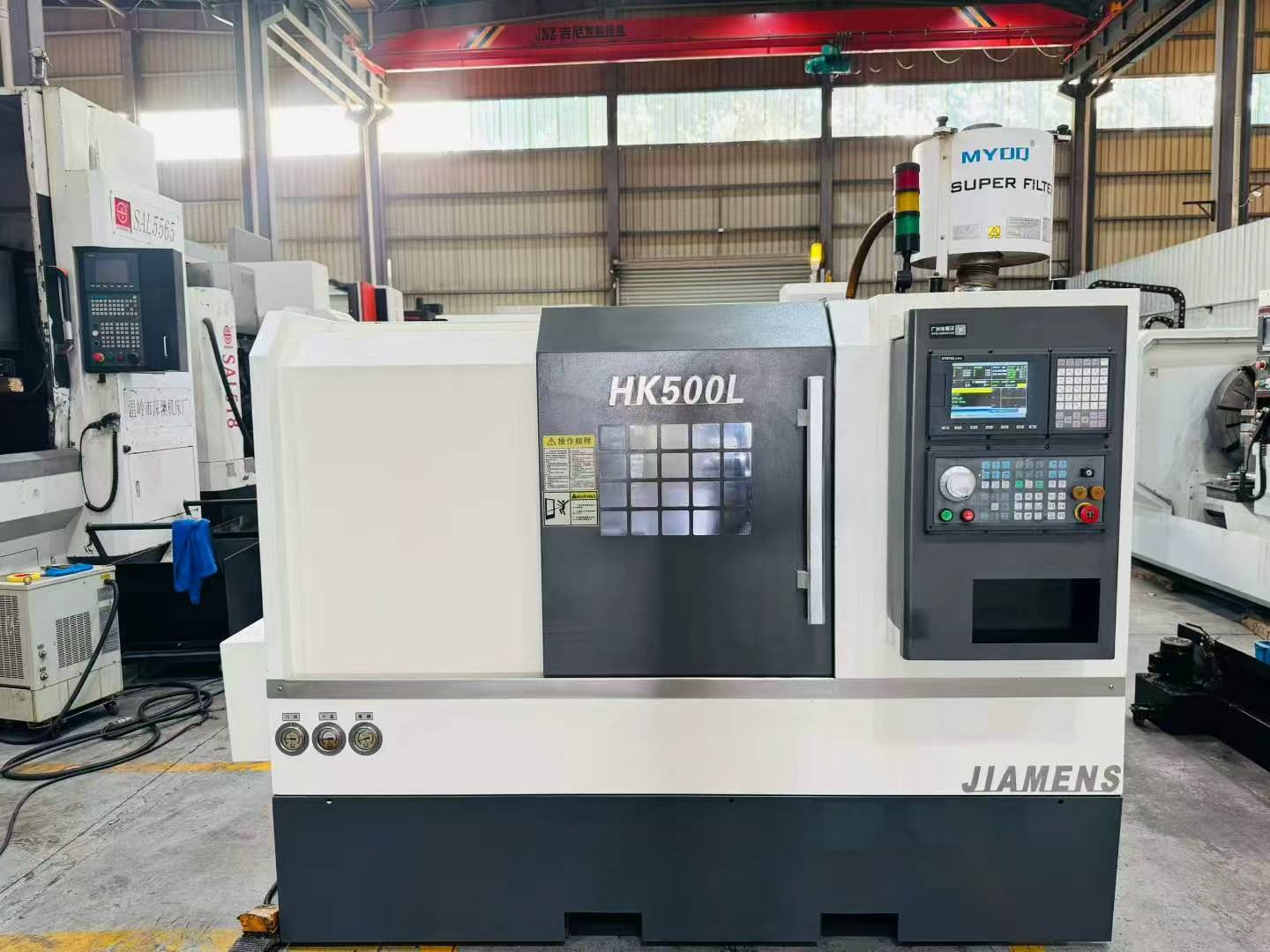

Used Jiamengzi HK 500 L Slant-Bed Turret CNC Lathe with SYNTEC 21 TA

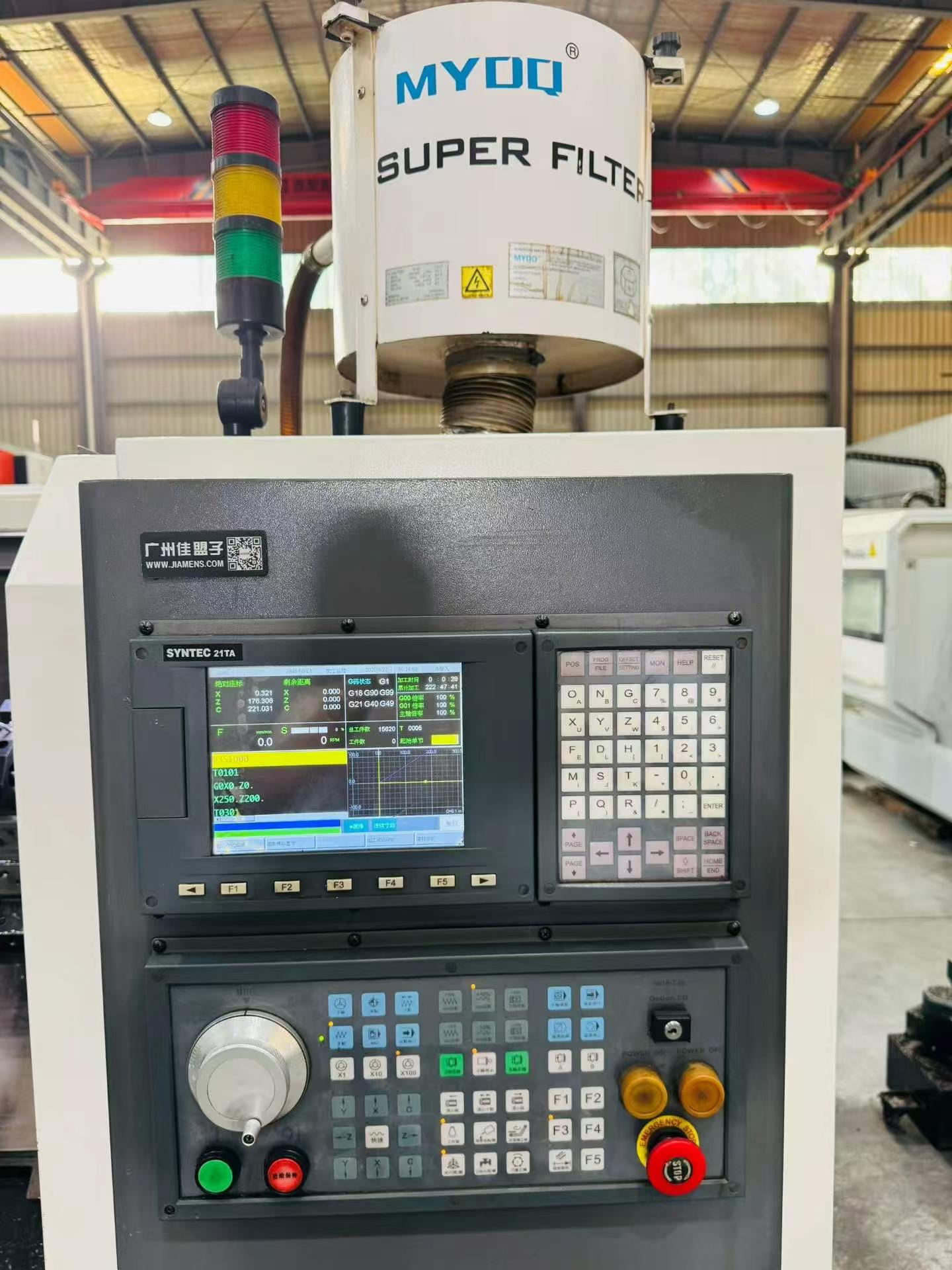

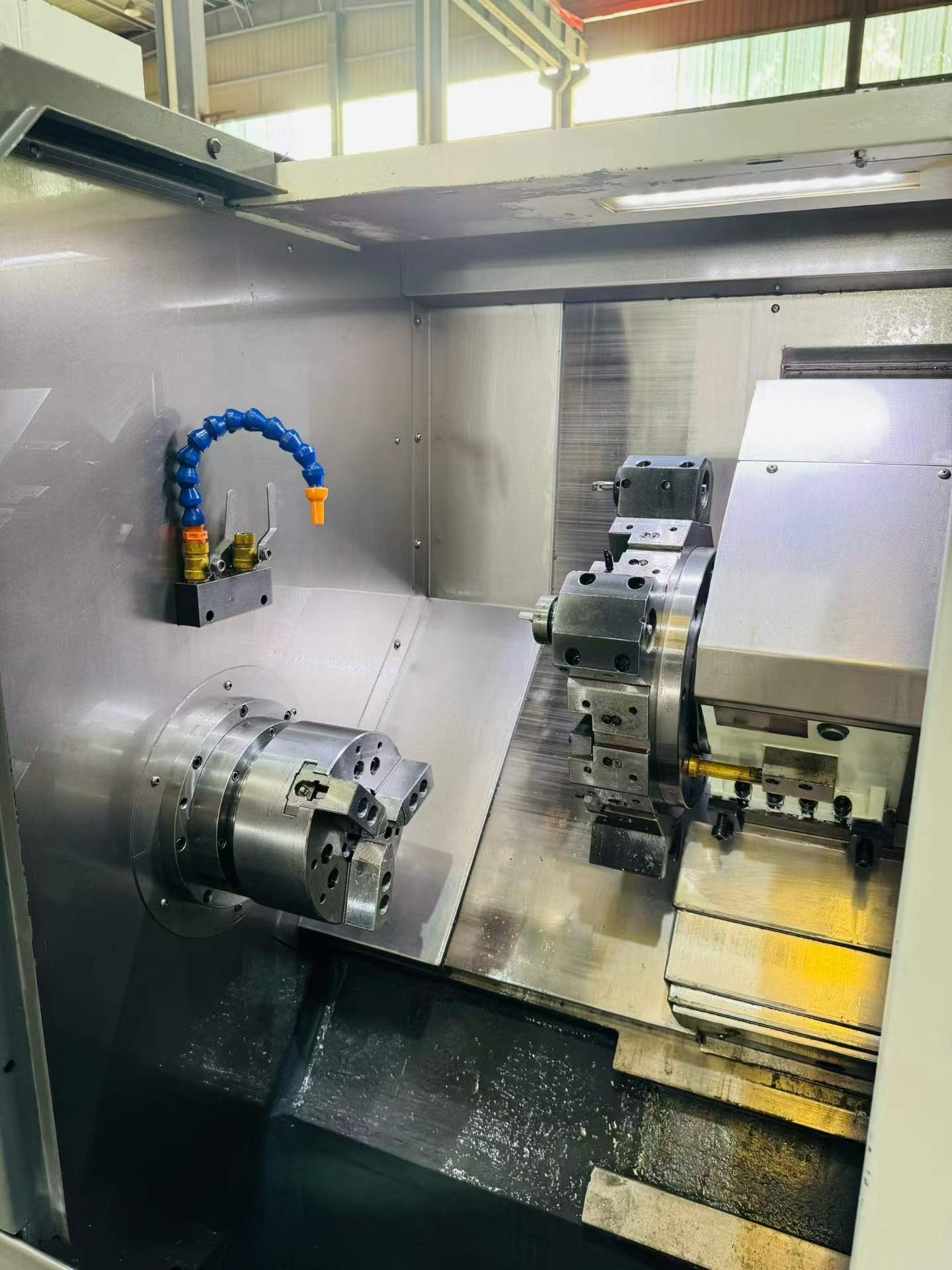

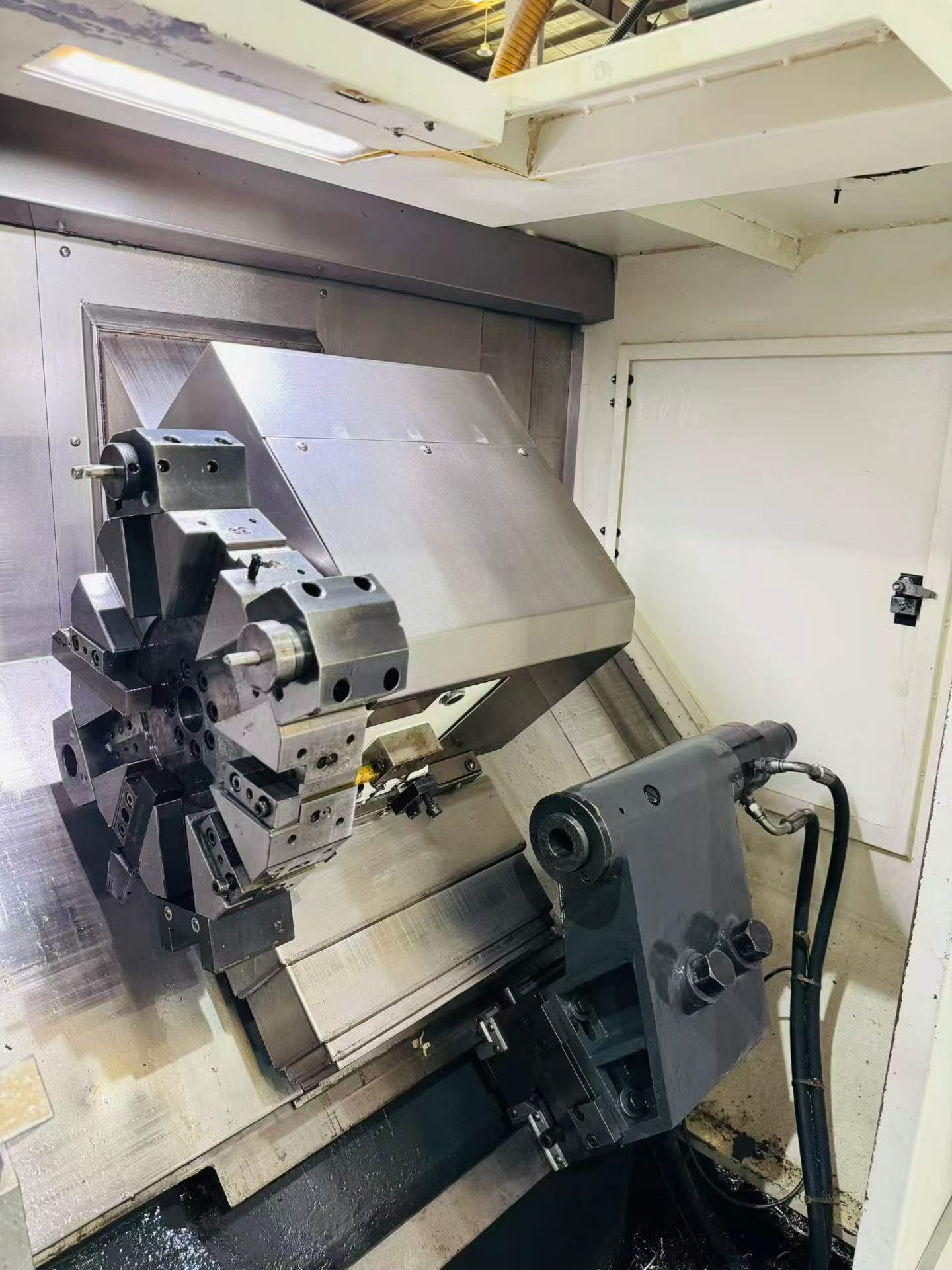

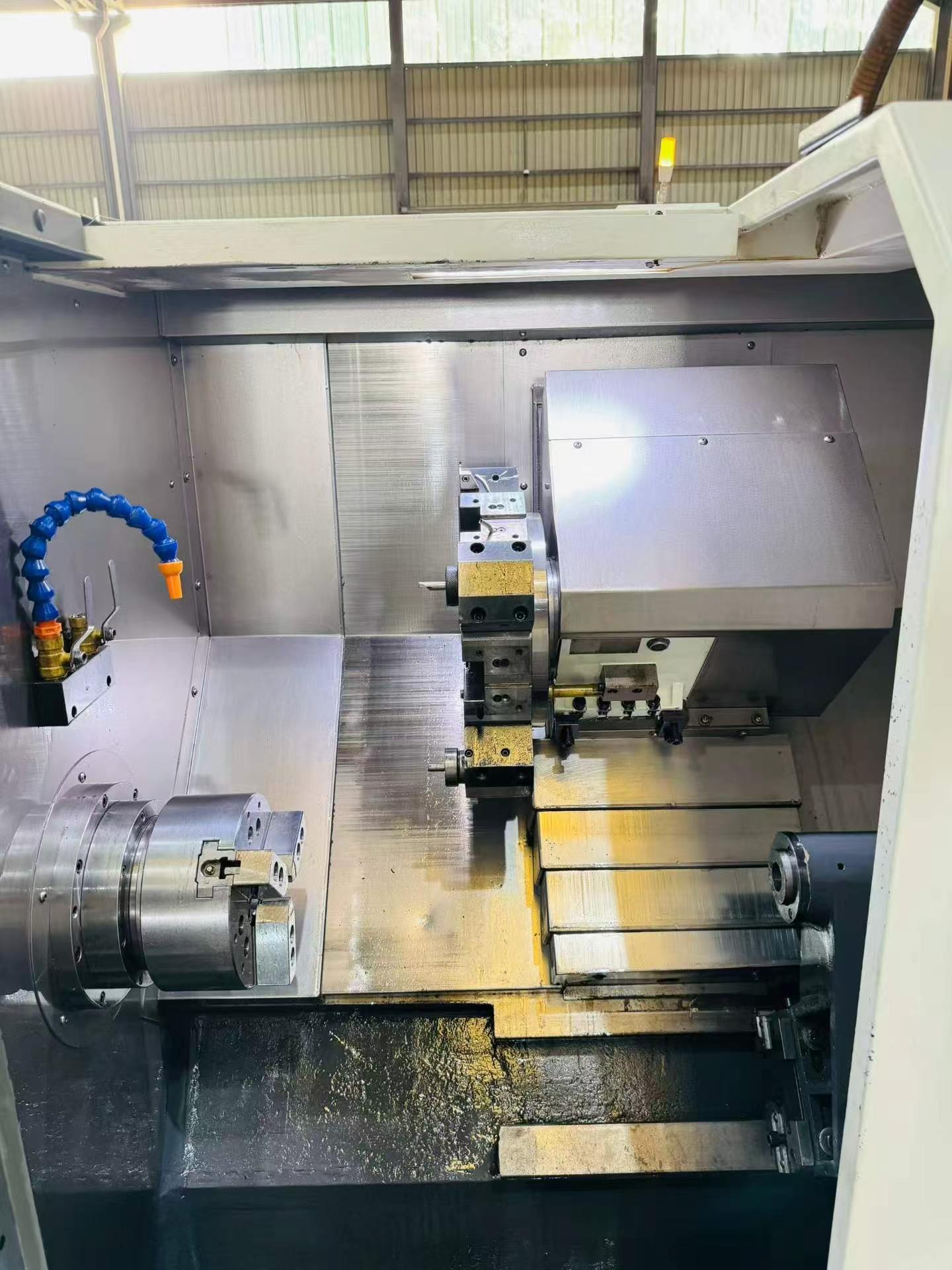

Used Jiamengzi HK 500 L slant-bed turret-type CNC lathe in 90% new condition. Equipped with SYNTEC 21 TA controller with absolute encoders, A 2-6 high-speed spindle unit, 8-inch through-hole hydraulic chuck, 10-station hydraulic turret, Hiwin precision roller linear guideways on two axes, 11 kW servo spindle motor, MT 5 hydraulic tailstock, and oil mist collector. The machine is available for inspection in China and can be verified by video or on-site.

Machine Code: CL2608296
Year: On request
Location: China
Usage Hours: On request

Accessories

Included with the machine: 8-inch through-hole hydraulic chuck, 10-station hydraulic turret, MT 5 hydraulic tailstock, oil mist collector.

Email Inquiry

Main Specifications

Control system	SYNTEC 21 TA
Spindle nose	A 2-6
Chuck size	8inch
Number of turret stations	10
Guideway type	Hiwin precision roller linear guideway (2 axes)
Spindle motor power	11 kW
Tailstock taper	MT 5
Brand	Jiamengzi
