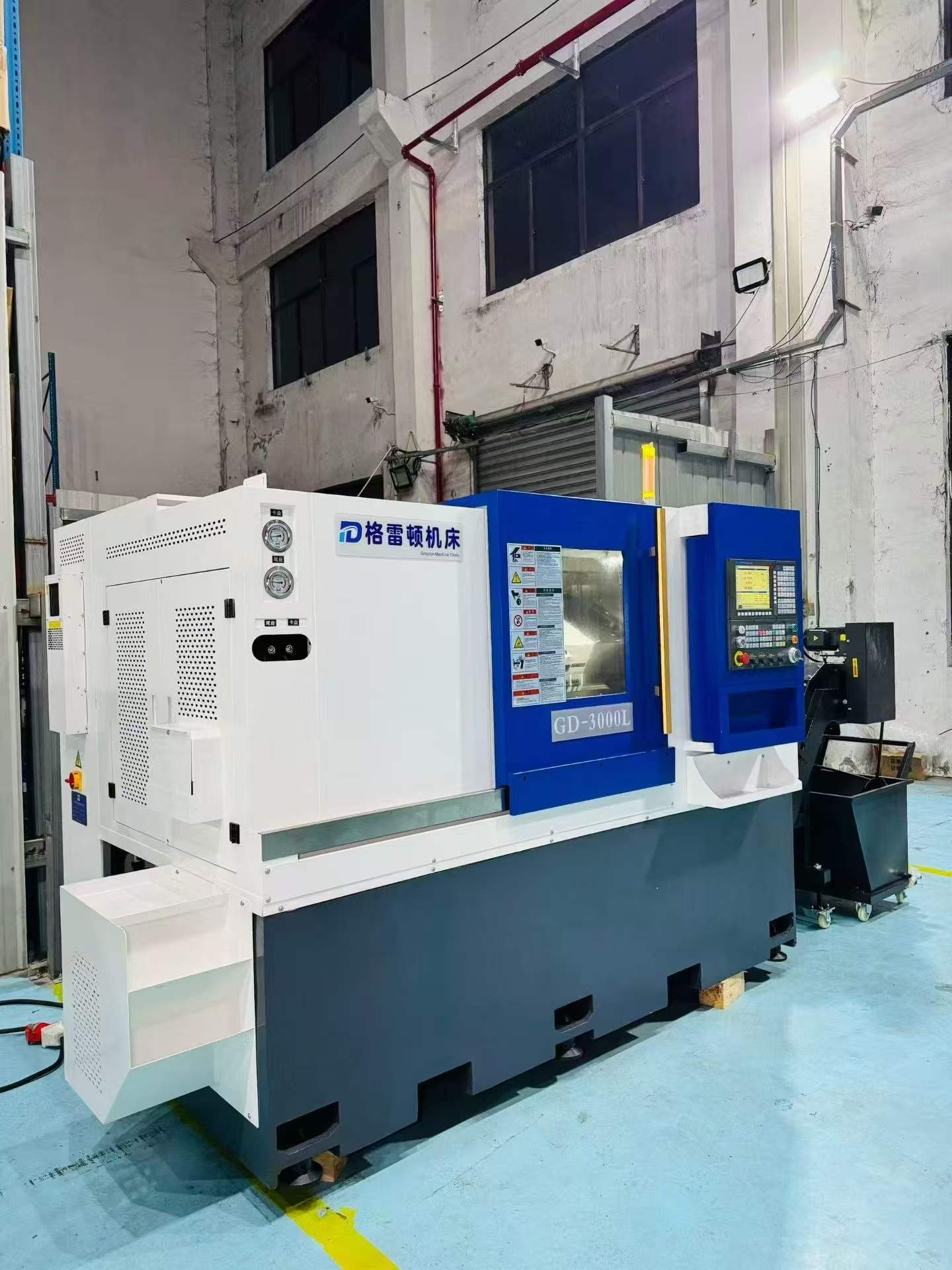

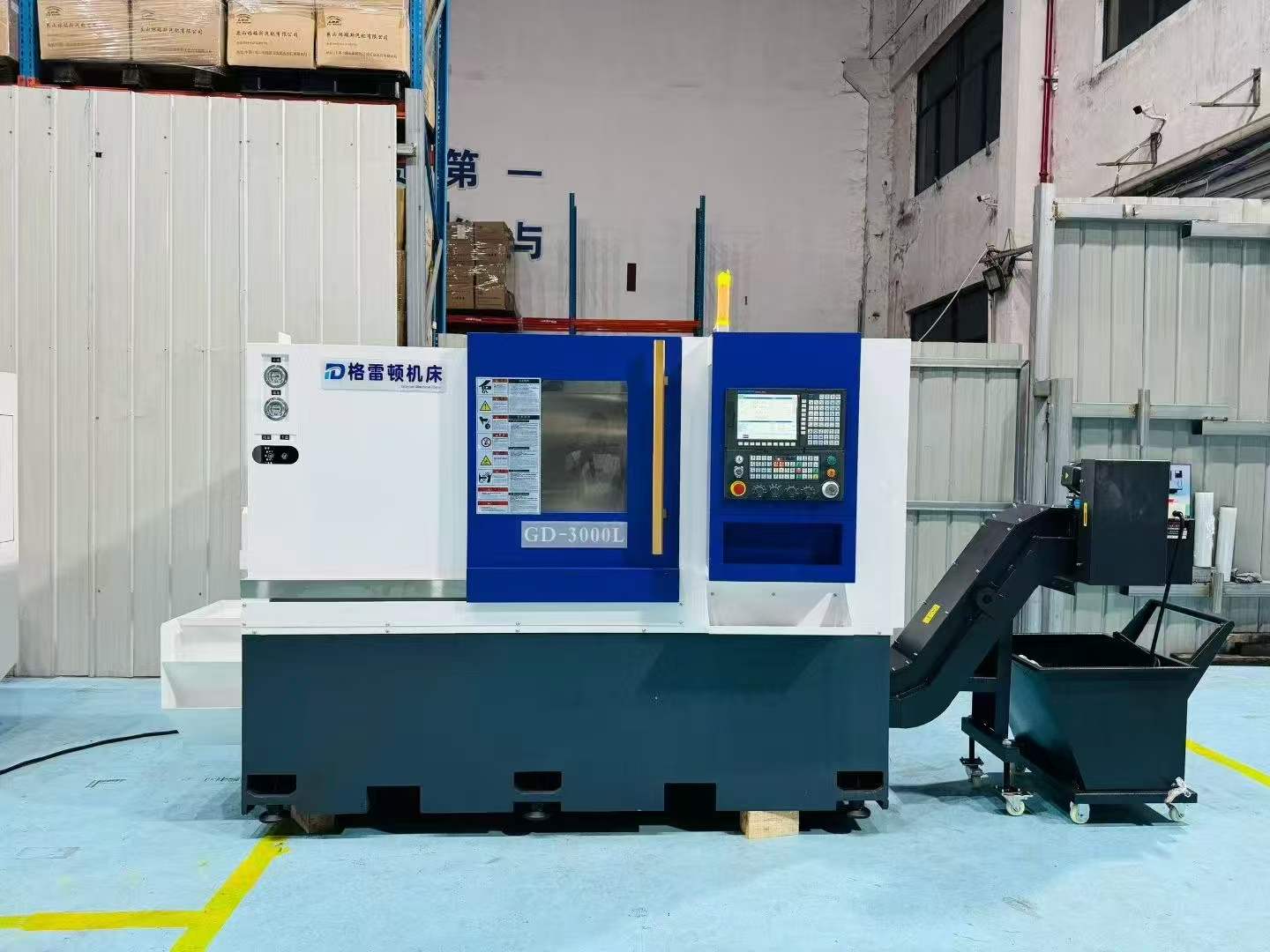

Jiangsu Greton GD-3000 L Heavy-Duty Slant-Bed CNC Lathe with 10-Inch Chuck and 12-Station Servo Turret
Brand new Jiangsu Greton GD-3000 L heavy-duty slant-bed CNC lathe available from stock in Jiangsu, China. It features a GSK 988 TA large-screen control system, upgraded integrated drive, 15/18.5 kW servo main motor, 10-inch hollow hydraulic chuck, and a 12-station Taiwan Jingangxin oversized servo turret with 430 mm turret disc diameter. The machine is designed for heavy cutting with 45 mm heavy-duty roller linear guideways on both axes, high-low guideway layout, and low center of gravity. The lathe can turn parts up to 500 mm in diameter and 600 mm long, with a 600 mm swing diameter. Machine weight is 4.5 tons. Invoices can be issued and accessories are covered by warranty. Contact us for price and further details.
- Machine Code
- CL2608133
- Year
- On request
- Location
- Jiangsu, China
- Usage Hours
- On request
Accessories
Hinged belt chip conveyor; hydraulic tailstock
Main Specifications

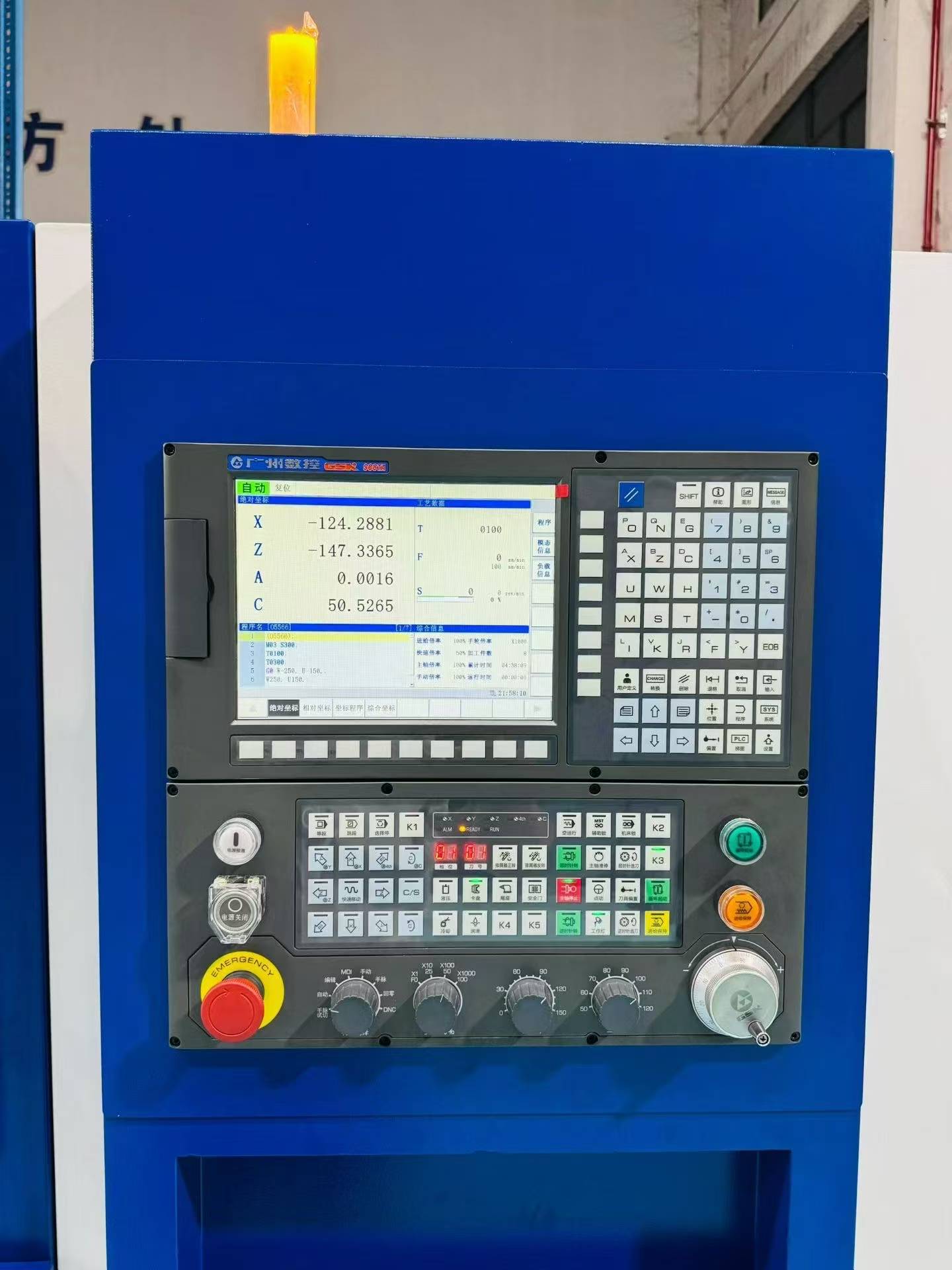

| Control system | GSK 988 TA large-screen CNC system |
|---|---|

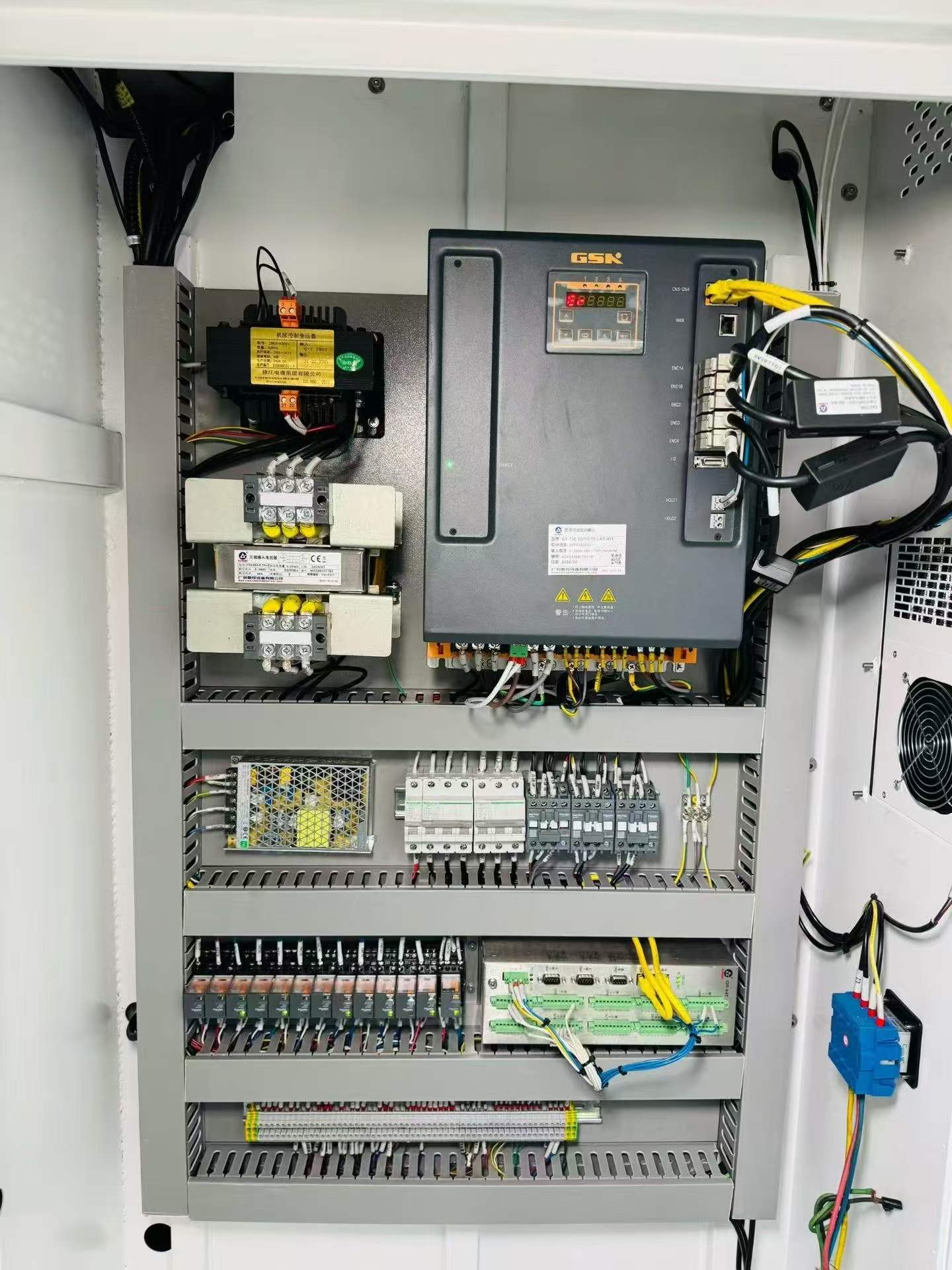

| Drive system | Upgraded integrated drive |
| Main motor power | 15 / 18.5 kW servo main motor |
| Spindle nose | A 2-8 |
| Spindle bore diameter | 86 mm |
| Bar capacity | 75 mm |
| Spindle drive belts | 8 belts |

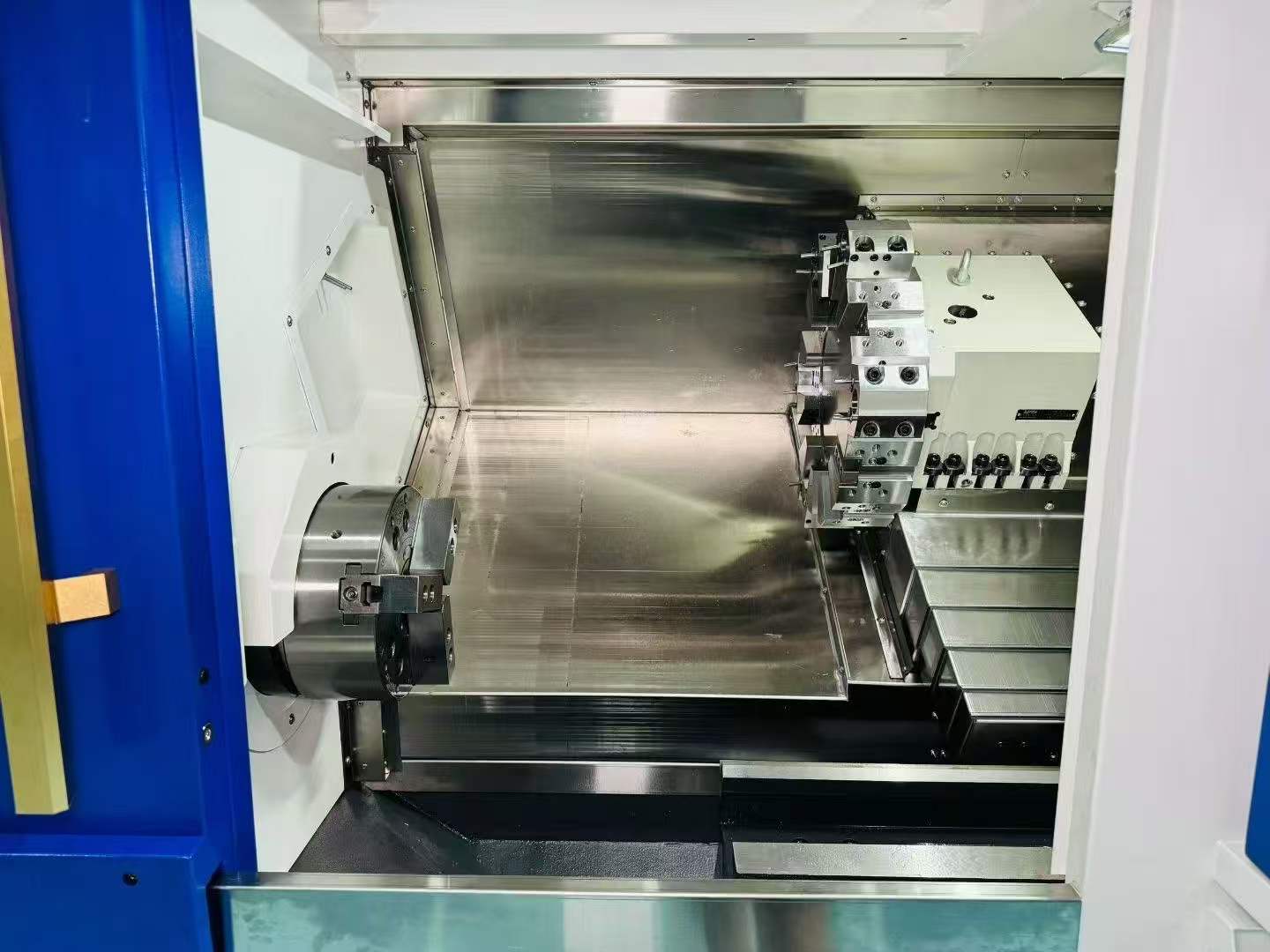

| Chuck | 10-inch hollow hydraulic chuck |

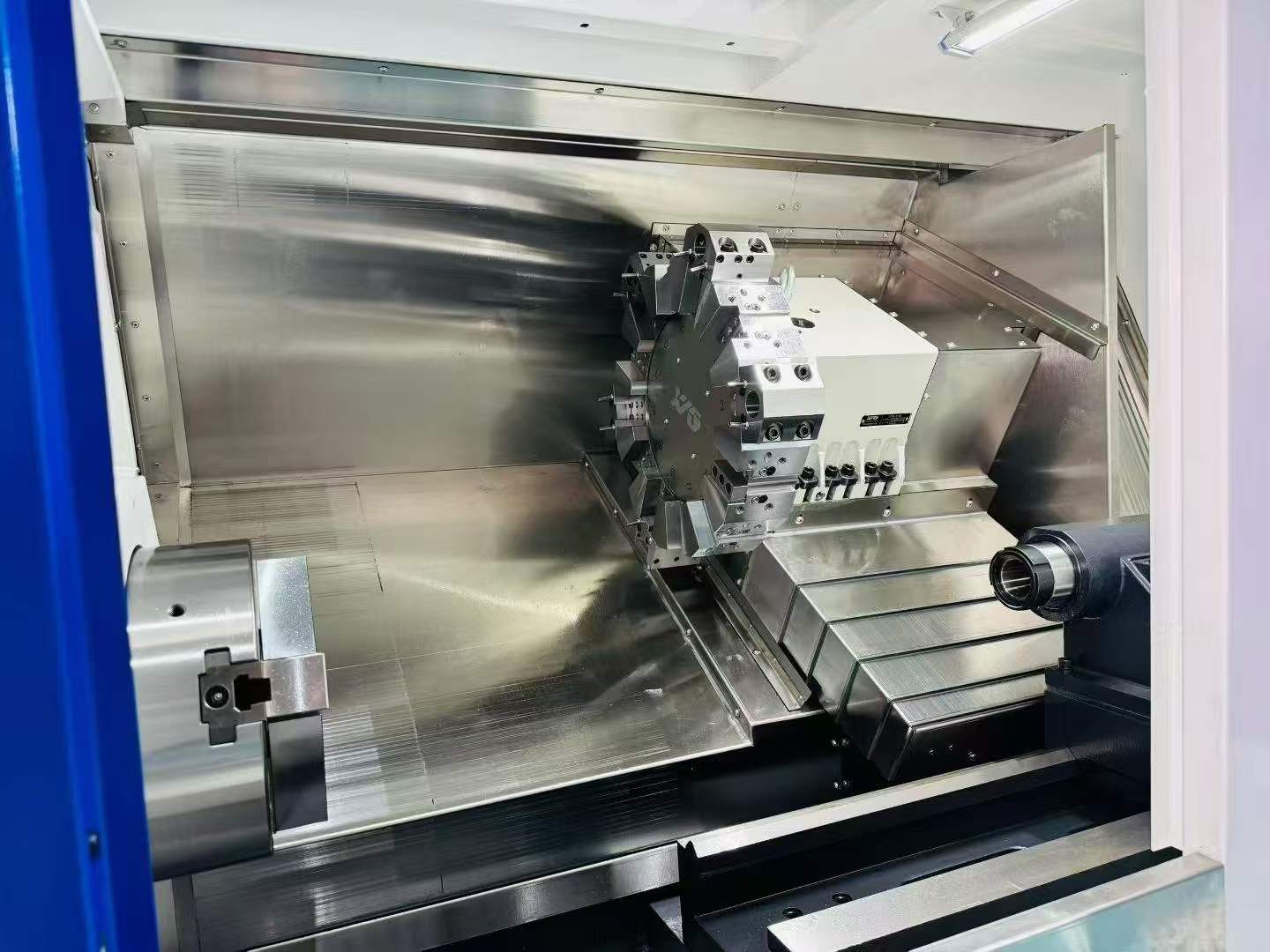

| Turret | 12-station Taiwan Jingangxin oversized servo turret |
| Turret disc diameter | 430 mm |
| Tailstock | Hydraulic tailstock |

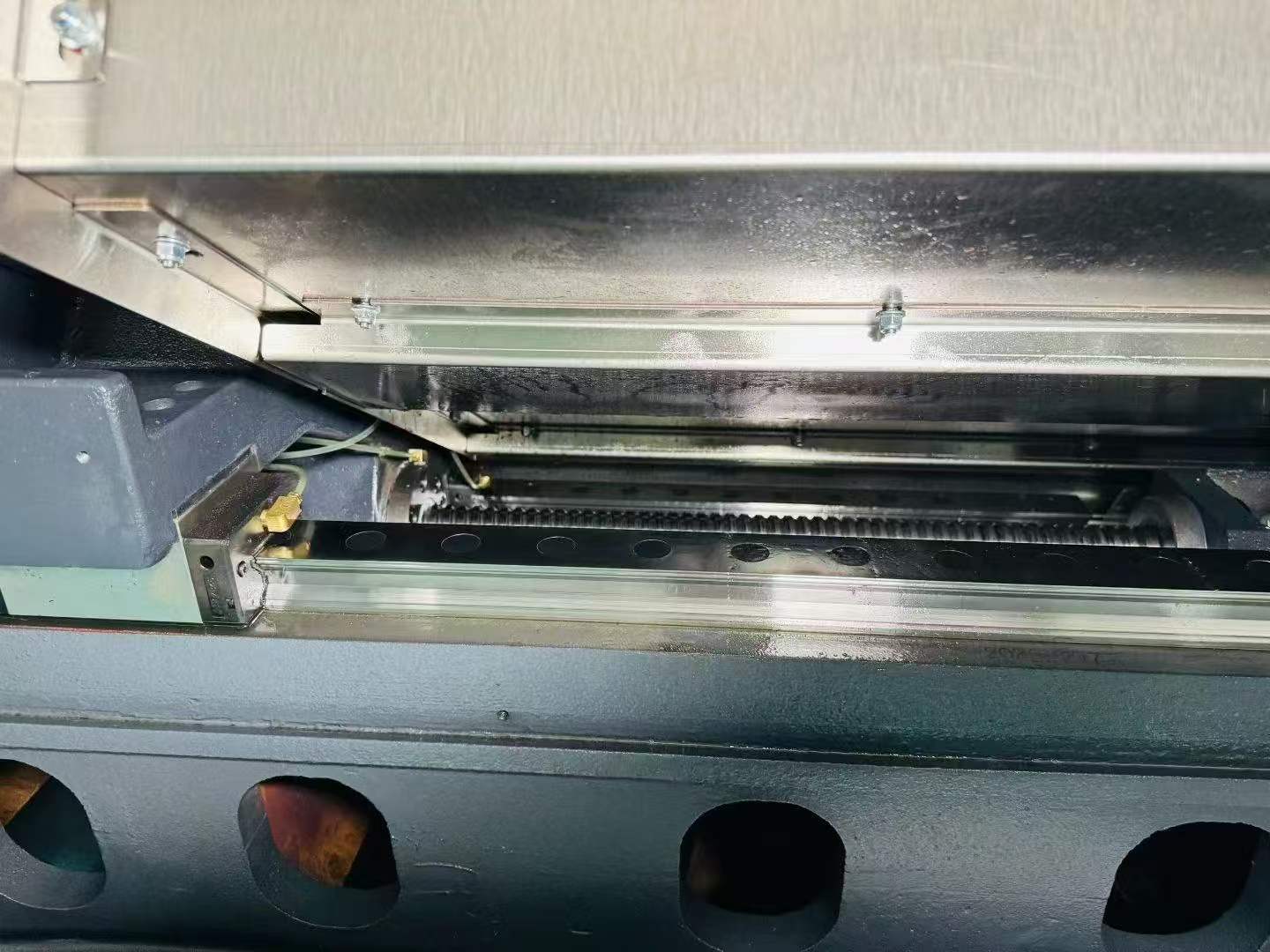

| Guideways | 45 mm wide heavy-duty roller linear guideways on X and Z axes |
| Guideway design | High-low rail design, low center of gravity |
| Maximum swing diameter | 600 mm |
| Maximum machining diameter | 500 mm |
| Maximum machining length | 600 mm |

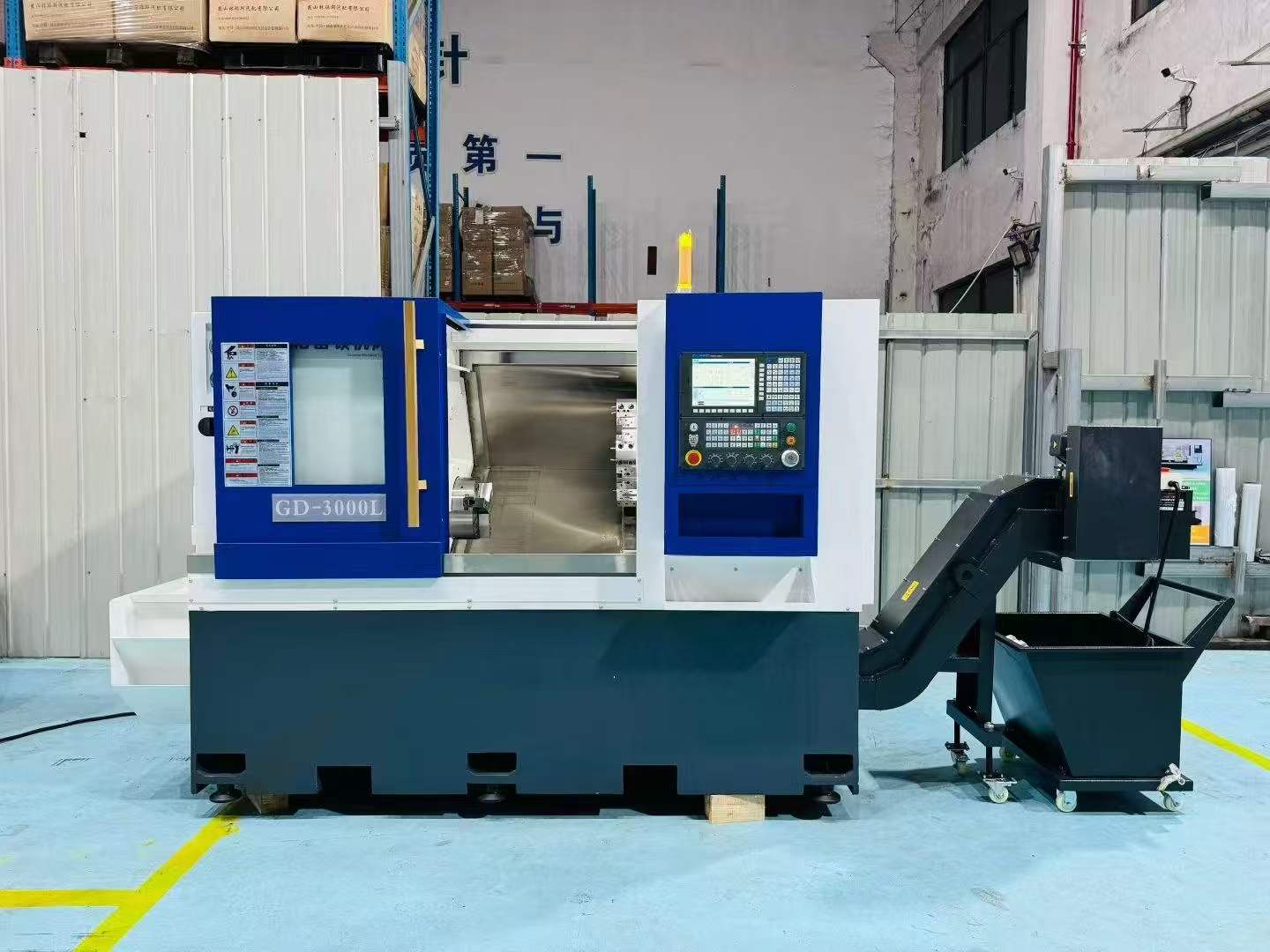

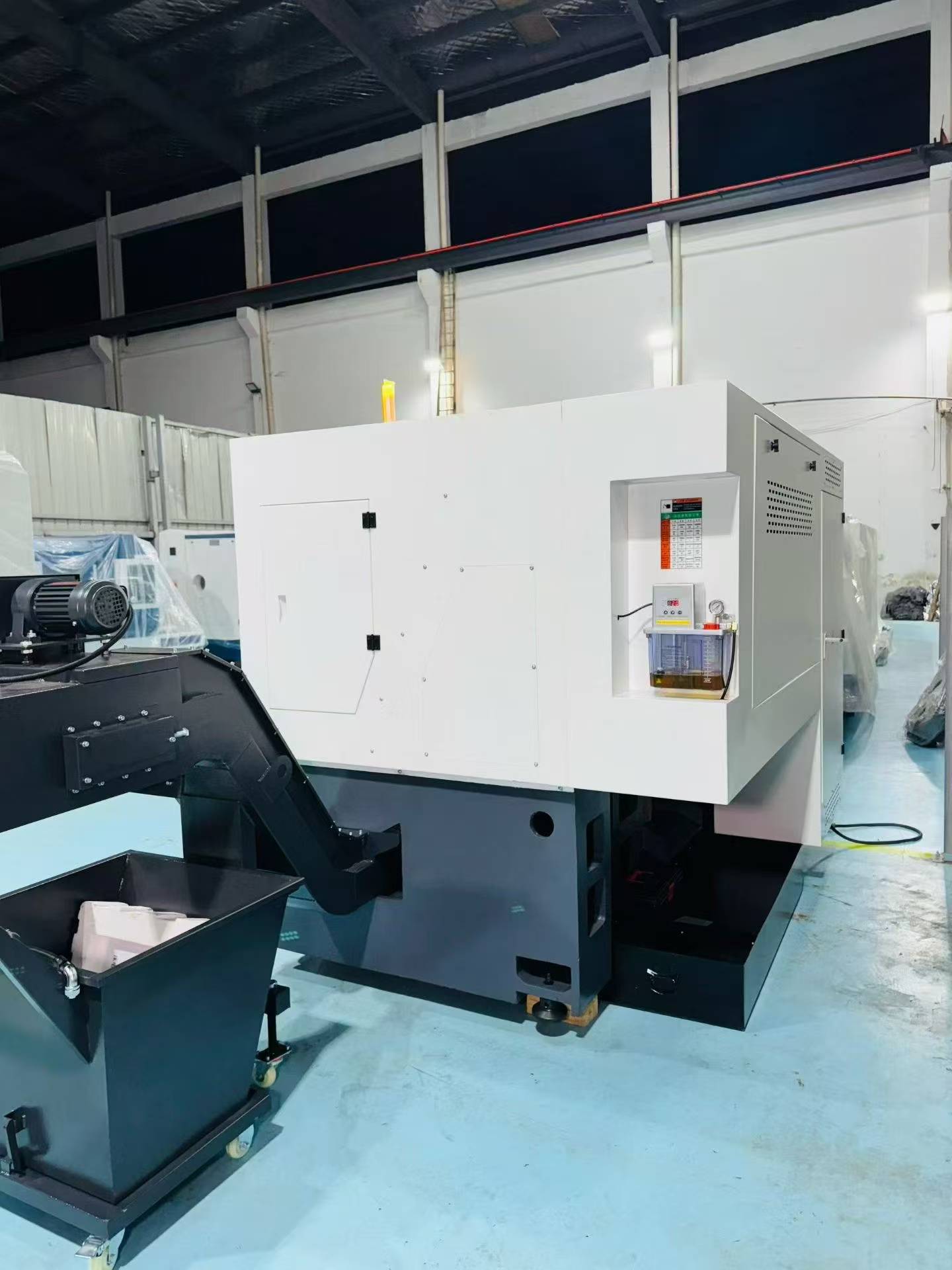

| Chip conveyor | Hinged belt chip conveyor |
| Machine weight | 4.5 t |
