AvailableMachining Center

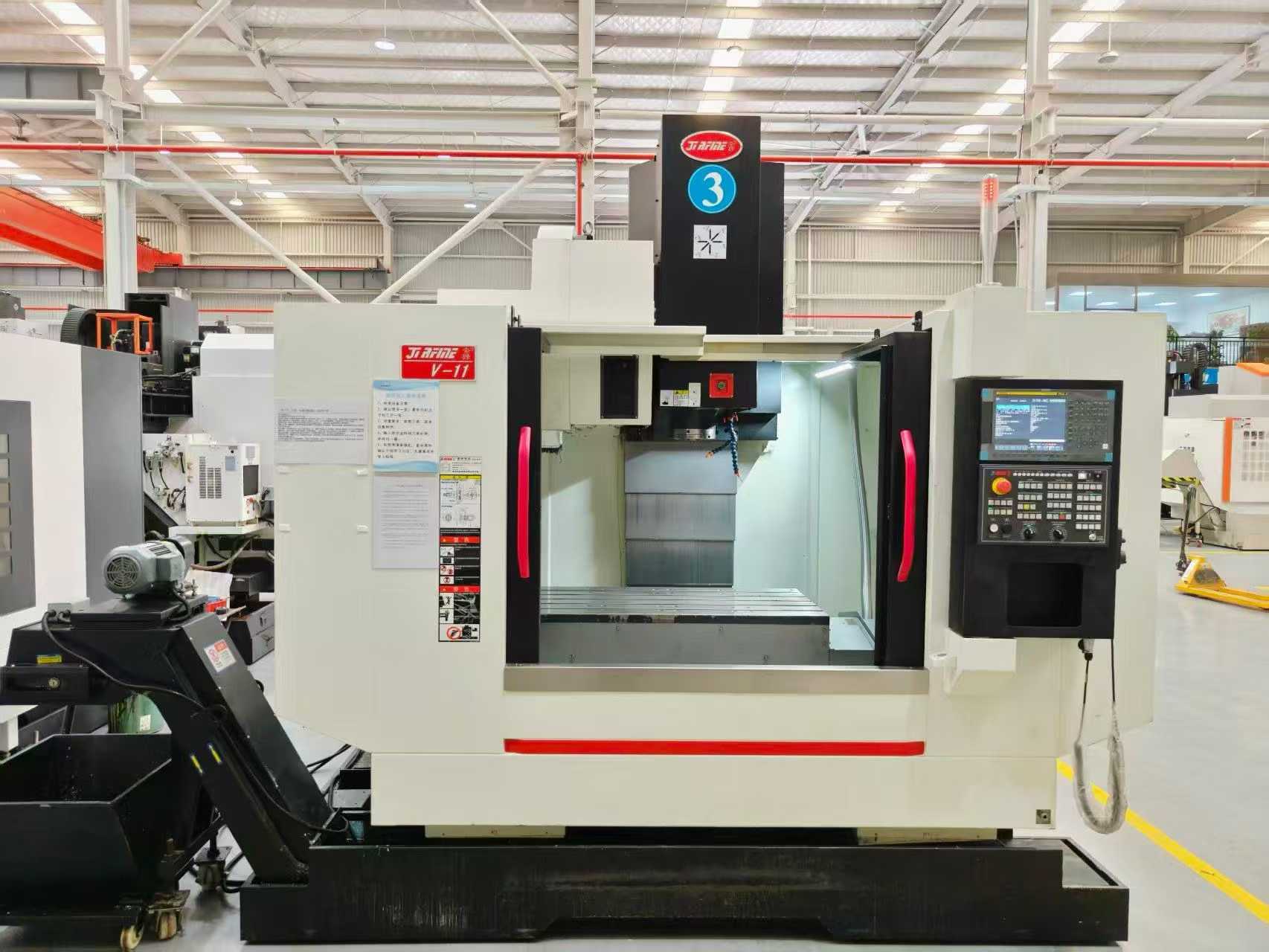

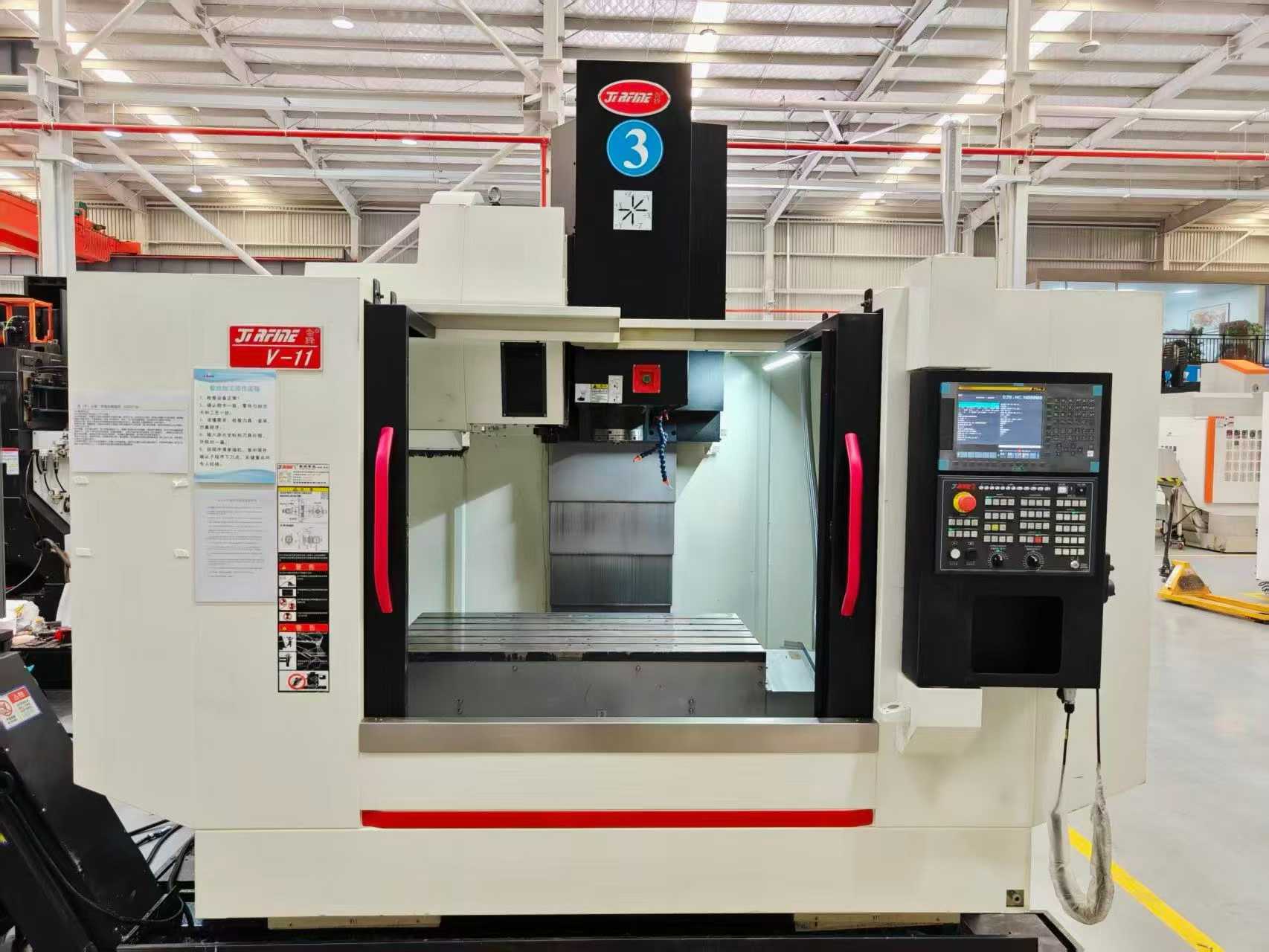

2024 JiRFINE V-11 Vertical Machining Center with FANUC 0i-MF Plus

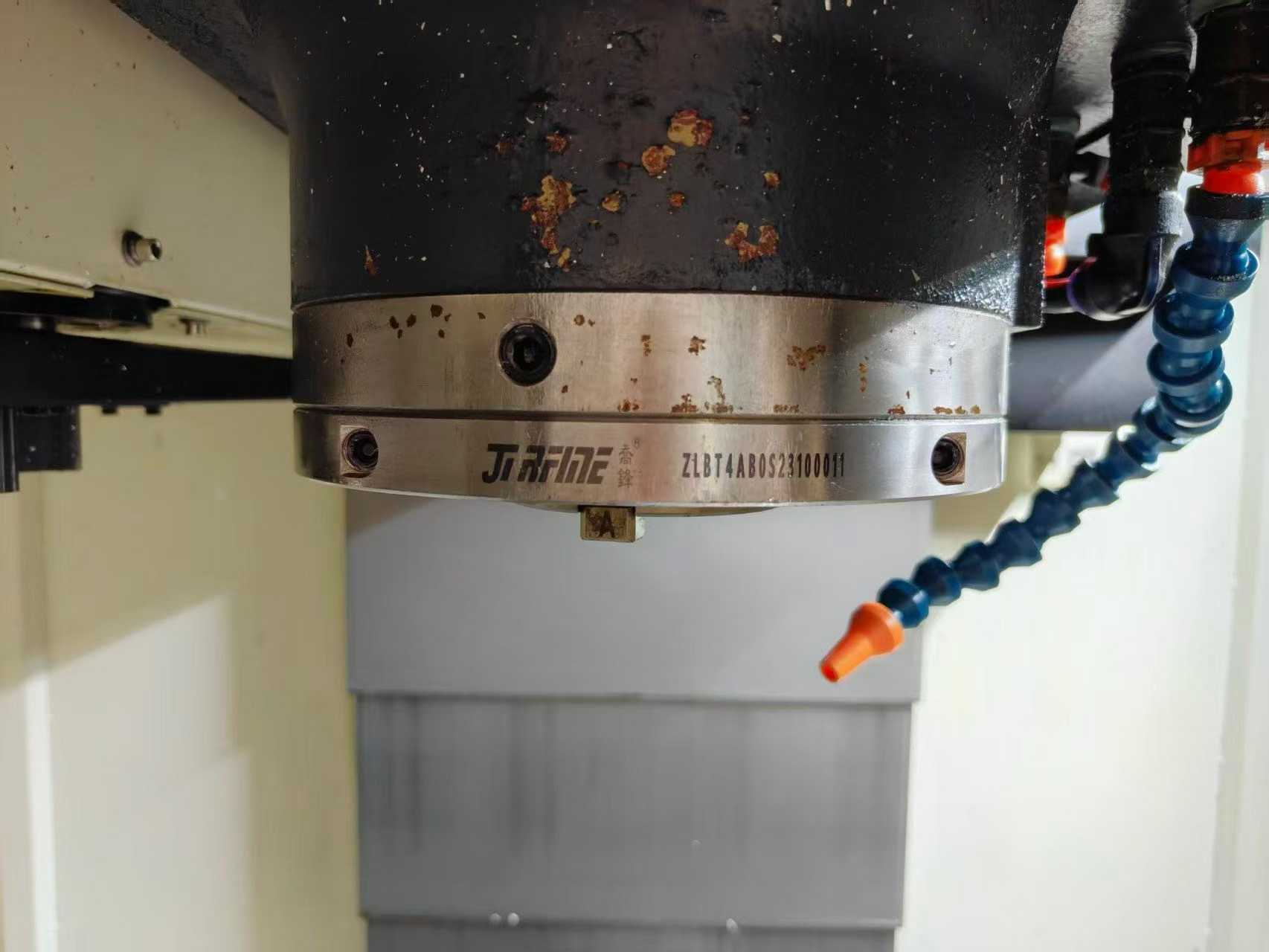

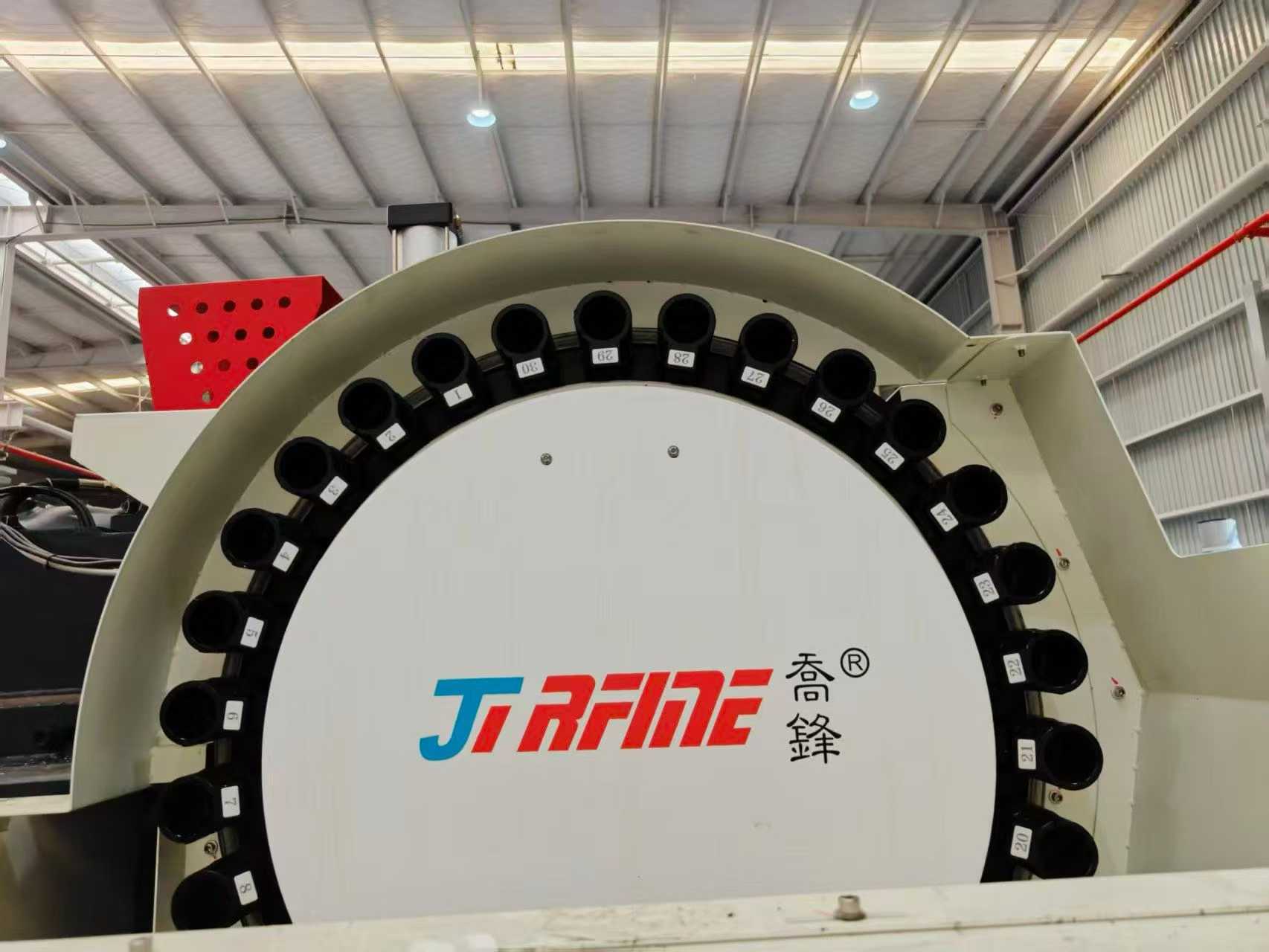

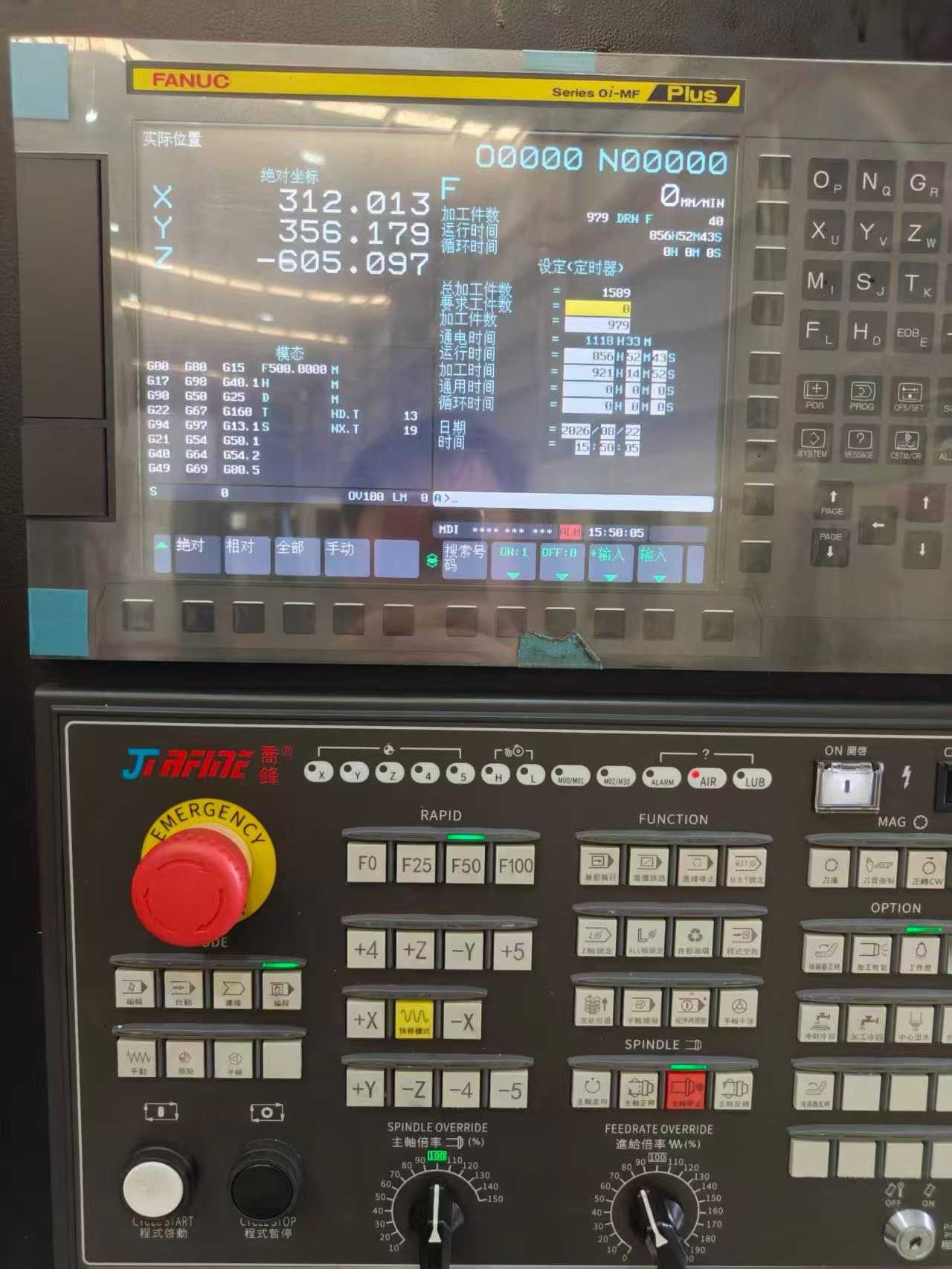

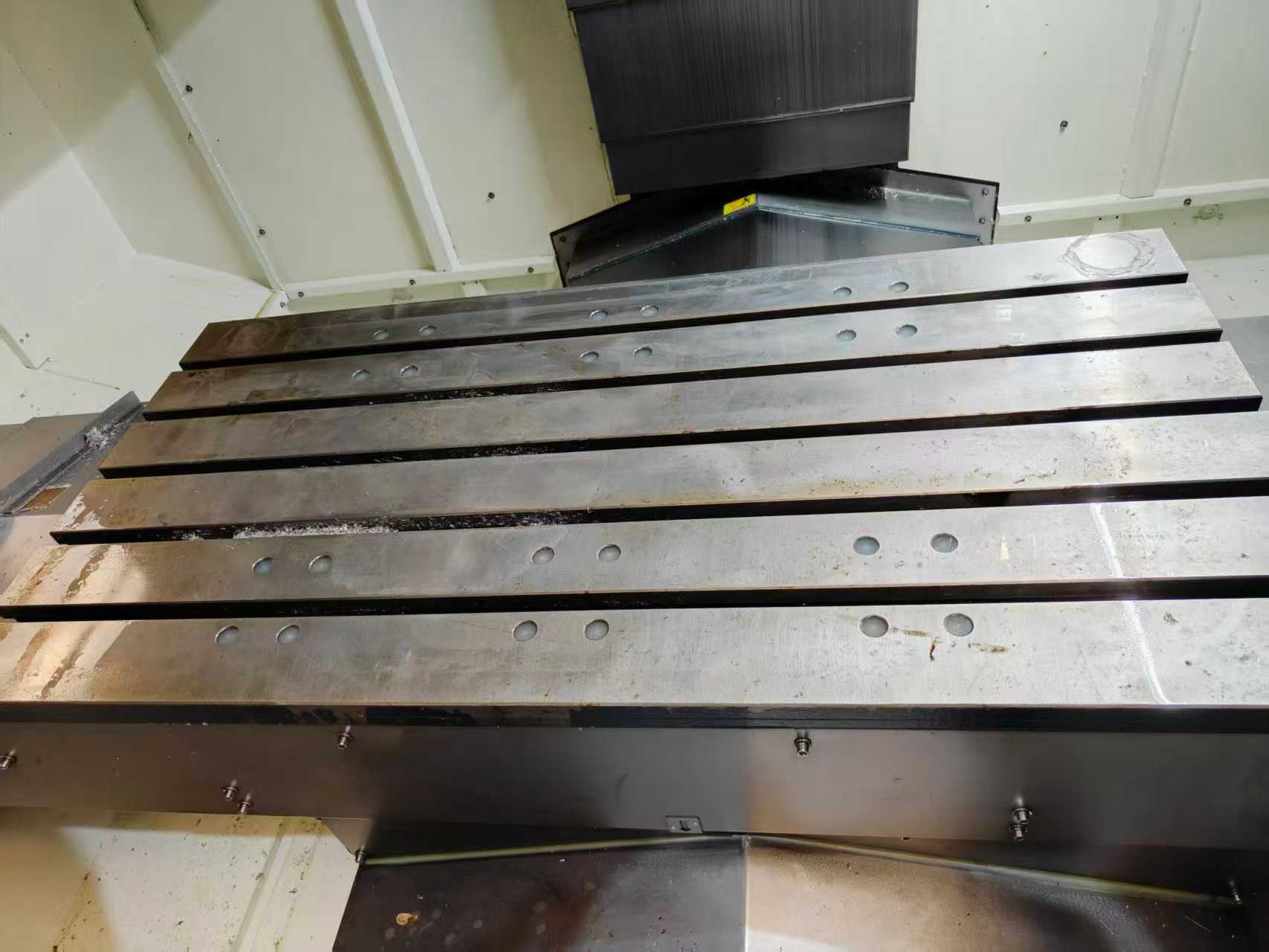

JiRFINE V-11 vertical machining center, manufactured in July 2024, nearly new condition. Equipped with FANUC 0i-MF Plus control system. Three axes on Japanese THK linear guideways with grease lubrication. BT40 short-nose spindle with direct drive, max 12000 rpm. 30-station arm-type automatic tool changer. Worktable size 1200 x 600 mm; X/Y/Z travel 1100/600/600 mm. Equipped with chain-type chip conveyor and Z-axis air counterbalance.
- Machine Code
- MC260948
- Year
- 2024
- Location
- China
- Usage Hours
- On request
Accessories
Chain-type chip conveyor, Z-axis air counterbalance
Main Specifications
| Control system | FANUC 0i-MF Plus |
|---|---|
| Spindle taper | BT40 |
| Spindle speed | 12000 rpm |
| Tool magazine capacity | 30 tools |
| Worktable size | 1200 x 600 mm |
| X-axis travel | 1100 mm |
| Y-axis travel | 600 mm |
| Z-axis travel | 600 mm |
| Brand | JiRFINE |
| Year of manufacture | 2024 |
