AvailableConventional Drilling Machine

Used KAIDELONG ZX 7016 Benchtop Drilling and Milling Machine

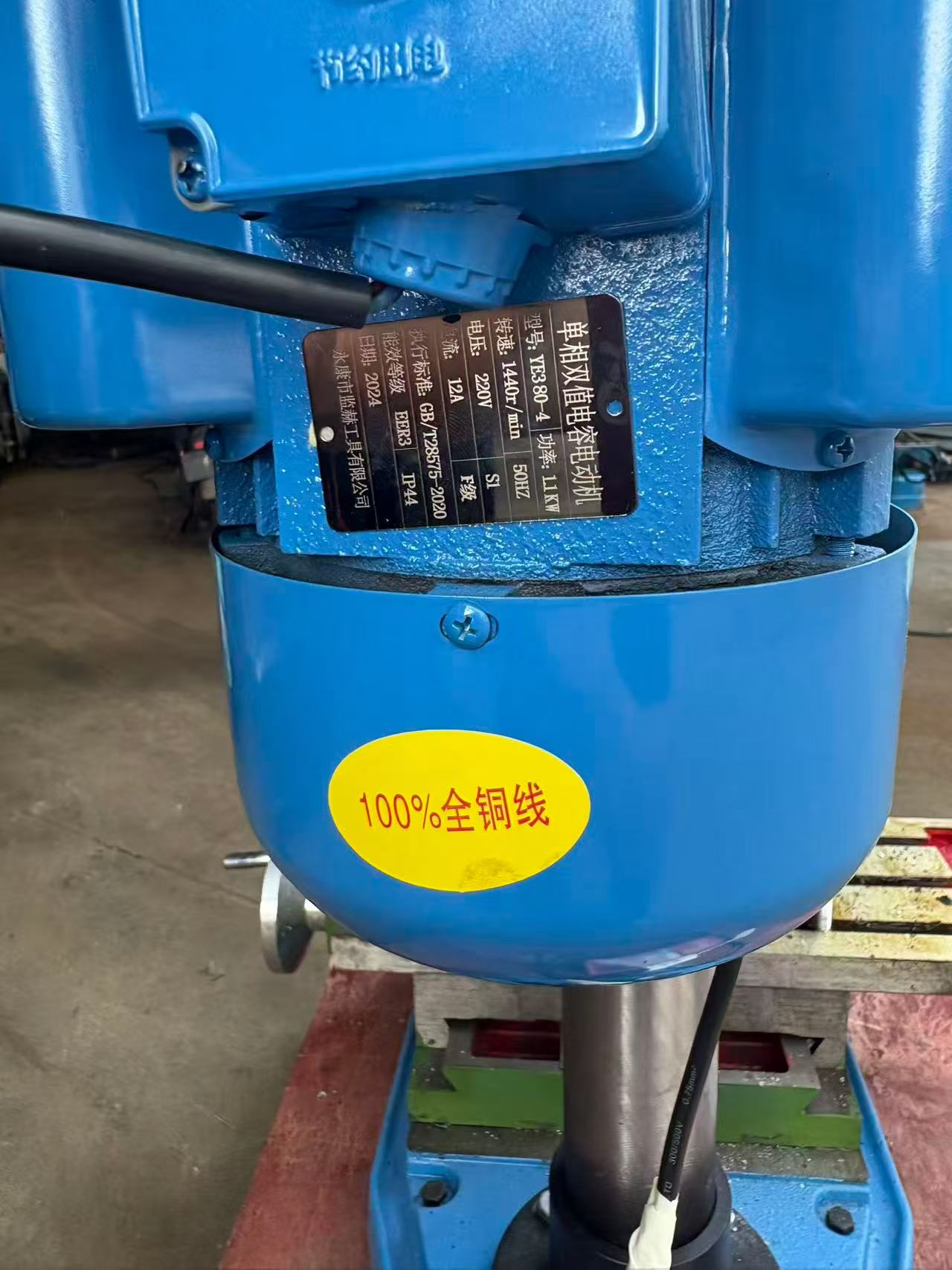

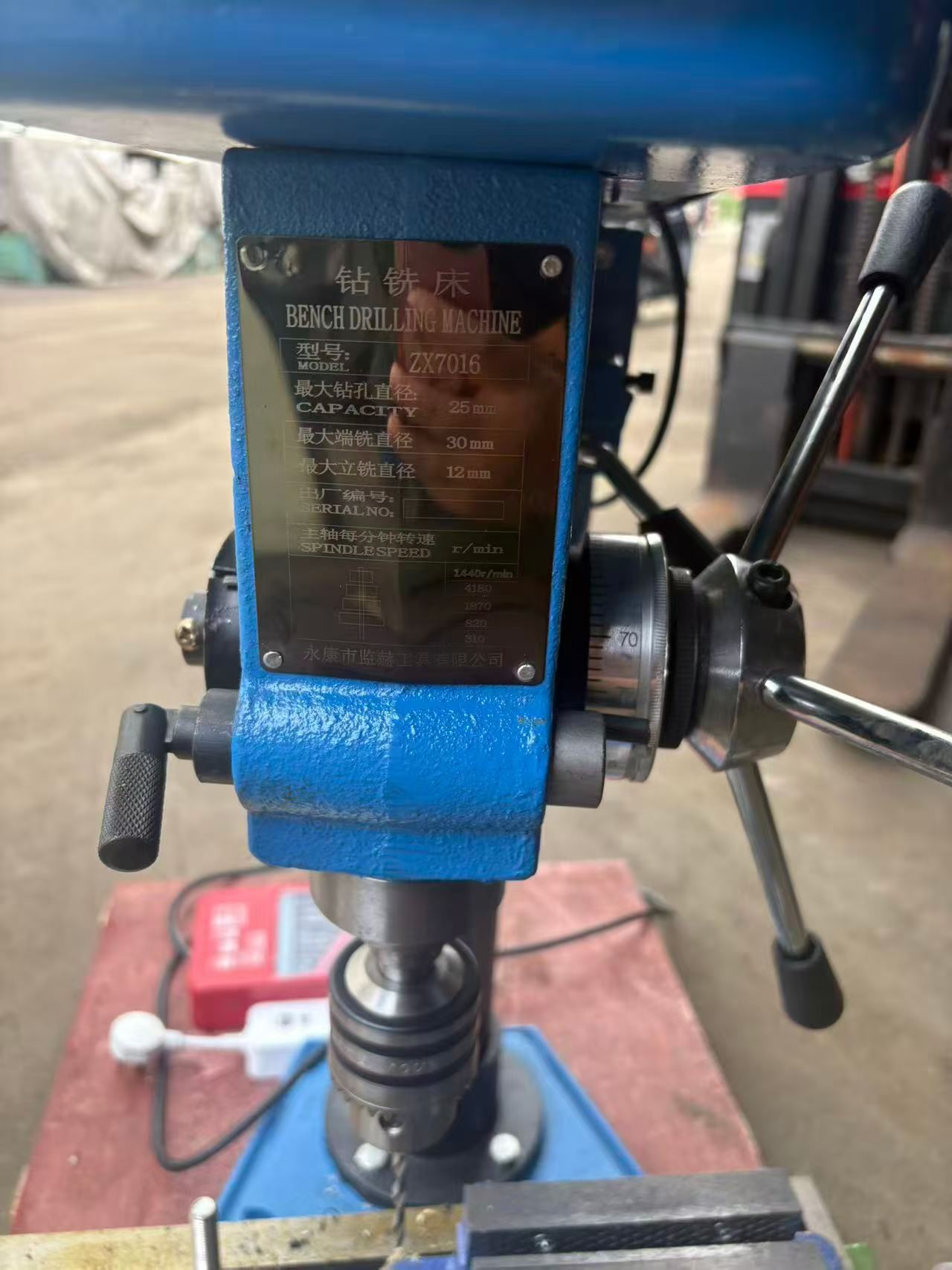

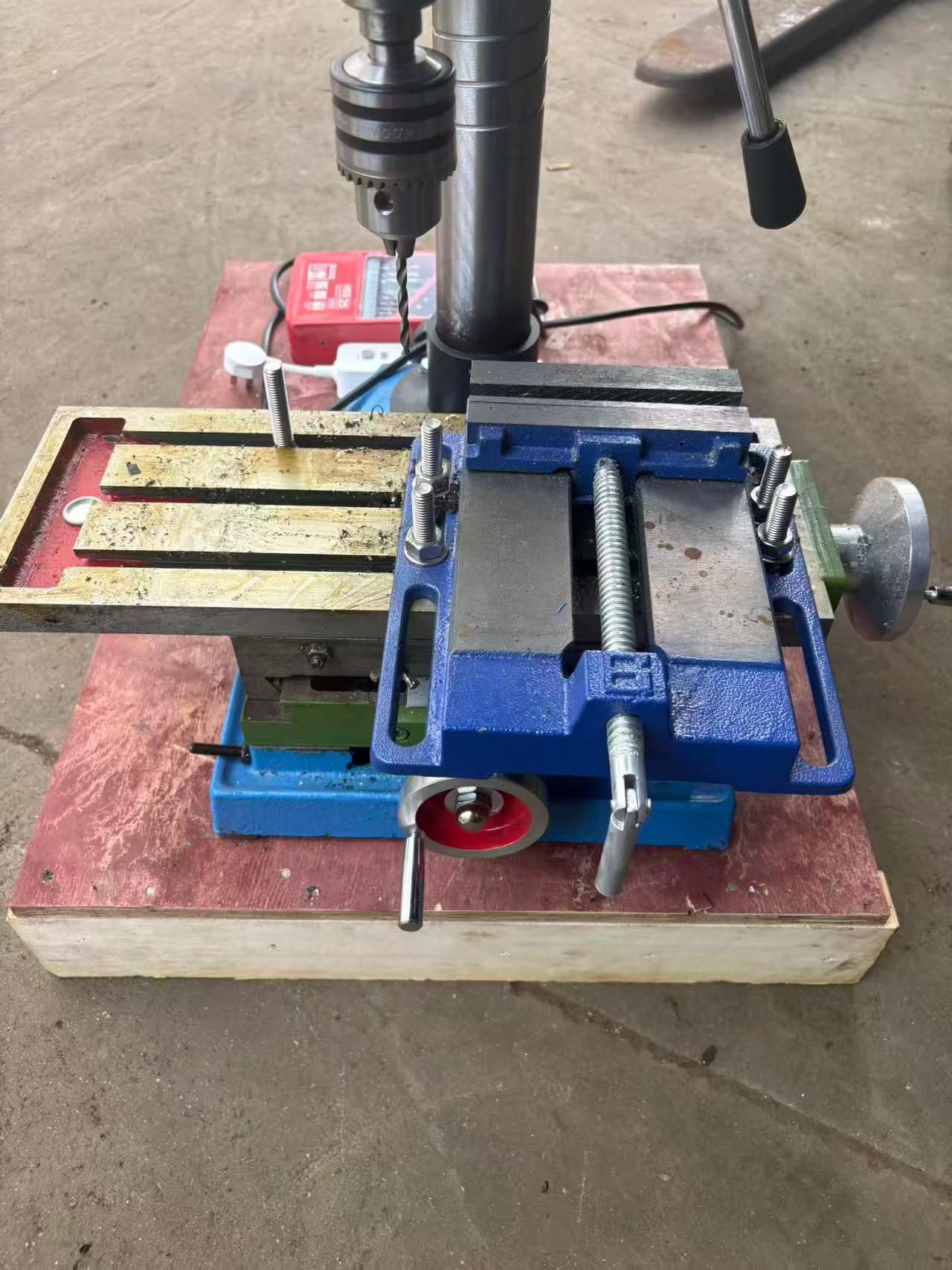

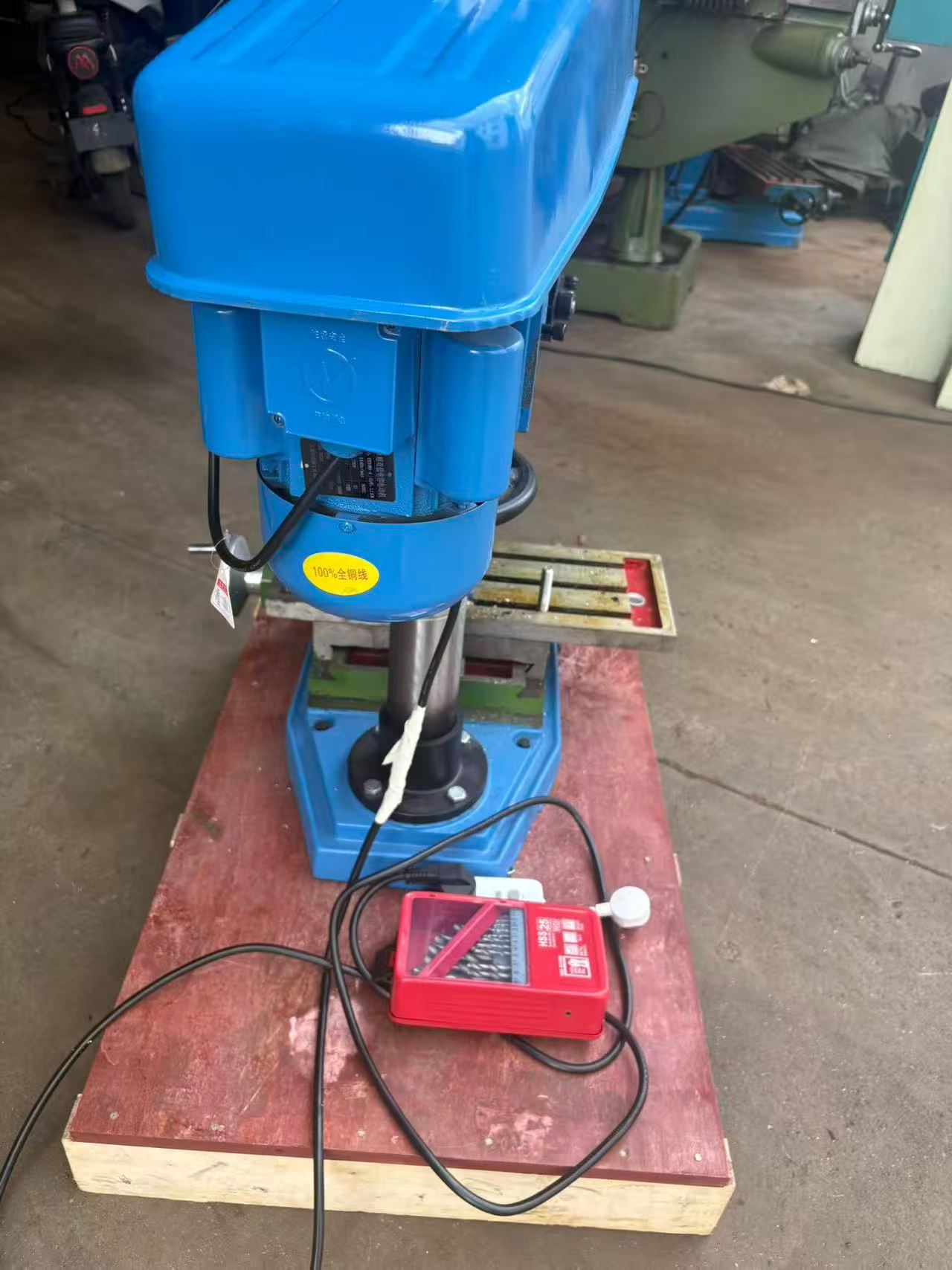

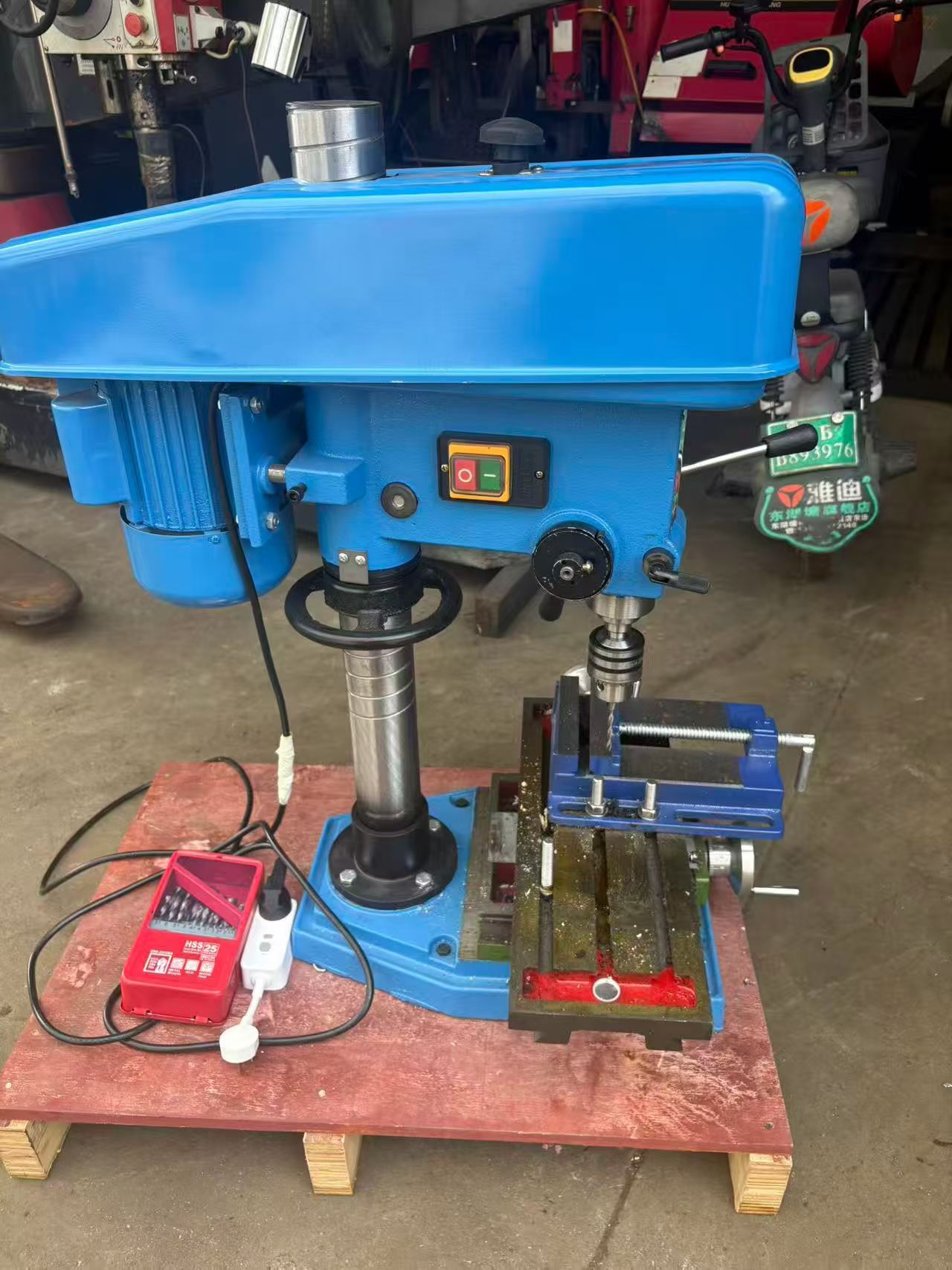

This KAIDELONG ZX 7016 is a compact benchtop drilling and milling machine in nearly new condition, built for toolrooms, maintenance workshops and small-batch production where floor space is limited. The spindle is driven by a 1.1 kW single-phase dual-value capacitor motor wound with 100% copper wire, running on a single-phase power supply. Drilling capacity reaches 25 mm, end milling capacity 30 mm and vertical milling capacity 12 mm, covering general holemaking, slotting and light milling work on small and medium workpieces. The machine is a conventional, manually operated drill-mill with a rigid benchtop column-and-table structure and no CNC control system, which keeps setup simple and maintenance straightforward.

Machine Code: CD260912
Year: 2024
Location: China
Usage Hours: On request

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Model	ZX 7016
Machine type	Benchtop drilling and milling machine
Maximum drilling diameter	25 mm
Maximum end milling diameter	30 mm
Maximum vertical milling diameter	12 mm
Motor	1.1 kW single-phase dual-value capacitor motor
Motor windings	100% copper
Power supply	Single-phase
Brand	KAIDELONG
