AvailableGrinding Machine

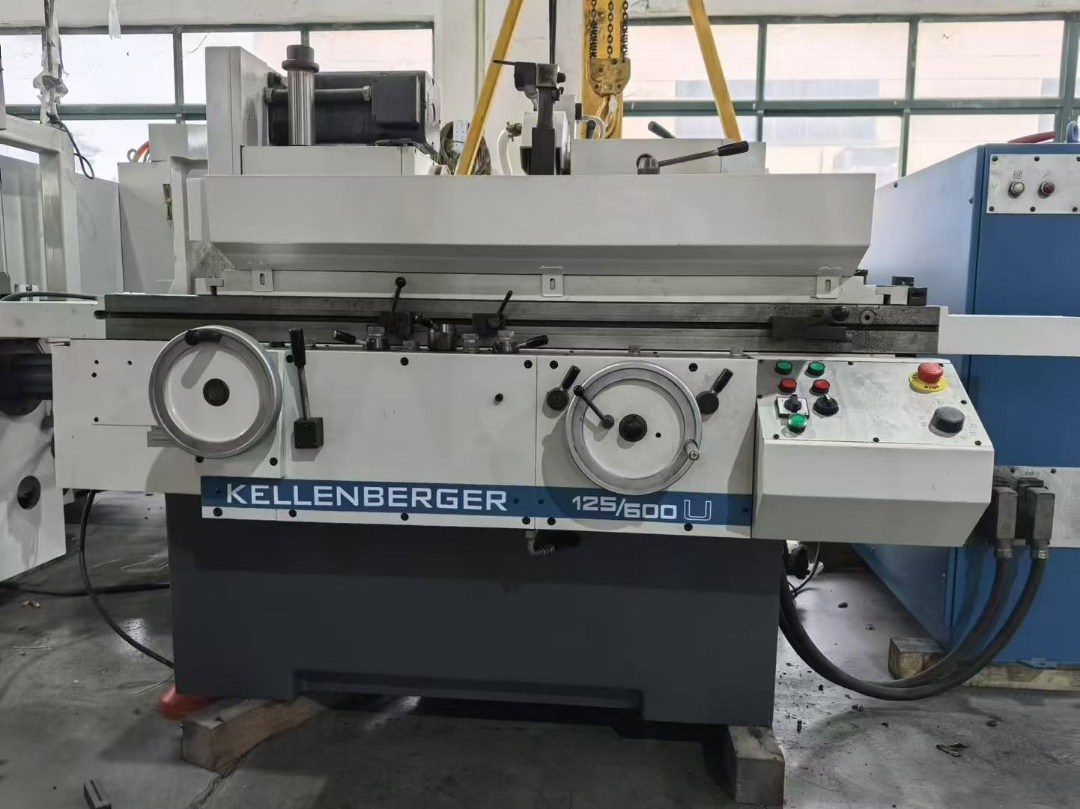

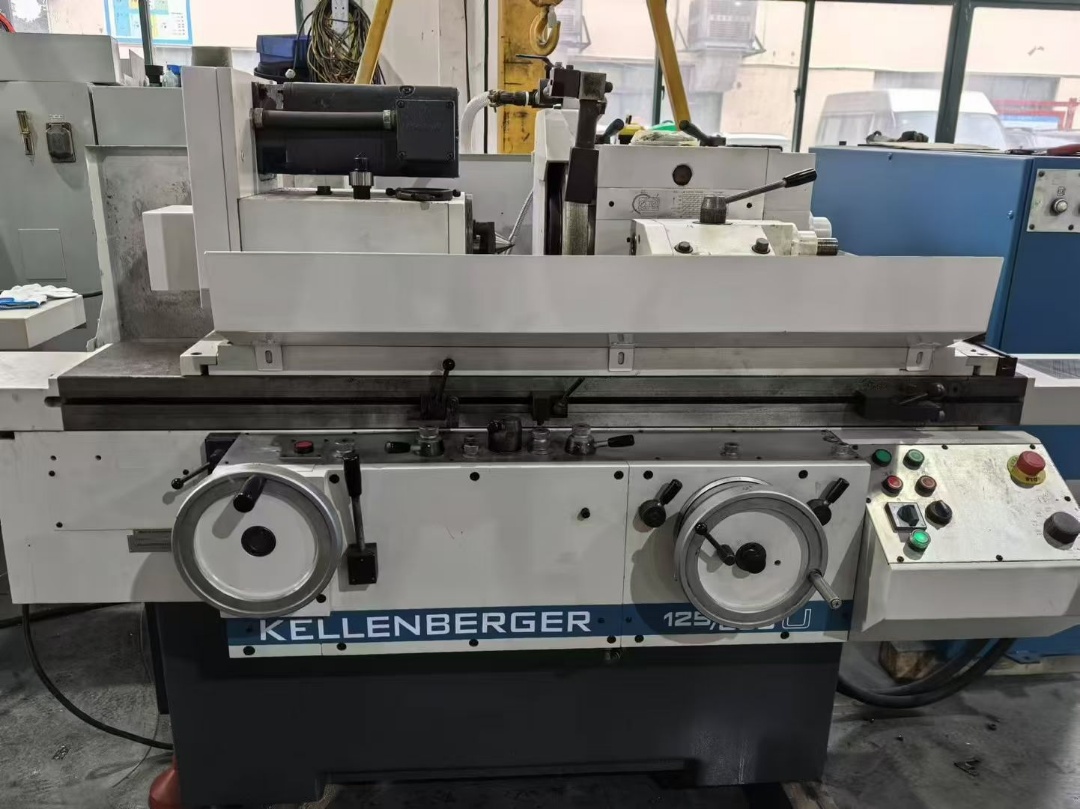

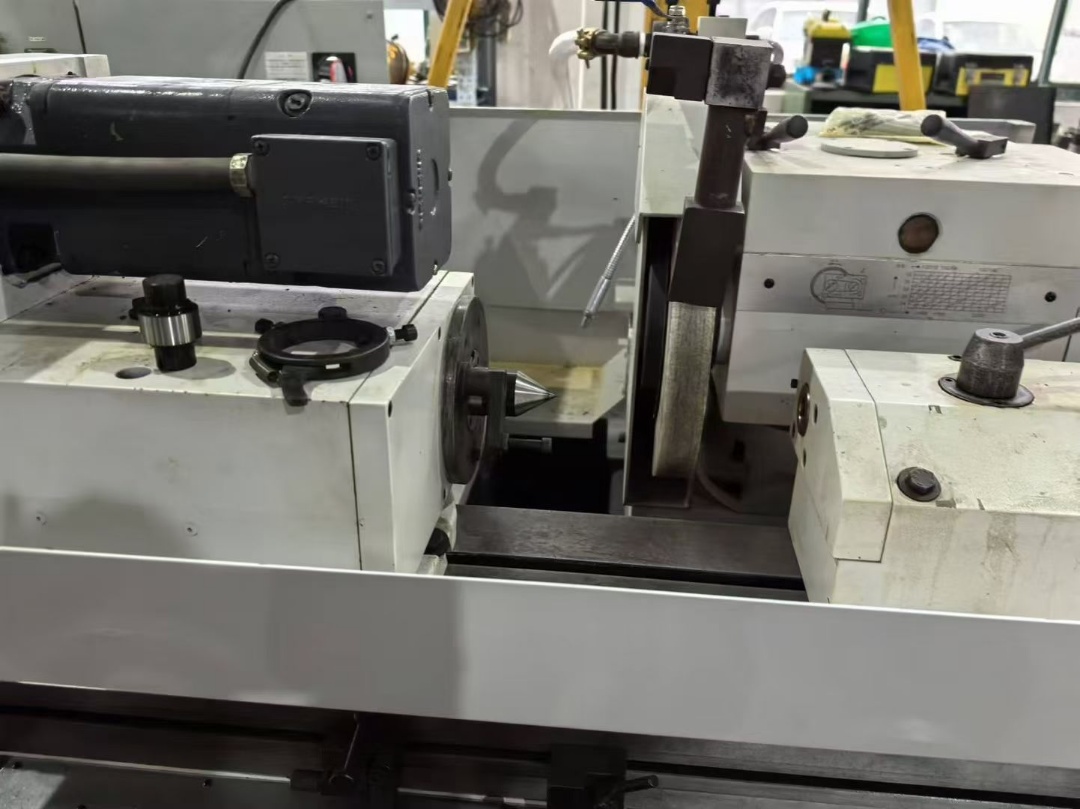

Used Kellenberger 600 U Universal Grinding Machine

Swiss-made Kellenberger 600 U universal grinding machine for internal and external cylindrical grinding. Equipped with swiveling grinding head and headstock, variable spindle speeds, and internal grinding spindle up to 20,000 rpm.

Machine Code
GR260831
Year
2000
Location
China
Usage Hours
On request
Email Inquiry

Main Specifications

Center height125 mm
Worktable travel650 mm
Grinding diameter350 / 500 mm
Grinding length600 mm
Grinding wheel (right)400 x 50 x 127 mm
Grinding wheel (left)300 x 40 x 127 mm
Grinding spindle speed1500 / 1700 / 2200 rpm
Grinding spindle motor power3.7 kW
Headstock spindle speed6 - 600 rpm (stepless)
Headstock spindle taperMorse No. 5
Headstock motor power2.4 kW
Tailstock quill taperMorse No. 3
Worktable inclination10°
Swiveling grinding head+5° / -195°
Swiveling headstock+120° / -30°

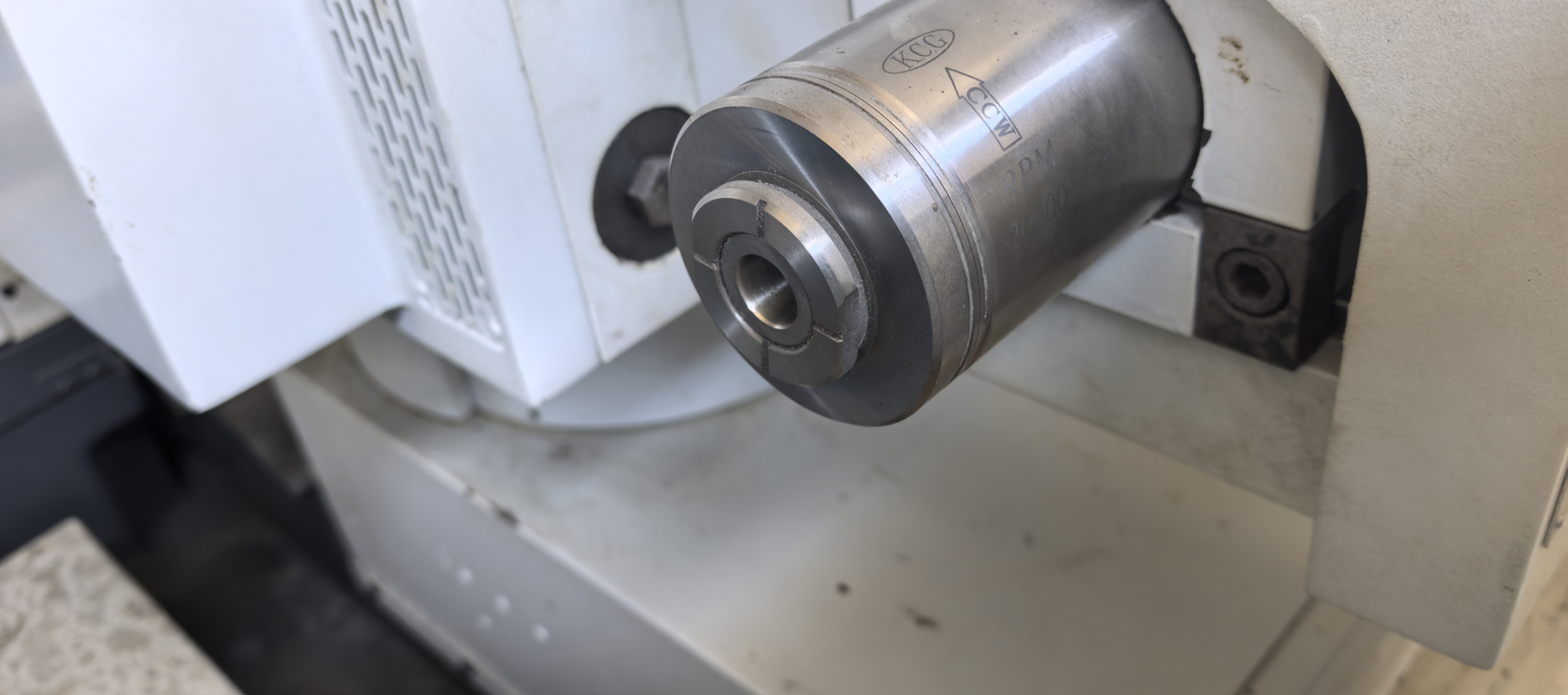

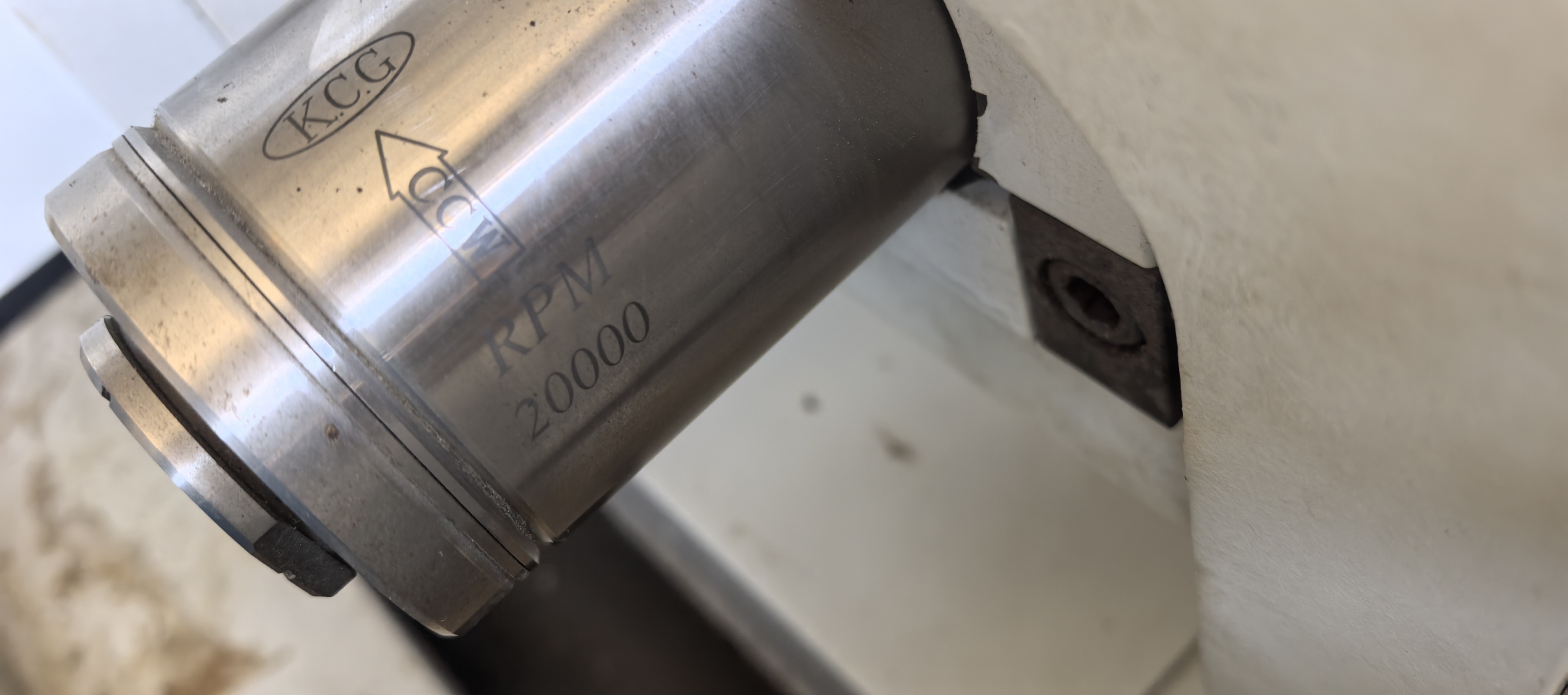

Internal grinding spindle speed20000 rpm
Machine dimensions3210 x 2100 mm
Machine weight2250 / 3300 kg
Max workpiece weight130 kg
Total installed power6.5 kW
Machine TypeUniversal Internal/External Cylindrical Grinding Machine
BrandKellenberger
Model600 U
Year of manufacture2000
