Used Kent KMV-32 P Gantry Machining Center with FANUC 18 i-MB

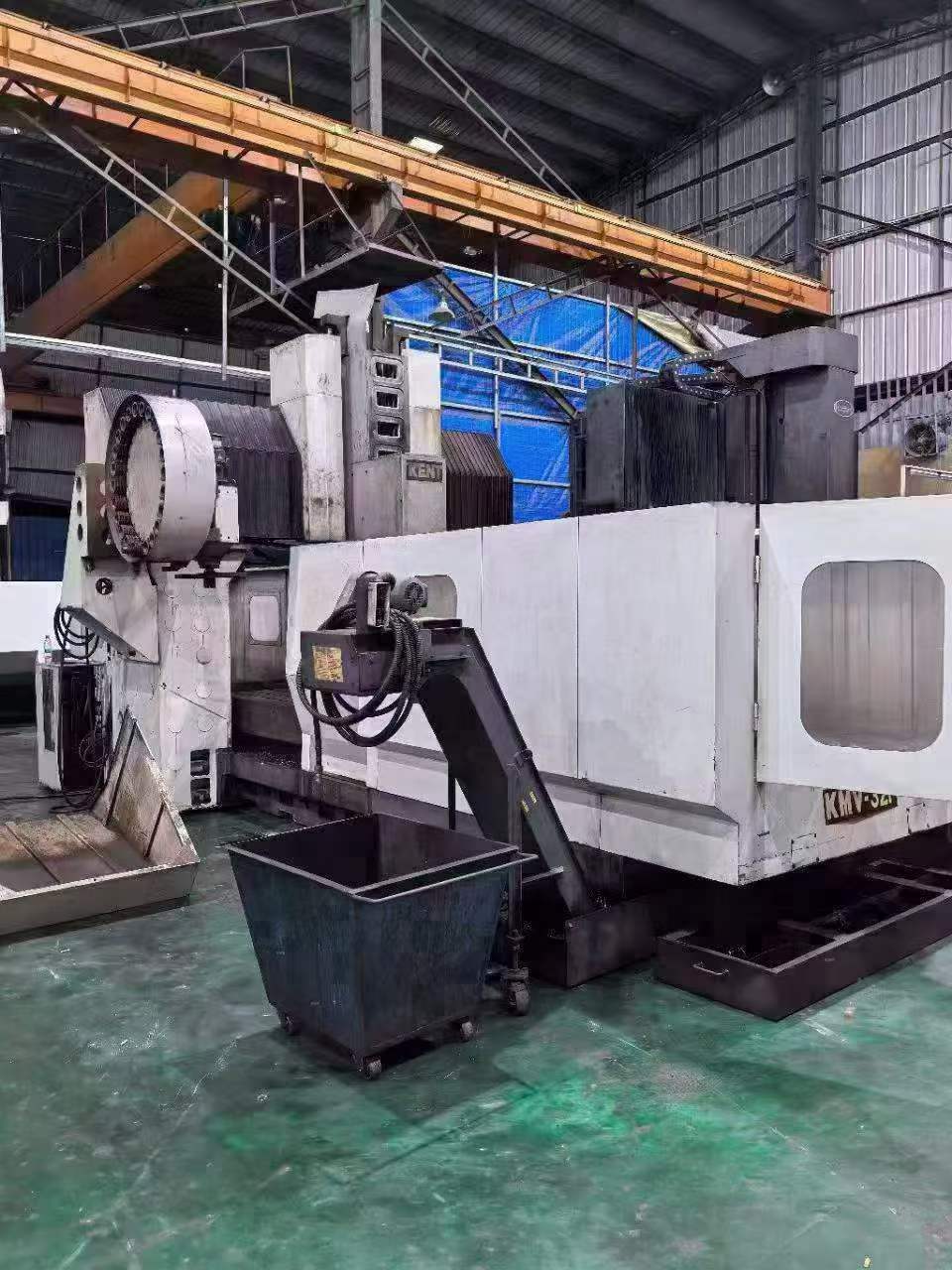

Kent 3-meter gantry machining center, model KMV-32 P, equipped with the FANUC Series 18 i-MB CNC control system. The machine is fitted with a BT50 gear-head spindle and a guideway configuration of two linear guideways and one box guideway. Travels are 3200 x 1900 x 900 mm, and the worktable measures 3200 x 1650 mm with a T-slot structure. Gantry clearance is 1800 mm wide by 1145 mm high, and the spindle nose to worktable distance is 930 mm. A 24-position disc-type tool magazine and a dragon-head chip conveyor are included. The spindle headstock and column are KENT branded.

Machine Code: MC260962
Year: 1900
Location: China
Usage Hours: On request

Accessories

24-position disc-type tool magazine Dragon-head chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Travel (X/Y/Z)	3200 x 1900 x 900 mm

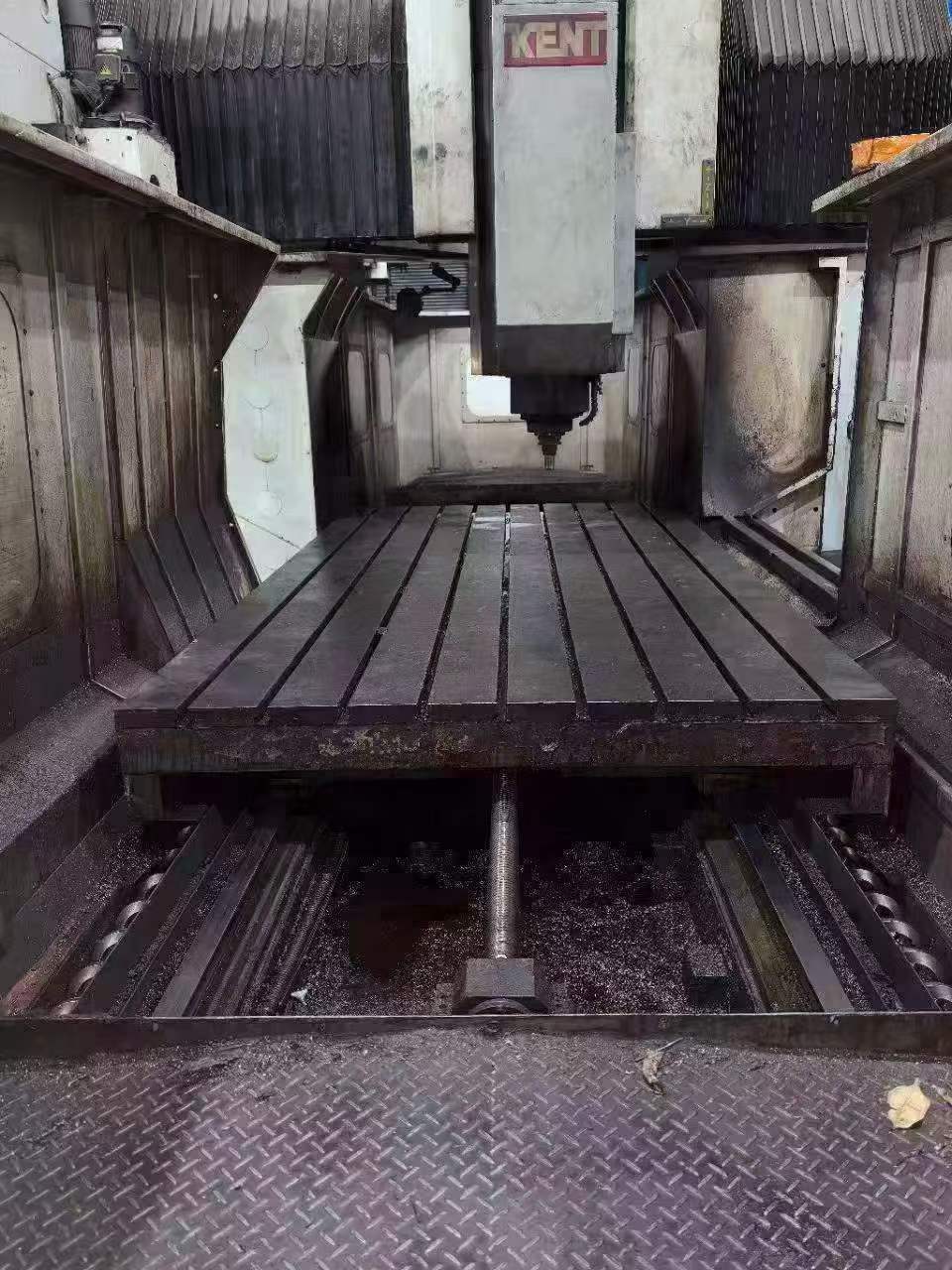

Worktable size	3200 x 1650 mm
Worktable structure	T-slot
Gantry clearance width	1800 mm
Gantry clearance height	1145 mm
Spindle nose to worktable distance	930 mm

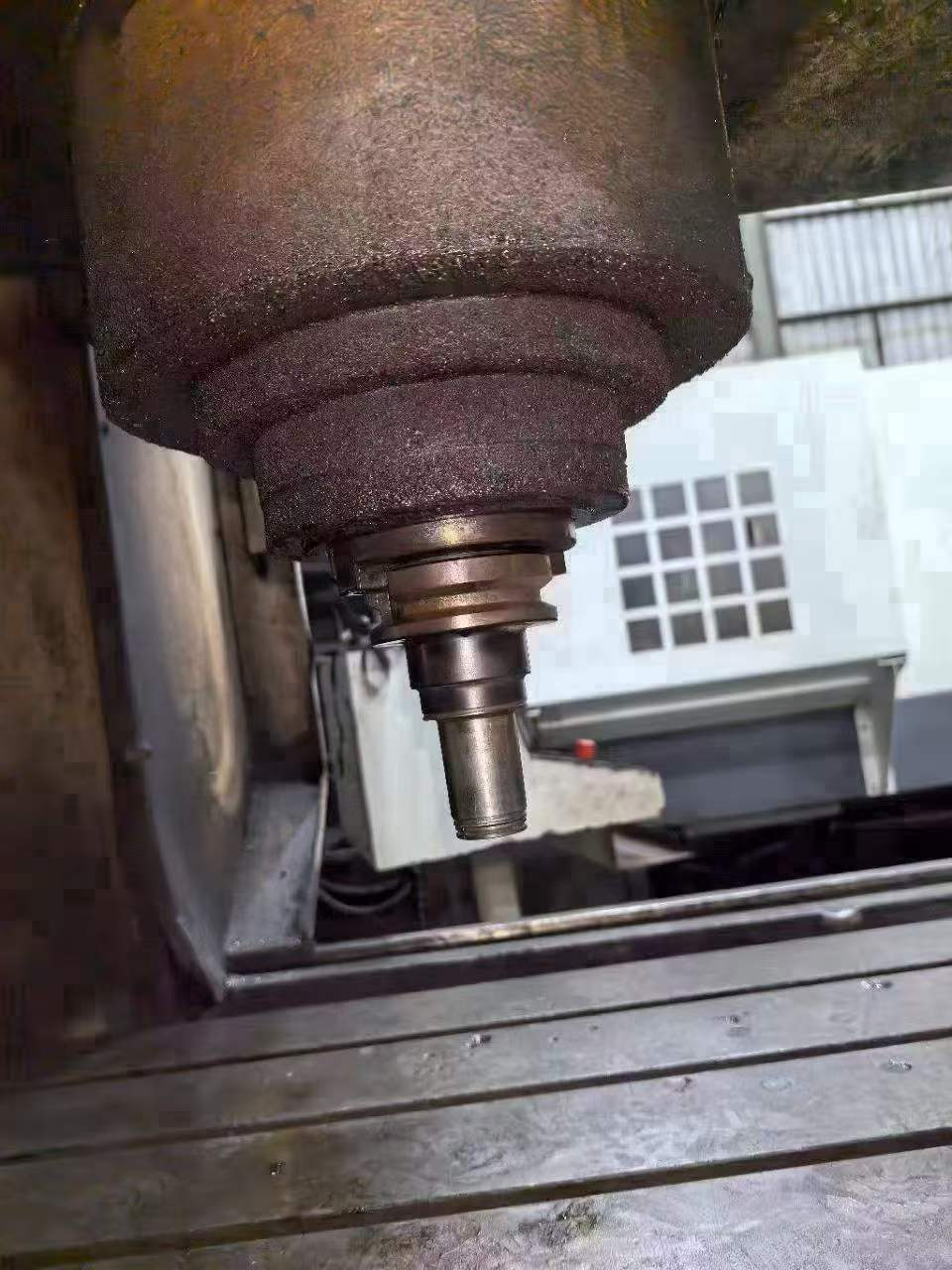

Spindle taper	BT50
Spindle type	Gear head

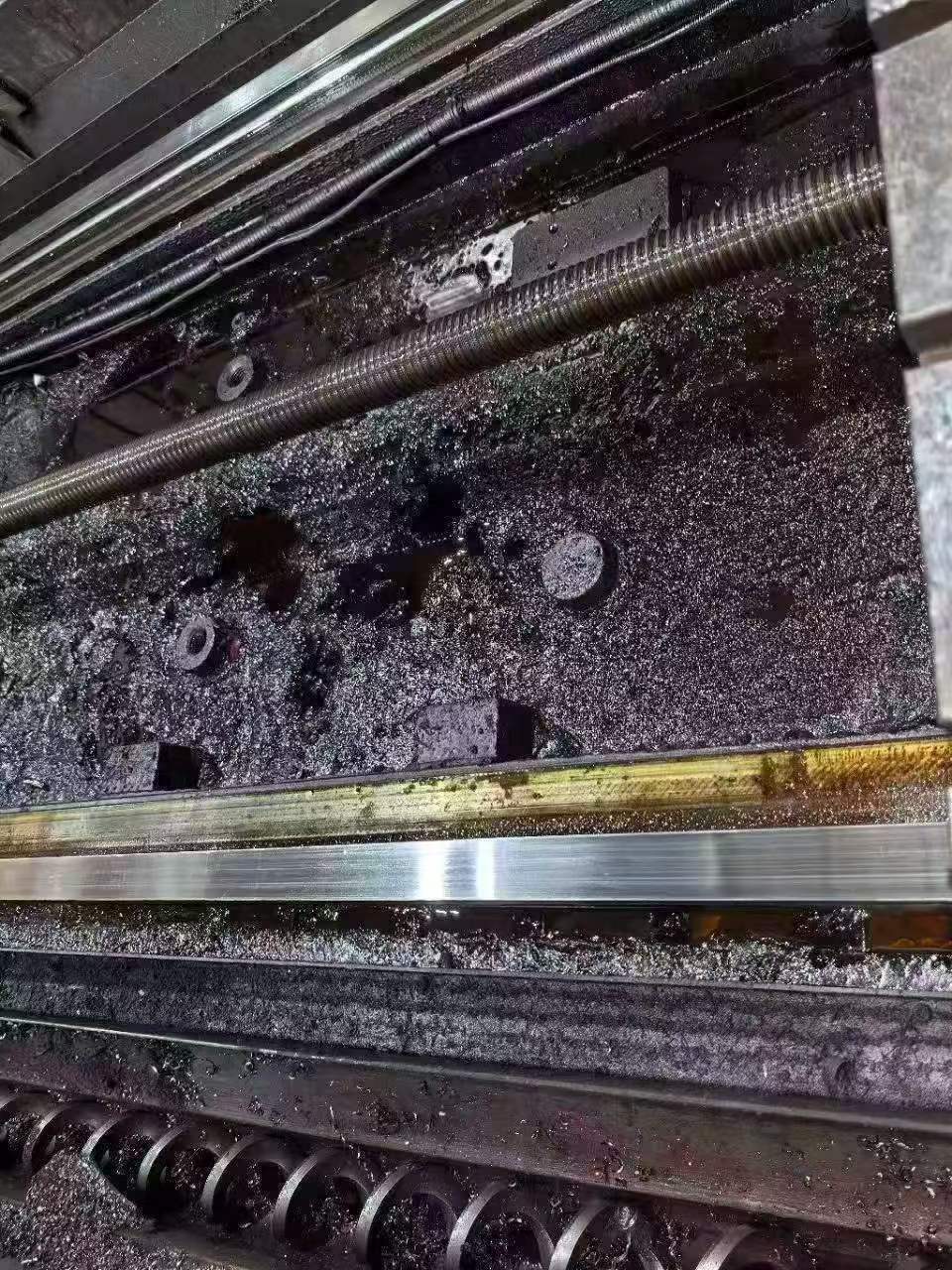

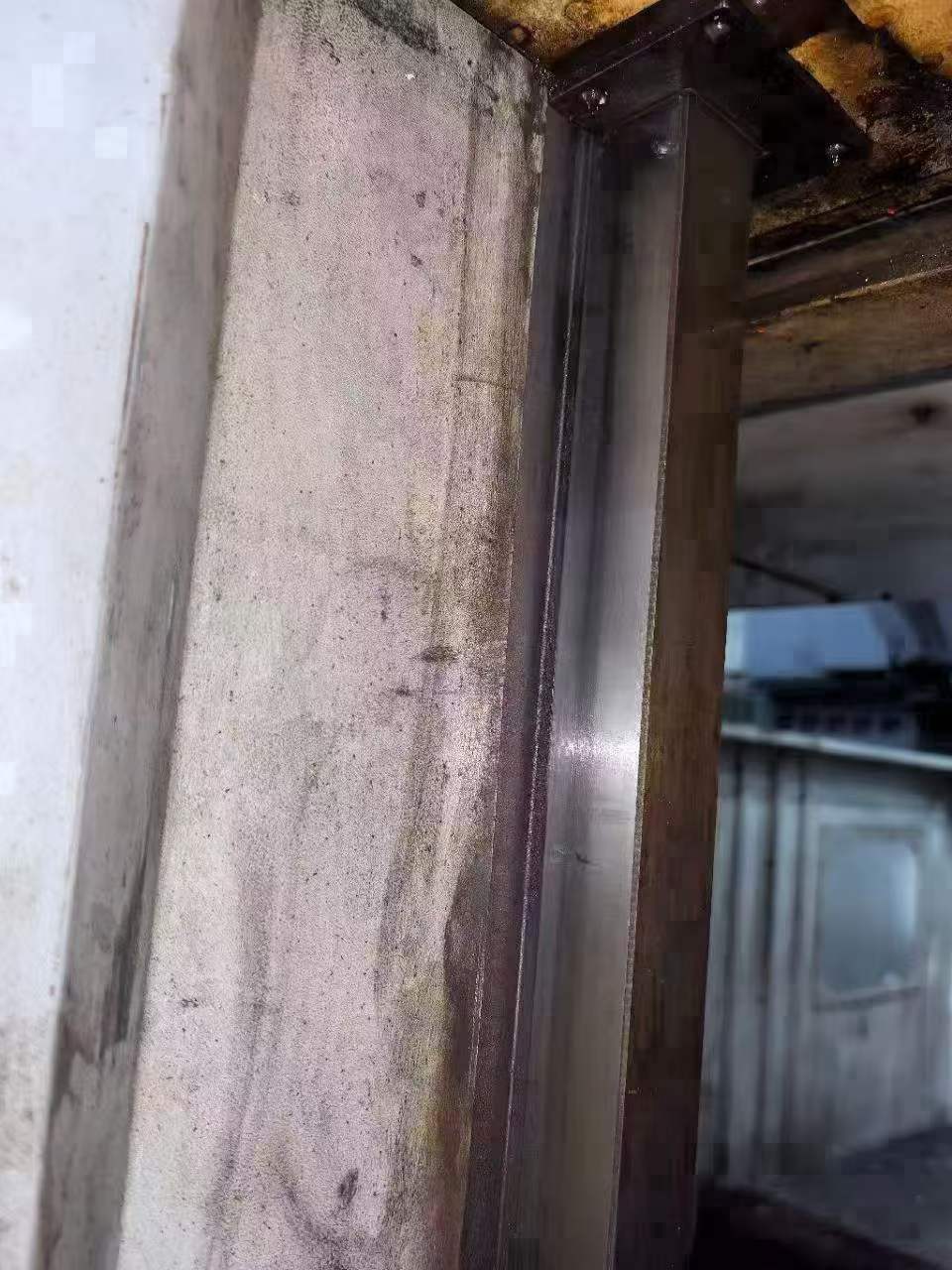

Guideway configuration	Two linear guideways and one box guideway

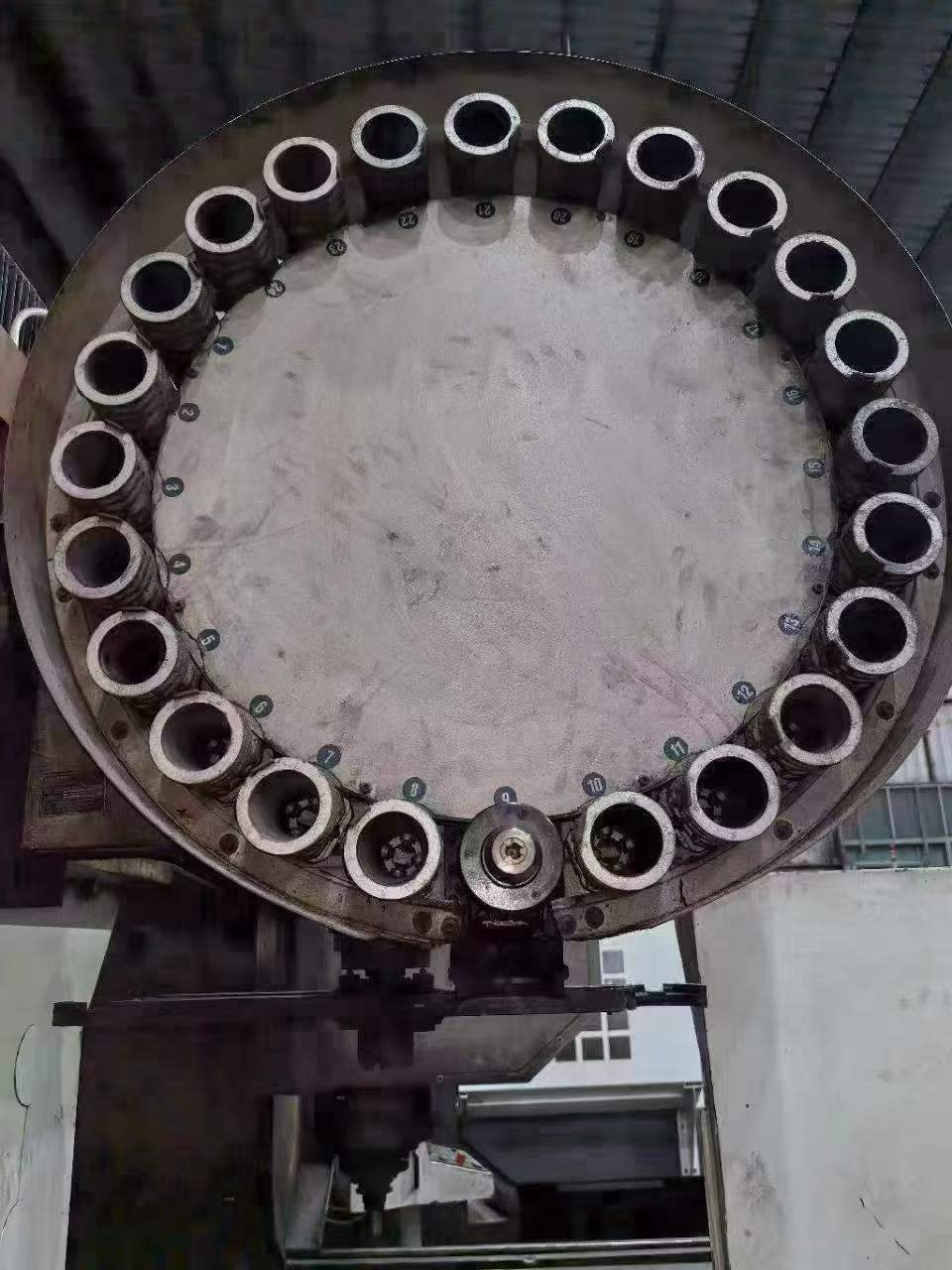

Tool magazine capacity	24 tools
Tool magazine type	Disc type

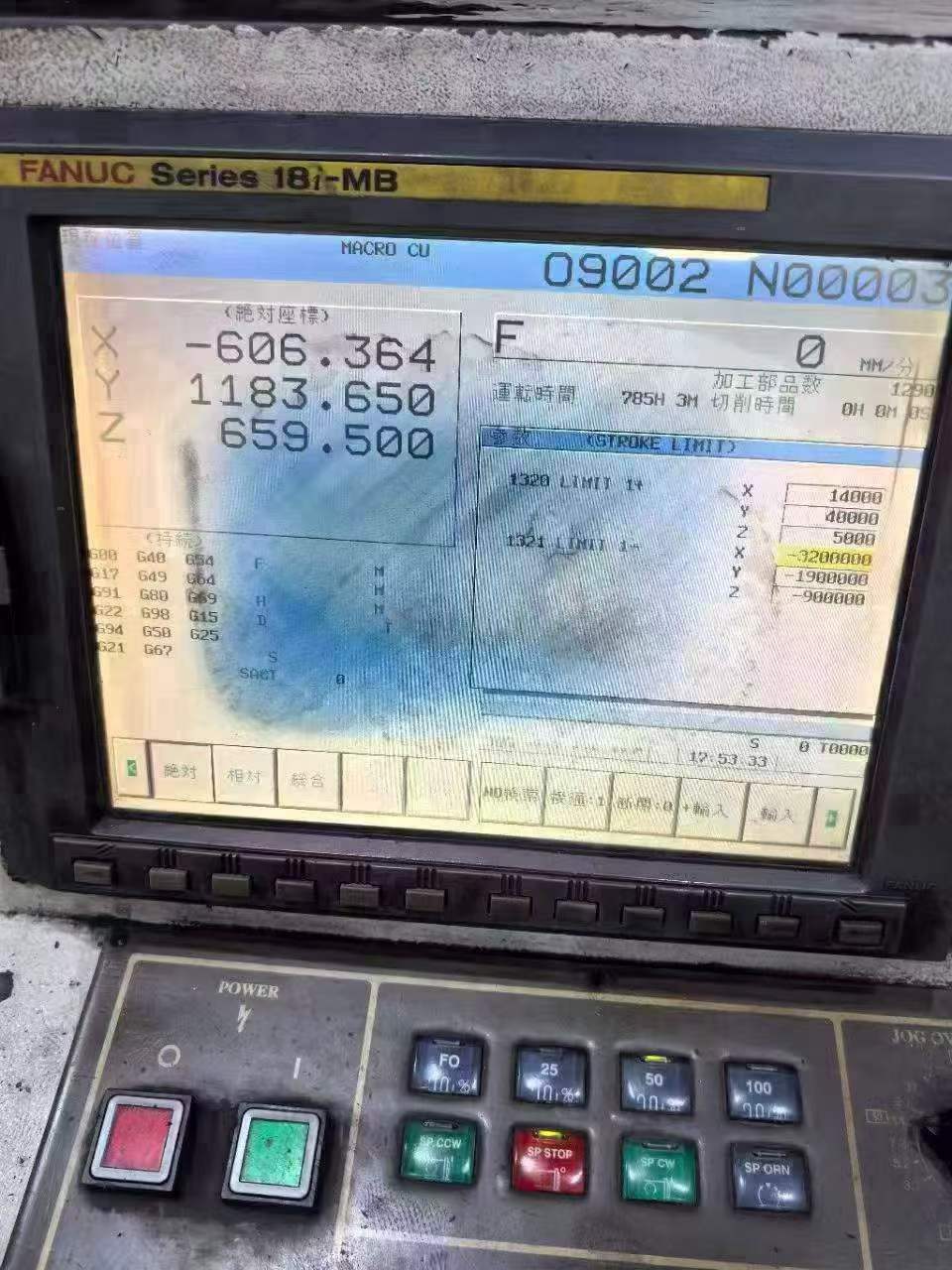

Control system	FANUC Series 18 i-MB
Brand	Kent
Year of manufacture	1900
