AvailableVertical Machining Center

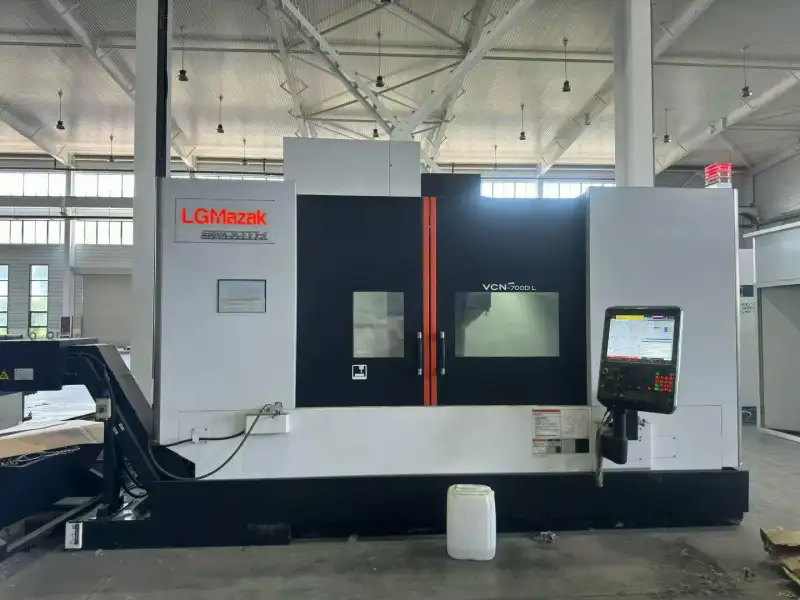

Used Mazak VCN 700 DL Vertical Machining Center (2020)

Used Mazak VCN 700 DL vertical machining center with a 1740 x 700 mm worktable and X/Y/Z travels of 1530 x 700 x 650 mm. It is equipped with a BT50 spindle rated at 8000 rpm and a 24-position mechanical-arm tool magazine. Manufactured in 2020 by Ningxia Little Giant Machine Tool Co., Ltd., this unit carries serial number 313952 and weighs 11,500 kg. The electrical control cabinet is rated at 68.3 kVA. It has seen only a few hundred hours of use.

Machine Code: VMC2610214
Year: 2020
Location: China
Usage Hours: On request

Accessories

24-position mechanical-arm tool magazine.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

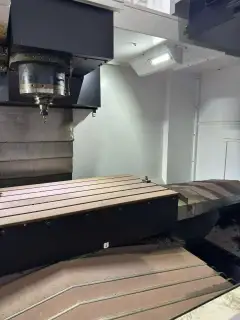

Worktable size	1740 x 700 mm
X/Y/Z travel	1530 x 700 x 650 mm
Spindle taper	BT50
Spindle speed	8000 rpm
Tool magazine capacity	24 tools
Machine weight	11500 kg
Manufacturing date	2020.06
Serial number	313952
Electrical control cabinet rated capacity	68.3 kVA
Working hours	A few hundred hours
Brand	Mazak
Year of manufacture	2020
