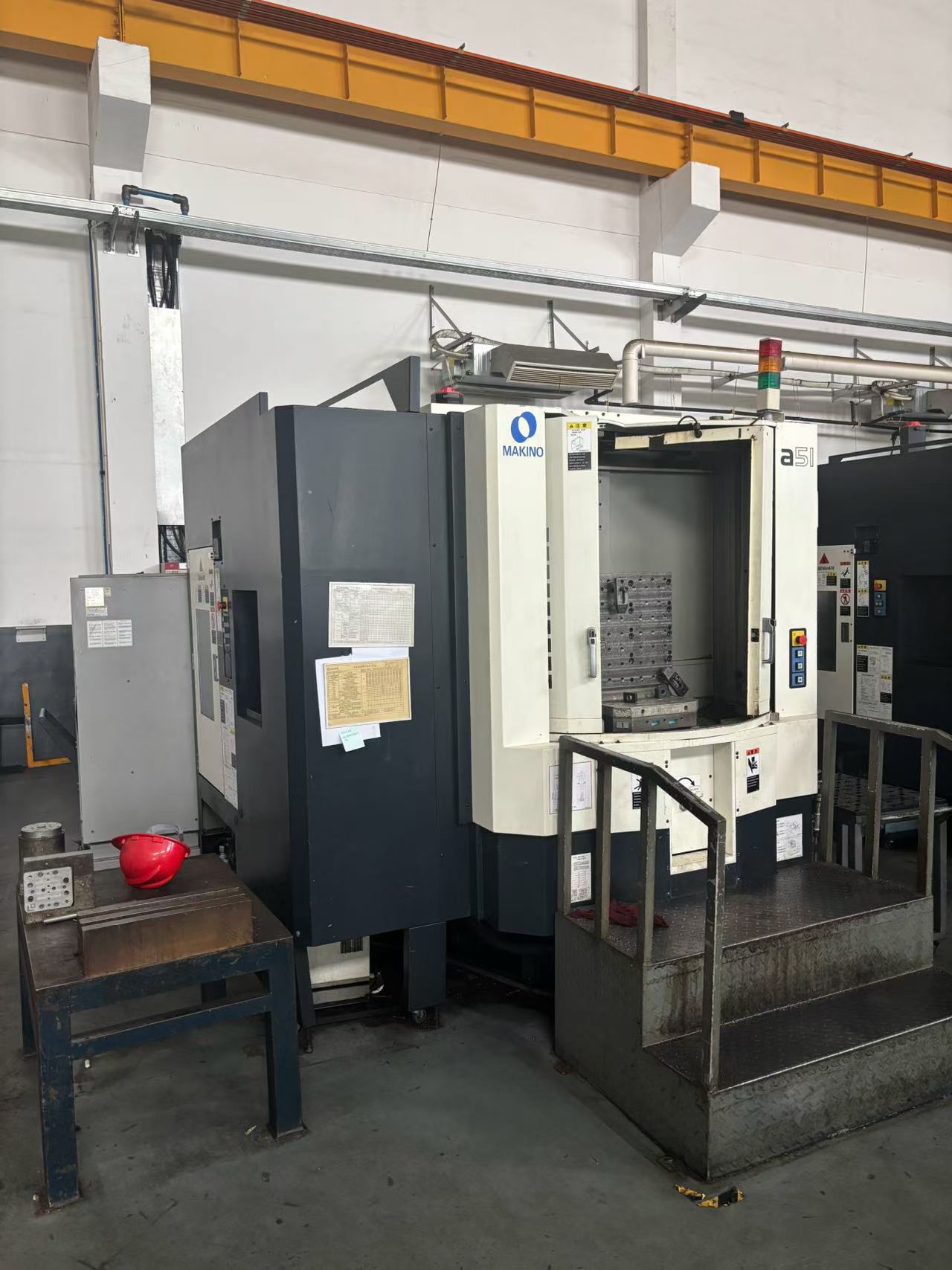

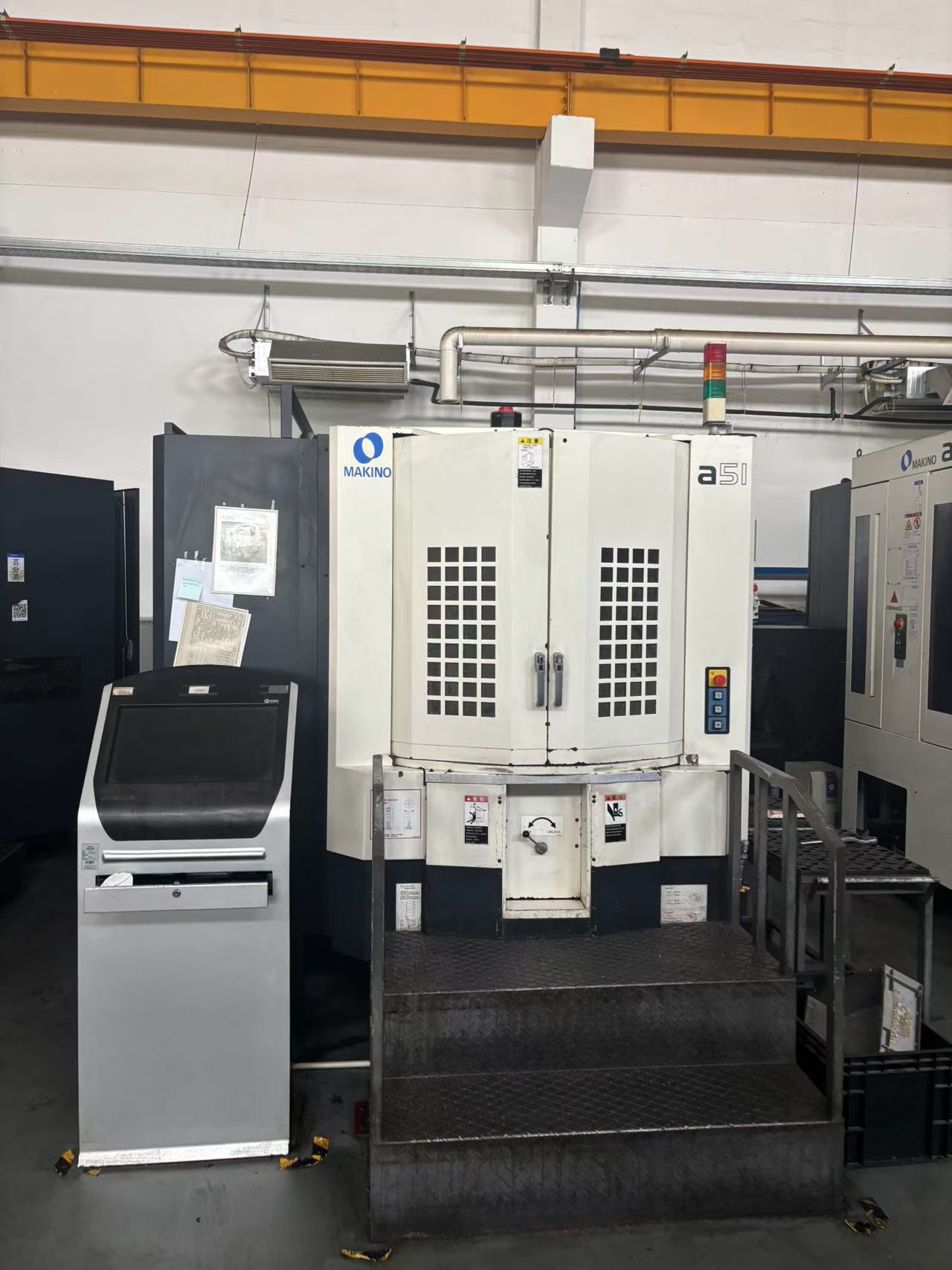

Used Makino A 51 Horizontal Machining Center

Japanese Makino A 51 horizontal machining center with Professional 5 control system. Worktable size 400 x 400 mm, X/Y/Z travel 560 x 560 x 600 mm, and B-axis indexing at 1° / 1'. Spindle taper HSK A 63, speed 50-12000 rpm. Max load 400 kg, rapid traverse 50000 mm/min. Equipped with 60-tool magazine and 7.0 sec worktable exchange time. Features linear scale full closed loop and through-spindle coolant. The above data is for reference only; actual specifications are subject to onsite inspection.

Machine Code: HMC260852
Year: 2000
Location: China
Usage Hours: On request

Accessories

Linear scale full closed loop, through-spindle coolant

Email Inquiry

Main Specifications

Travel (X/Y/Z)	560 x 560 x 600 mm

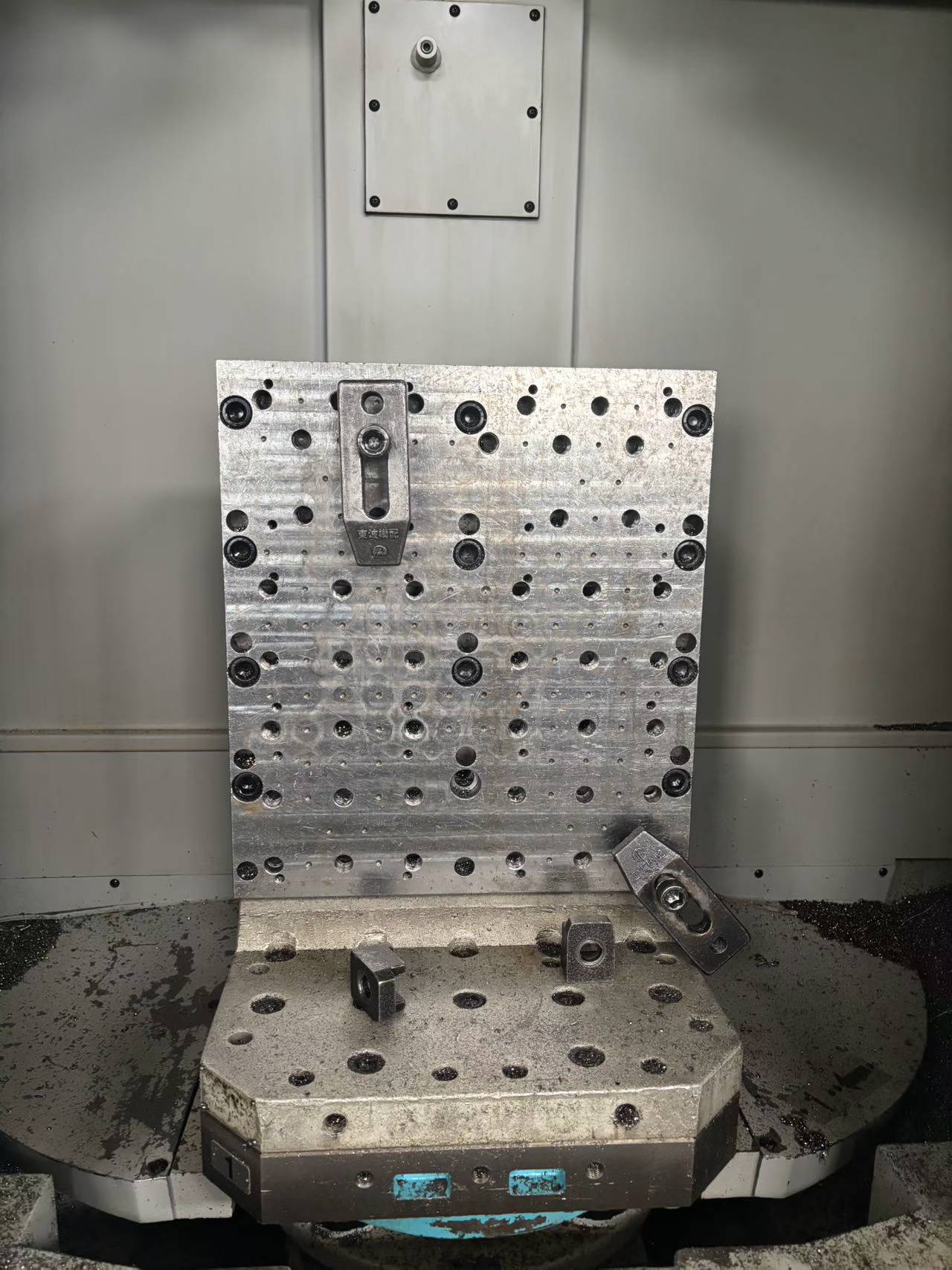

Worktable size	400 x 400 mm

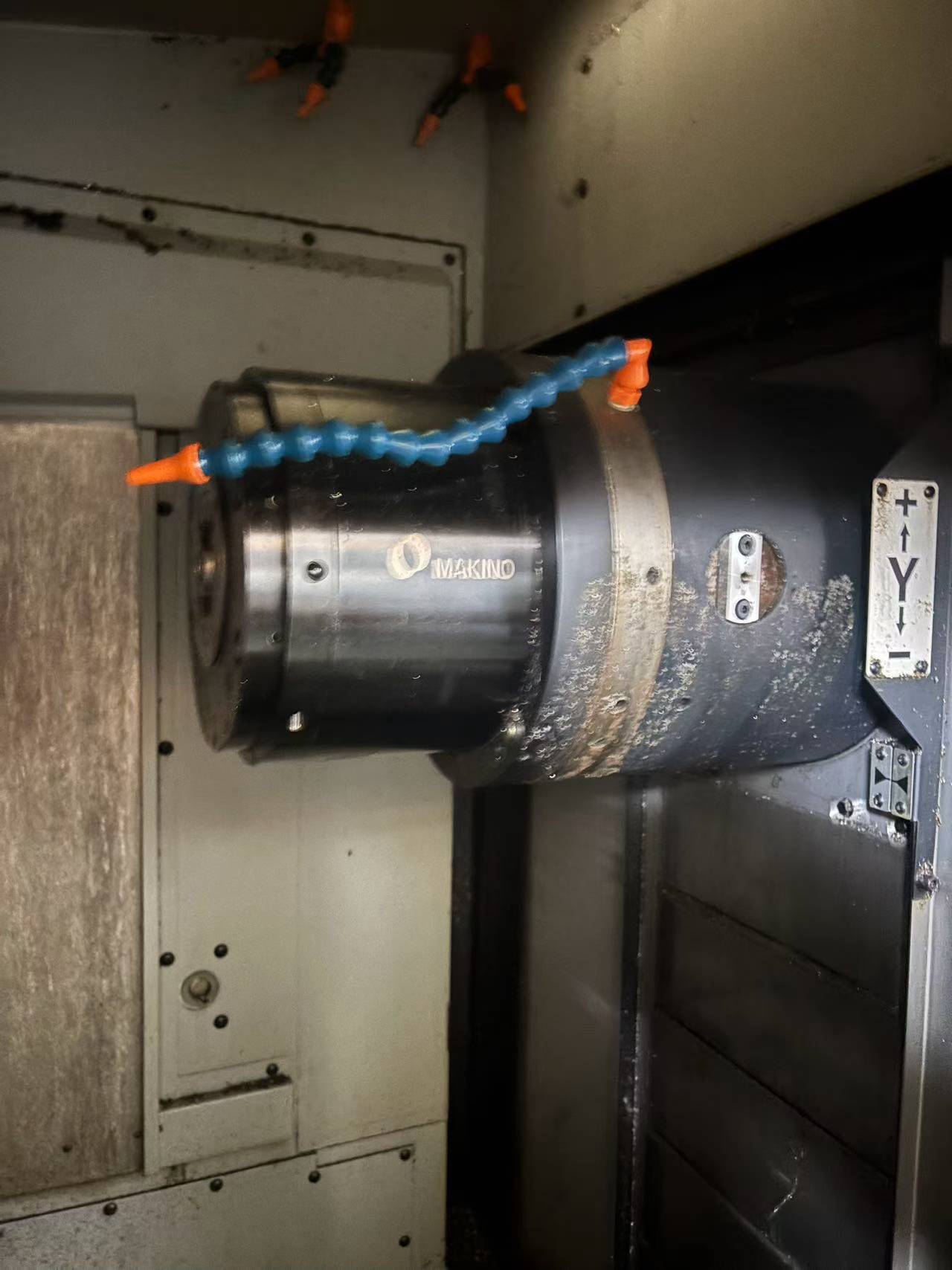

Spindle taper	HSK A 63
Spindle speed	50-12000 rpm
Max table load capacity	400 kg
Rapid traverse rate	50000 mm/min
Tool magazine capacity	60 tools
Worktable exchange time	7.0 sec
B-axis indexing	1° / 1'
Brand	Makino

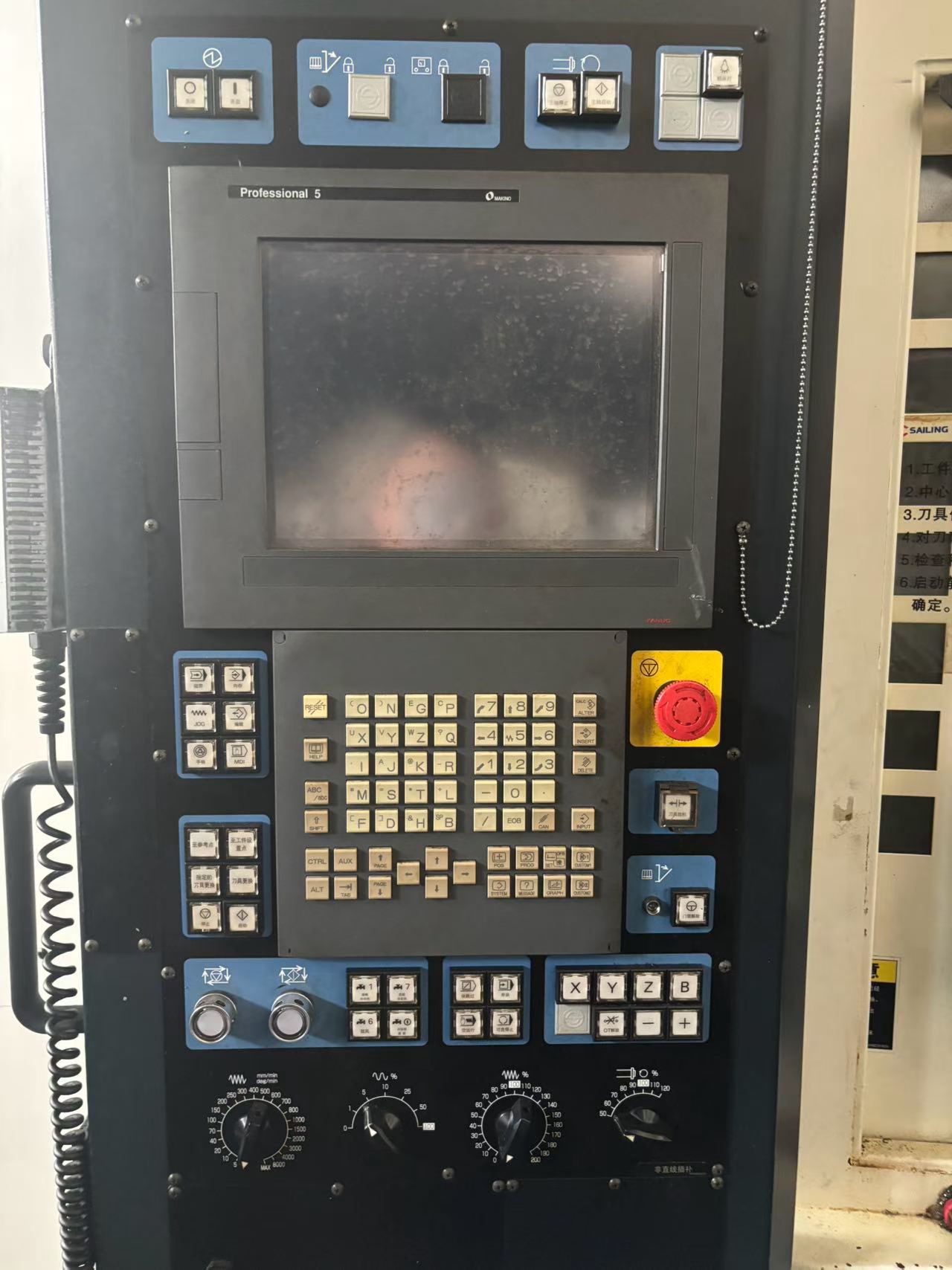

Control system	Makino Professional 5
Year of manufacture	2000
