AvailableMachining Center

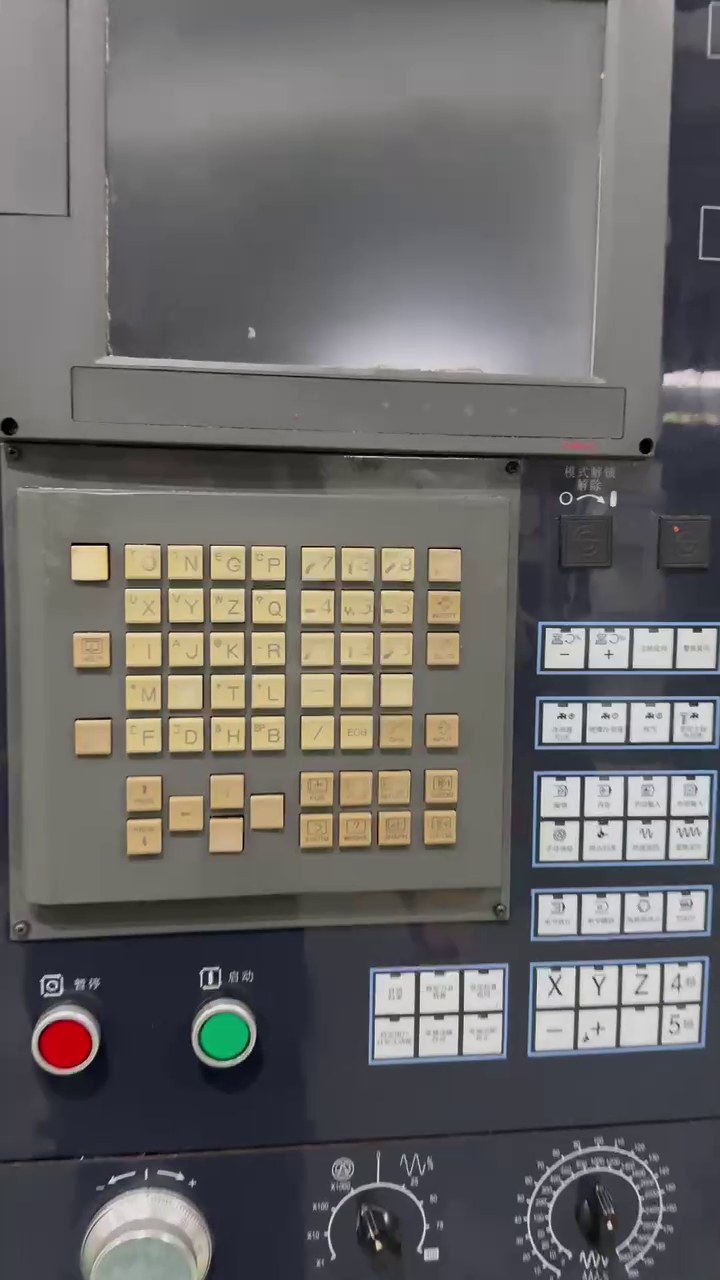

Used Makino PS 95 Vertical Machining Center
Makino PS 95 vertical machining center, built in 2015, with multiple identical high-specification units available. The machine is equipped with the Makino Professional CNC control system. Its HSK spindle reaches a maximum speed of 12,000 rpm with a maximum spindle power of 25 kW, supported by spindle oil cooling and through-spindle coolant. All three axes run on 45-size roller linear guideways for rigidity and heavy-duty cutting. X/Y/Z travels are 920 x 510 x 460 mm. Tool changing is handled by a 30-station arm-type servo tool magazine, and a chip conveyor is fitted for continuous chip removal. Spindle runout is held within 0.01 mm.
- Machine Code
- MC260966
- Year
- 2015
- Location
- China
- Usage Hours
- On request
Accessories
Through-spindle coolant Spindle oil cooler Chip conveyor 30-station arm-type servo tool magazine
Main Specifications
| X/Y/Z travel | 920 x 510 x 460 mm |
|---|---|
| Spindle speed | 12,000 rpm |
| Spindle taper | HSK |
| Maximum spindle power | 25 kW |
| Guideway type | 45 roller linear guideways (X/Y/Z) |
| Tool magazine capacity | 30 tools (arm-type servo ATC) |
| Spindle runout | Within 0.01 mm |
| Year of manufacture | 2015 |
| Brand | Makino |
| Control system | Makino Professional |
Related inventory
More Machining Center machines

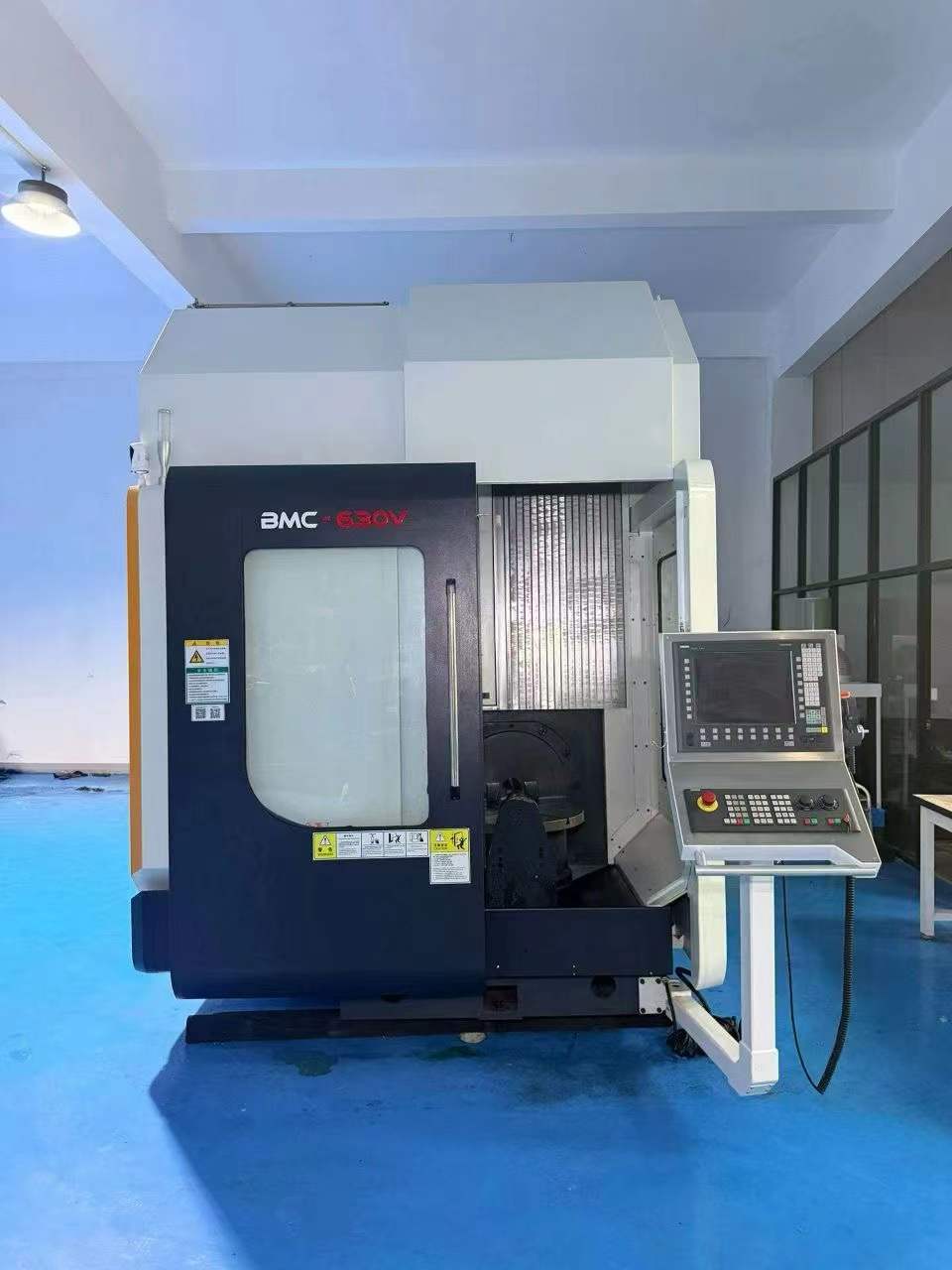

Used Baoji BMC-630 V Five-Axis Five-Linkage Vertical Machining Center with Cradle Rotary Table
Baoji · BMC-630V
2024 · Siemens · China

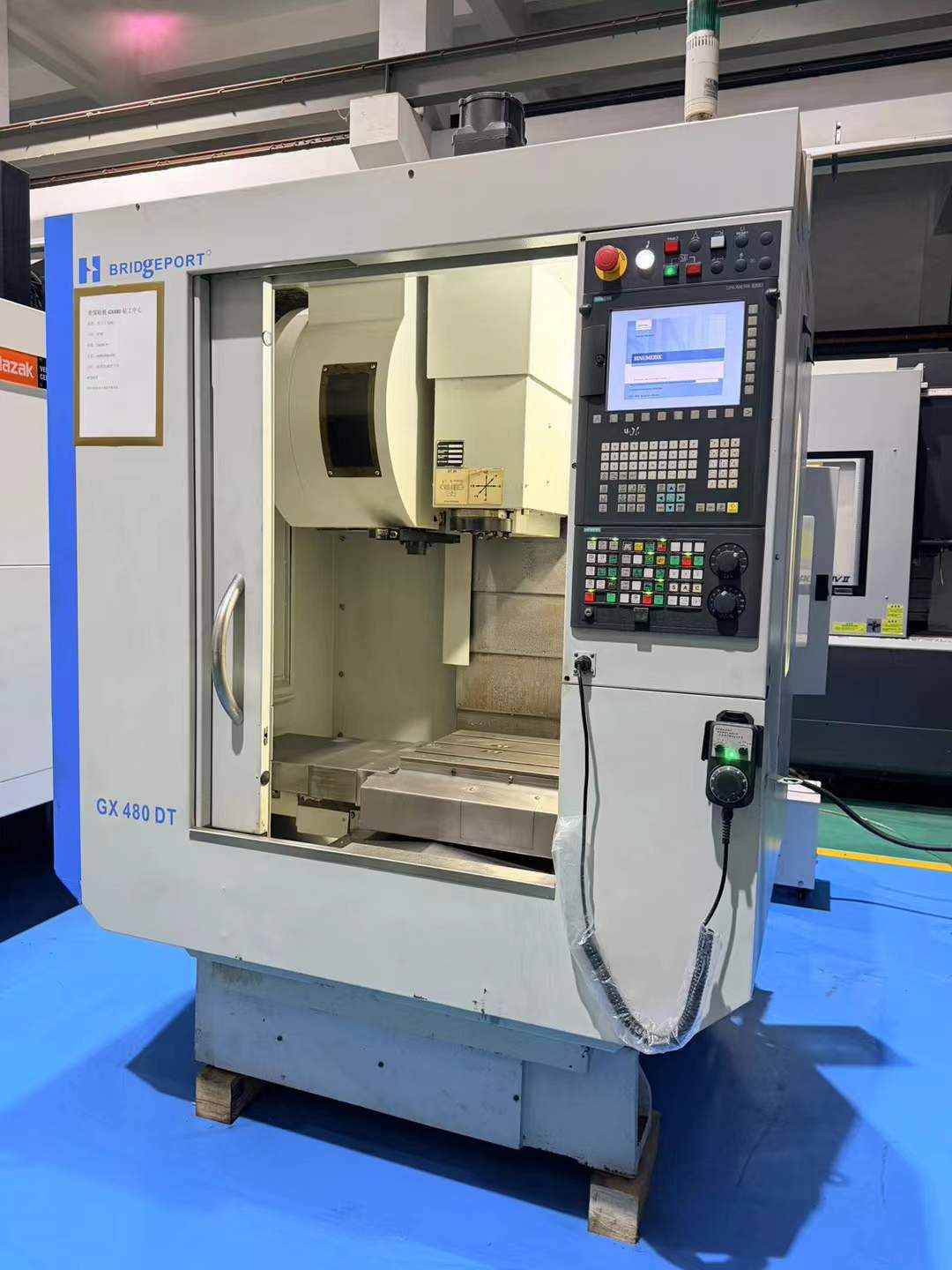

Used Hardinge GX 480 DT Vertical Drilling and Tapping Center
