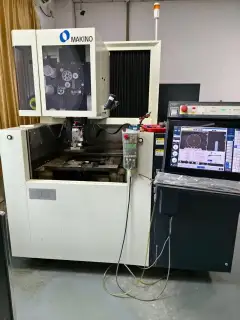

Used Makino U 3 Wire EDM Machine
Makino U 3 wire-cut EDM machine, year of manufacture 2021. Equipped with X/Y/Z travel of 370 x 270 x 220 mm, U/V travel of 50 mm, worktable size of 630 x 450 mm, maximum workpiece size of 770 x 590 x 220 mm, and 600 kg maximum workpiece weight.
- Machine Code
- EDM260901
- Year
- 2021
- Location
- China
- Usage Hours
- On request
Main Specifications
| X/Y/Z travel | 370 x 270 x 220 mm |
|---|---|
| U/V travel | 50 mm |
| Worktable size | 630 x 450 mm |
| Max workpiece size (WxDxH) | 770 x 590 x 220 mm |
| Max workpiece weight | 600 kg |
| Available wire diameter | 0.100–0.300 mm (common: 0.15 / 0.20 / 0.25 / 0.30 mm) |
| Standard machined surface roughness | Steel Ra 0.4 µm (1 cut + 2 trim cuts); cemented carbide Ra 0.34 µm |
| Straightness accuracy | Approx. 2 µm / 100 mm (one side) |
| Brand | Makino |
| Year of manufacture | 2021 |
