AvailableCNC Drilling Machine

Used MANKEE MK-3-T 650 SF Drilling and Tapping Center with SYNTEC 22 MA

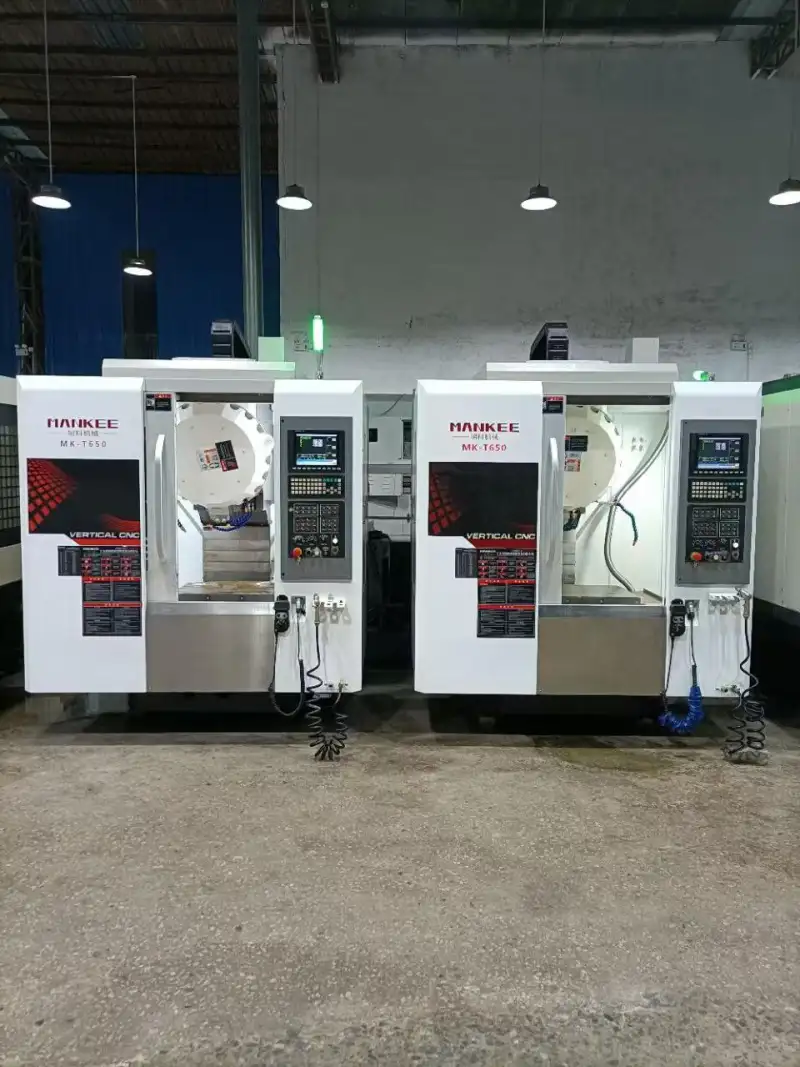

Used MANKEE MK-3-T 650 SF vertical drilling and tapping center equipped with the SYNTEC 22 MA CNC control system. The BT30 spindle reaches a maximum speed of 20,000 rpm, and tool changing is handled by a 21-station disc-type servo tool magazine. X/Y/Z travels are 600 x 400 x 350 mm and the machine weighs 3,400 kg. Factory date 2025/01/15. The machine is in excellent condition, and multiple identical units are available.

Machine Code: DR260947
Year: 2025
Location: China
Usage Hours: On request

Accessories

21-station disc-type servo tool magazine, SYNTEC 22 MA CNC control system, BT30 spindle

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Vertical drilling and tapping center
Model	MK-3-T 650 SF
Control system	SYNTEC 22 MA
Spindle taper	BT30
Spindle speed	20,000 rpm (maximum)
Tool magazine capacity	21 tools (disc-type servo tool magazine)
X/Y/Z travel	600 x 400 x 350 mm
Machine weight	3,400 kg
Factory date	2025/01/15
Brand	MANKEE
Year of manufacture	2025
