Used Nantong Technology VCL 850 Vertical Machining Center with FANUC MD Control

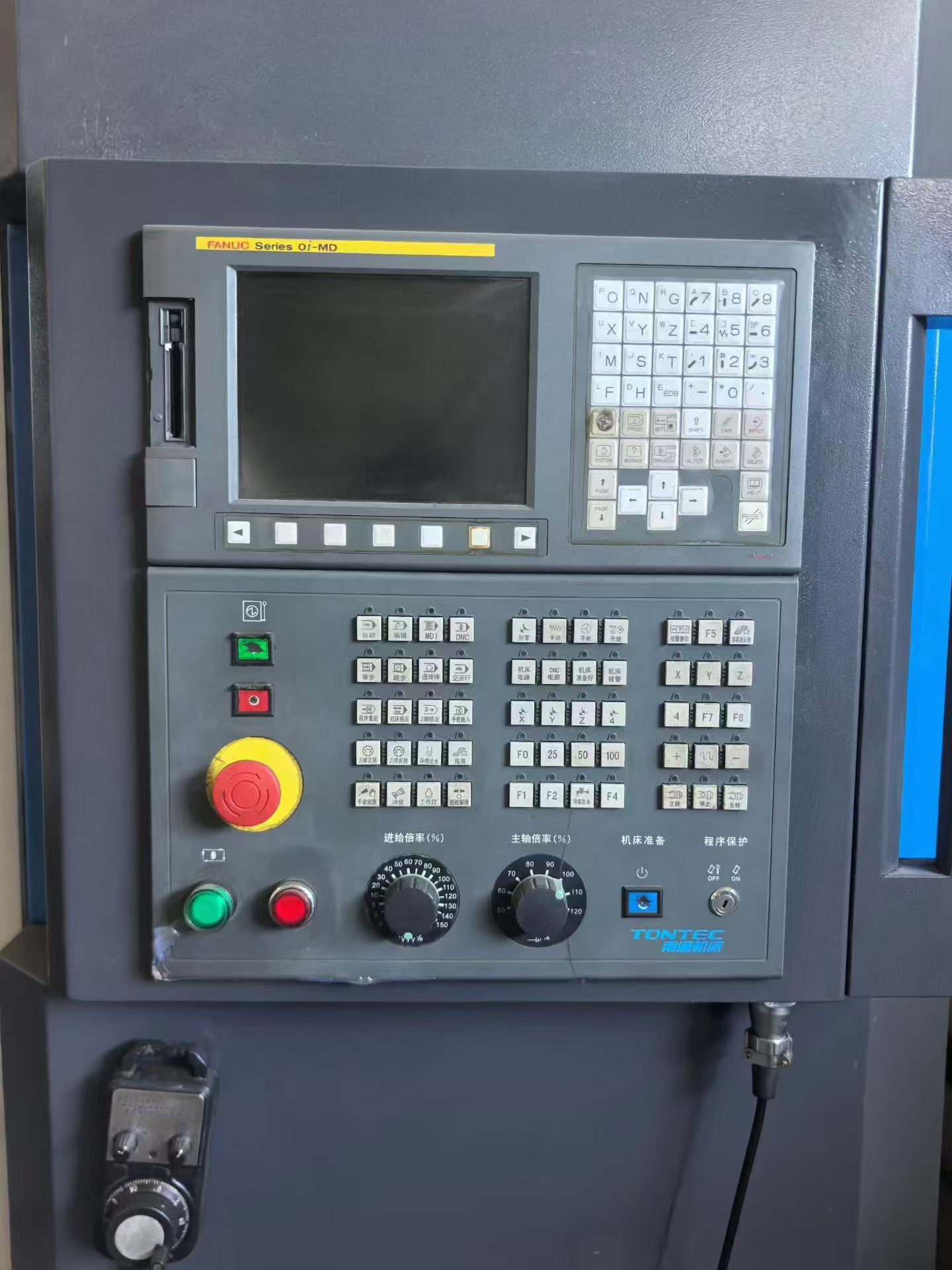

Four identical Nantong Technology VCL 850 vertical machining centers are in warehouse stock, built on a heavy-duty structure for demanding cutting work. Each machine runs a FANUC MD CNC control system and uses three linear guideways on the X, Y and Z axes to hold accuracy and rigidity under load. The 40 taper spindle is matched with a 24-tool arm-type automatic tool changer for fast, repeatable tool changes, and a built-in dual-screw chip conveyor clears chips continuously during long production runs. The worktable measures 550 x 1000 mm. Electricals are rated 380 V with a total machine capacity of 15 kVA and a 40 A main fuse. Machine serial number 8140124. Accuracy is guaranteed.

Machine Code: VMC2609222
Year: On request
Location: China
Usage Hours: On request

Accessories

24-tool arm-type automatic tool changer, built-in dual-screw chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Model	VCL 850
Guideways	Three linear guideways (X/Y/Z)
Spindle taper	40 taper
Tool magazine capacity	24 tools, arm-type automatic tool changer
Chip removal	Built-in dual-screw chip conveyor
Worktable size	550 x 1000 mm
Rated voltage	380 V
Machine total capacity	15 kVA
Main fuse rated current	40 A

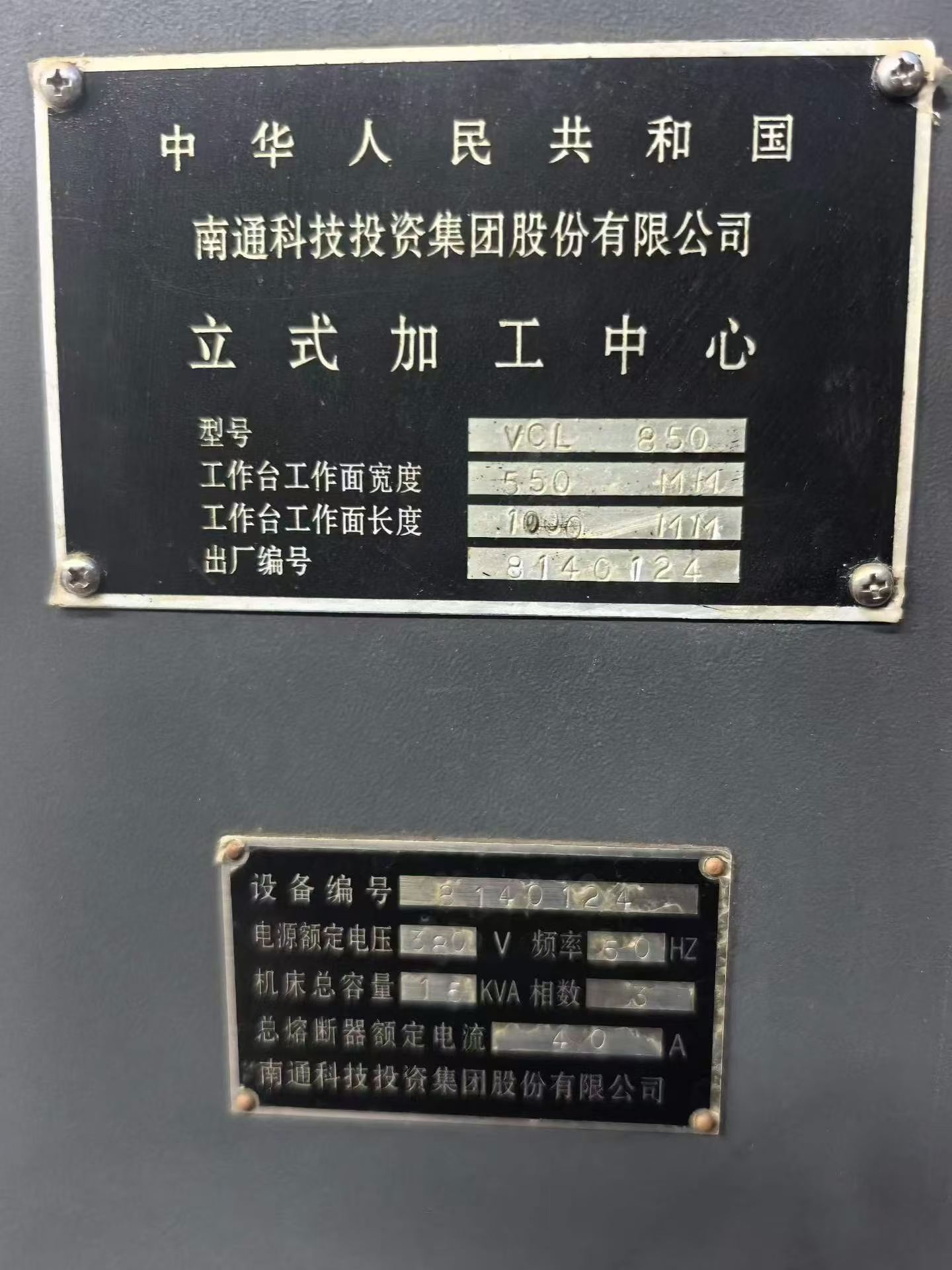

Machine serial number	8140124
Brand	Nantong Technology
Control system	FANUC MD
