AvailableCNC Boring Machine

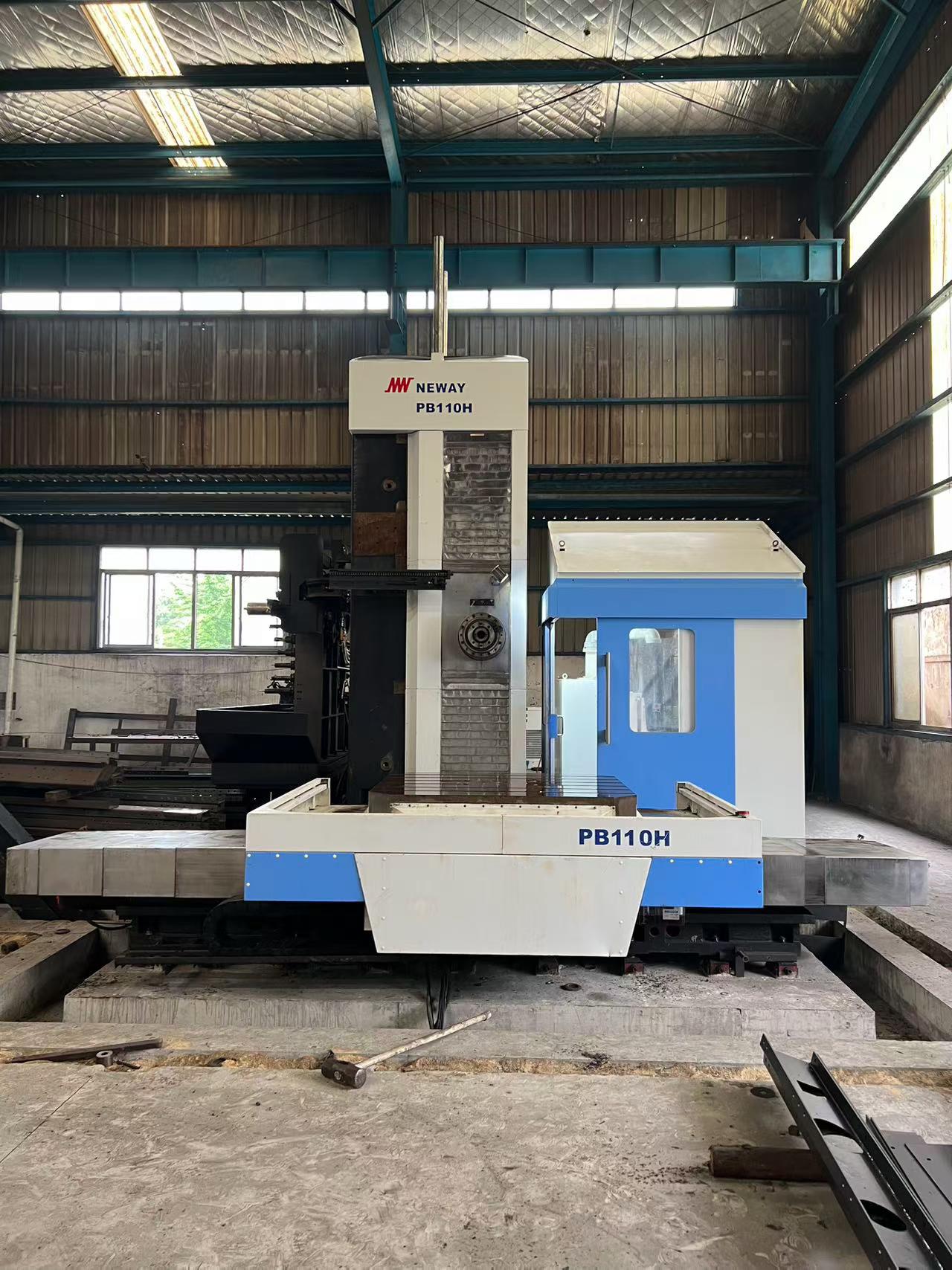

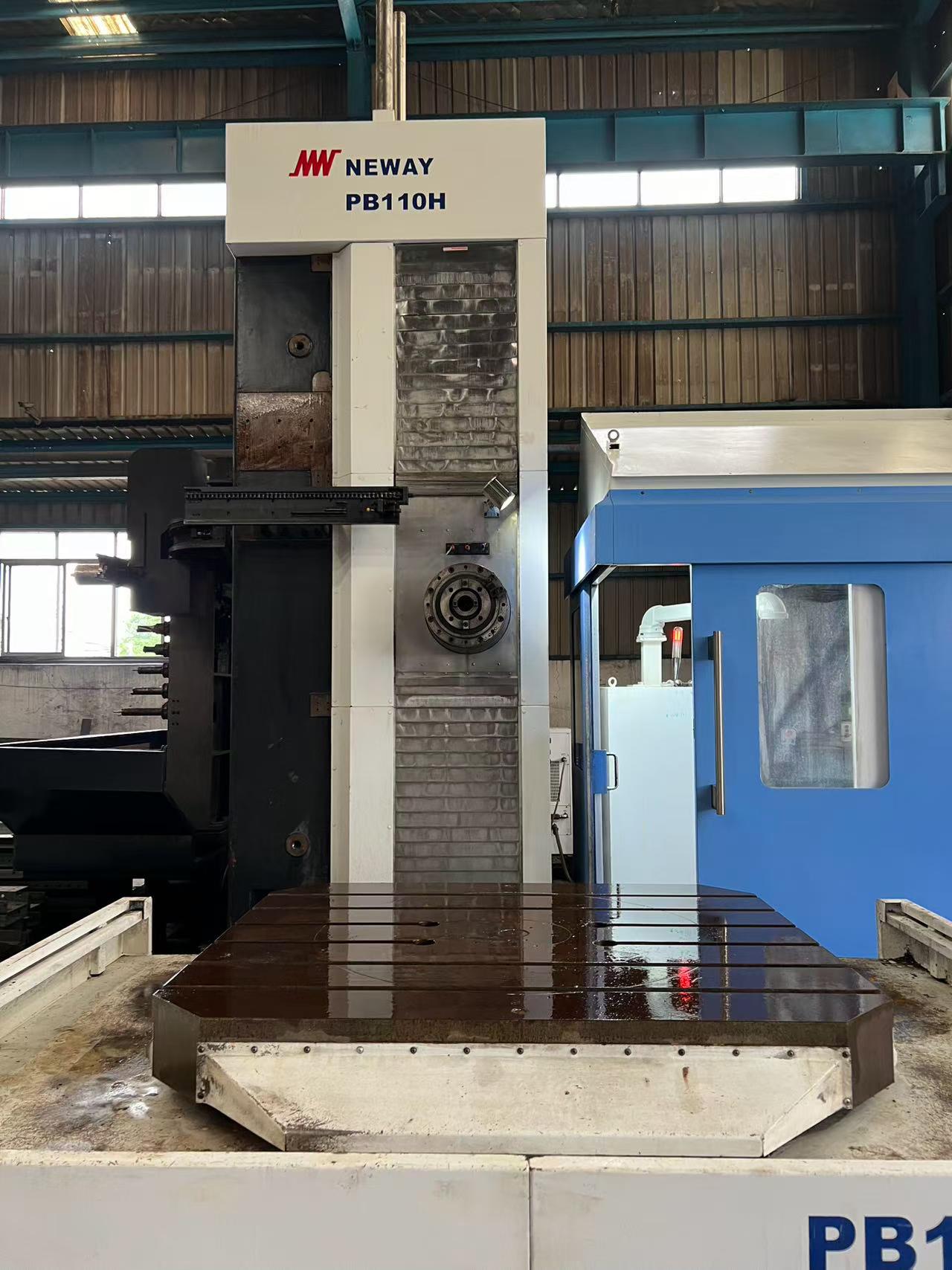

Neway PB 110 H CNC Planer-Type Boring Machine with FANUC Plus

Used Neway PB 110 H CNC planer-type boring machine from China. Equipped with FANUC Plus control, 4-axis linear scales, box guideways, and a 40-tool magazine. Worktable size 1400 x 1600 mm. Available for inspection and video verification.

Machine Code: BOR260704
Year: 2000
Location: China
Usage Hours: On request

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

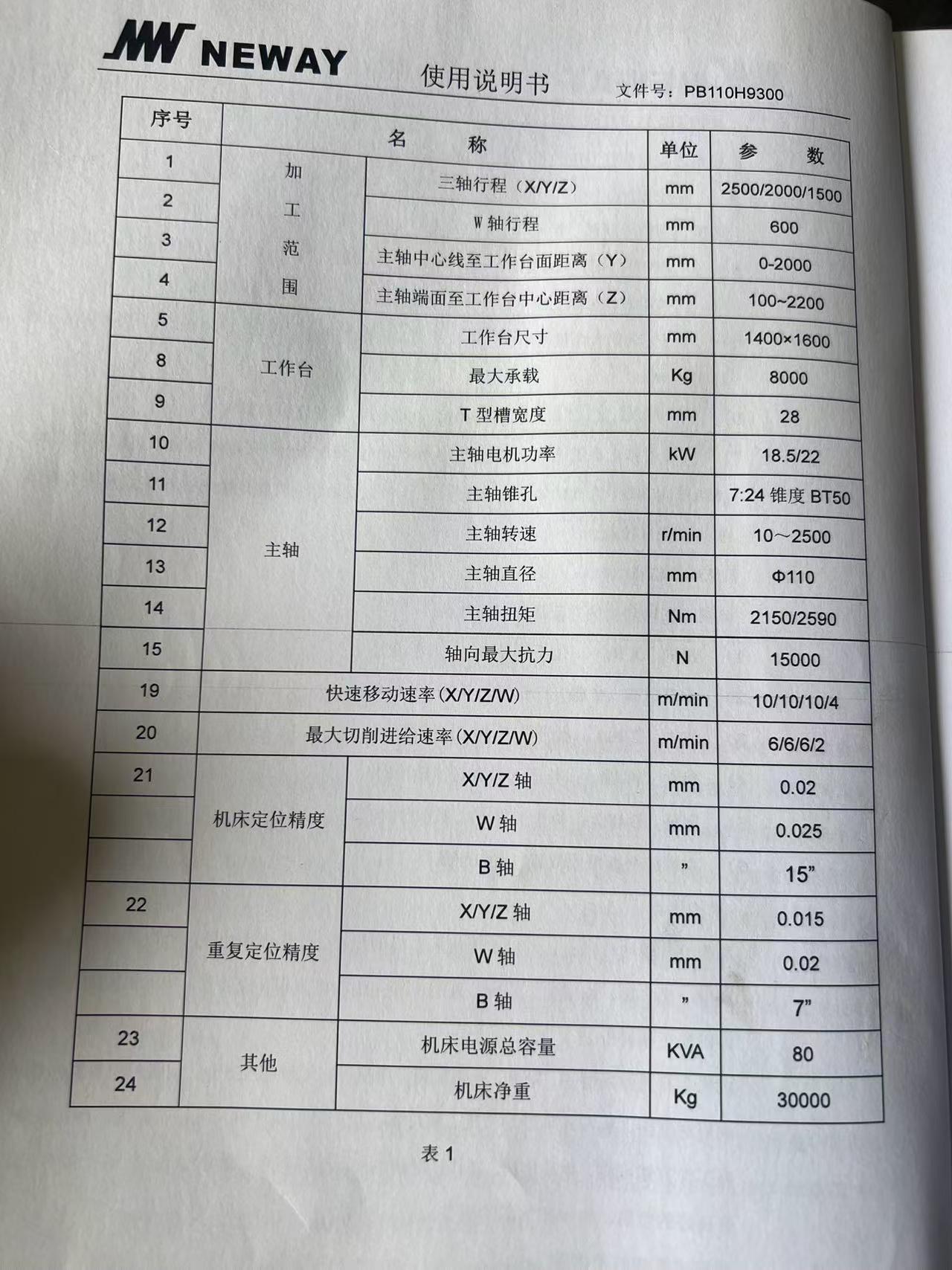

Main Specifications

Spindle diameter	110 mm
Worktable size	1400 x 1600 mm
X-axis travel	2500 mm
Y-axis travel	2000 mm
Z-axis travel	1500 mm
W-axis travel	600 mm
B-axis indexing	0.001°
Guideway type	Box guideway (hard rail) on X/Y/Z

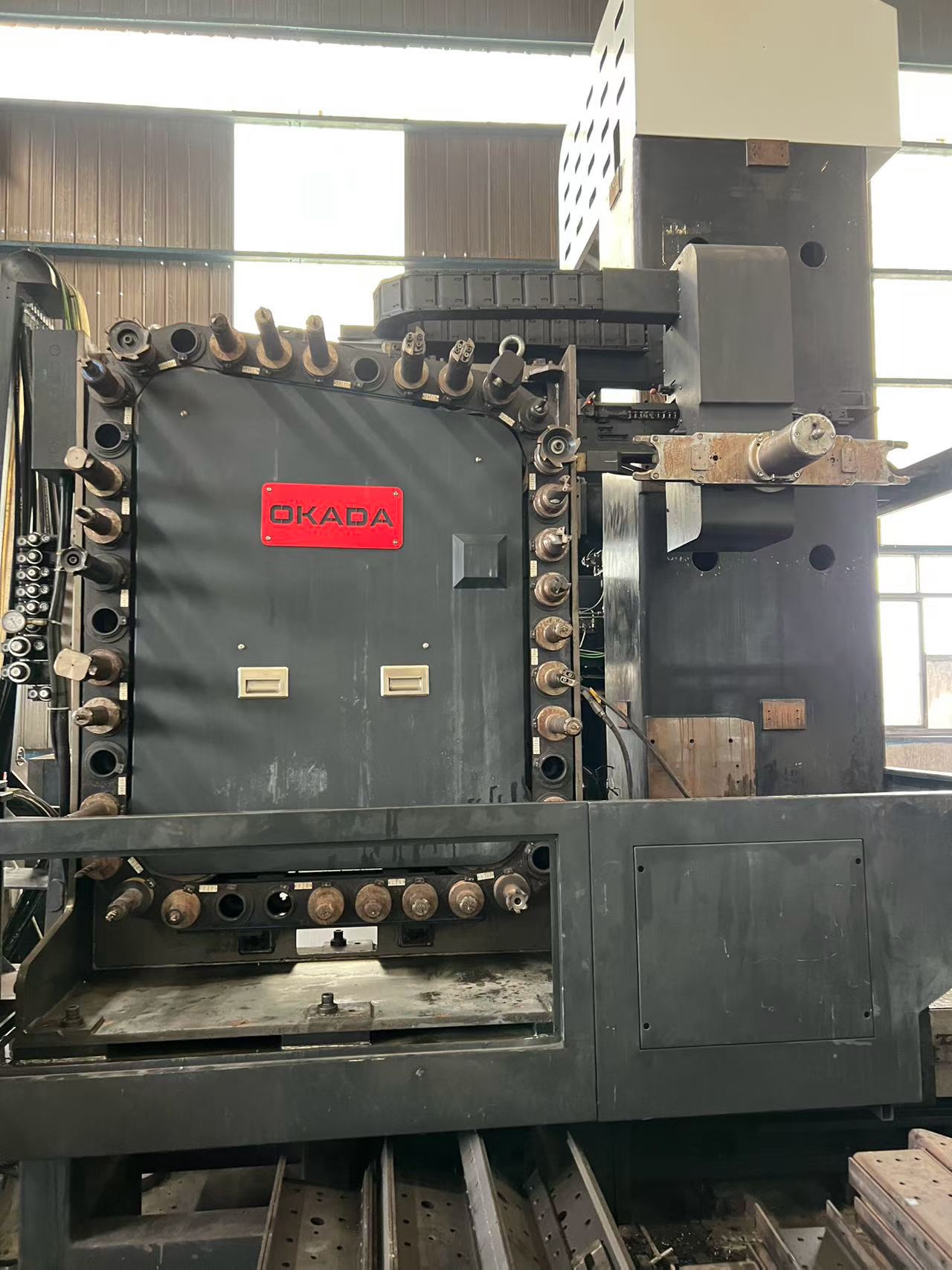

Tool magazine capacity	40

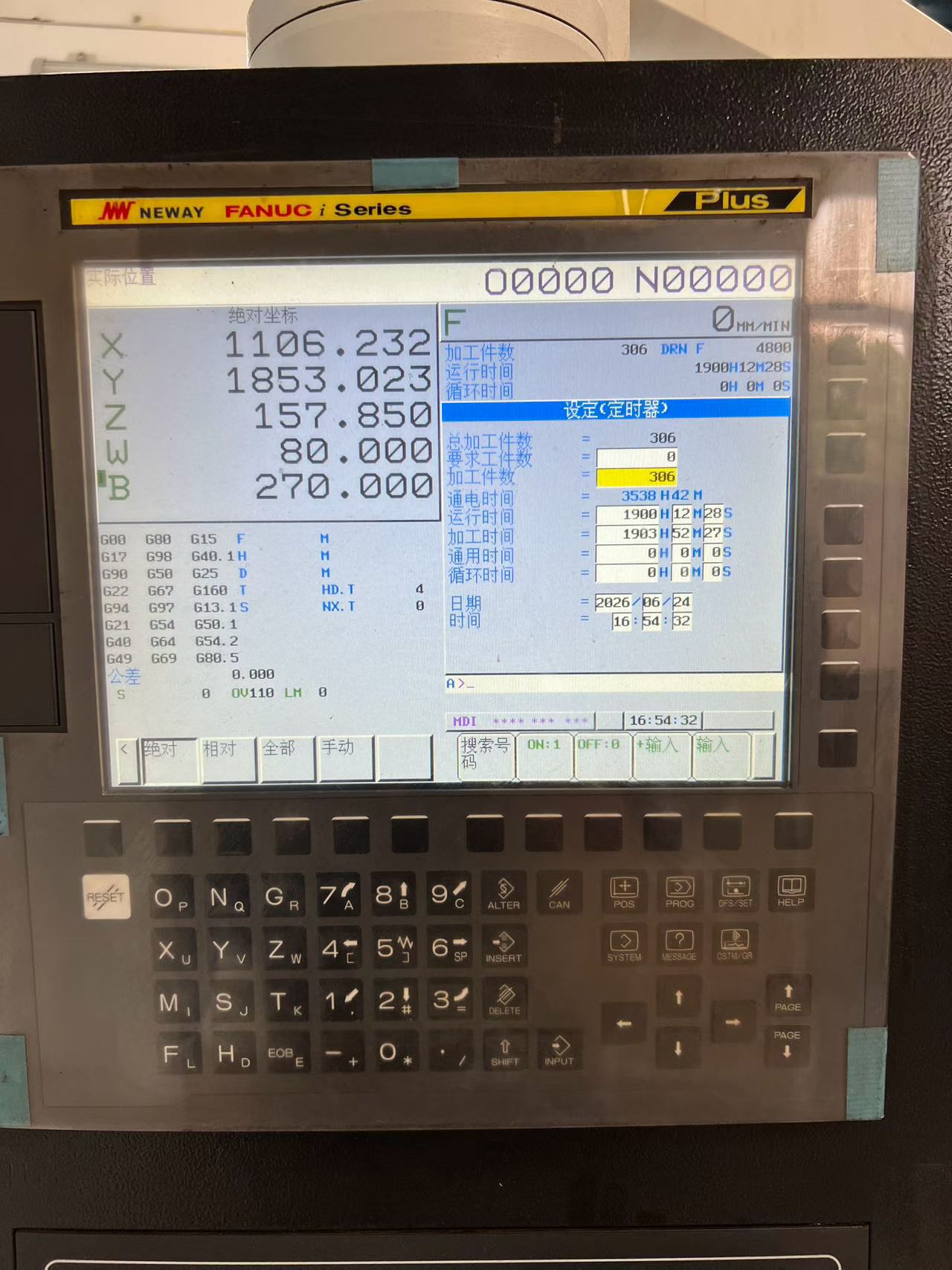

Control system	FANUC Plus
Machine Type	PB 110 H CNC Planer-Type Boring Machine
Guideway Configuration	Box guideway on X/Y/Z
