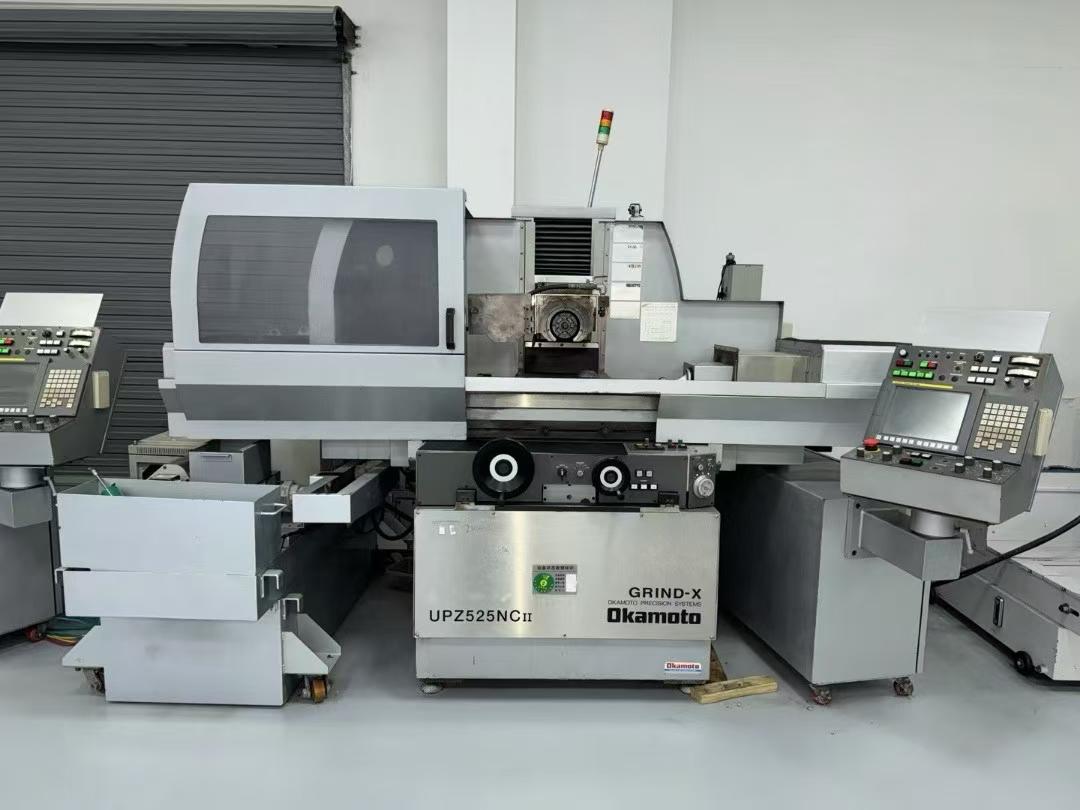

Used Okamoto UPZ 525 NC CNC Forming Surface Grinding Machine with FANUC 0i-MD Control

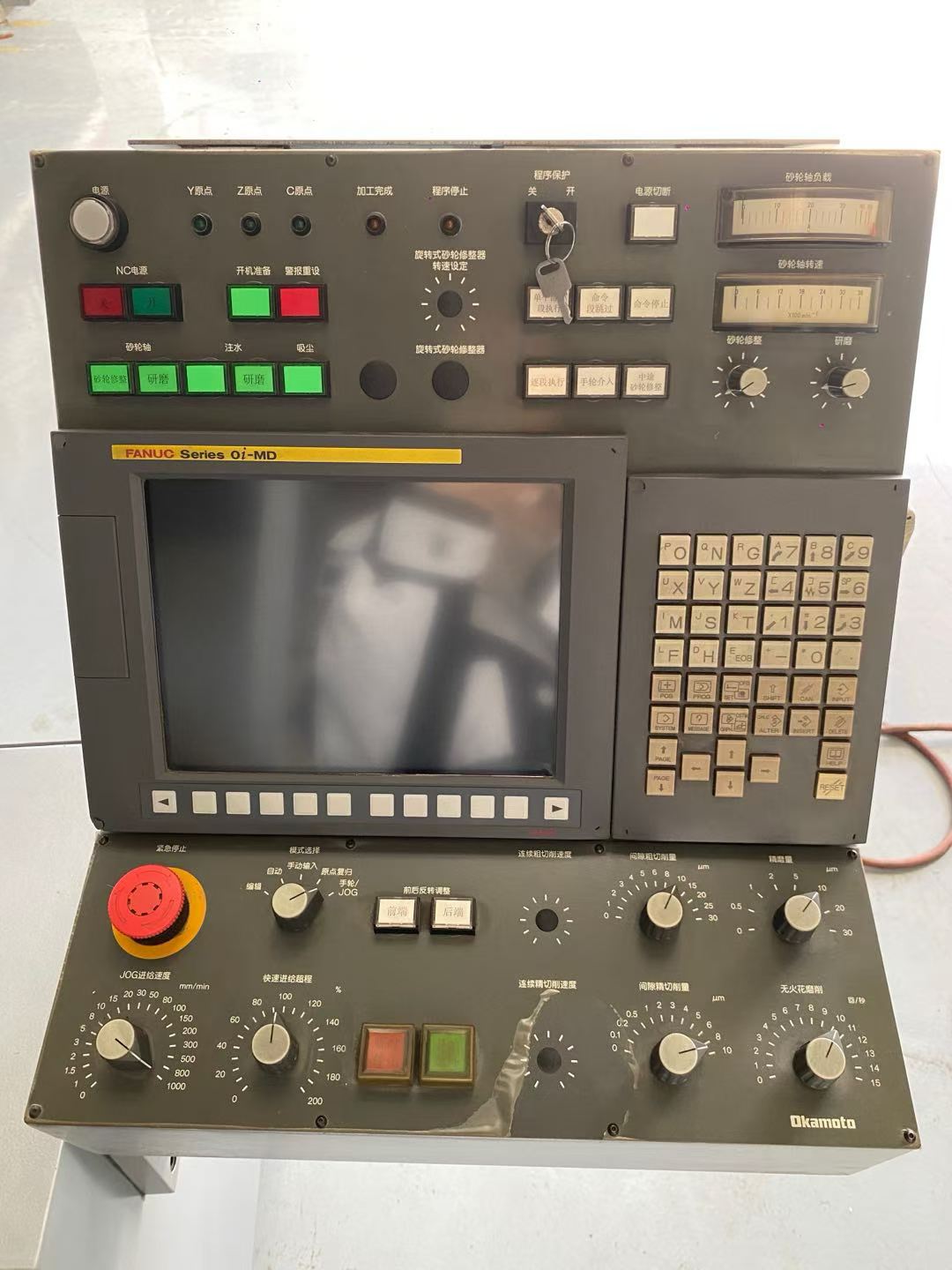

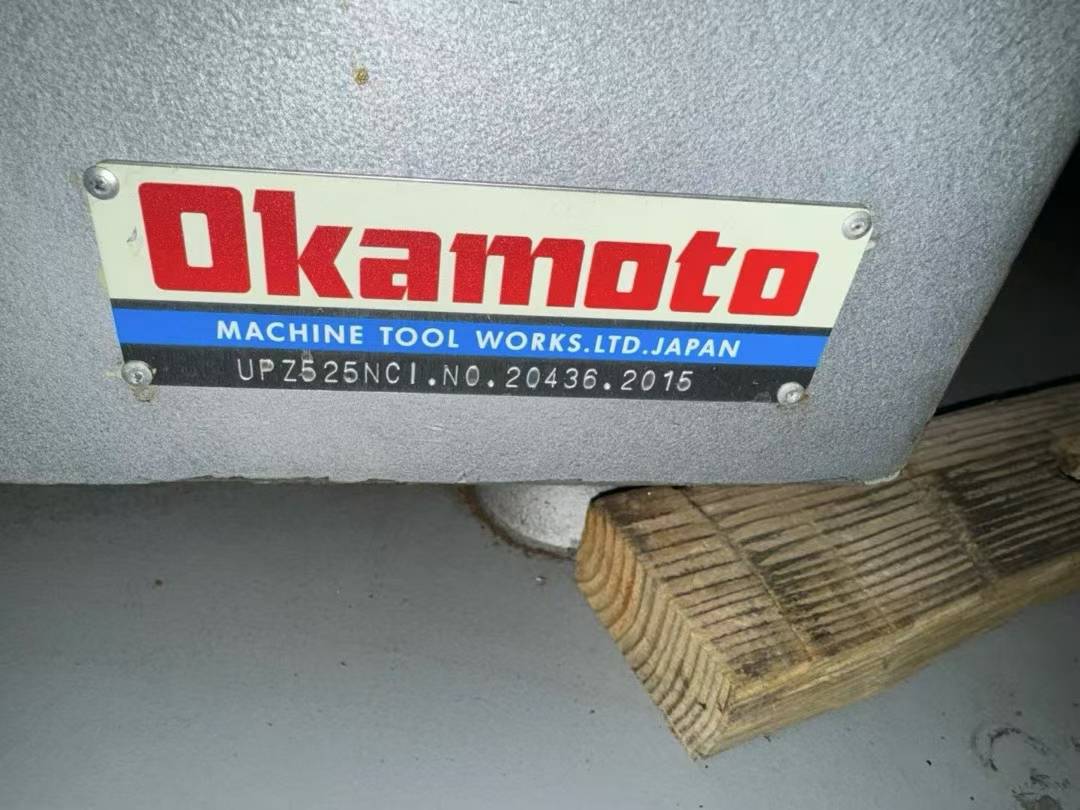

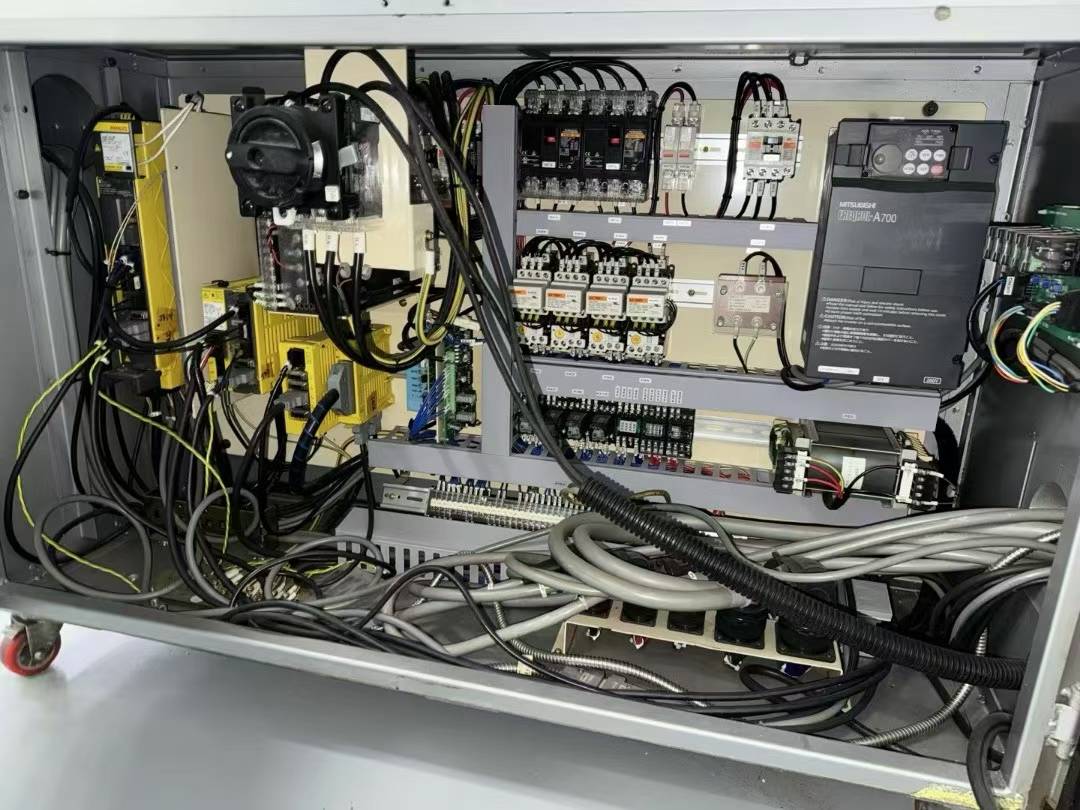

Okamoto UPZ 525 NC CNC forming surface grinding machine, built in Japan by Okamoto Machine Tool Works, Ltd. and carrying the GRIND-X OKAMOTO body marking. Manufactured in 2015, serial no. 20436. Equipped with the FANUC 0i-MD CNC control system and an Okamoto operator panel. Worktable size 550 x 250 mm, X-axis travel 650 mm and Y-axis travel 280 mm. The worktable is fitted with a magnetic chuck, and a Mitsubishi FR-D 700 inverter is installed in the electrical cabinet. Built for mirror-finish and form grinding, this machine suits semiconductor components and precision stamping dies.

Machine Code: CG260903
Year: 2015
Location: China
Usage Hours: On request

Accessories

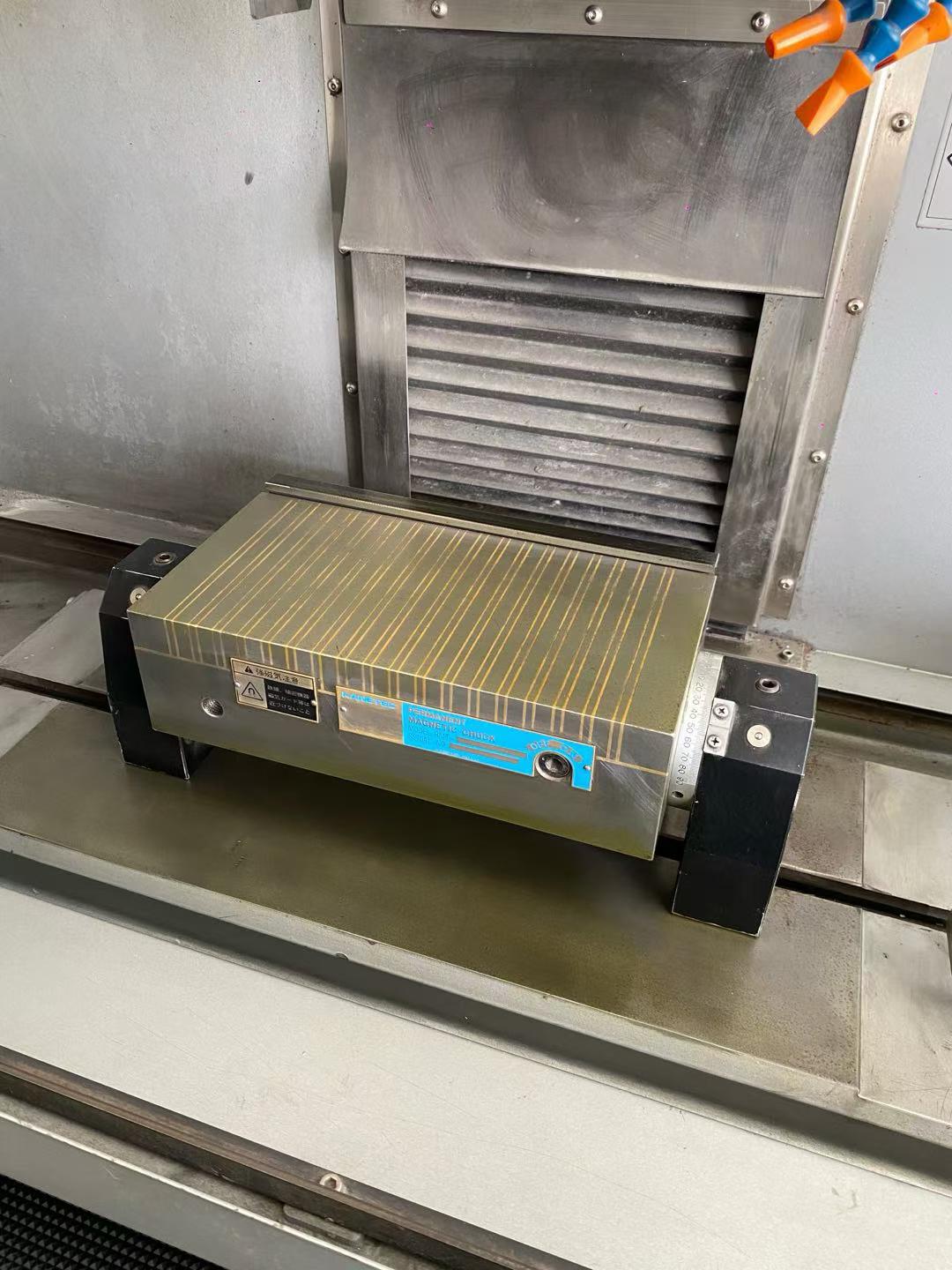

Magnetic chuck mounted on the worktable

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Worktable size	550 x 250 mm
X-axis travel	650 mm
Y-axis travel	280 mm
CNC control system	FANUC 0i-MD
Year of manufacture	2015
Serial number	20436
Brand	Okamoto
Control system	FANUC 0i-MD
