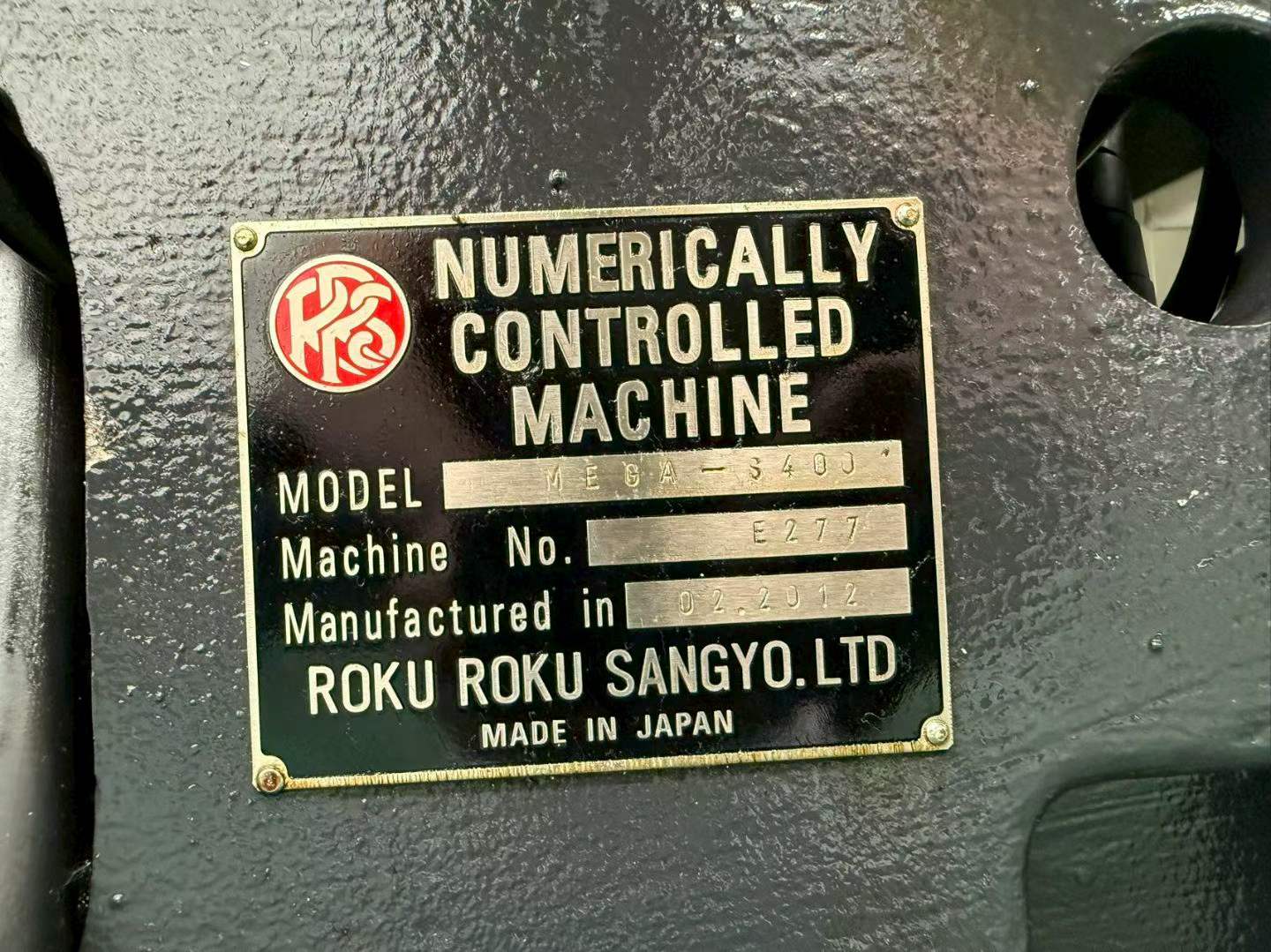

ROKU-ROKU MEGA-S 400 Ultra-Precision Micro Machining Center

ROKU-ROKU MEGA-S 400 ultra-precision micro machining center. Gantry type with high rigidity mineral cast bed. FANUC 31i-A 5-Axis control. Suitable for semiconductor fixtures, connectors, precision copper electrodes, optical molds, medical parts, mirror surface milling, and micro hole machining (minimum 0.01 mm diameter).

Machine Code: MC260779
Year: 2012
Location: China
Usage Hours: On request

Accessories

Optional: Japanese Showa oil mist collector, NAKO high-precision contact automatic tool setter

Email Inquiry

Main Specifications

Spindle speed	40000 rpm
Spindle power	4.0 kW
X/Y/Z travel	410 mm x 330 mm x 200 mm
Worktable size	450 x 350 mm
Max load	200 kg
Rapid traverse (X/Y)	32 m/min
Rapid traverse (Z)	24 m/min
Cutting feed	1~10000 mm/min

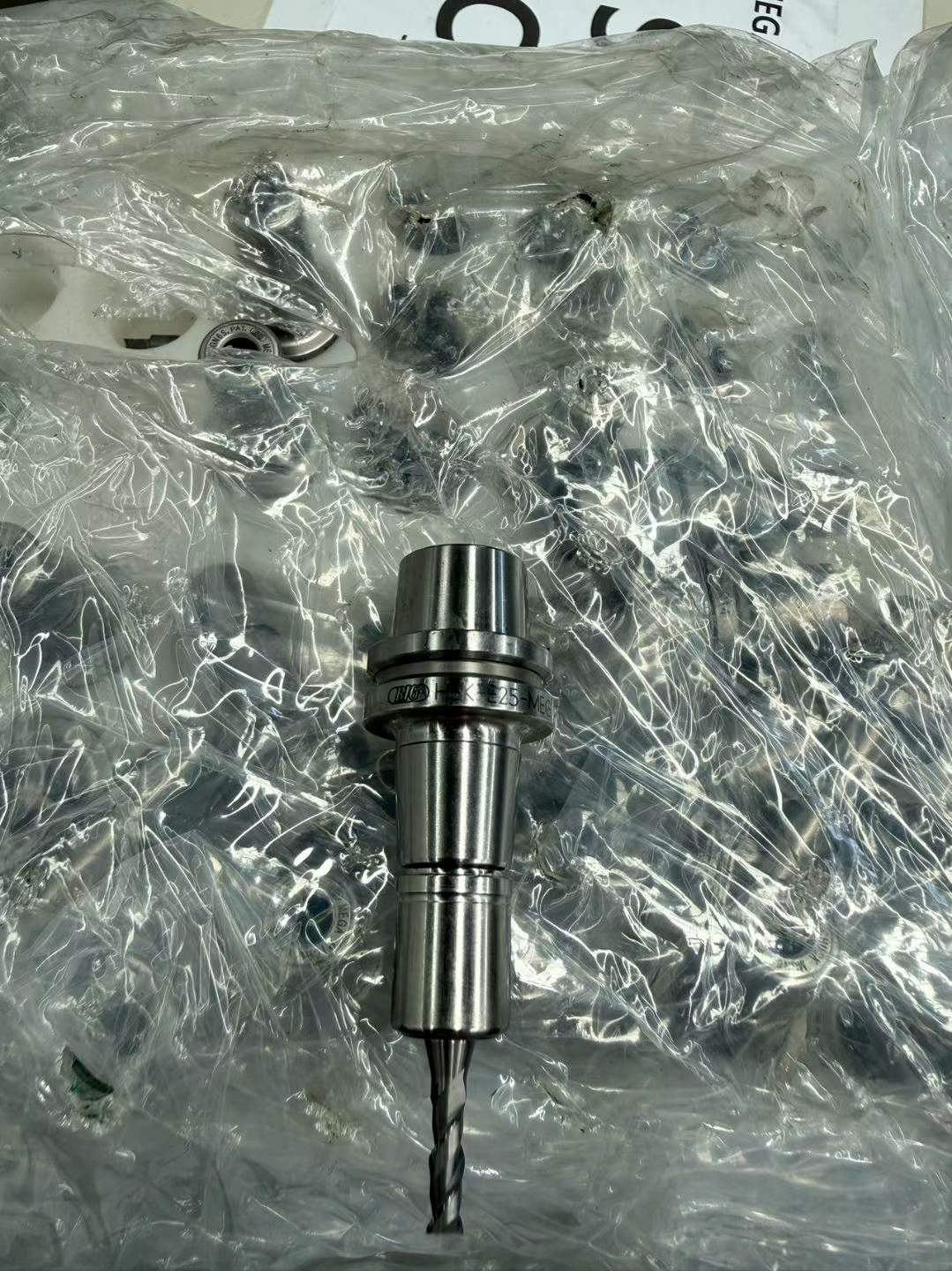

Tool holder	HSK-E 25
Tool magazine capacity	11 tools
Machine weight	approx. 2500 kg
Year	2012
Machine Type	Ultra-precision micro machining center

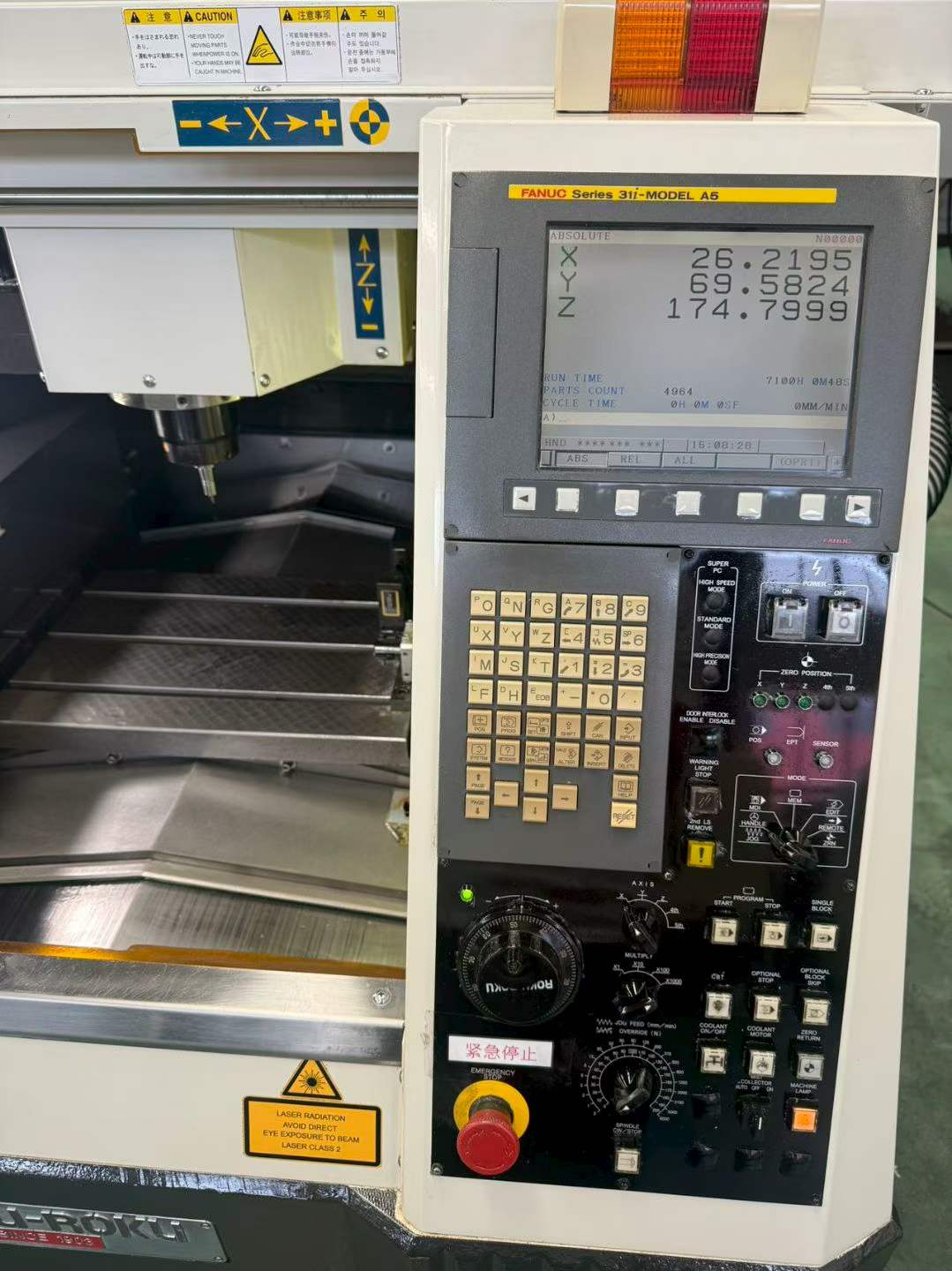

Controller	FANUC 31 i-A 5

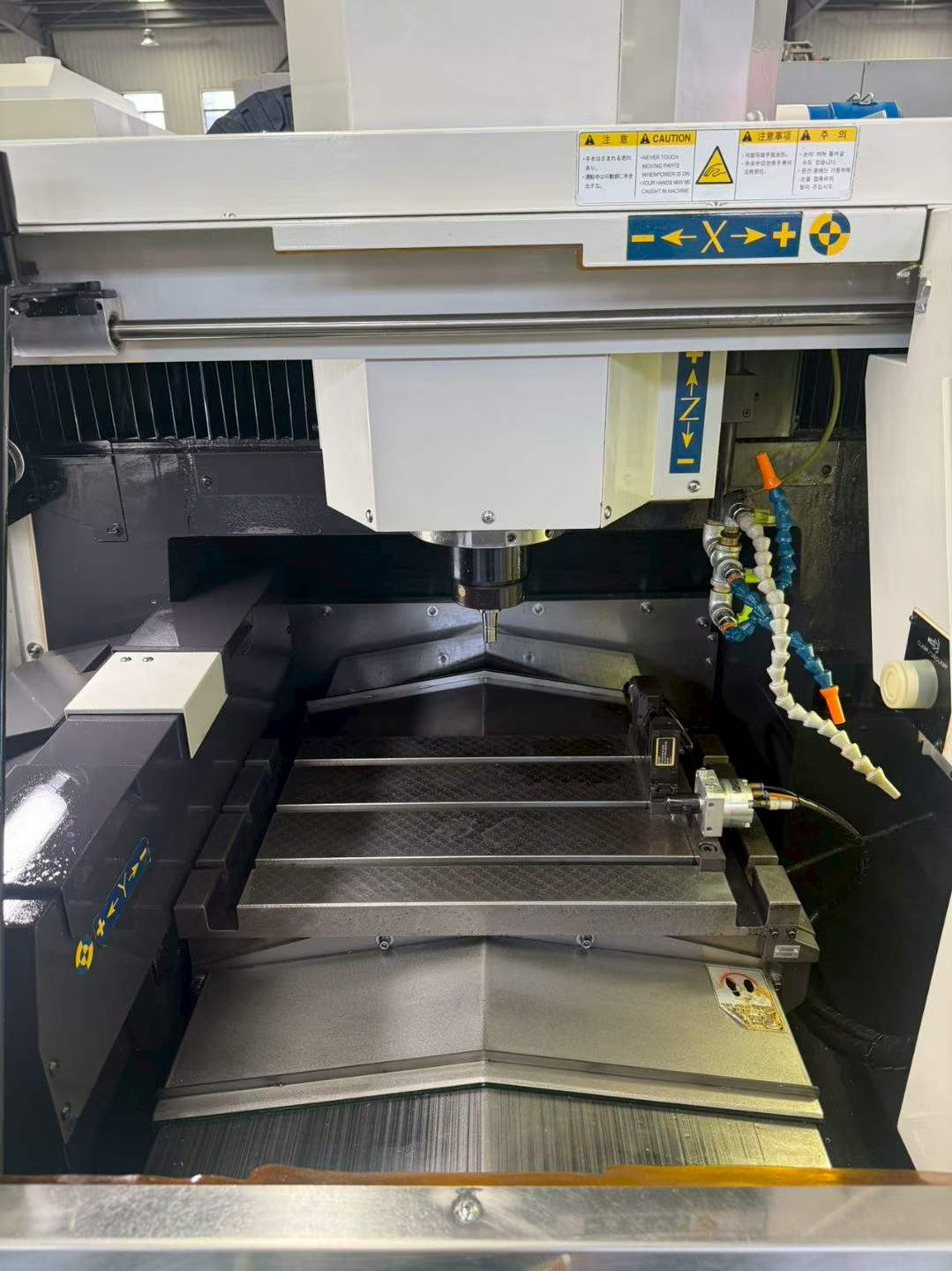

Machine Structure	Gantry type, high rigidity bed
Base Material	Mineral casting

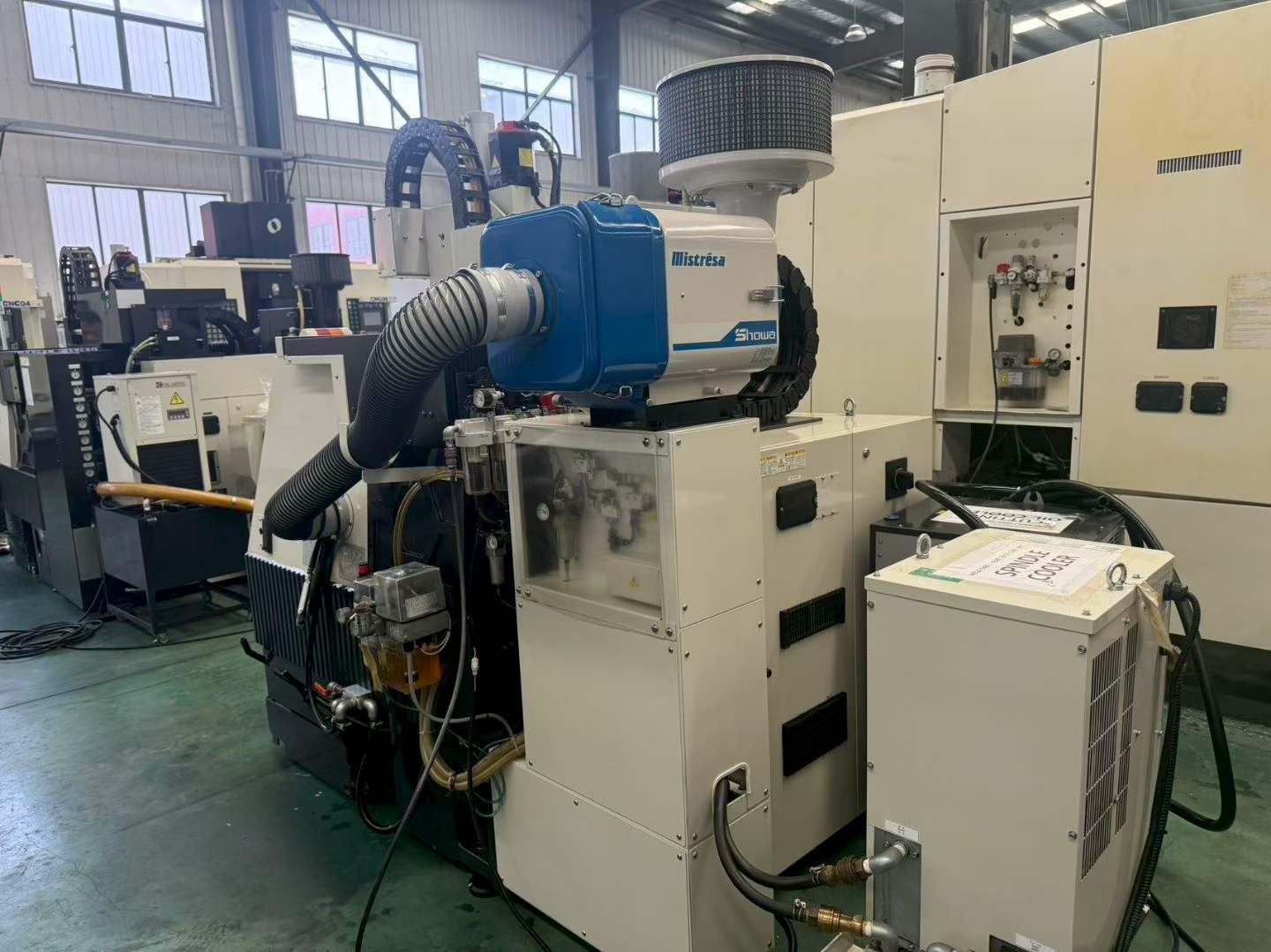

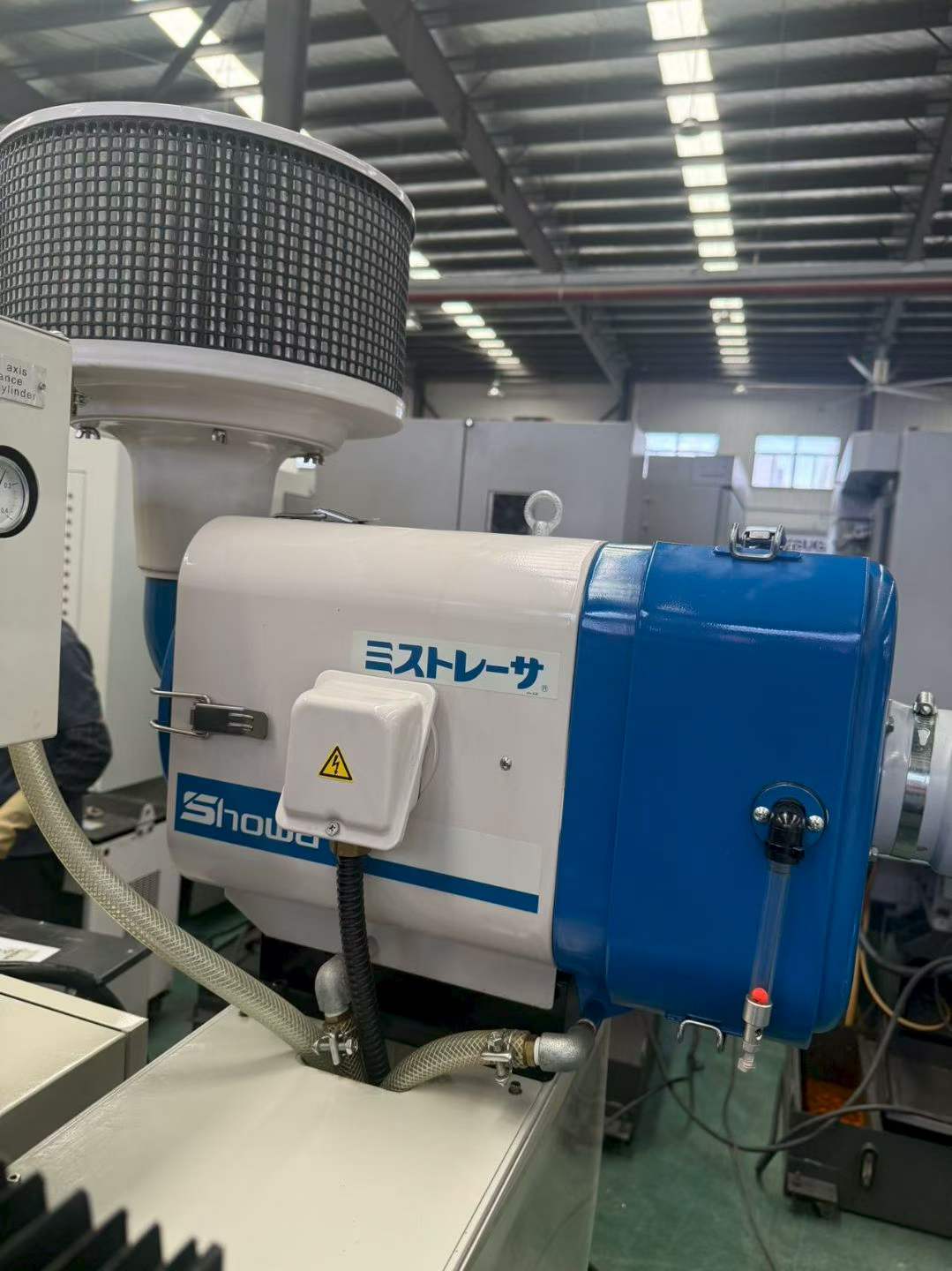

Oil Mist Collector	Showa oil mist collector (Japan)

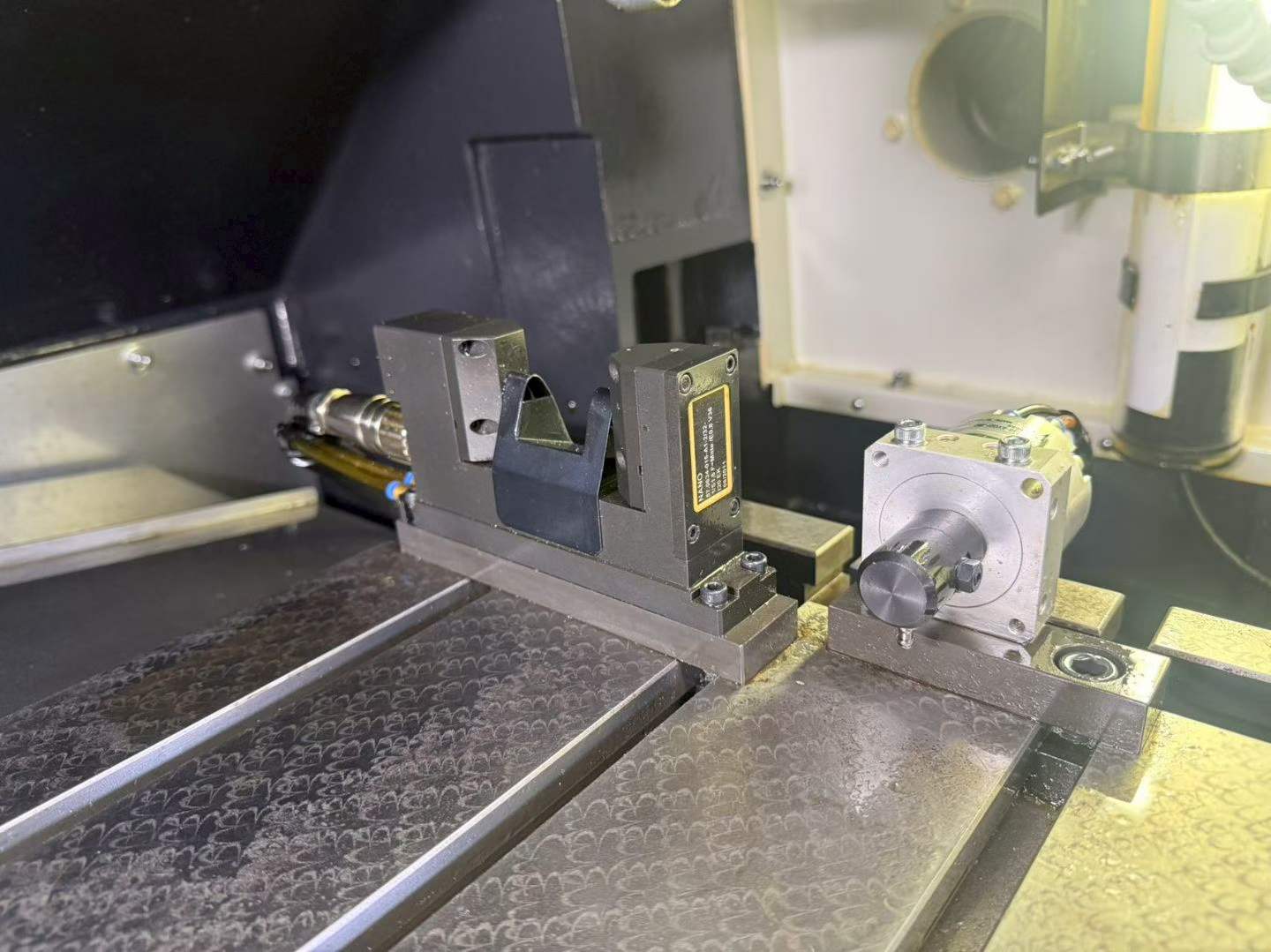

Tool Setter	NAKO high precision contact automatic tool setter
Applicable Tool	Minimum φ0.01 micro drill
Manufacturing Date	2012
Applicable Industries	Semiconductor fixtures, connectors, precision copper electrodes, optical molds, medical parts, mirror milling, micro hole machining (minimum 0.01 mm diameter)
