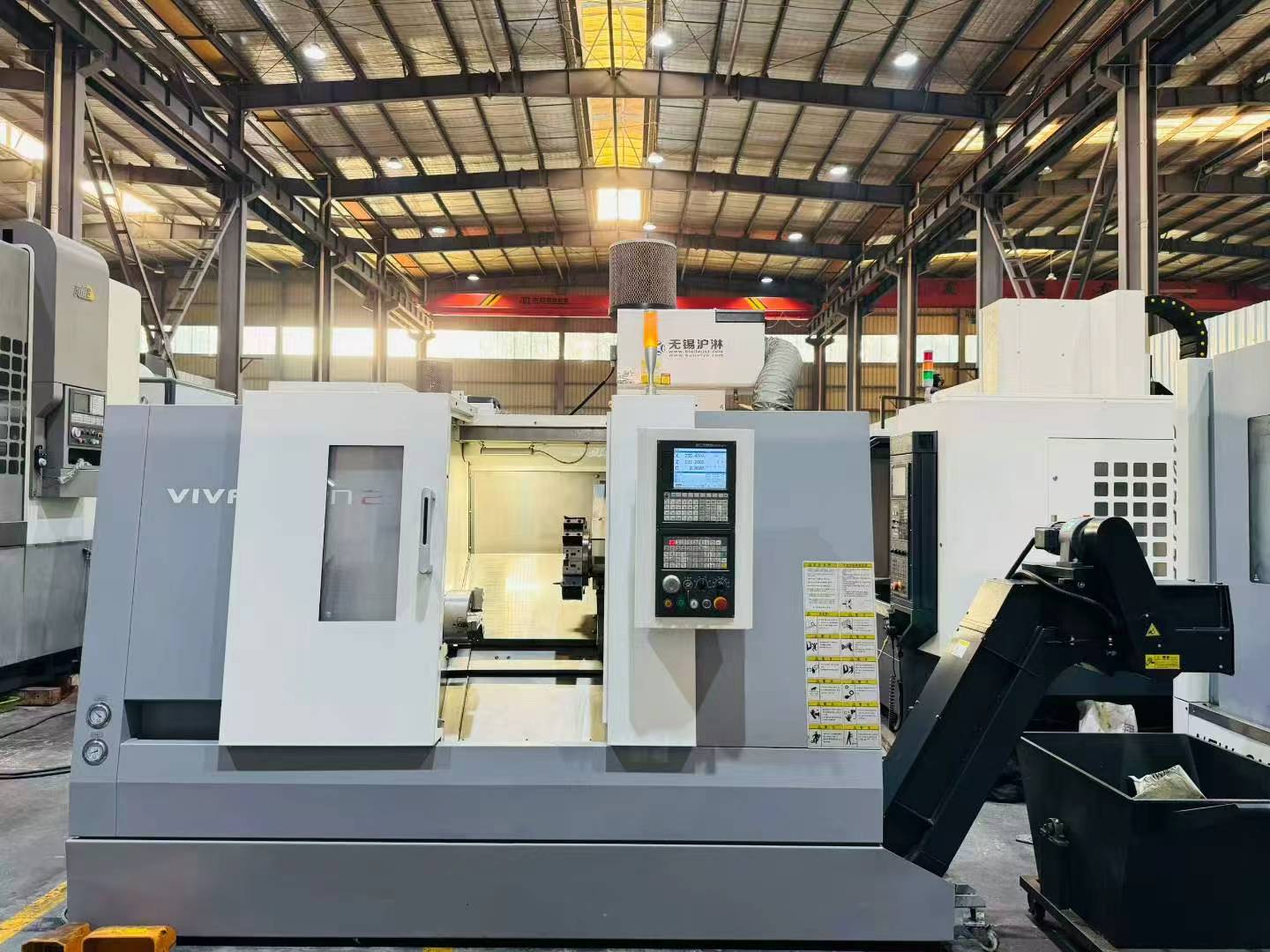

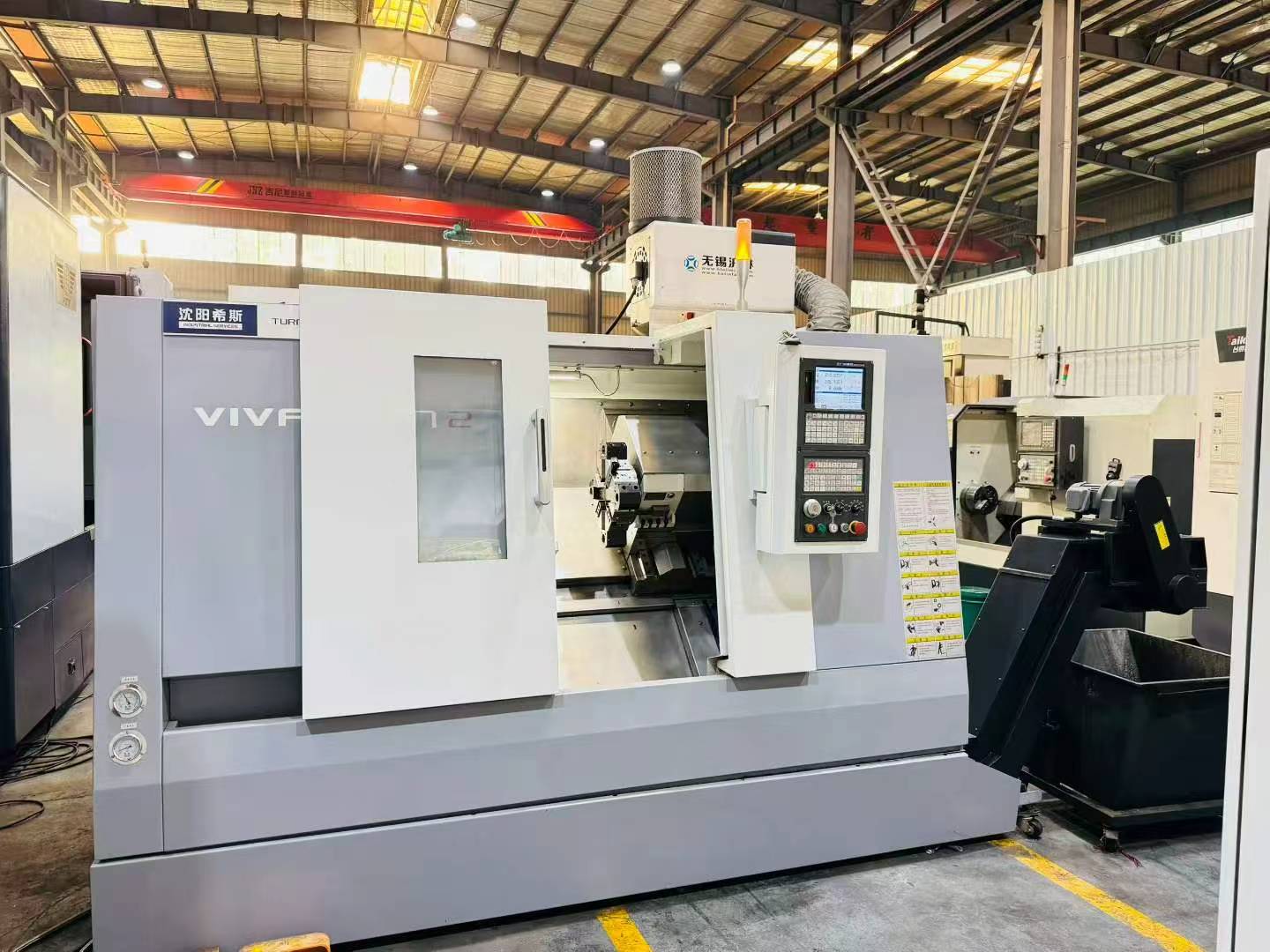

Used Viva T 2 C/500 Slant-Bed Turret-Type CNC Lathe with GSK 988

Two Viva T 2 C/500 slant-bed turret-type CNC lathes are available in 95% new condition. Each machine is equipped with a GSK 988 absolute bus CNC system,8-inch hollow hydraulic chuck,horizontal 8-station hydraulic turret,programmable fully automatic hydraulic tailstock,chain-type chip conveyor,oil mist collector,and an integral 45° cast bed. Major components are Spindle speed is 50-1500 r/min,X-axis travel is 210 mm,Z-axis travel is 560 mm,and machine weight is 4000 kg. Machining accuracy is 0.01 mm. Idle equipment with very little use after installation

Machine Code: CL2609114
Year: On request
Location: China
Usage Hours: On request

Accessories

Chain-type chip conveyor; oil mist collector.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle speed	50-1500 r/min
X-axis travel	210 mm
Z-axis travel	560 mm

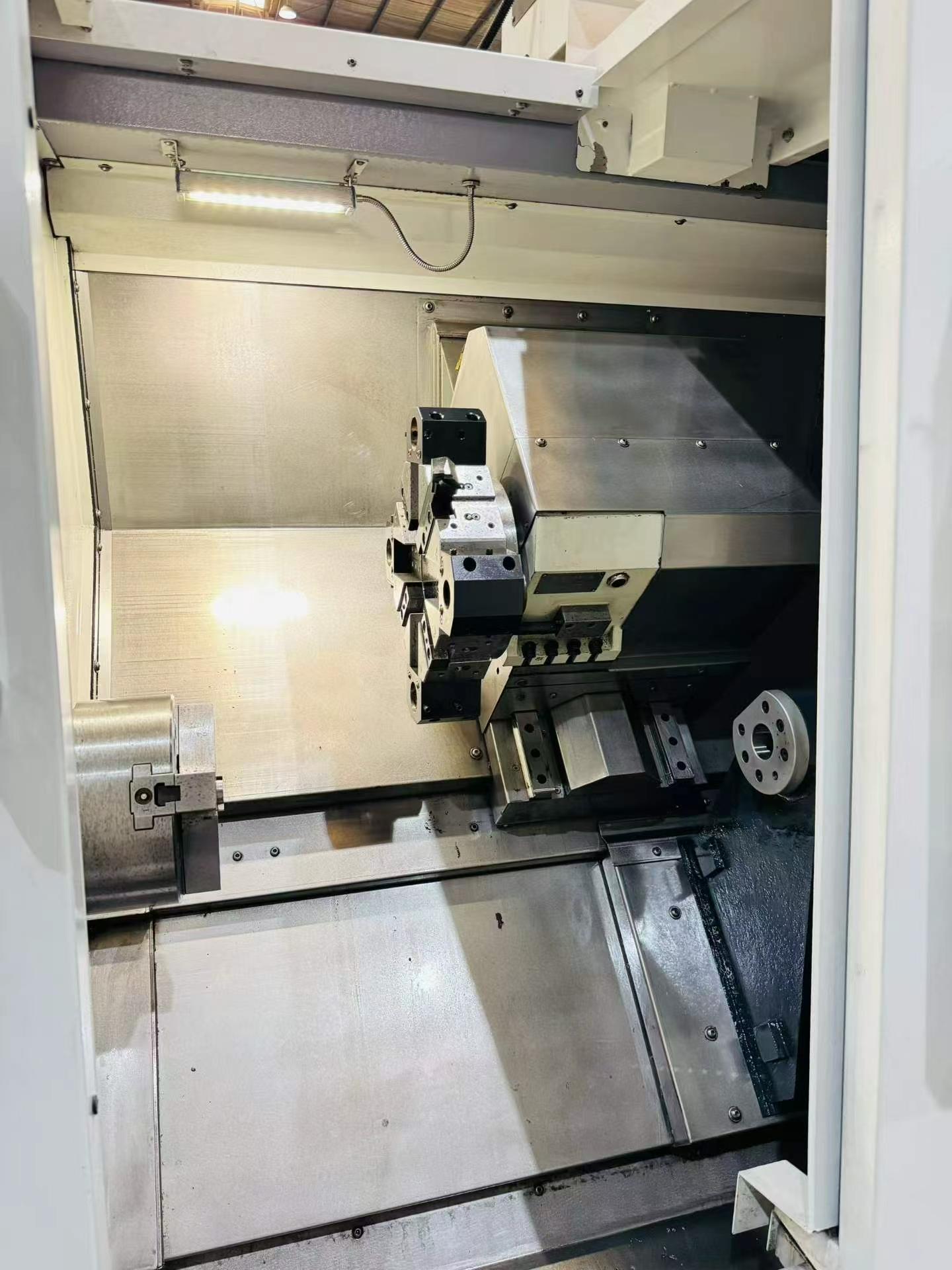

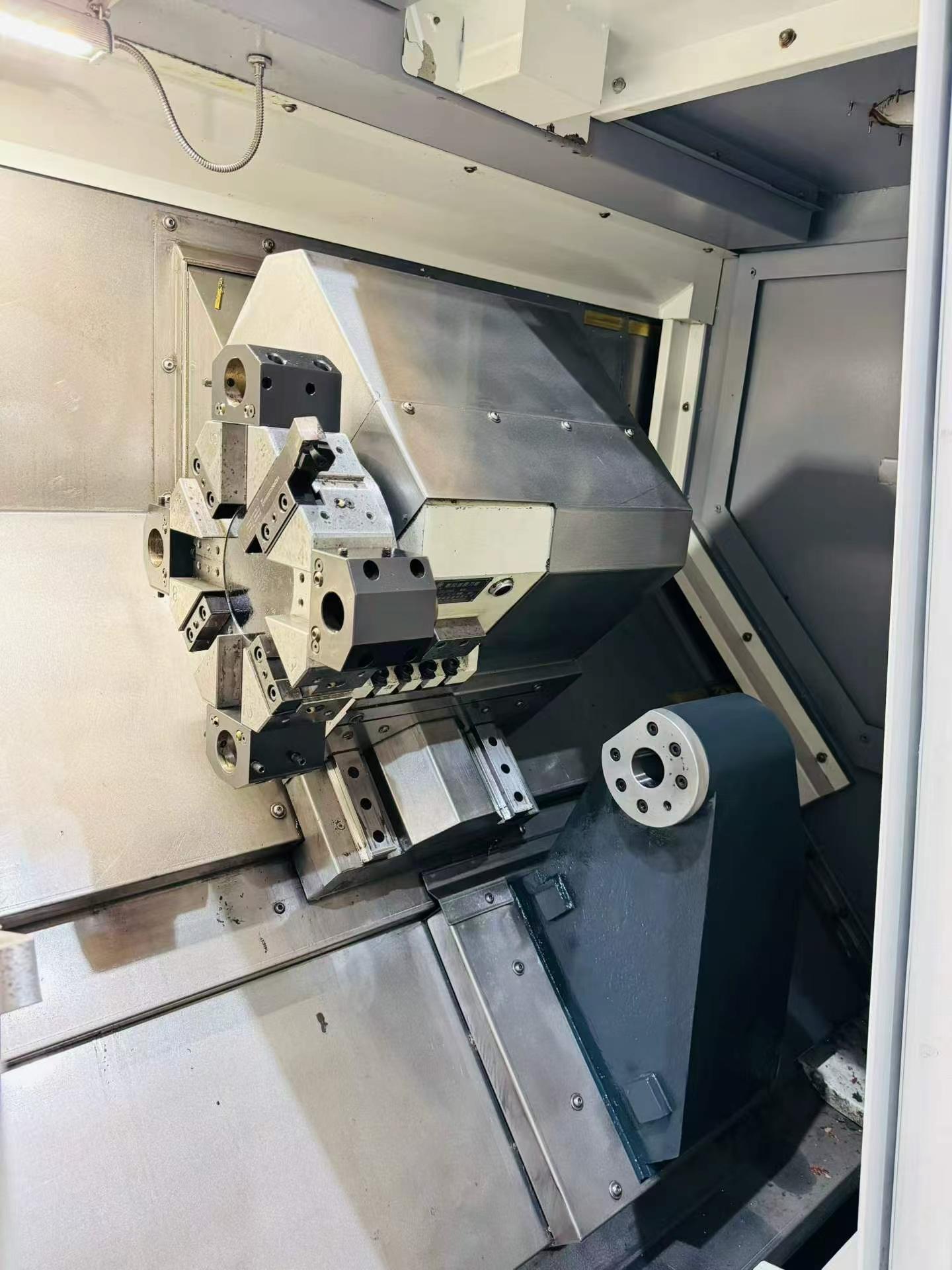

Turret type	Horizontal 8-station hydraulic turret
Chuck size	8-inch hollow hydraulic chuck
Machine weight	4000 kg
Machining accuracy	0.01 mm

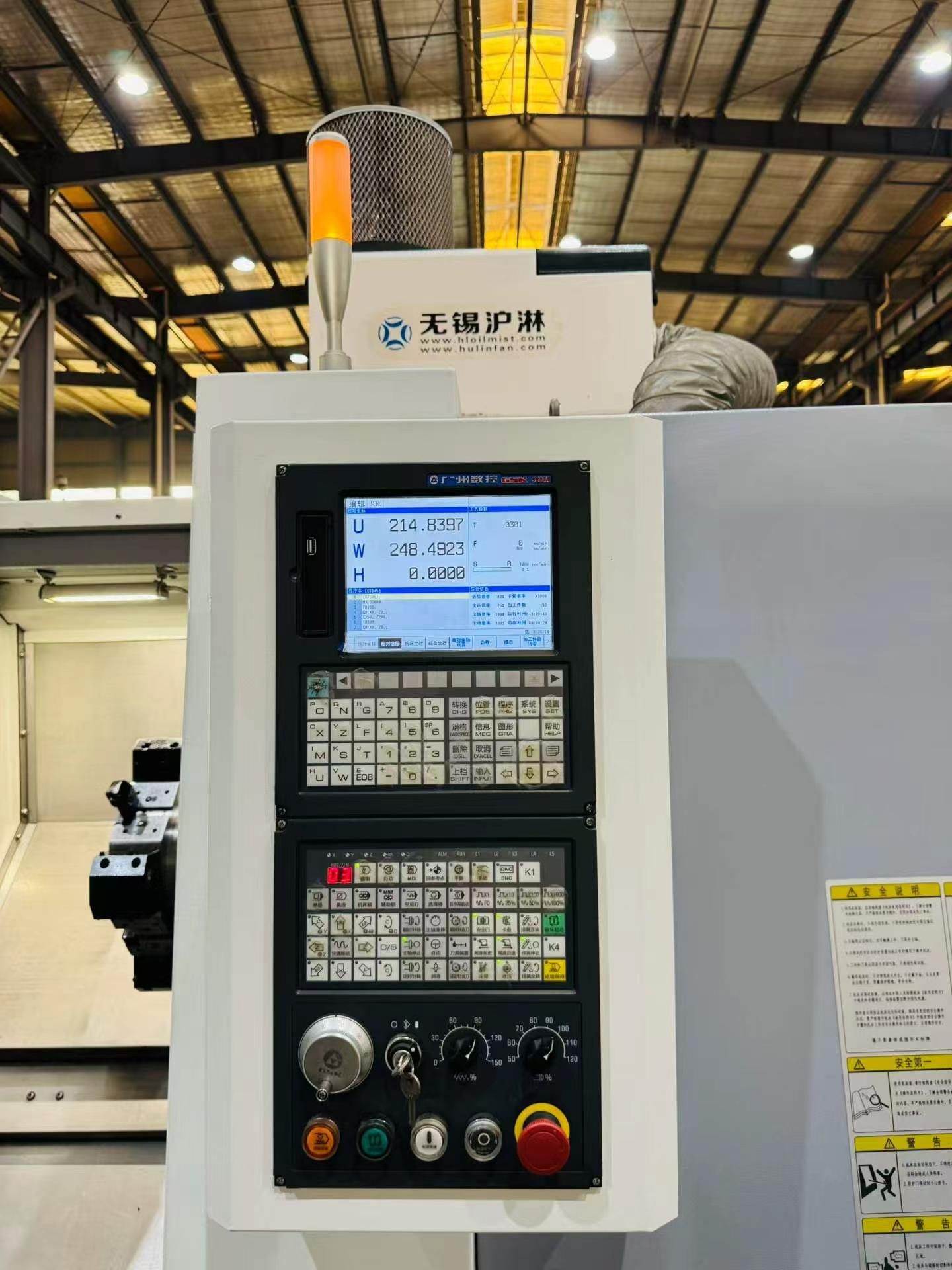

Control system	GSK 988 absolute bus CNC system
Bed structure	Integral 45° cast slant bed
Tailstock	Programmable fully automatic hydraulic tailstock
Brand	Viva
