Back to machines
AvailableCNC Lathe

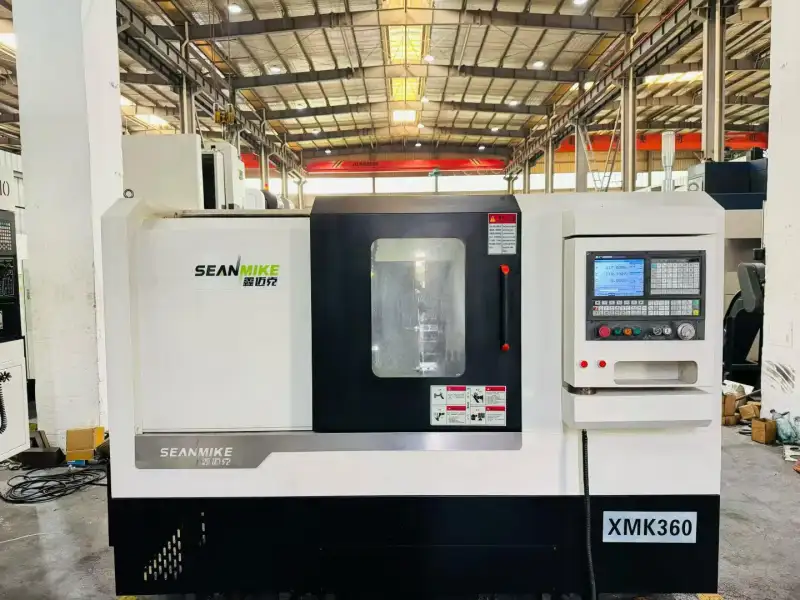

Used SEANMIKE XMK 360 Slant-Bed Turret CNC Lathe with GSK 980 TC 3

This used SEANMIKE XMK 360 is a slant-bed turret CNC lathe built on two-axis heavy-duty roller linear guideways. It offers a Ø500 mm swing, Ø360 mm maximum machining diameter and 400 mm machining length, and is equipped with a Haina A 2-6 spindle unit, 8-inch hollow hydraulic chuck, 8-station servo turret, fully automatic programmable MT 5 hydraulic tailstock and rear chain-type chip conveyor. The GSK 980 TC 3 bus absolute CNC system and 7.5 kW servo main motor complete the package, and the machine is in excellent used condition.

Machine Code
CL261031
Year
On request
Location
China
Usage Hours
On request

Accessories

8-inch hollow hydraulic chuck; 8-station servo turret; fully automatic programmable MT 5 hydraulic tailstock; rear chain-type chip conveyor

Email Inquiry

Main Specifications

Machine typeSlant-bed turret CNC lathe
Swing diameterØ500 mm
Maximum machining diameterØ360 mm
Machining length400 mm
GuidewaysTwo-axis heavy-duty roller linear guideways
Spindle unitHaina A 2-6
Chuck8-inch hollow hydraulic chuck

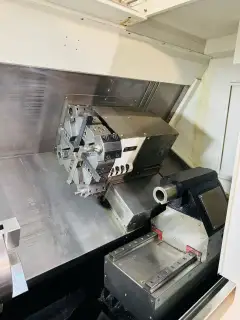

Turret8-station servo turret
TailstockFully automatic programmable MT 5 hydraulic tailstock

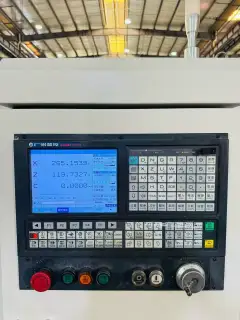

Control systemGSK 980 TC 3 bus absolute CNC system
Spindle motor7.5 kW servo main motor
Chip conveyorRear chain-type chip conveyor
Guideway ConfigurationTwo-axis heavy-duty roller linear guideways
SpindleHaina A 2-6 spindle unit
ControllerGSK 980 TC 3 bus absolute CNC system
BrandXinmaike
ModelXMK 360
Series52
