Used JiRFINE HQT 08-580 U CNC Horizontal Lathe with Siemens 828 D
JiRFINE · HQT08-580U
Year on request · Siemens GSK · China

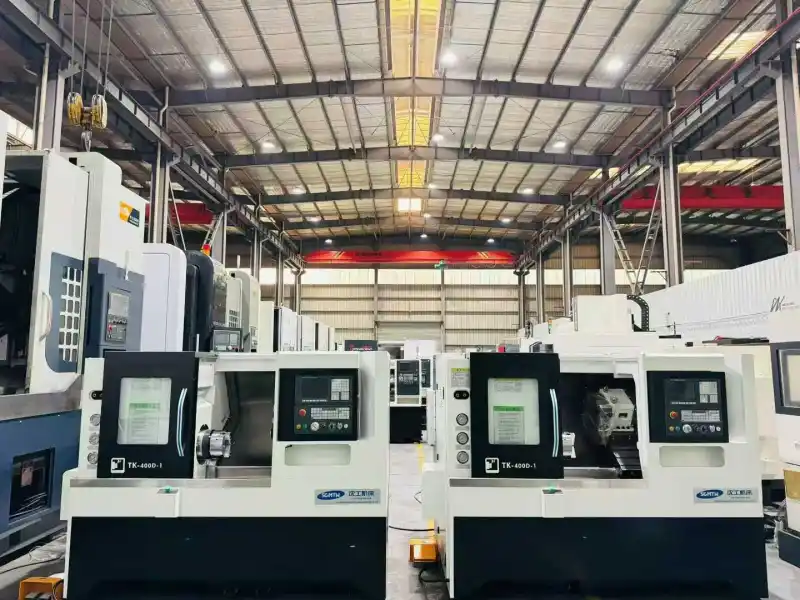

New unused CNC lathe, model TK-400 D, manufactured by Zhejiang Shen Gong. Equipped with two-axis heavy-duty roller linear guideways, swing diameter of 500 mm, and machining length of 400 mm. Features a large-diameter 8-station servo turret, A 2-6 spindle unit, 8-inch hollow hydraulic chuck, MT 5 hydraulic tailstock, and 7.5/11 kW servo main motor. Controlled by GSK 980 TC 3 bus absolute value system. Purchased in early 2026, never installed or used. Two units available. For more details, please contact us.
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
| Swing diameter | 500 mm |
|---|---|
| Machining length | 400 mm |
| Guideway type | Two-axis heavy-duty roller linear guideway |
| Turret stations | 8 |
| Spindle nose | A 2-6 |
| Chuck size | 8inch |
| Tailstock taper | MT 5 |
| Spindle motor power | 7.5/11 kW |

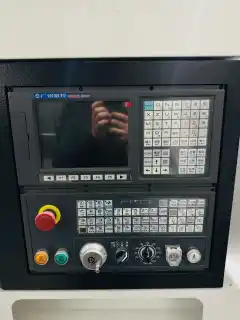

| Controller | GSK 980 TC 3 |
| Machine Type | CNC Lathe |
| Brand | Zhejiang Shen Gong |
| Model | TK-400 D |
| Quantity | 2 |
| Condition | New, never used |
| Turret Type | 8-station servo turret, large diameter |
| Chuck Type | 8-inch hollow hydraulic chuck |
| Tailstock Type | MT 5 hydraulic tailstock |
| Spindle Motor Type | 7.5/11 kW servo motor |
| Controller System | GSK 980 TC 3 absolute bus system |
| Purchase Date | Early 2026 |
| Installation Status | Not installed or used |
| Remarks | Previous owner's investment failed |
| Control system | GSK 980 TC 3 |
| Year of manufacture | 2026 |
